Paper Pulp Inflow Outflow Screening Slot Pressure Screen Basket

The slot type screen basket is used widely in pressure screen. The direction of the screening seam is parallel to the main axis, with a seam width of 0.2-1 millimeters and a spacing of about 3 millimeters. The opening rate is mostly 7-8%. The ability is 30-50% lower than that of a hole type screen basket, and the processing difficulty is also greater, but the quality of the pulp is better.
Availability:
Quantity:

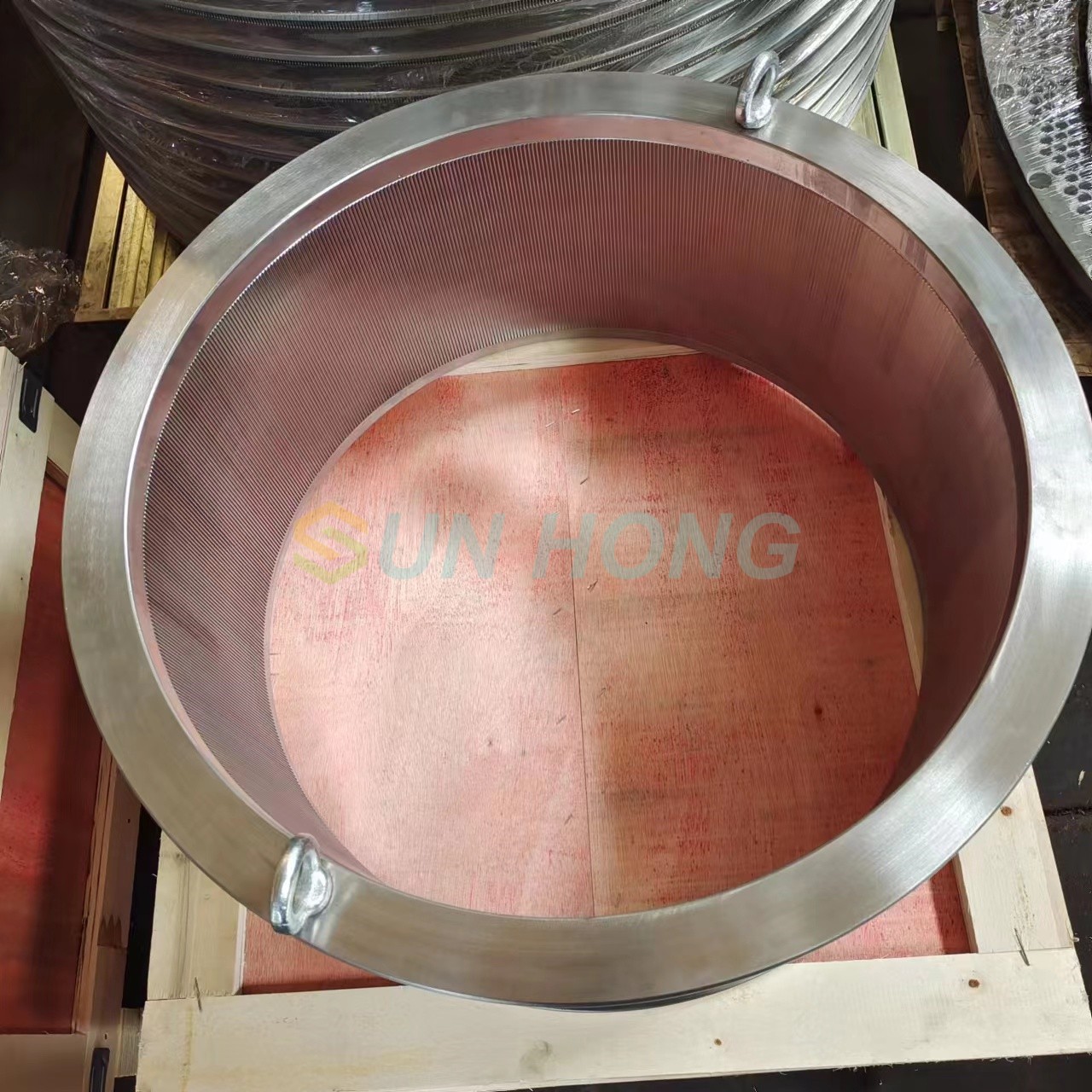

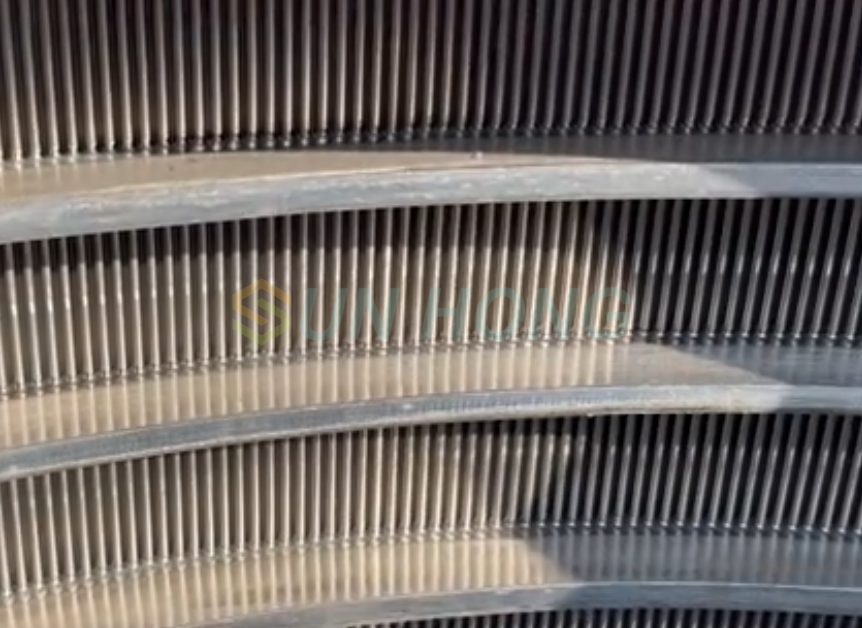

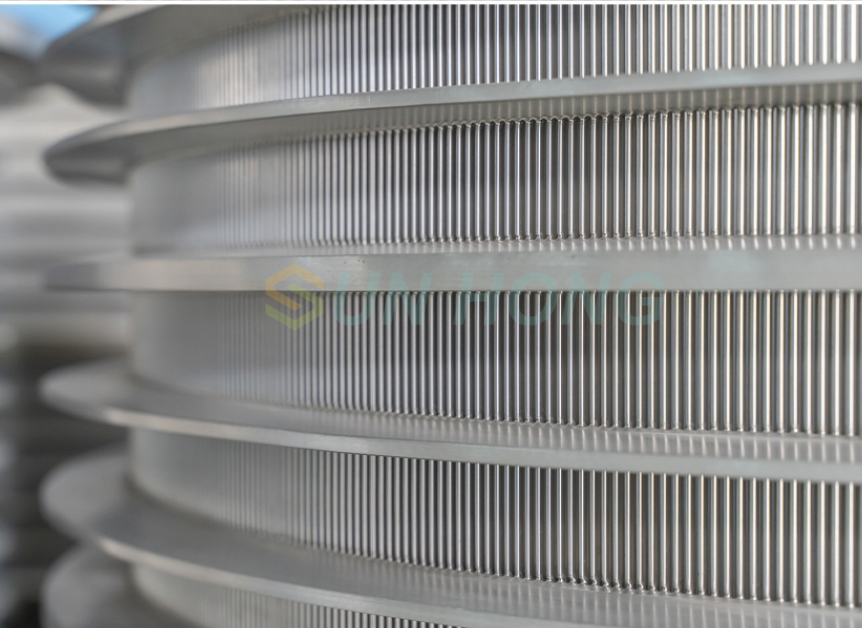

Slot Screen Basket

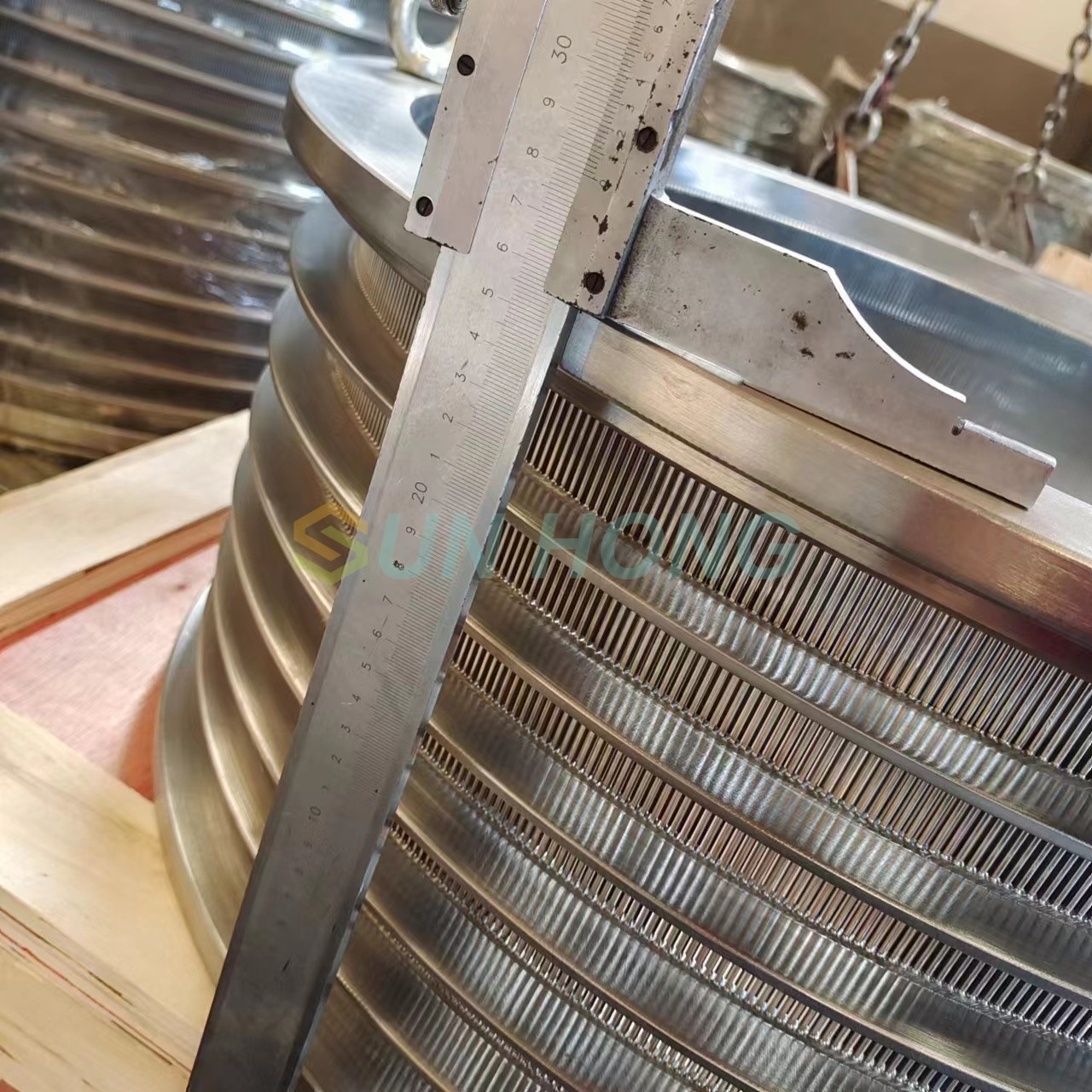

The flange is welded inside is inflow screen basket, while the flange is welded outside is outflow screen basket.SUN HONG has an independent electroplating workshop and mature electroplating technology, with good chrome plating quality to ensure the service life of the screen drum. The rod bars are rolled and imported from abroad to ensure material and precision, while the reinforcing bars are cut by imported laser cutting, which has fast processing speed and high precision. The production cycle of the screen basket is short, and the deviation of the seam width is small.


inflow screen basket

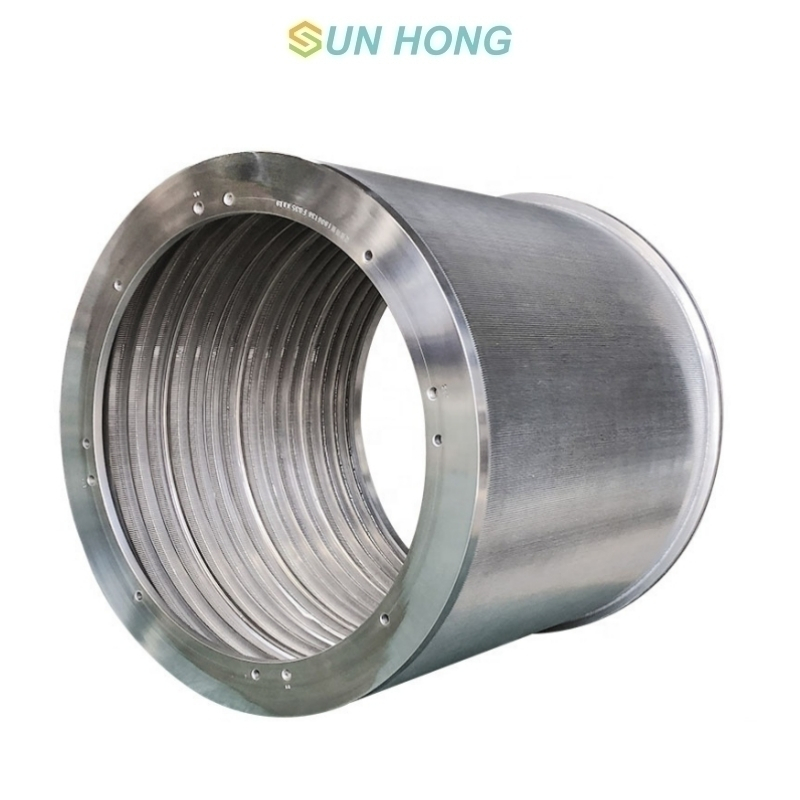

Inflow Slot Screen Basket


1. It is generally used in pulp fine screening and pre screening sections.

2. This type of screen basket has the features of low pulse and low energy consumption during operation.

3. The most suitable rod can be configured according to customer request such as raw materials, production paper types, and processes to meet the screening needs of different pulp materials.


inflow screen basket

Outflow Slot Screen Basket


1. The screen basket is divided into downflow and upflow types.

2. This type of screen basket can be used to remove very small waste impurities, adhesives, hot melt materials, spots, etc. It can be used in pulp roughing, grading screening, fine screening, tailings screening, and even pre screening stages.

3. The most suitable rod can be configured according to customer parameters such as raw materials, production paper types, and processes to meet the screening needs of different pulp materials.
