Paper Pulp Screening Pressure Screen Basket

The function of the screen basket is to screen and filter the fibers in the pulp fiber suspension, remove impurities and non pulp concentrations, thereby improving the quality of the paper. At the same time, the screen basket can also control production capacity and pulp concentration by adjusting the internal and external liquid level difference and the rotation speed of the screen basket.
Availability:
Quantity:
  • SUN HONG

Screen Basket for Pressure Screen


The screen basket is installed in pressure screen. It's main function is to screen and filter the fibers in the pulp fiber suspension, remove impurities and non pulp concentrations, thereby improving the quality of the paper. At the same time, the screen basket can also control production capacity and pulp concentration by adjusting the internal and external liquid level difference and the rotation speed of the screen basket.

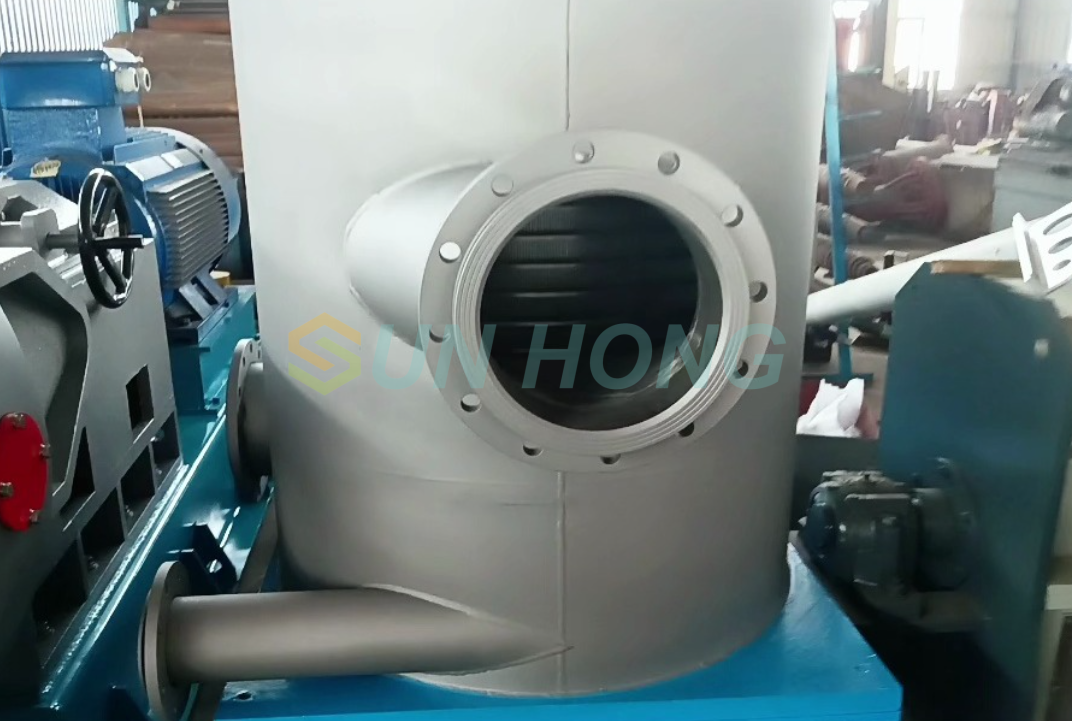

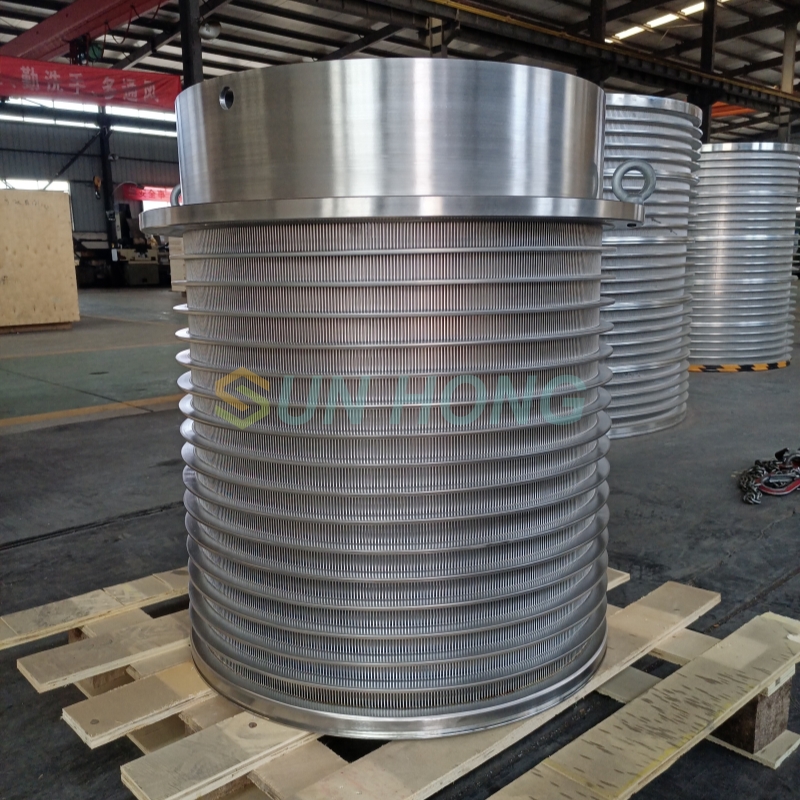

screen basket in the pressure screen


Screen Basket Type


Accroding to prdoction process ,the screen basket mainly have two types, slot type and drilled hole type screen basket. Drilled hole screen basket is mainly used for coarse screening, slot screen basket is mainly used for fine screening.

According to the pulp flow method, the screen basket can be divided into inflow screen basket and outflow screen basket, the flange in the outside is outflow screen basket, the flange in the inside is inflow screen basket.

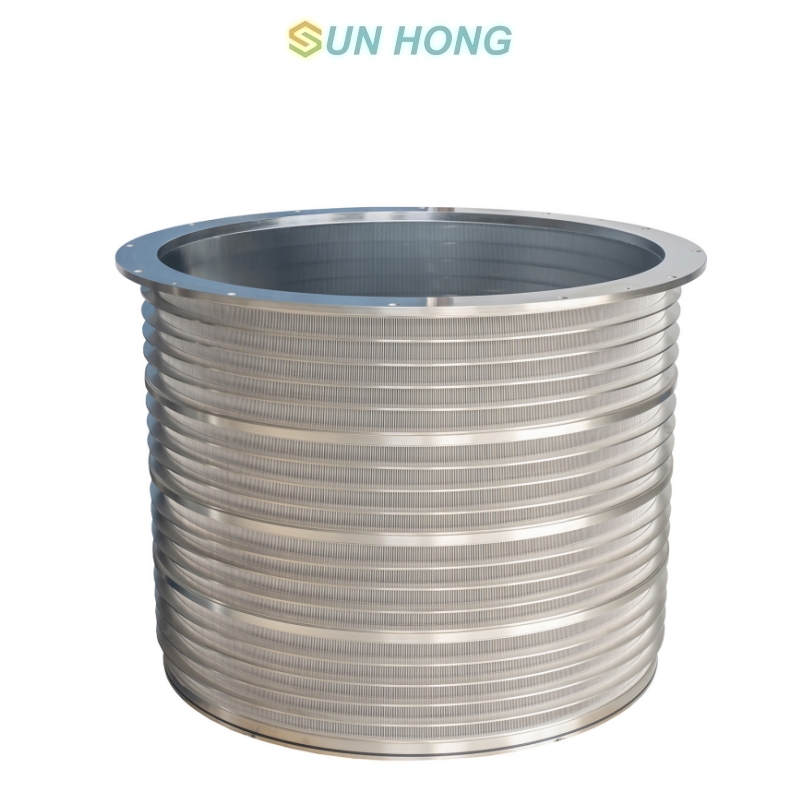

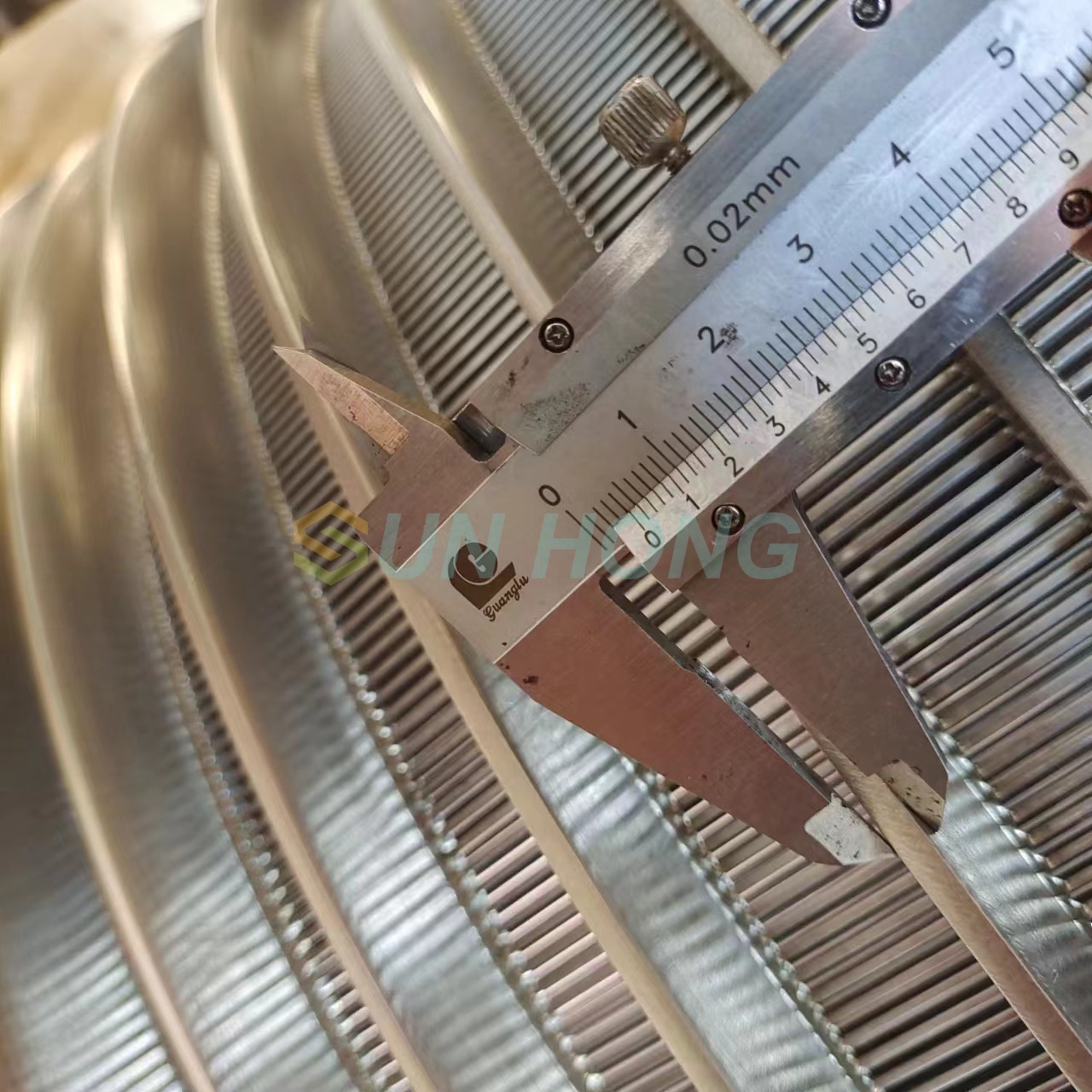

slot screen basket

Slot Screen Baket


Screen type: outflow pressure screen, inflow pressure screen

Surface feature: wave type, spiral strips type

Slot size: ≥ 0.08mm

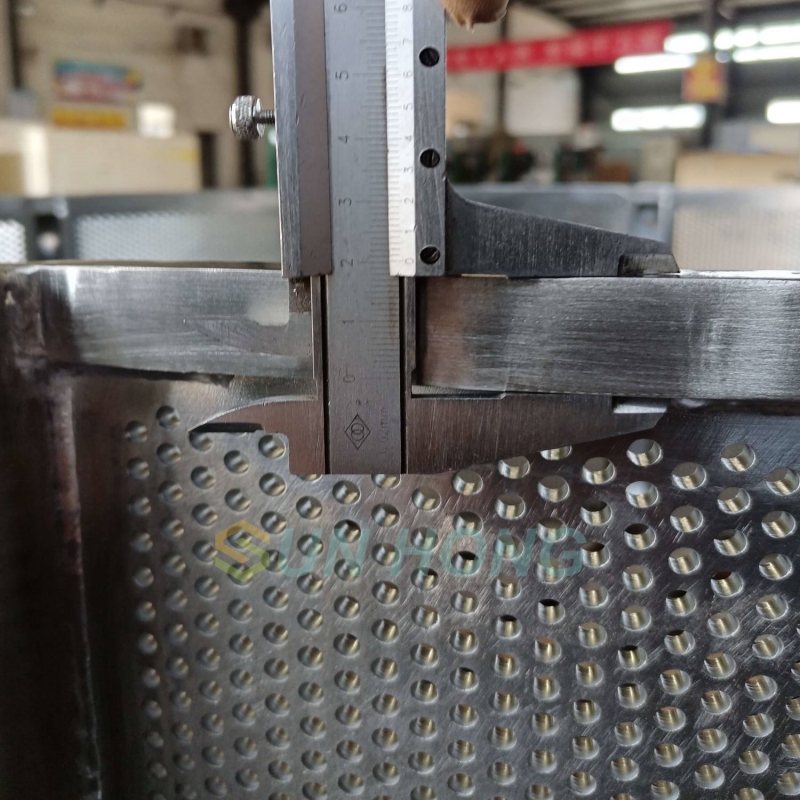

drilled hole screen basket

Drilled Hole Screen Basket


Screen type: outflow pressure screen, inflow pressure screen

Surface feature: wave type, spiral strips type

Hole type: tapered holes, ladder holes

Hole size: ≥ 0.9mm



Appropriate rod geometry and maximum aperture ratio can effectively increase the efficiency of screening equipment and reduce its power consumption.

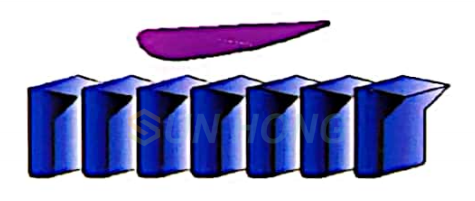

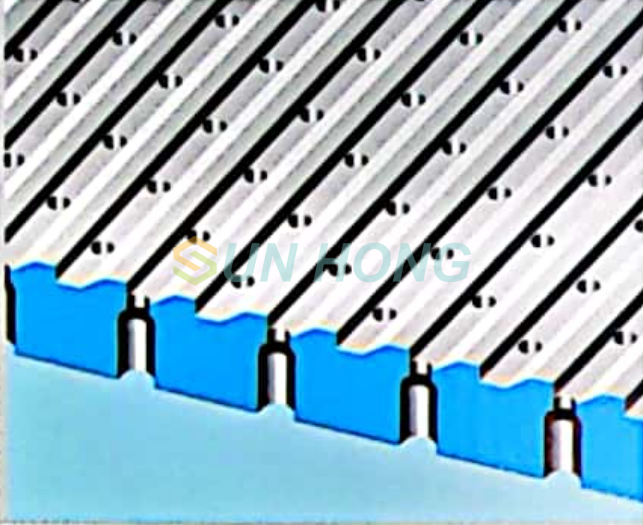

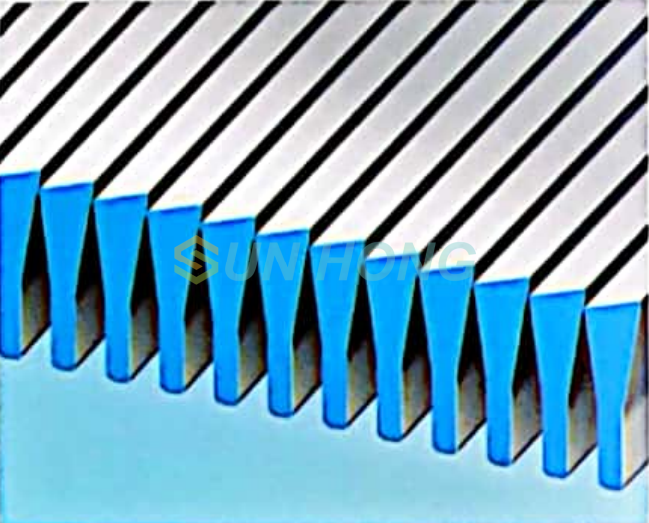

screen basket slot rod

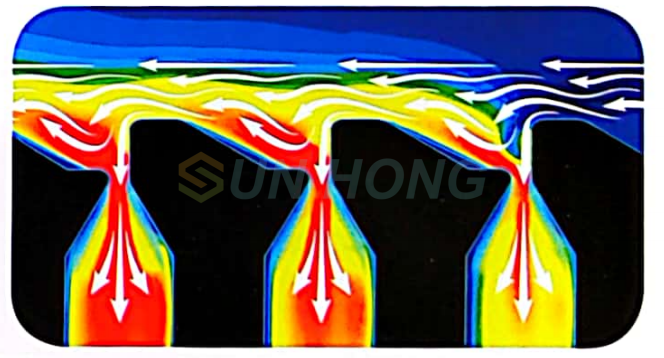

Large Wave, Strong Turbulence

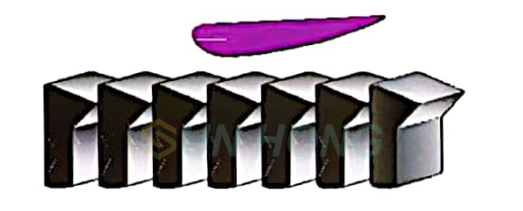

screen basket slot rod

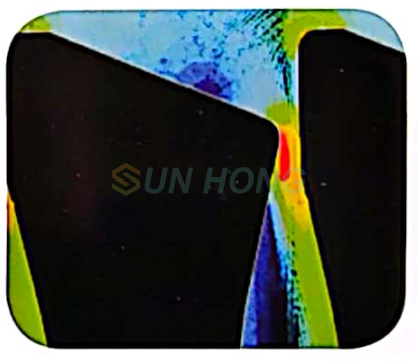

Small Wave, Weak Turbulence

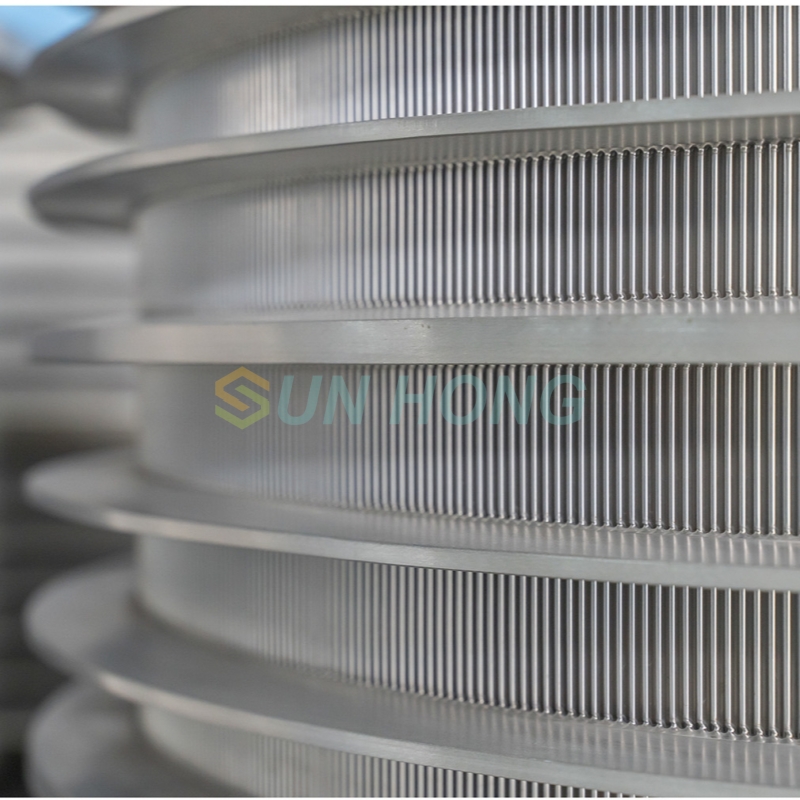

screen basket

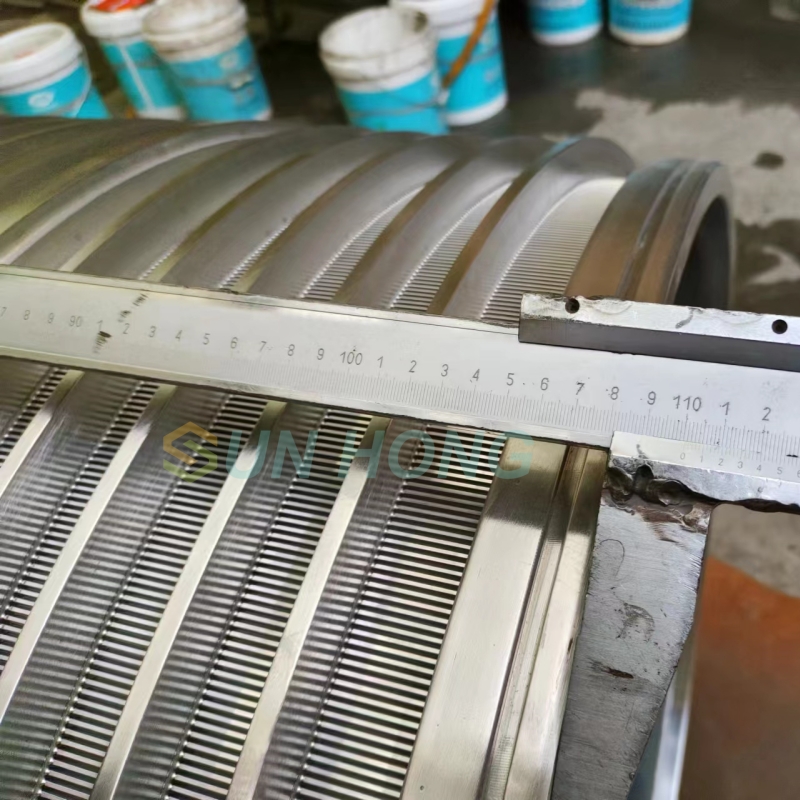

screen basket
