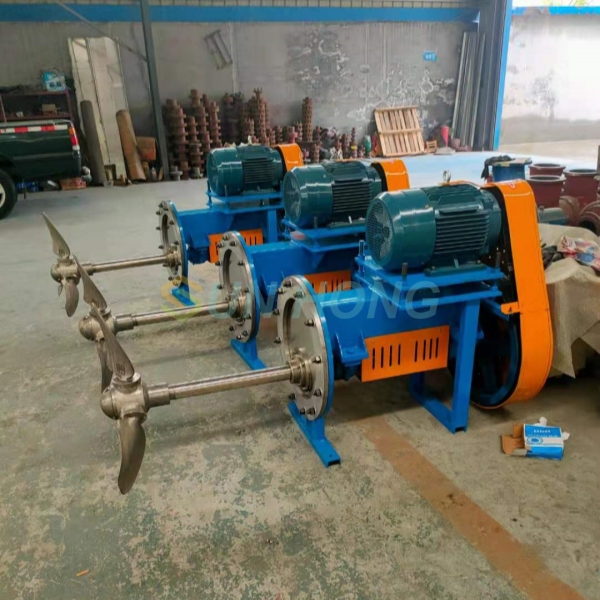

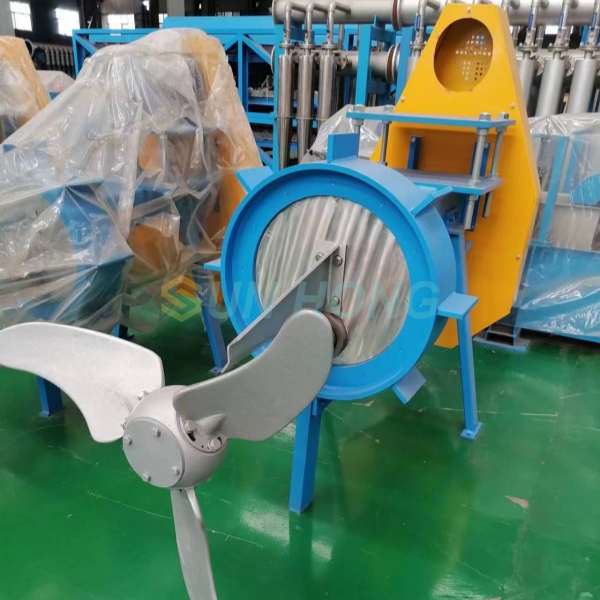

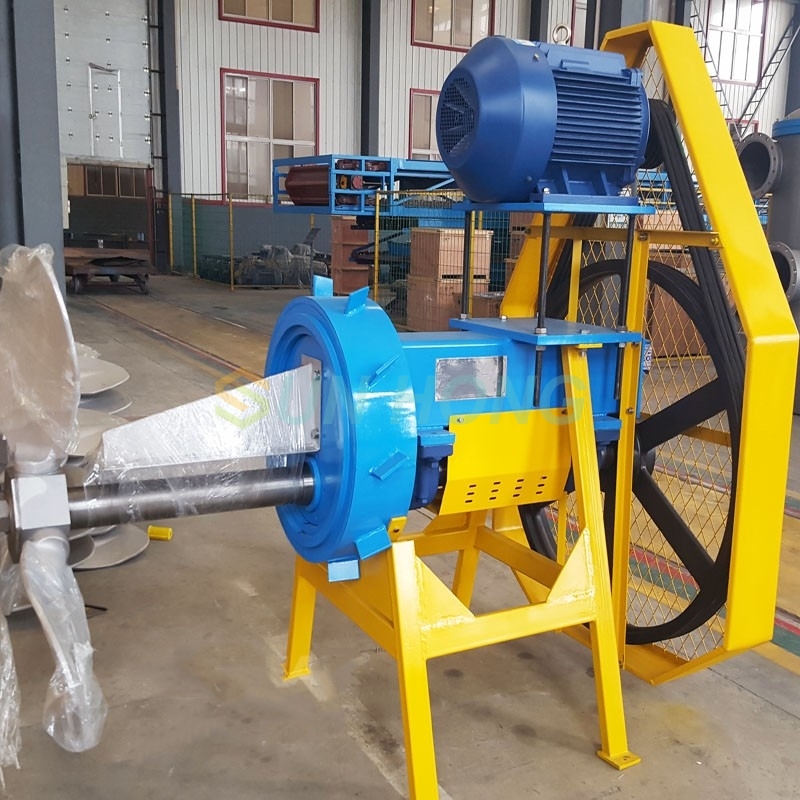

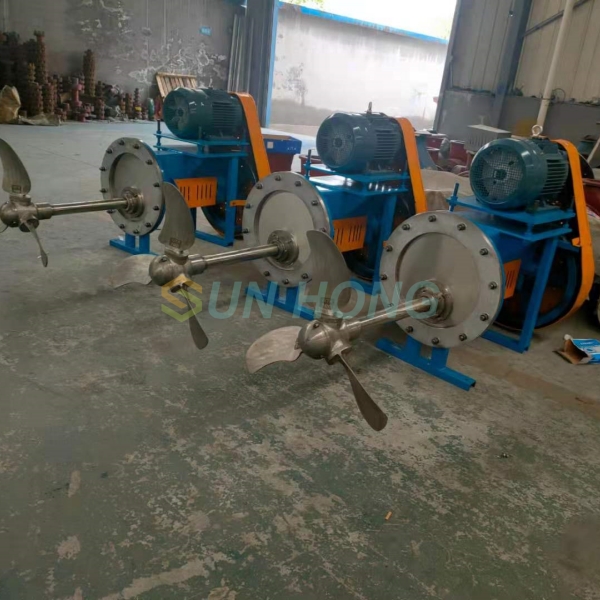

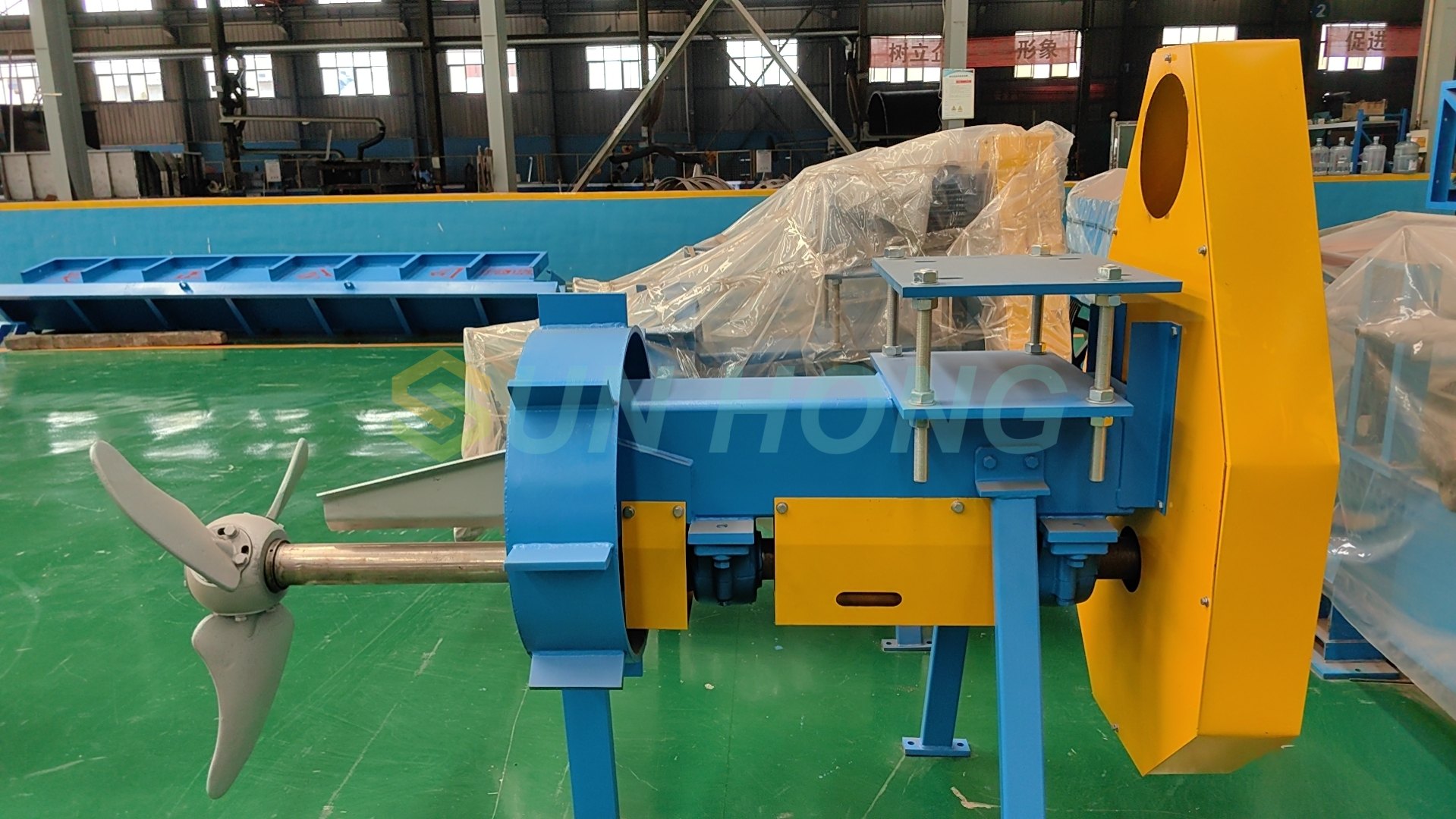

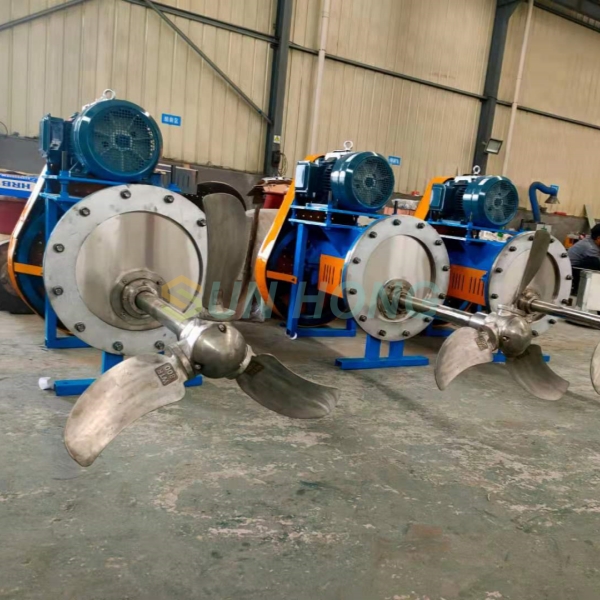

The pulp chest agitator is mainly composed of components such as a motor, a transmission shaft, and blades. The motor provides power to the propeller, and the drive shaft transmits the power of the motor to the blade section, which is a component that directly interacts with the pulp.
The blade adopts advanced design, have powerful thrust, and it can adjust the angle of impeller according to different pulp kind and pulp consistency, have large range of application.
It can use mechanical sealing.
It can mix pulp uniform, with low energy consumption.
Technical Parameter
| Model | SHB600 | SHB800 | SHB1000 | SHB1300 | SHB1800 |
| Impeller diameter (mm) | 600 | 800 | 1000 | 1300 | 1800 |
| Pulp consistency (%) | ≤4.5 | ||||
| Chest Volume (m3) | 20-50 | 50-80 | 80-120 | 100-150 | 150-250 |
| Motor Power (Kw) | 5.5-11 | 7.5-15 | 11-30 | 22-45 | 45-75 |
The pulp chest agitator is mainly composed of components such as a motor, a transmission shaft, and blades. The motor provides power to the propeller, and the drive shaft transmits the power of the motor to the blade section, which is a component that directly interacts with the pulp.
The blade adopts advanced design, have powerful thrust, and it can adjust the angle of impeller according to different pulp kind and pulp consistency, have large range of application.
It can use mechanical sealing.
It can mix pulp uniform, with low energy consumption.
Technical Parameter
| Model | SHB600 | SHB800 | SHB1000 | SHB1300 | SHB1800 |
| Impeller diameter (mm) | 600 | 800 | 1000 | 1300 | 1800 |
| Pulp consistency (%) | ≤4.5 | ||||
| Chest Volume (m3) | 20-50 | 50-80 | 80-120 | 100-150 | 150-250 |
| Motor Power (Kw) | 5.5-11 | 7.5-15 | 11-30 | 22-45 | 45-75 |
