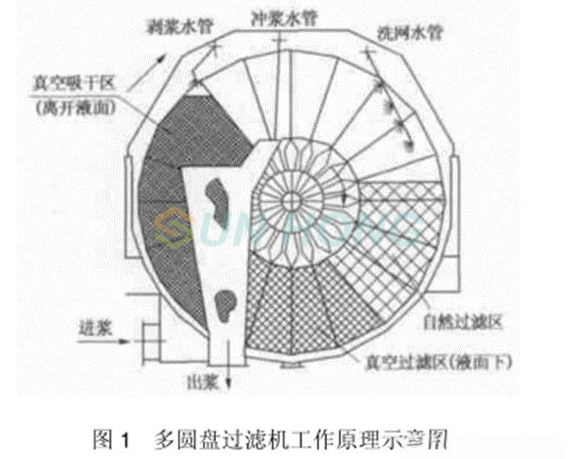

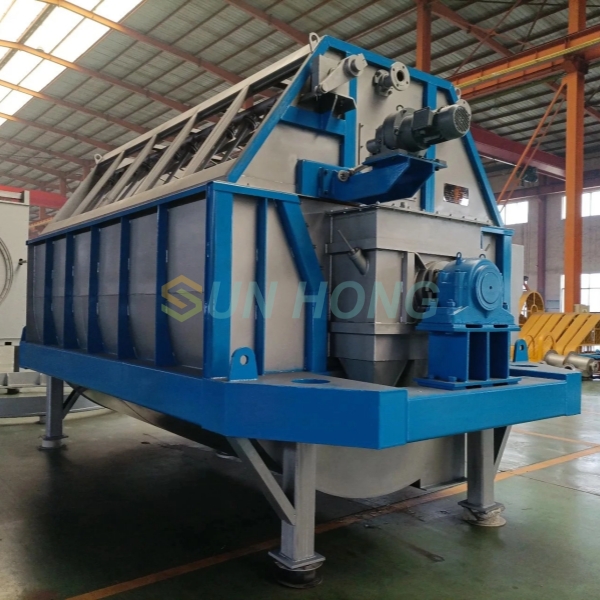

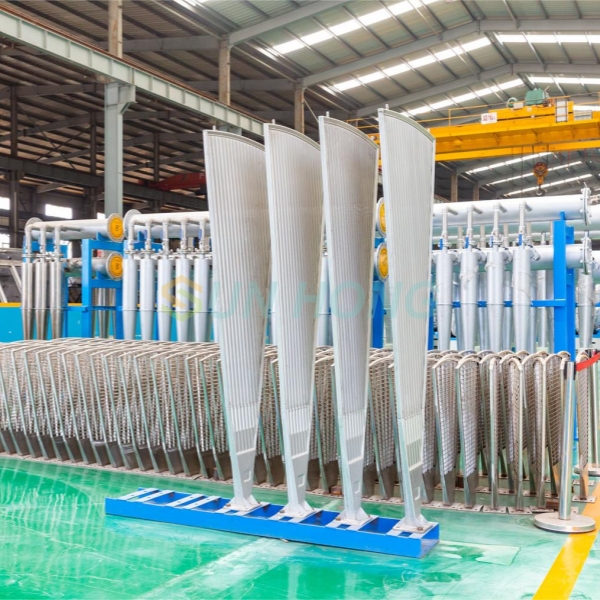

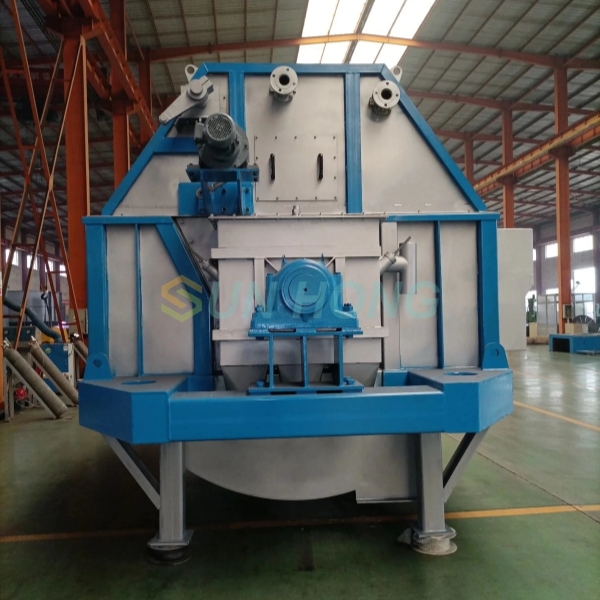

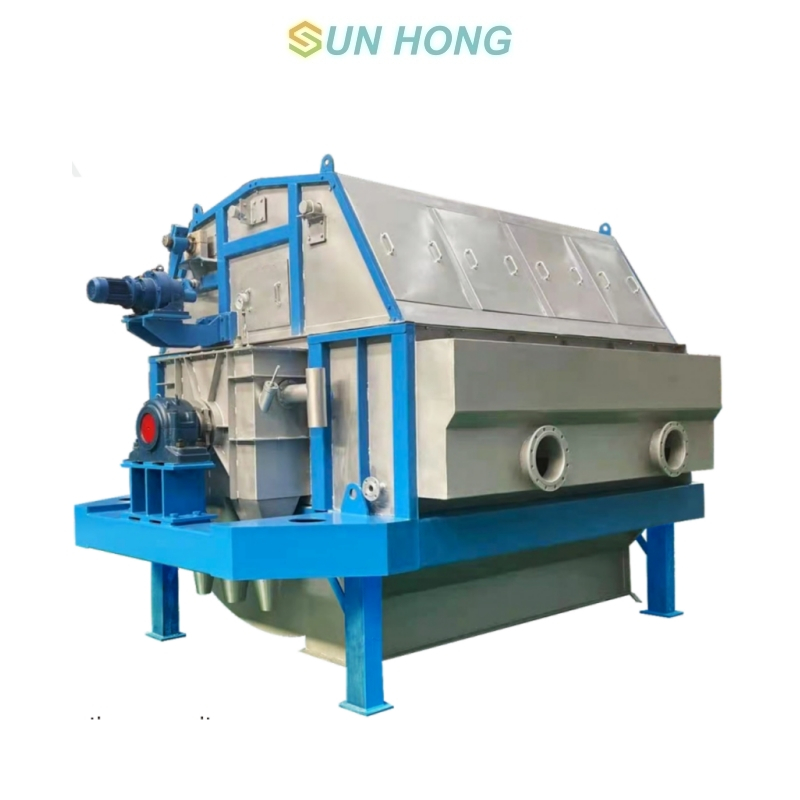

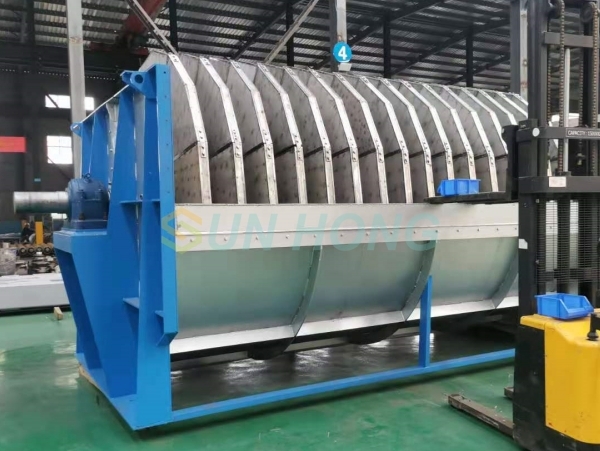

The multi disc filter is composed of components such as the inlet box, filter tank, core shaft, fan-shaped filter plate, and distribution valve. The working principle is based on vacuum power to achieve staged solid-liquid separation. Its core process includes four circulation stages: natural filtration, vacuum suction filtration, ultra clean dehydration, and filter regeneration. The vacuum formed by the water leg tube is used as the filtering driving force, and the circular process is completed periodically by rotating the fan-shaped filter plate on the disc. To achieve white water recovery and fiber concentration through progressive filtration.
1.Energy saving: The water leg tube vacuum system requires no additional energy consumption, with a single unit power of only 11kW, saving 30% energy compared to traditional equipment.
2.Automation: By dynamically adjusting the filtrate ratio through the distribution valve, the slurry concentration is stabilized at 4-6%.
3.Environmental benefits: Increase the recycling rate of white water by 20%, reduce water consumption and wastewater discharge.
Technical Parameter
For Pulp Concentration
| Model | SH2500 | SH3600 | SH4500 | SH5200 |
| Disc diameter (mm) | 2500 | 3600 | 4500 | 5200 |
| Single disc filtration area (m2) | 7 | 15 | 26 | 32 |
| Capcity of pulp treatment (t/m2/d) | 0.6-1.2 | |||
| Rotating speed (r/min) | 0.2-2 | |||
| Clarity of clear filtrate (mg/L) | 100 | |||
| Inlet concentration | 0.8-1.2 | |||
| Outlet concentration (%) | 8-15% | |||
| Water pressure of washing mesh (Mpa) | 0.7-0.9 | |||
| Water pressure of pulp striping (Mpa) | 0.7-0.9 | |||
| Water pressure of pulp slush (Mpa) | 0.2-0.3 | |||
| Motor (Kw) | 5.5 | 7.5-15 | 11-15 | 11-18.5 |
For White Water Recovery
| Model | SH2500 | SH3600 | SH4500 | SH5200 |
| Disc diameter (mm) | 2500 | 3600 | 4500 | 5200 |
| Single disc filtration area (m2) | 7 | 15 | 26 | 32 |
| White water flow (m3/m2h) | 1.6-3.8 | |||
| Fiber recovery rate (%) | 90-95% | |||
| Clarity of clear filtrate (mg/L) | ＜60 | |||
| Clarity of super clear filtrate (mg/L) | ＜30 | |||
| Clarity of turbid filtrate (mg/L) | ＜400 | |||
| Outlet concentration (%) | ≥3.5-4.5% | |||
| Water pressure of washing mesh (Mpa) | 0.7-0.9 | |||
| Water pressure of pulp striping (Mpa) | 0.7-0.9 | |||
| Water pressure of pulp slush (Mpa) | 0.2-0.3 | |||
| Motor (Kw) | 5.5 | 5.5 | 11-15 | 11-15 |
The multi disc filter is composed of components such as the inlet box, filter tank, core shaft, fan-shaped filter plate, and distribution valve. The working principle is based on vacuum power to achieve staged solid-liquid separation. Its core process includes four circulation stages: natural filtration, vacuum suction filtration, ultra clean dehydration, and filter regeneration. The vacuum formed by the water leg tube is used as the filtering driving force, and the circular process is completed periodically by rotating the fan-shaped filter plate on the disc. To achieve white water recovery and fiber concentration through progressive filtration.
1.Energy saving: The water leg tube vacuum system requires no additional energy consumption, with a single unit power of only 11kW, saving 30% energy compared to traditional equipment.
2.Automation: By dynamically adjusting the filtrate ratio through the distribution valve, the slurry concentration is stabilized at 4-6%.
3.Environmental benefits: Increase the recycling rate of white water by 20%, reduce water consumption and wastewater discharge.
Technical Parameter
For Pulp Concentration
| Model | SH2500 | SH3600 | SH4500 | SH5200 |
| Disc diameter (mm) | 2500 | 3600 | 4500 | 5200 |
| Single disc filtration area (m2) | 7 | 15 | 26 | 32 |
| Capcity of pulp treatment (t/m2/d) | 0.6-1.2 | |||
| Rotating speed (r/min) | 0.2-2 | |||
| Clarity of clear filtrate (mg/L) | 100 | |||
| Inlet concentration | 0.8-1.2 | |||
| Outlet concentration (%) | 8-15% | |||
| Water pressure of washing mesh (Mpa) | 0.7-0.9 | |||
| Water pressure of pulp striping (Mpa) | 0.7-0.9 | |||
| Water pressure of pulp slush (Mpa) | 0.2-0.3 | |||
| Motor (Kw) | 5.5 | 7.5-15 | 11-15 | 11-18.5 |
For White Water Recovery
| Model | SH2500 | SH3600 | SH4500 | SH5200 |
| Disc diameter (mm) | 2500 | 3600 | 4500 | 5200 |
| Single disc filtration area (m2) | 7 | 15 | 26 | 32 |
| White water flow (m3/m2h) | 1.6-3.8 | |||
| Fiber recovery rate (%) | 90-95% | |||
| Clarity of clear filtrate (mg/L) | ＜60 | |||
| Clarity of super clear filtrate (mg/L) | ＜30 | |||
| Clarity of turbid filtrate (mg/L) | ＜400 | |||
| Outlet concentration (%) | ≥3.5-4.5% | |||
| Water pressure of washing mesh (Mpa) | 0.7-0.9 | |||
| Water pressure of pulp striping (Mpa) | 0.7-0.9 | |||
| Water pressure of pulp slush (Mpa) | 0.2-0.3 | |||
| Motor (Kw) | 5.5 | 5.5 | 11-15 | 11-15 |
