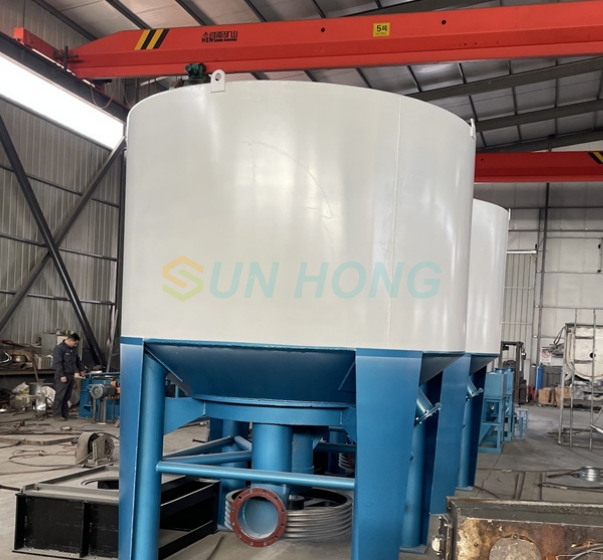

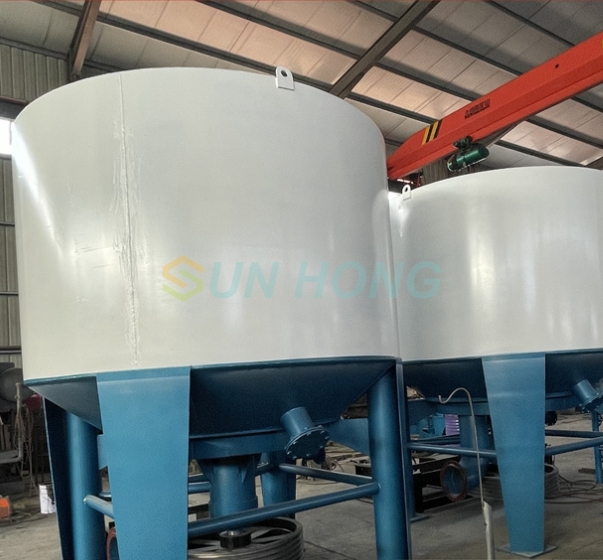

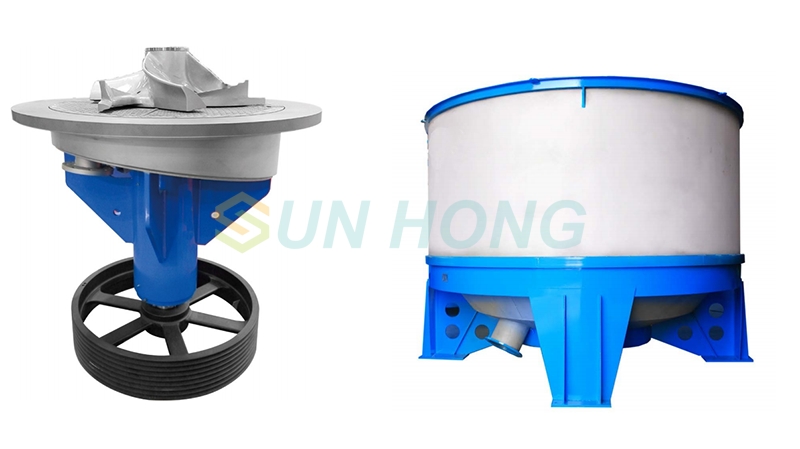

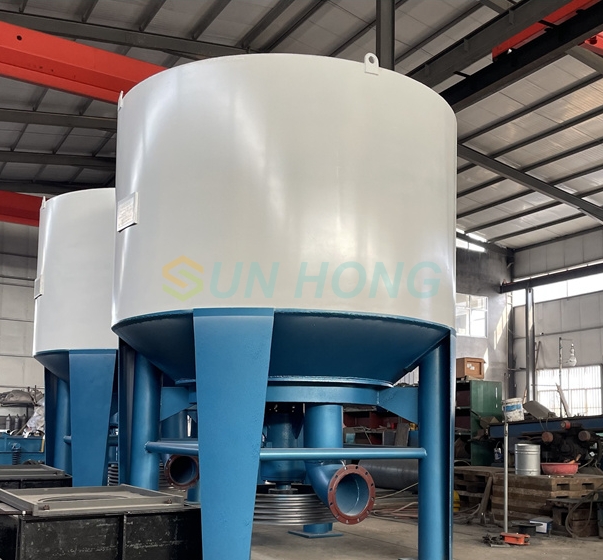

Middle consistency hydrapulper is mainly used for shredding various pulp boards, damaged paper, and various waste papers. With strong evacuation ability, wide adaptability, simple structure, and convenient operation and maintenance, it is currently an ideal equipment for waste paper pulping.
The working principle of a hydra pulper is mainly to use a hydraulic drive system (such as a motor) to drive the pulping system (such as a rotor or drum) to rotate, crushing waste or pulp into small pieces, and further pulping the fragments through high-speed rotating blades or partitions on the inner wall of the cylinder. During the fragmentation process, the slurry is subjected to strong turbulent circulation, tearing, shearing, and friction, thereby achieving fiber separation and refinement.
1.Mainly used for pulping of market pulp and other clean raw material, mid consistency 5-8%.

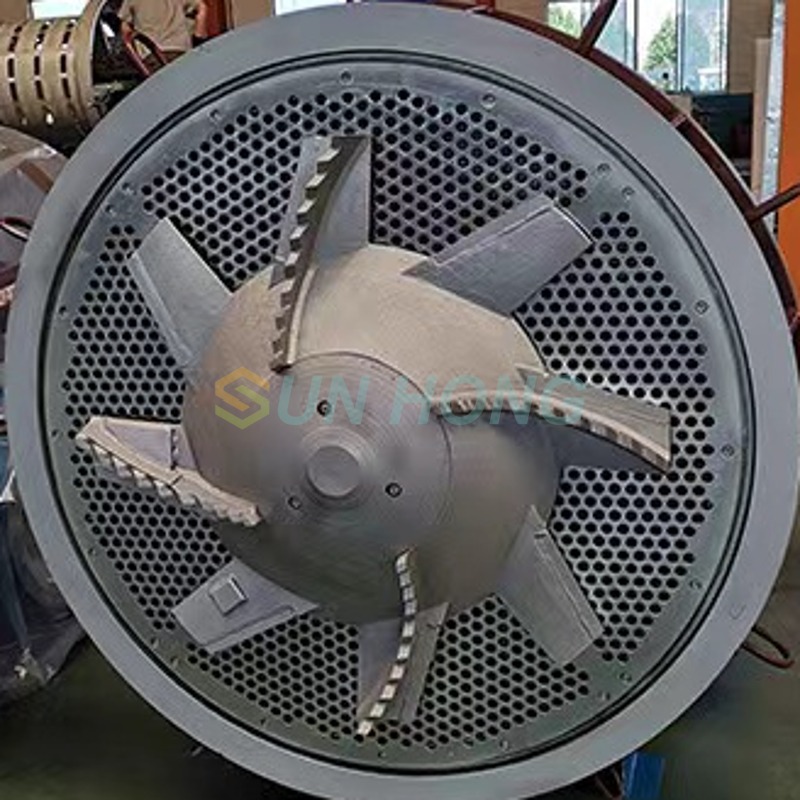

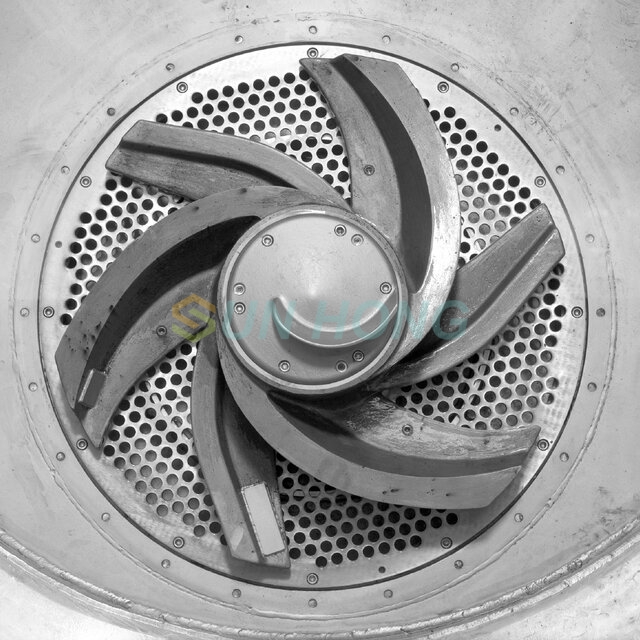

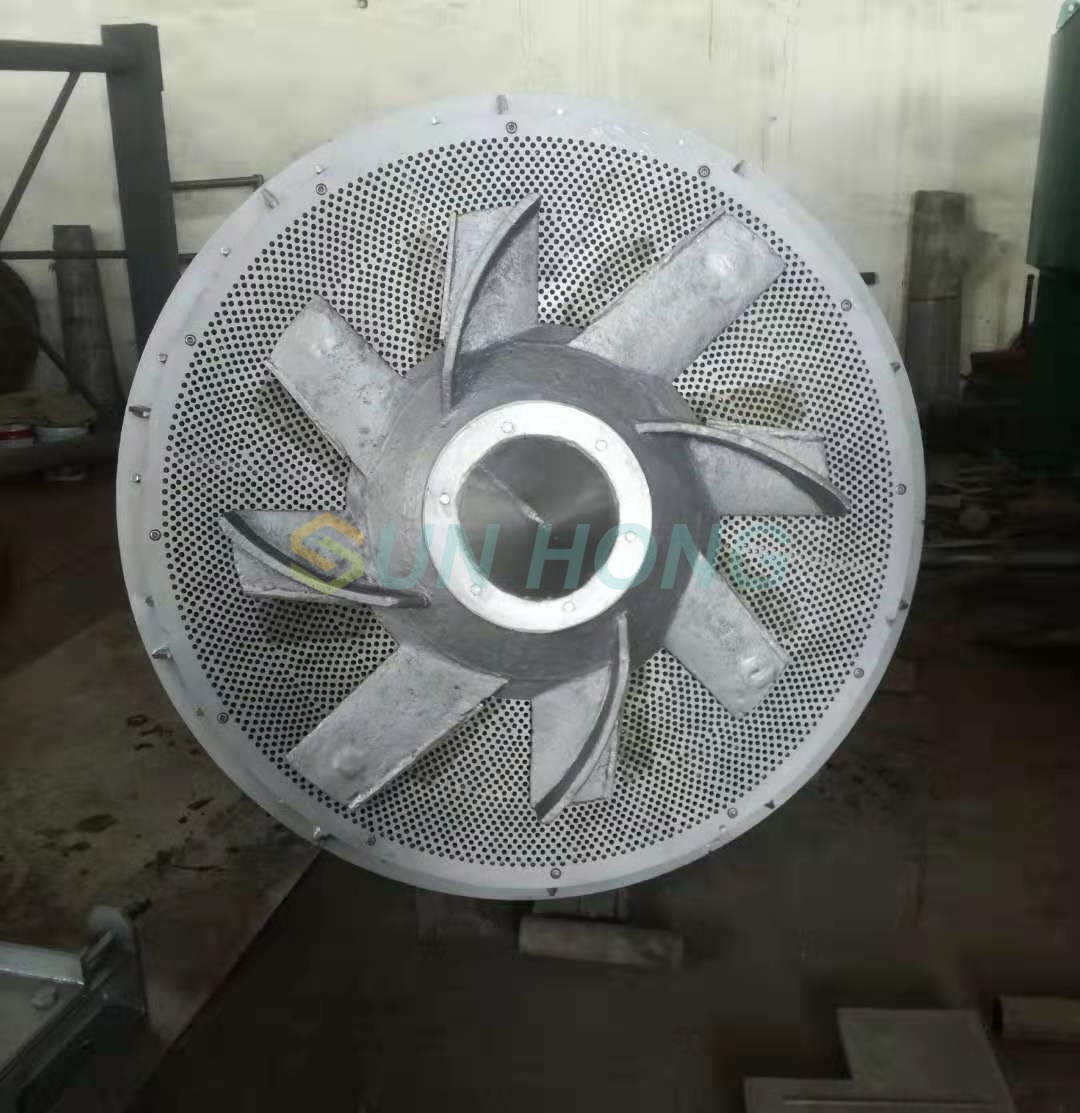

2.Energy saving type mid consistency rotor, clearance between rotor and pulper plate is adjustable.
1. The pulp concentration of middle consistency hydrapulper is usually between 5% and 15%, while that of high consistency hydrapulper is between 15% and 20%.
2. The design of the middle consistency hydrapulper is relatively simple, easy to operate and use, with high cost-effectiveness, and is commonly used in small-scale production. And high consistency hydrapulper is designed for high concentration fluids, usually using larger rotors and screens, with the ability to handle large amounts of pulp and high power consumption.

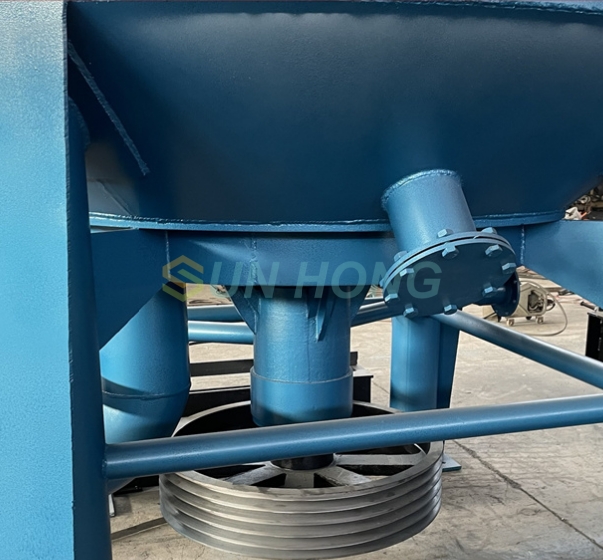

3. middle consistency hydrapulper typically use a single gear or reducer to drive the rotation of the rotor, while high consistency hydrapulper often adopt a dual gear or dual reducer design to ensure high torque and efficient output.
Techinical Parameter
| Model | SHV106 | SHV112 | SHV226 | SHV356 | SHV4120 |
| Nominal volume (m3) | 6 | 12 | 26 | 56 | 120 |
| Capacity (T/D) | 20-50 | 40-100 | 80-210 | 180-400 | 400-900 |
| Motor power (Kw) | 45-90 | 75-160 | 160-355 | 315-800 | 630-1500 |
| Pulp consistency (%) | 6-7% | ||||
Middle consistency hydrapulper is mainly used for shredding various pulp boards, damaged paper, and various waste papers. With strong evacuation ability, wide adaptability, simple structure, and convenient operation and maintenance, it is currently an ideal equipment for waste paper pulping.
The working principle of a hydra pulper is mainly to use a hydraulic drive system (such as a motor) to drive the pulping system (such as a rotor or drum) to rotate, crushing waste or pulp into small pieces, and further pulping the fragments through high-speed rotating blades or partitions on the inner wall of the cylinder. During the fragmentation process, the slurry is subjected to strong turbulent circulation, tearing, shearing, and friction, thereby achieving fiber separation and refinement.
1.Mainly used for pulping of market pulp and other clean raw material, mid consistency 5-8%.
2.Energy saving type mid consistency rotor, clearance between rotor and pulper plate is adjustable.
1. The pulp concentration of middle consistency hydrapulper is usually between 5% and 15%, while that of high consistency hydrapulper is between 15% and 20%.
2. The design of the middle consistency hydrapulper is relatively simple, easy to operate and use, with high cost-effectiveness, and is commonly used in small-scale production. And high consistency hydrapulper is designed for high concentration fluids, usually using larger rotors and screens, with the ability to handle large amounts of pulp and high power consumption.
3. middle consistency hydrapulper typically use a single gear or reducer to drive the rotation of the rotor, while high consistency hydrapulper often adopt a dual gear or dual reducer design to ensure high torque and efficient output.
Techinical Parameter
| Model | SHV106 | SHV112 | SHV226 | SHV356 | SHV4120 |
| Nominal volume (m3) | 6 | 12 | 26 | 56 | 120 |
| Capacity (T/D) | 20-50 | 40-100 | 80-210 | 180-400 | 400-900 |
| Motor power (Kw) | 45-90 | 75-160 | 160-355 | 315-800 | 630-1500 |
| Pulp consistency (%) | 6-7% | ||||
