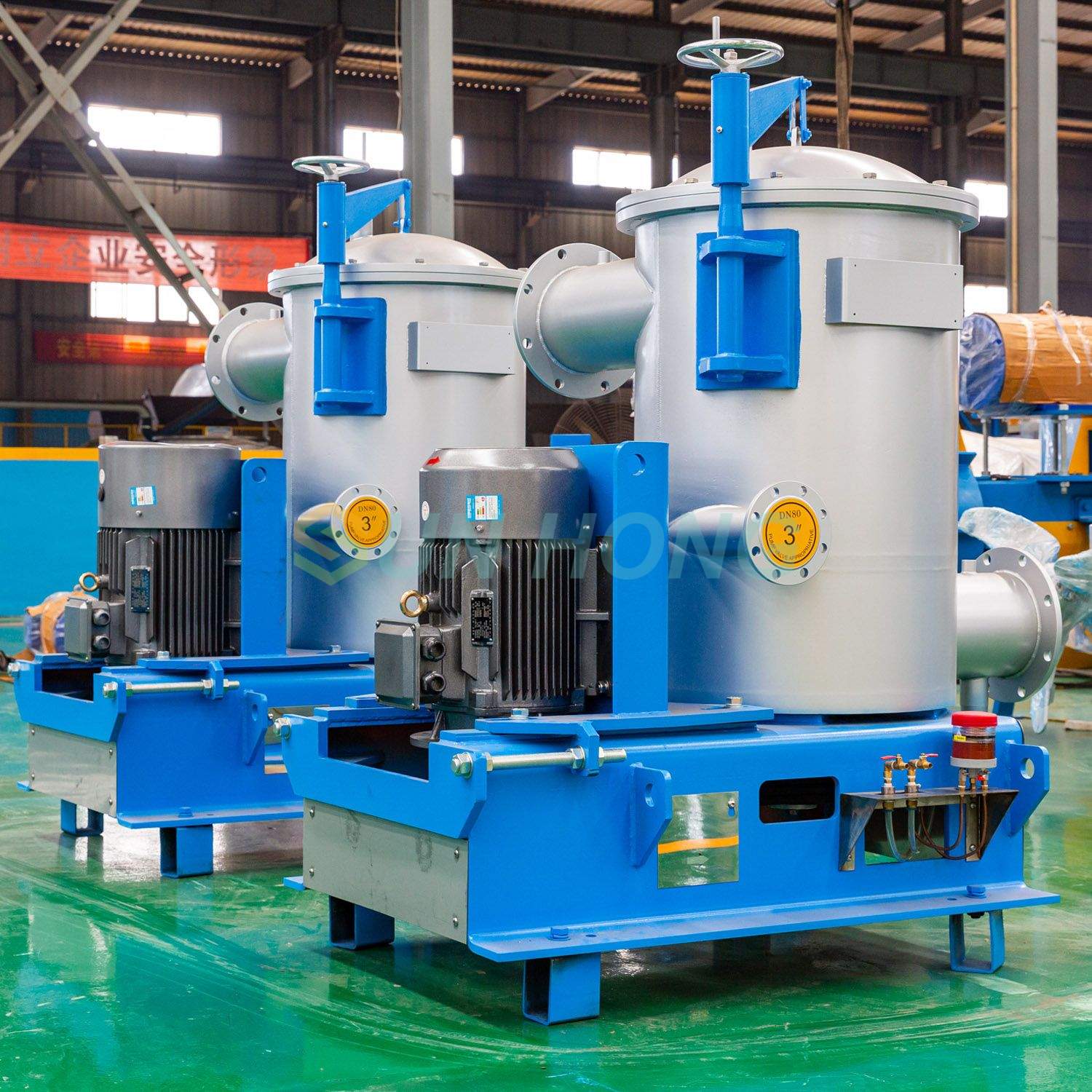

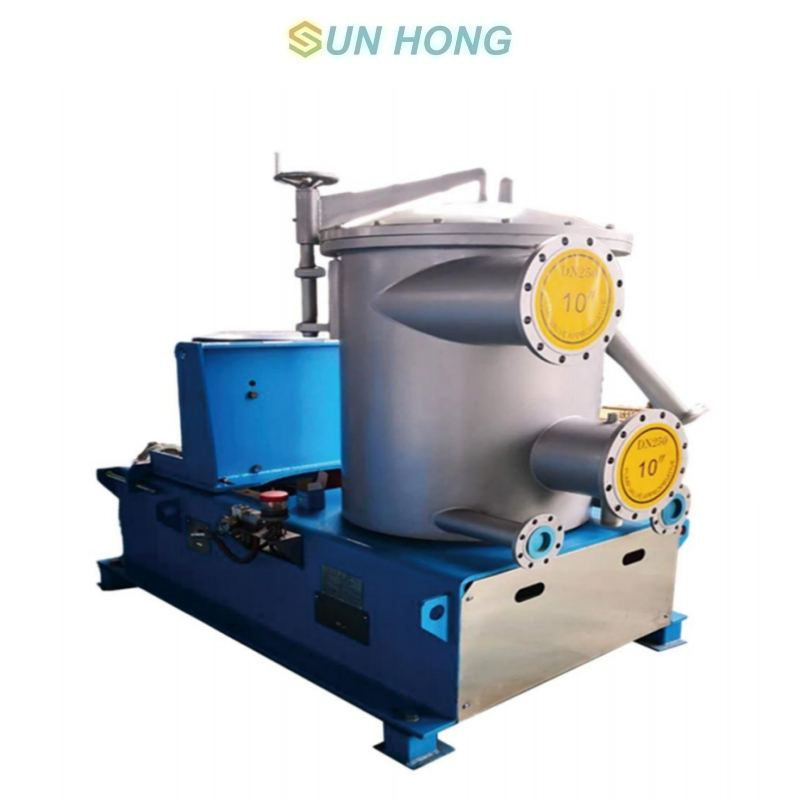

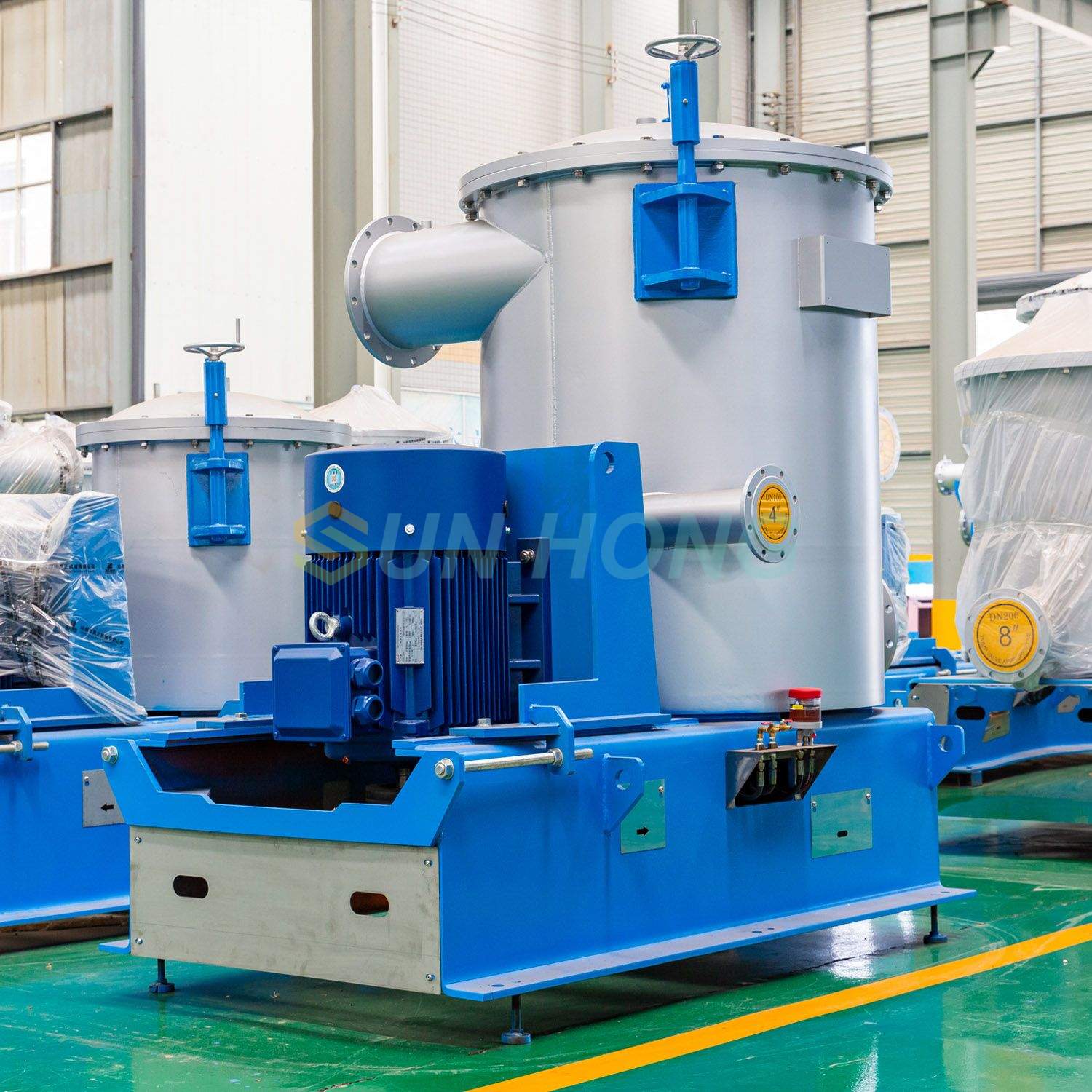

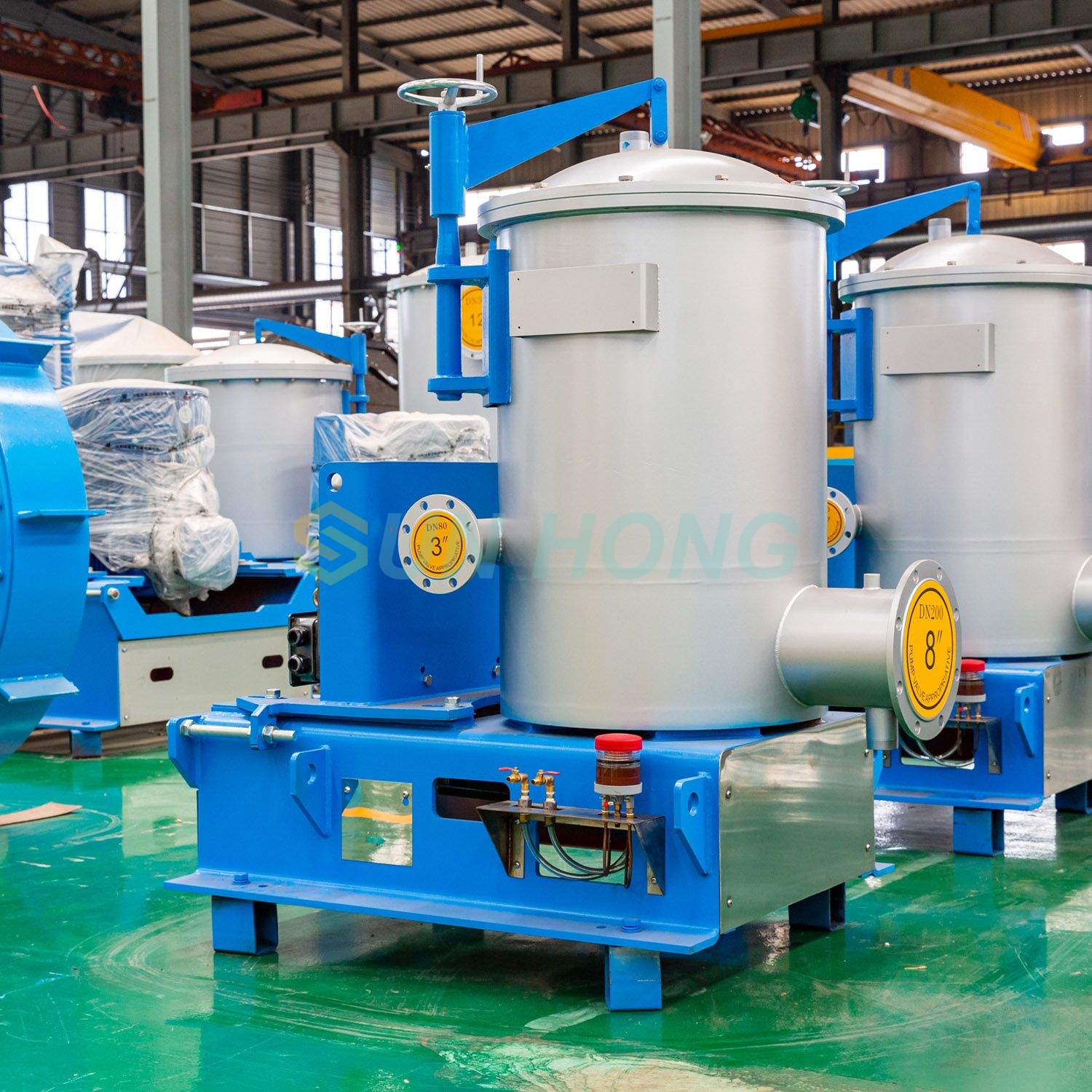

Paper Pulp Screening Equipment Inflow Pressure Screen

Inflow Pressure Screen

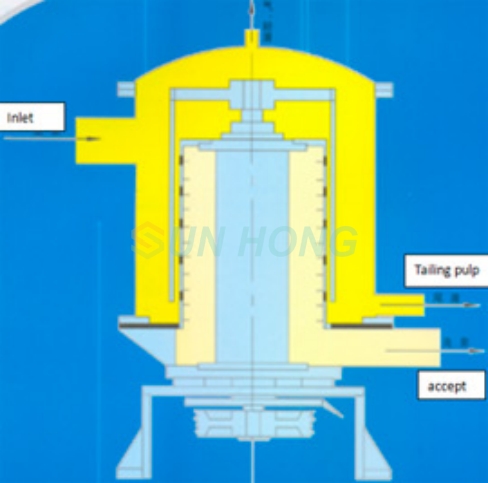

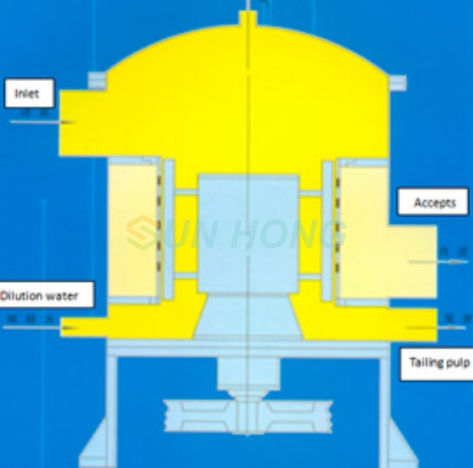

The inflow pressure screen is continuously screening pulp with pressure under compelet enclosed status. When the pressure screen is working , the unscreened pulp from the top inlet pipe into the outside of screen basket, and use the inner and outer pressure difference of screen basket, the good pulp will through slot hole into the screen basket under the function of the pressure.And the good pulp will pour out from the bottom accepts pipe, it couldn't be poured out from slag discharge pipe. The rotary foil of ouside screen basket can produce a mild pressure to improve the pulp circumferential flow, the tail section will generate negative pressure to back flushing the slot hole. It can prevent the slot hole clogged, so that promise the pulp and though the slot hole smoothly to ensure screening continuously.

The Difference between Inflow Pressure Screen & Outflow Pressure Screen

Inflow Pressure Screen: the accepst is inside of screen basket

Outflow Pressure Screen: the accepst is outside of screen basket

Main Features of Inflow Pressure Screen

1.Small motor power,energy saving,but big capacity.

2.Inflow structure,low pulsation,good formation on wire.

3.Difuse outlet desian,smooth accept flow,no spacer flange,inner surface polishing treatment,seamless connection of pipeline,no fiber hanging.

4.Modular design of main machine and drive,stable and reliable structure,easy and fast installationand maintenance.

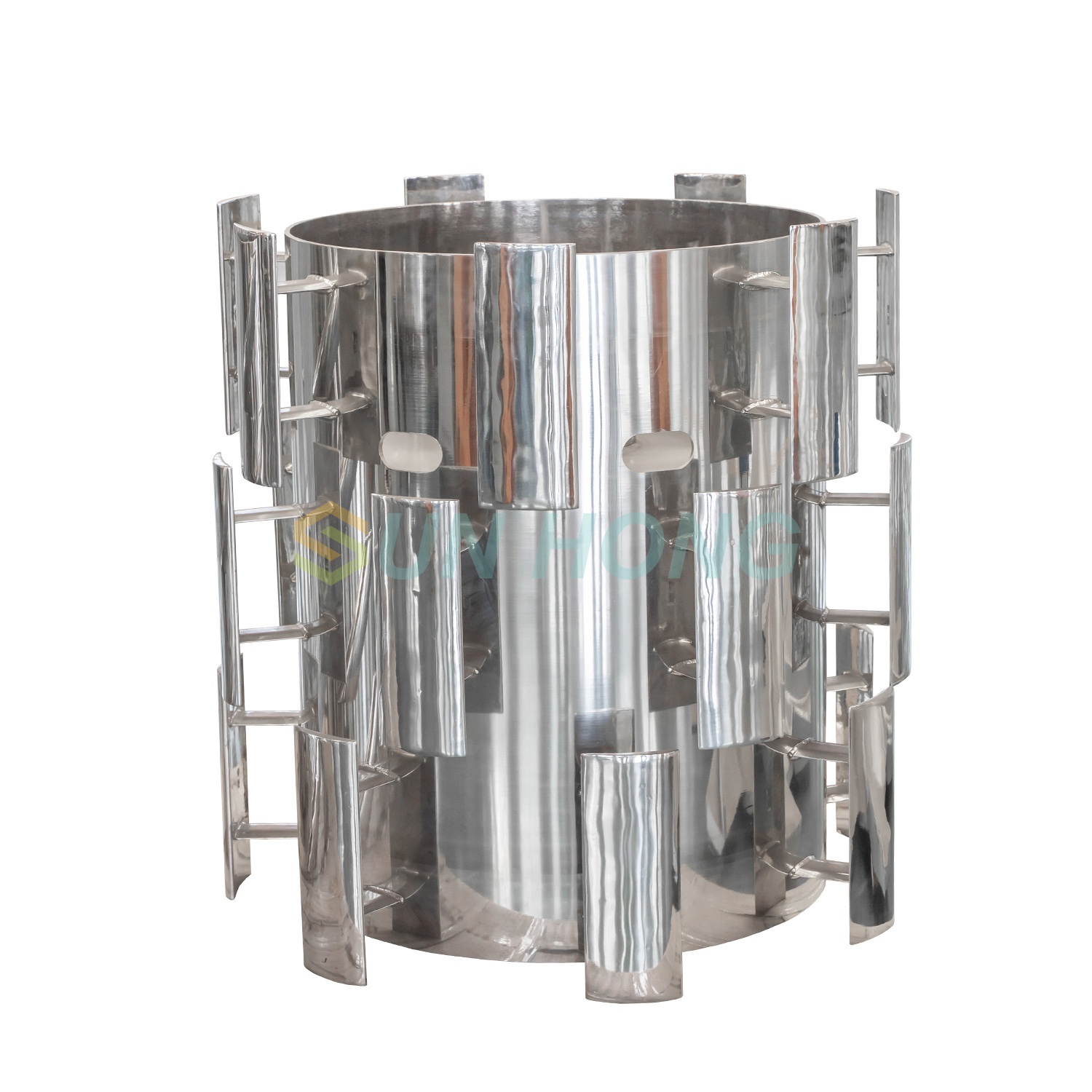

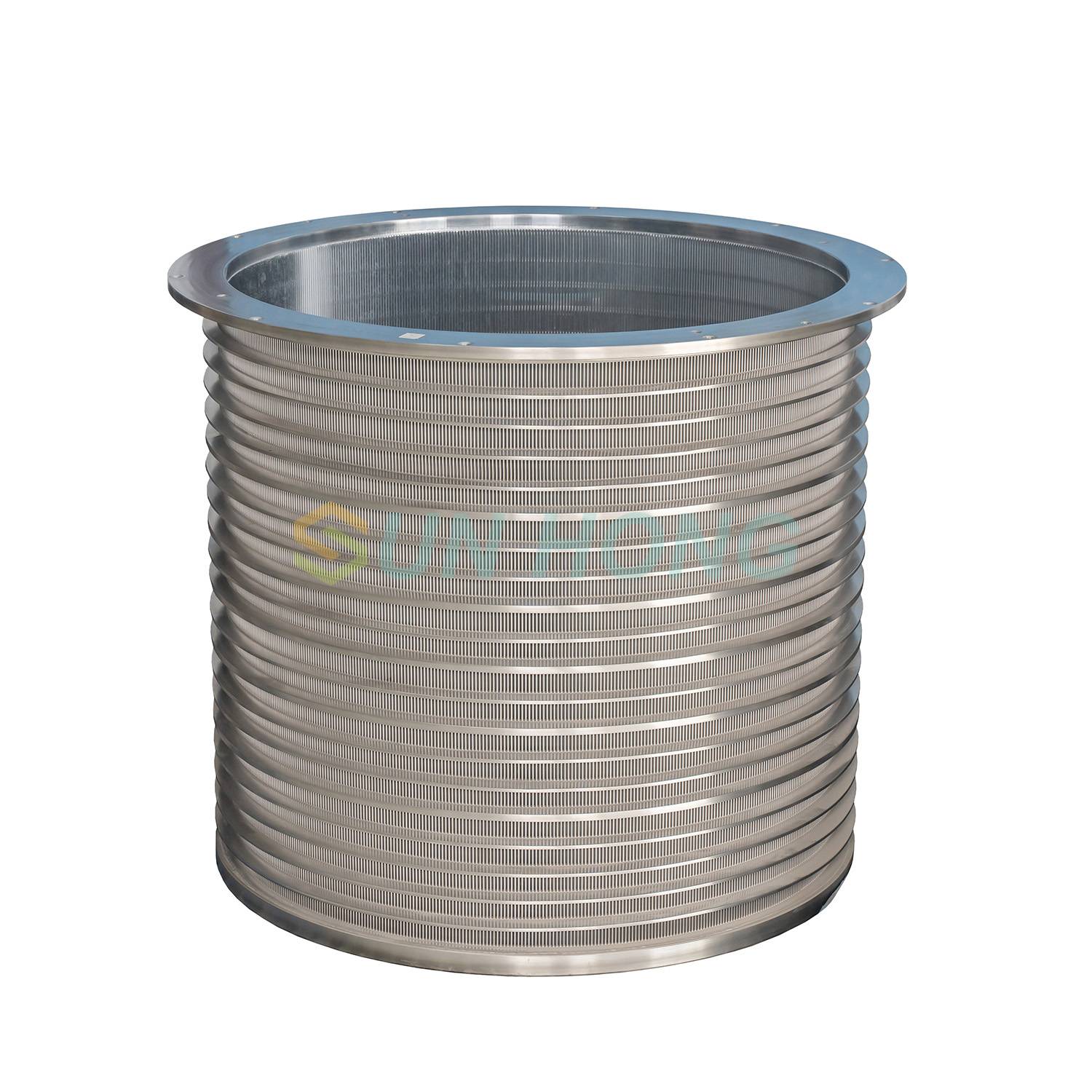

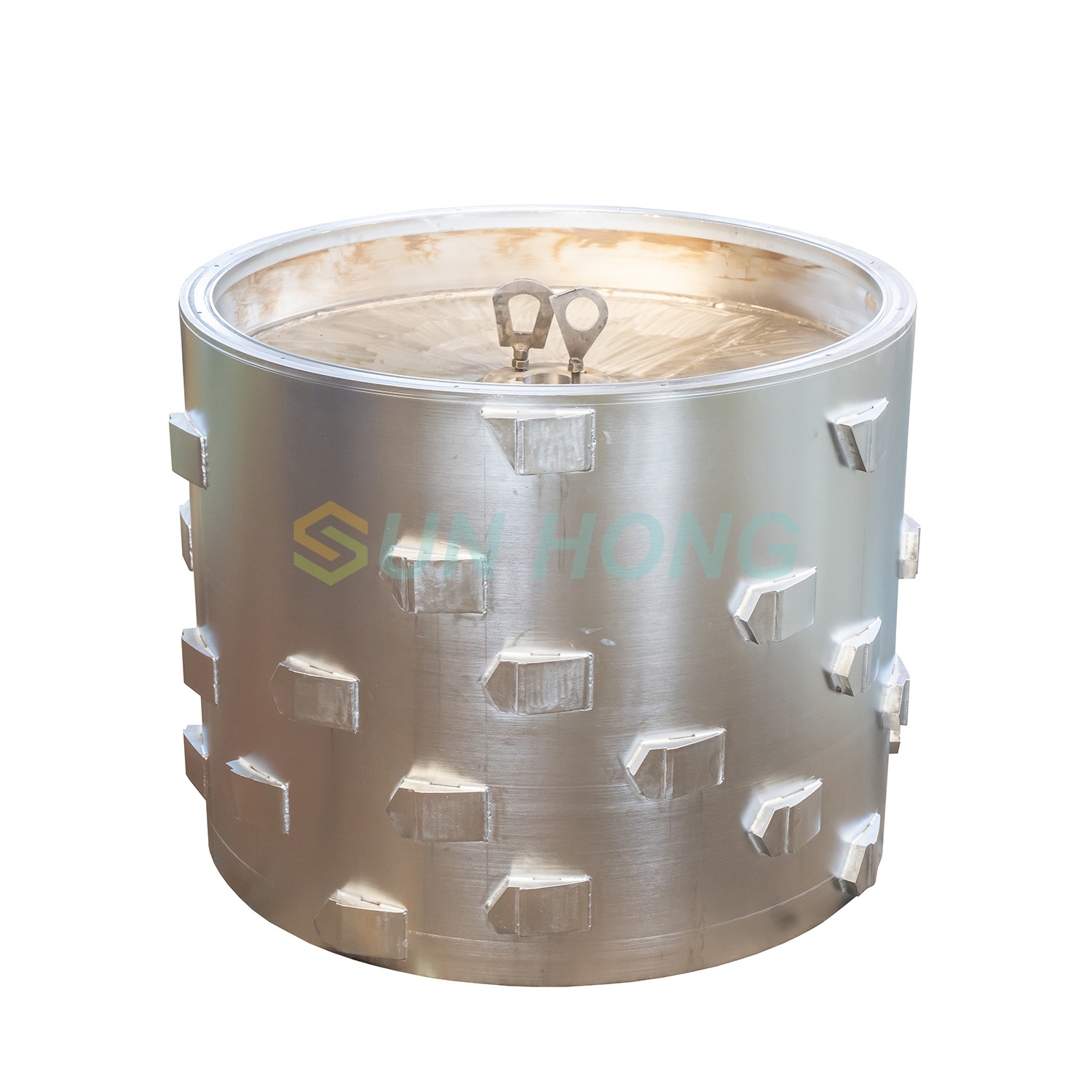

Screen Basket & Rotor for Inflow Pressure Screen

We have all type screen basket and rotor and foil for customer's pressure screen

Technical Parameter
