SUN HONG

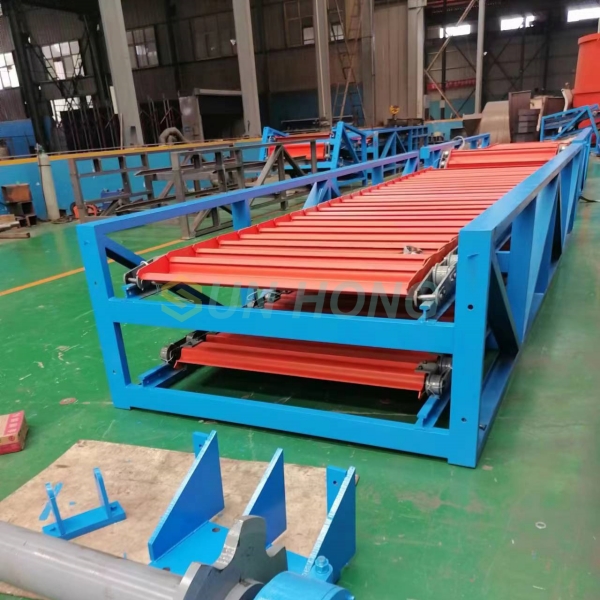

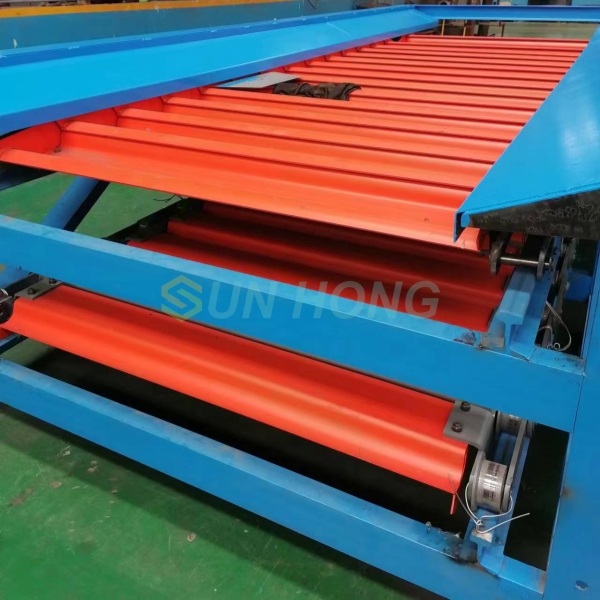

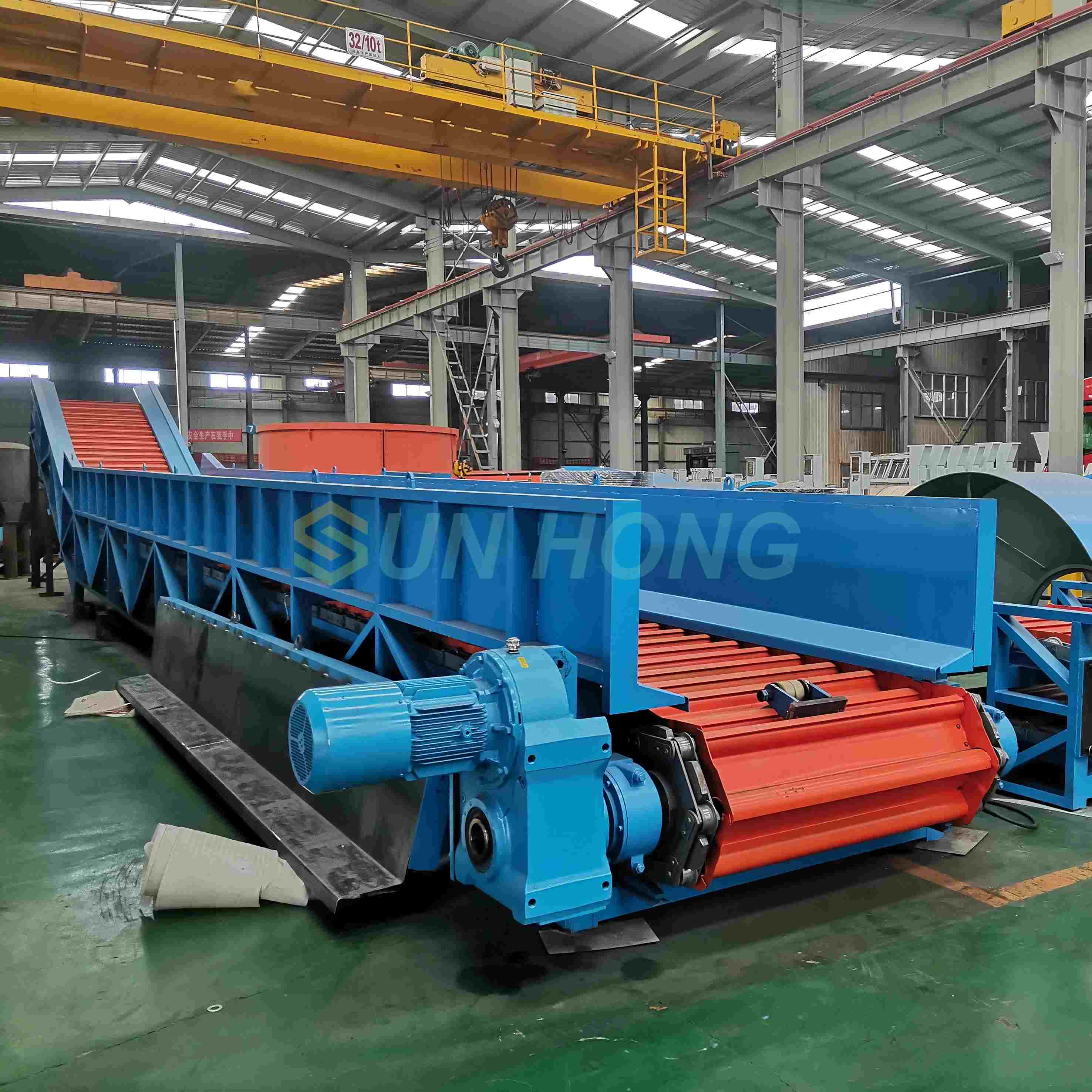

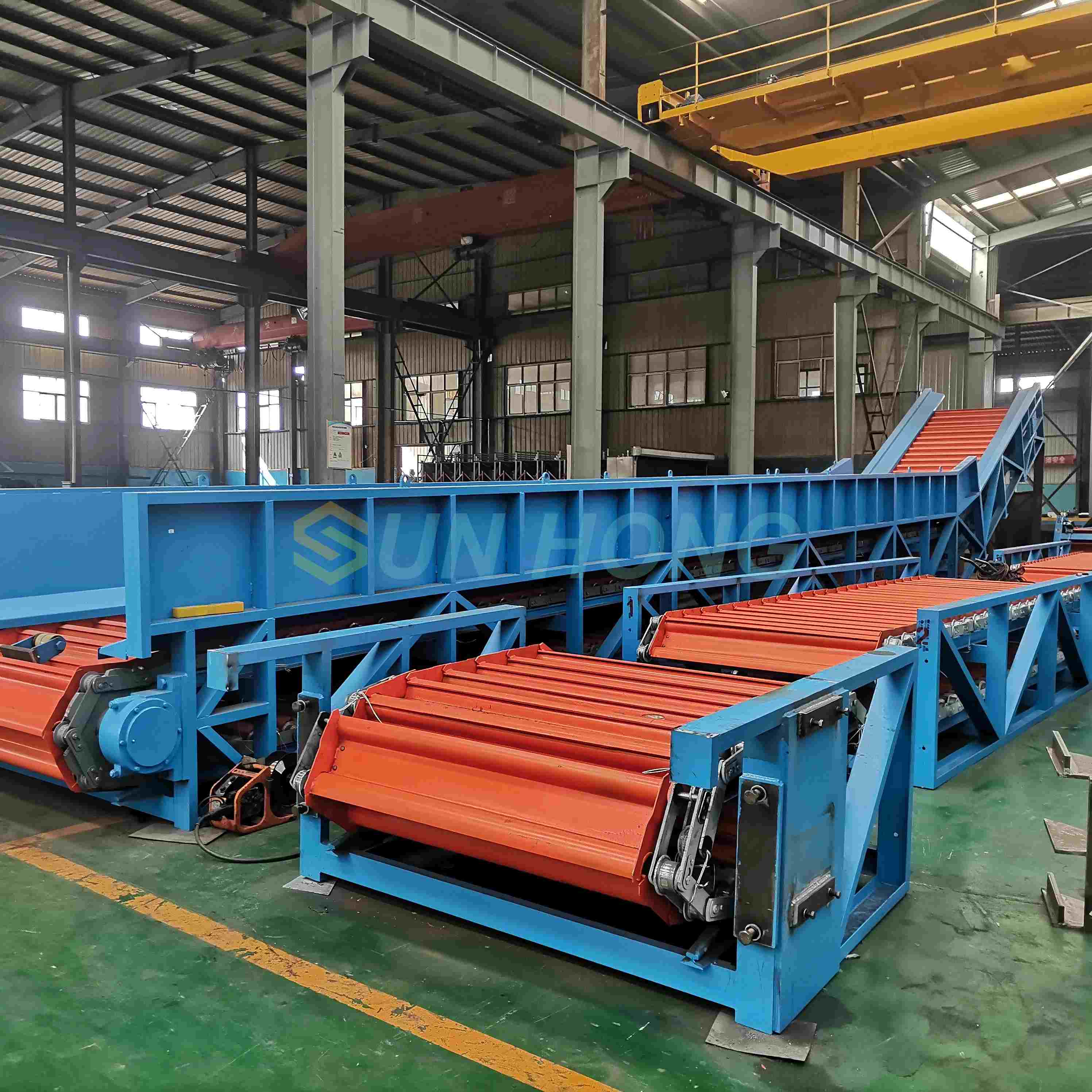

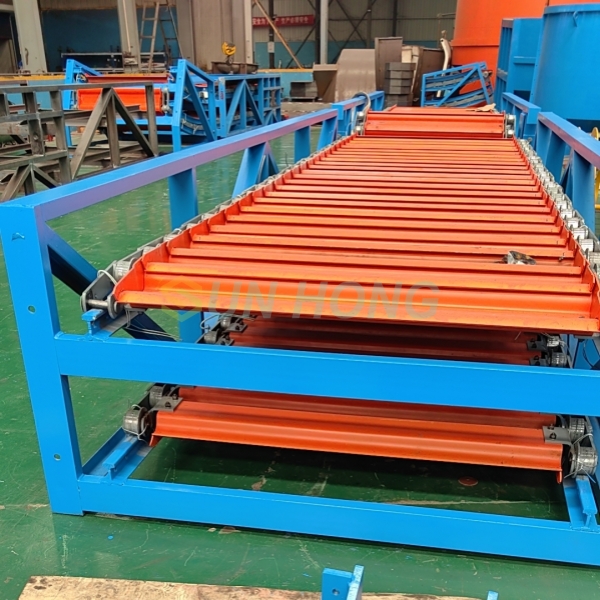

The chain conveyor plays an important role in transport paper pulp raw material such as wood chips, pulp board, waste paper in pulp making production lines. It can solve the problem of disorderly and difficult to transport raw materials in papermaking and pulp production.
The chian conveyor uses chains as traction components, combined with sturdy and durable chain plates, to form a continuous and smooth conveying channel. Chain plate conveyor not only has a compact structure and reliable operation, but also has strong load-bearing capacity, which can easily meet the transportation needs of various shapes and weights of materials. Its unique chain drive design ensures the stability and durability of the conveying process, maintaining excellent performance and accuracy even in long-term, high-intensity working environments.
1. High load, high wear resistance: Chain conveyor uses chain chain made of alloy steel, which is wear-resistant and corrosion-resistant and has a strong carrying capacity.
2. Flexible and stable transportation: According to the needs of the paper mill, it can be designed into a horizontal or inclined transportation path to adapt to the complex production layout. Through the connection and diversion device of multiple conveying sections, materials can be transported to different heights and areas, improving flexibility and space utilization.
3. Improve production efficiency and reduce labor costs: The stable and efficient transportation of the chain conveyor greatly reduces the time of material handling and loading and unloading in the paper mill, reduces manual intervention and reduces labor costs, and improves the production efficiency and process of the production line.
It's mainly used for conveyoring various kinds of waste paper and pulp board in bulk and in bale, can be horizontal conveyor or inclined conveyor (＜30°）.
The chain drives the plate to conveyor material , large capacity, low power consumption, low wear and reliable operation.
Technical Parameter
| Model | SH1200 | SH1400 | SH1600 | SH1800 | SH2000 |
| Effiective Width (mm) | 1200 | 1400 | 1600 | 1800 | 2000 |
| Capacity (m3/h) | 65-250 | 80-300 | 95-400 | 600 | 800 |
| Speed (m/min) | 1.2-10 | ||||
| Incline angle | ＜30° | ||||
| Raw Material | Waste paper, pulp board, wood chip | ||||
| Max. size of raw material | 1000 | 1200 | 1400 | 1600 | 1800 |
The chain conveyor plays an important role in transport paper pulp raw material such as wood chips, pulp board, waste paper in pulp making production lines. It can solve the problem of disorderly and difficult to transport raw materials in papermaking and pulp production.
The chian conveyor uses chains as traction components, combined with sturdy and durable chain plates, to form a continuous and smooth conveying channel. Chain plate conveyor not only has a compact structure and reliable operation, but also has strong load-bearing capacity, which can easily meet the transportation needs of various shapes and weights of materials. Its unique chain drive design ensures the stability and durability of the conveying process, maintaining excellent performance and accuracy even in long-term, high-intensity working environments.
1. High load, high wear resistance: Chain conveyor uses chain chain made of alloy steel, which is wear-resistant and corrosion-resistant and has a strong carrying capacity.
2. Flexible and stable transportation: According to the needs of the paper mill, it can be designed into a horizontal or inclined transportation path to adapt to the complex production layout. Through the connection and diversion device of multiple conveying sections, materials can be transported to different heights and areas, improving flexibility and space utilization.
3. Improve production efficiency and reduce labor costs: The stable and efficient transportation of the chain conveyor greatly reduces the time of material handling and loading and unloading in the paper mill, reduces manual intervention and reduces labor costs, and improves the production efficiency and process of the production line.
It's mainly used for conveyoring various kinds of waste paper and pulp board in bulk and in bale, can be horizontal conveyor or inclined conveyor (＜30°）.
The chain drives the plate to conveyor material , large capacity, low power consumption, low wear and reliable operation.
Technical Parameter
| Model | SH1200 | SH1400 | SH1600 | SH1800 | SH2000 |
| Effiective Width (mm) | 1200 | 1400 | 1600 | 1800 | 2000 |
| Capacity (m3/h) | 65-250 | 80-300 | 95-400 | 600 | 800 |
| Speed (m/min) | 1.2-10 | ||||
| Incline angle | ＜30° | ||||
| Raw Material | Waste paper, pulp board, wood chip | ||||
| Max. size of raw material | 1000 | 1200 | 1400 | 1600 | 1800 |
