Doctor Blade Holder Rubber Pneumatic Air Tube

The rubber air tube is used for paper machine doctor blade holder.
Availability:
Quantity:

Doctor Blade Holder Rubber Air Tube

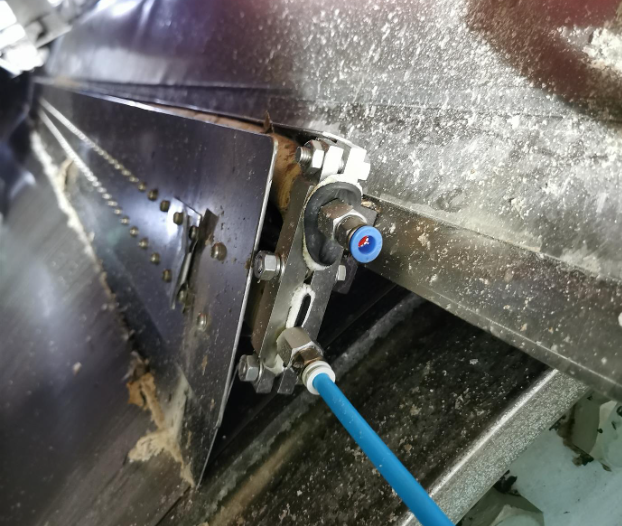

The double air tube doctor blade holder covers with two air tubes, it used to pressurize its blades. When the pressure tube is pressurized , the doctor blade will touched the rolls. The air tube send the fluid pressure, the touch of the blade is automatically adjusted so that make the doctor blade have a good performace for cleaning the surface of rollers and cylinders.


Sun Hong produce pressurize air tube for doctor blade holder. We have diameter from 15mm to 50mm for your choose. And the highest temperature resistence is 280 degree. Our air tube have good performance of corrosion resistant, crack resistant, acid and alkali resistant, high temperature resistant, high pressure resistant.

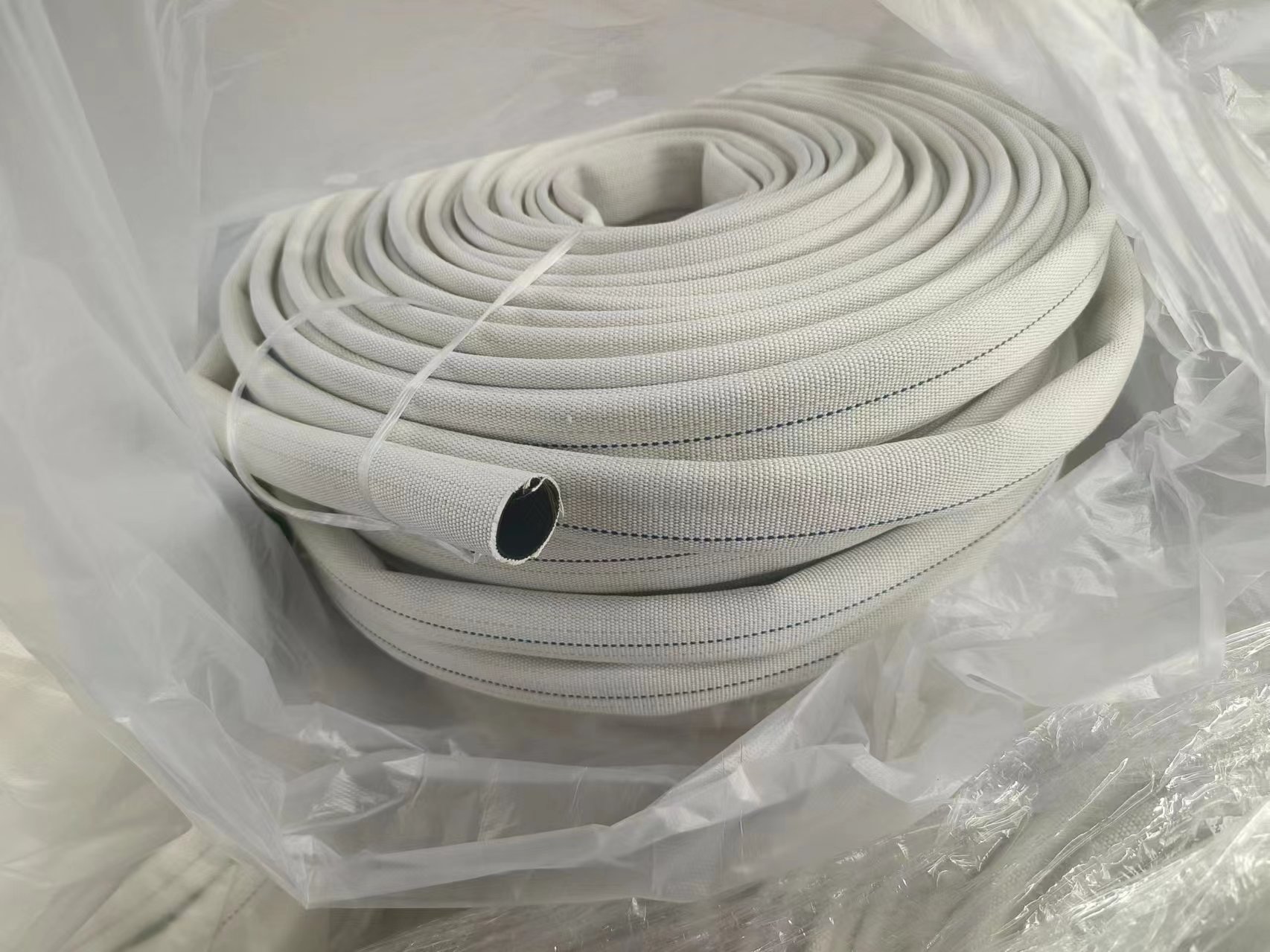

doctor blade pressure tube

Material: Rubber with woven canvas material

Pressure resistance: 10kg/cm²(Max pressure 1MPa)

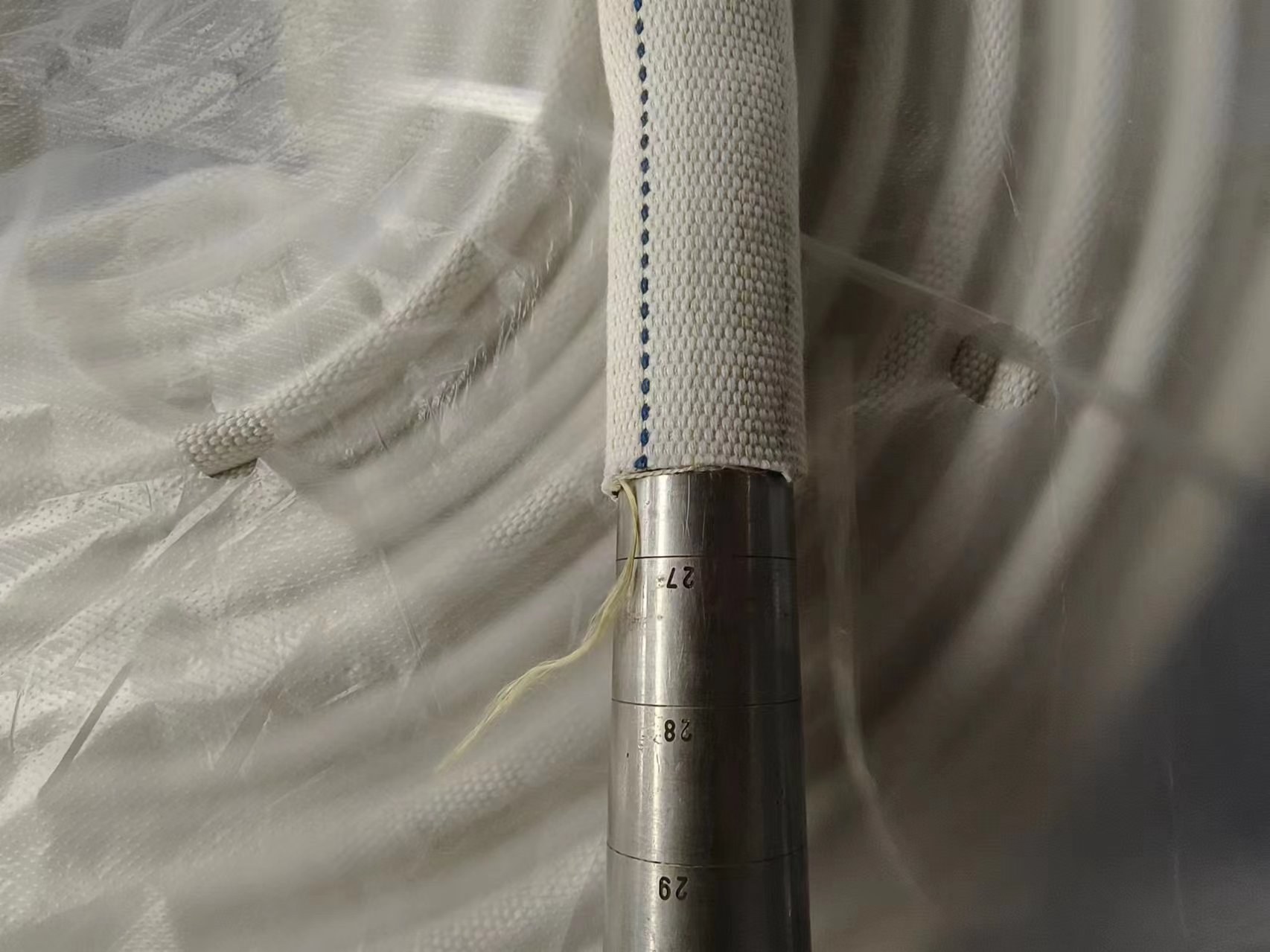

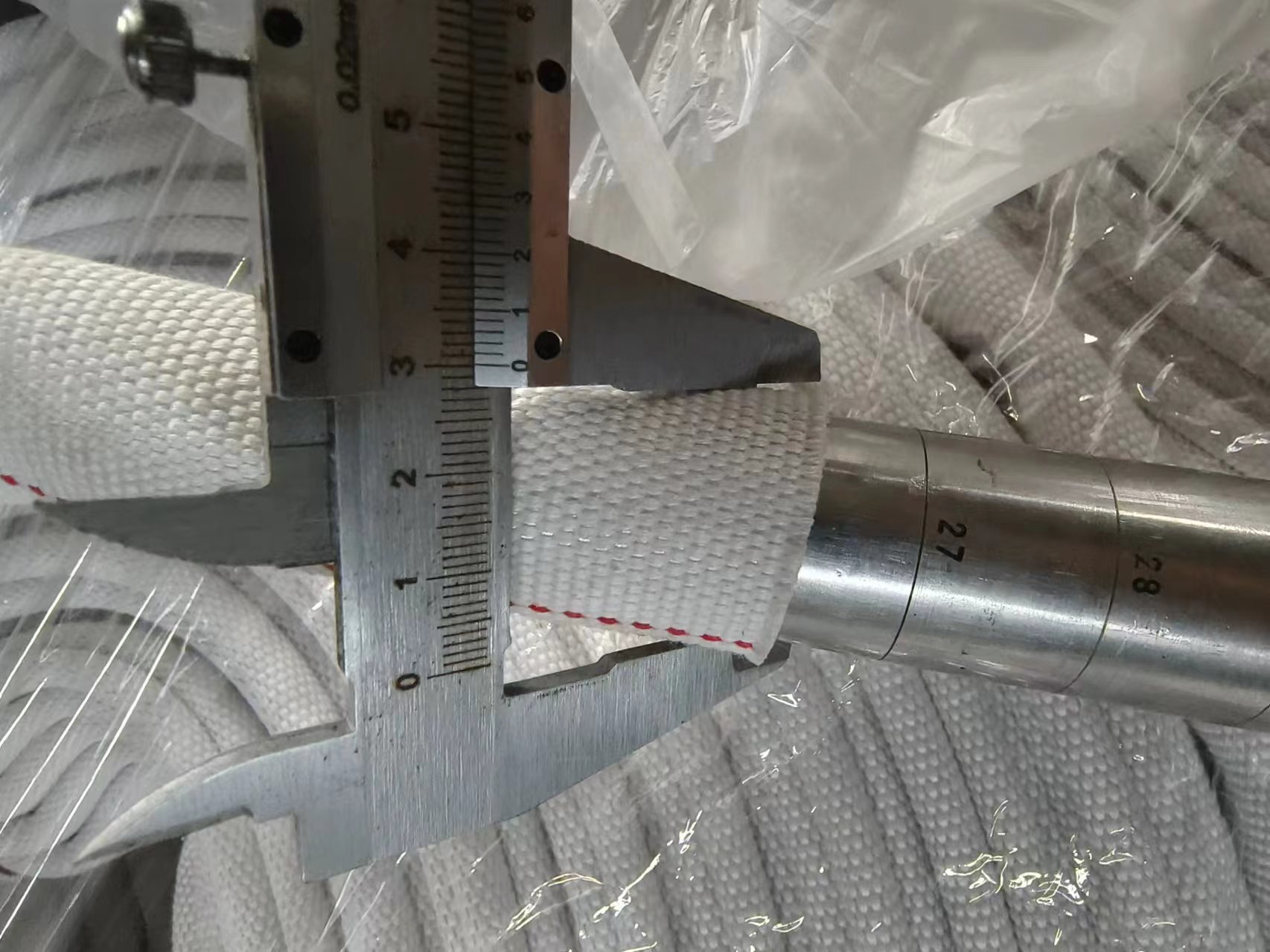

Diameter: 15,25,28,30,32,40,50mm

Size: 30m in one roll
