Paper Machine Paper Edge Trimming Cutting Water Needle Nozzle

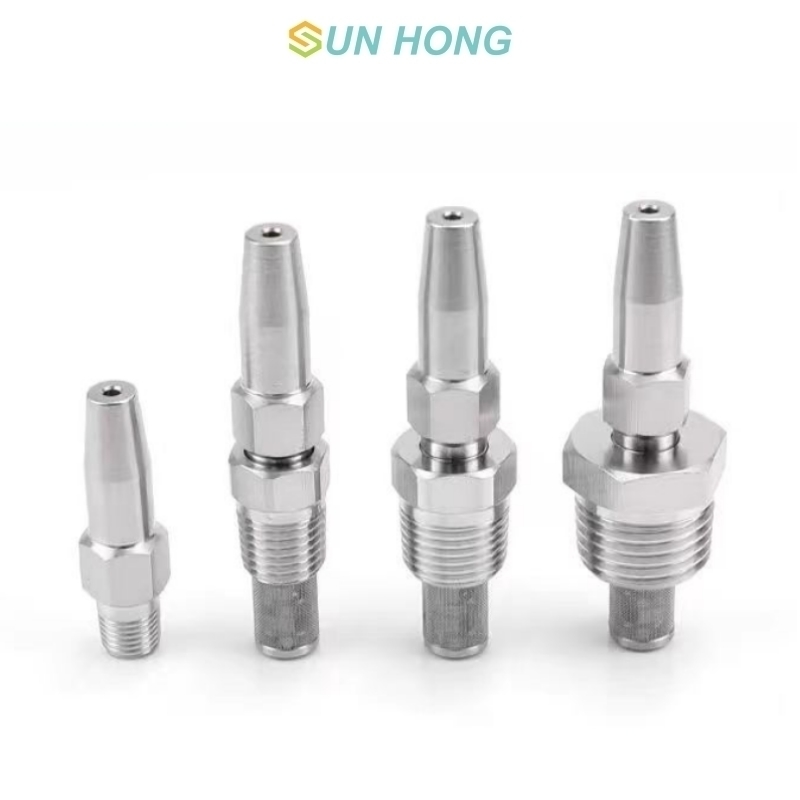

Paper Edge Cutting Trimming Needle Nozzle

The paper edge trimming nozzle is used for cleaning paper machine wet section and trimming and cutting the paper edge. Sun Hong have single hole and double hole , two type for your choose.

This nozzle can provide linear water flow under high pressure, guiding paper, cutting paper edges, and correcting paper web. It can avoid the paper edge pulling the entire paper and causing paper breakage and shutdown. The maximum pressure can reach 14Mpa, the maximum temperature can reach 120 degrees Celsius, and the nozzle size ranges from 0.3mm-1.5mm. It is recommended to use clean water. When using circulating water, a built-in filter can be used to prevent nozzle blockage.

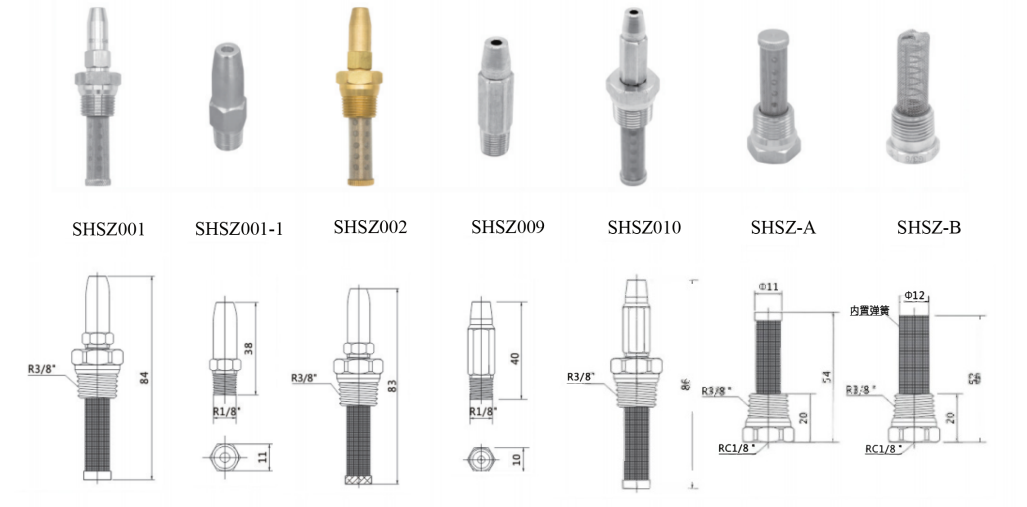

Single Hole Trimming Needle Nozzle

Application: cutting paper edge, trimming paper web,guide paper, remove raw edge,etc

Diameter Range: 0.3-1.5mm, used with filter mesh can prevent nozzle hole blockage

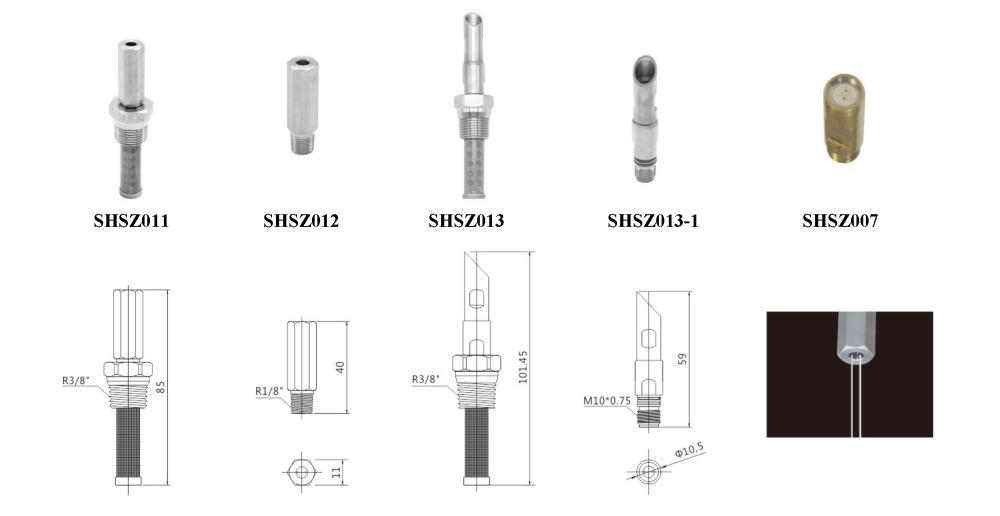

Double Hole Trimming Needle Nozzle

Application: cutting paper edge, trimming paper web,guide paper, remove raw edge,etc

Diameter Range: 0.3-1.2mm, used with filter mesh can prevent nozzle hole blockage
