Cylinder mould is mainly used in the paper pulp forming stage of paper making process. It is often used in cylinder type paper machine. It distributes pulp fibers evenly on the forming surface through filtering. Cylinder mould is suitable for producing high quality paper or paperboard (special paper, packaging materials and multi layer paperboard).
Sun Hong adopts professional manufacturing technology and advanced imported equipment to provide you with cost effective cylinder mould

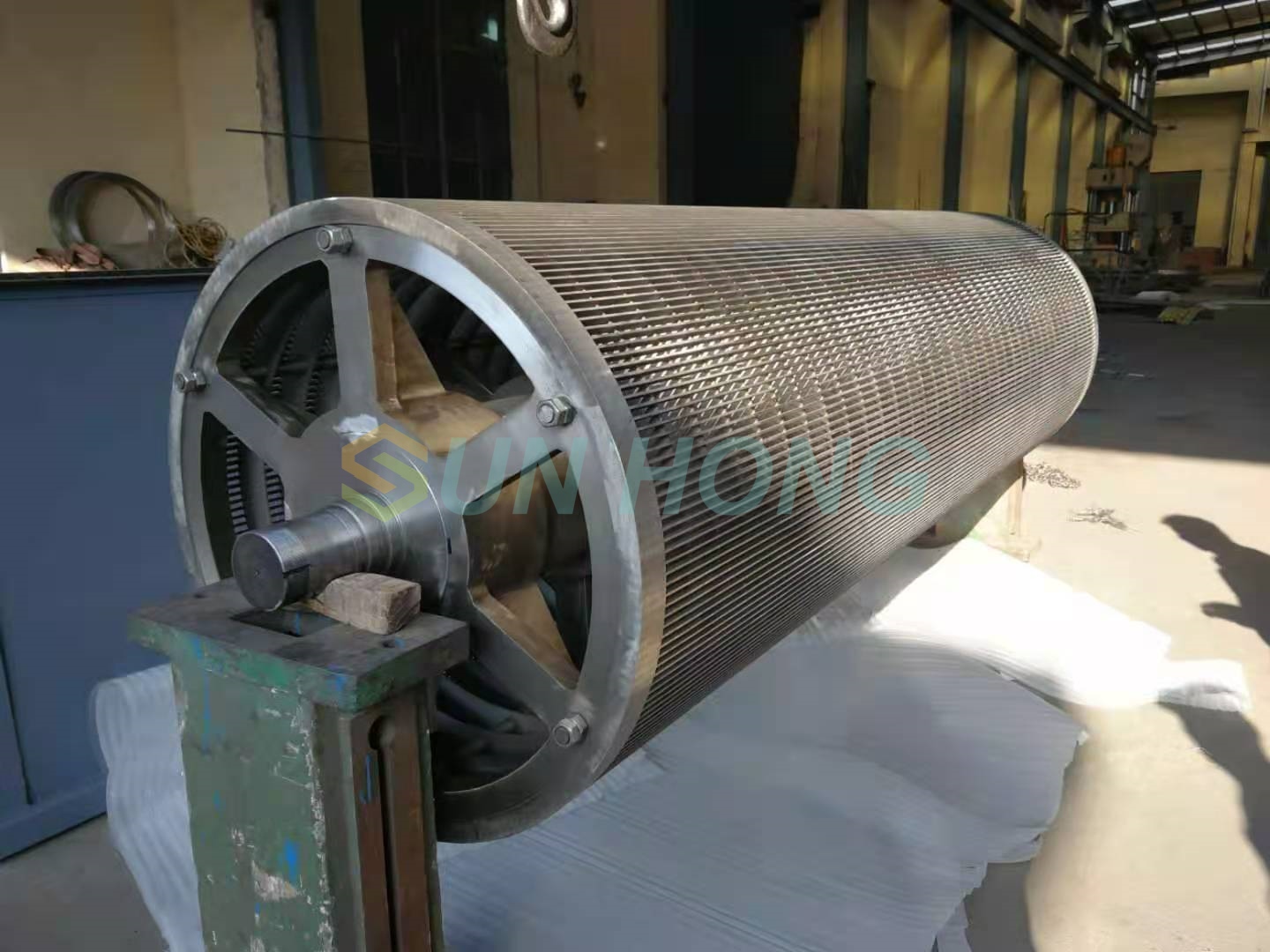

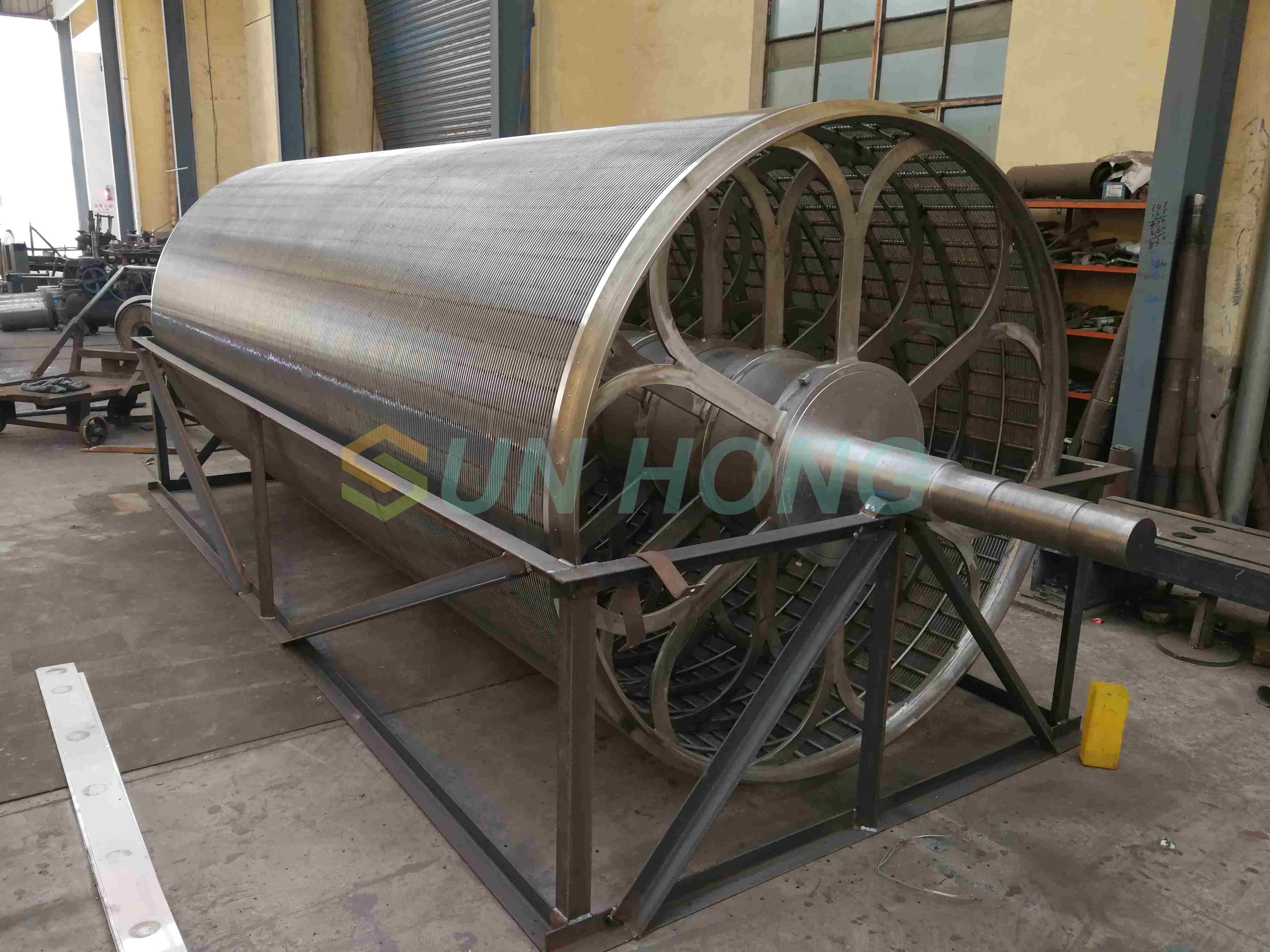

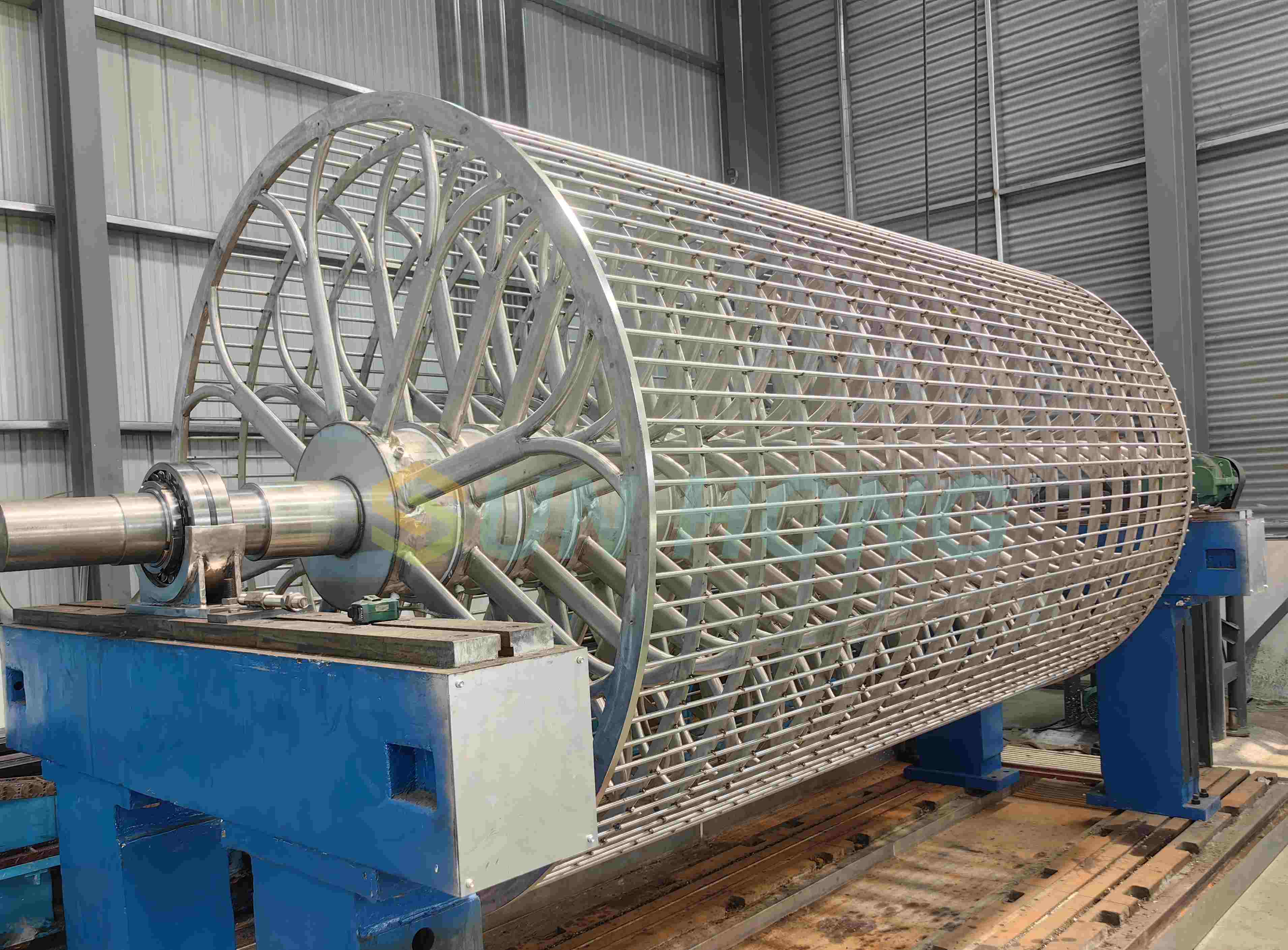

Cylinder mould is a cylindrical structure. As it rotates, pulp fibers adhere to the stainless steel wire mesh and drain water. The remaining fibers will become paper. The stainless steel wire mesh on its surface plays an important role in determining the quality and smoothness of paper. Different specifications can be used to achieve different smoothness, texture and strength of paper.
(1) The paper sheet has strong uniformity. During the fiber deposition process, it can ensure the uniform distribution of paper sheet fibers, avoid uneven thickness and improve the overall quality of paper.
(2) It is conducive to improving drainage area, output and speed.
(3) The design has high strength, high precision and corrosion resistance.
Winding type | String chip type |
1.Slice being welded on every rod and slice in fall; | Rod goes through the slice |
|
|
Structure | Common,piece-type,air exhaust,vacuum |
Material | Stainless steel/copper |
Diameter | 1000,1250,1500,1800,2000 |
Width range | 1000-5000mm |
Cylinder mould is mainly used in the paper pulp forming stage of paper making process. It is often used in cylinder type paper machine. It distributes pulp fibers evenly on the forming surface through filtering. Cylinder mould is suitable for producing high quality paper or paperboard (special paper, packaging materials and multi layer paperboard).
Sun Hong adopts professional manufacturing technology and advanced imported equipment to provide you with cost effective cylinder mould
Cylinder mould is a cylindrical structure. As it rotates, pulp fibers adhere to the stainless steel wire mesh and drain water. The remaining fibers will become paper. The stainless steel wire mesh on its surface plays an important role in determining the quality and smoothness of paper. Different specifications can be used to achieve different smoothness, texture and strength of paper.
(1) The paper sheet has strong uniformity. During the fiber deposition process, it can ensure the uniform distribution of paper sheet fibers, avoid uneven thickness and improve the overall quality of paper.
(2) It is conducive to improving drainage area, output and speed.
(3) The design has high strength, high precision and corrosion resistance.
Winding type | String chip type |
1.Slice being welded on every rod and slice in fall; | Rod goes through the slice |
|
|
Structure | Common,piece-type,air exhaust,vacuum |
Material | Stainless steel/copper |
Diameter | 1000,1250,1500,1800,2000 |
Width range | 1000-5000mm |
