The vacuum suction box is a key equipment in the forming section of paper machine that uses vacuum negative pressure to dehydrate wet paper sheets. It is located after the forming board and is the main force for dewatering the middle section of the forming section, directly affecting the uniformity, dryness, retention rate, and operational stability of the paper sheets.
Working principle: The pulp on the top of forming fabric and covered the suction box panel→ negative pressure inside the box → water is sucked into the box through the mesh holes → collected into white water and discharged → the paper is compacted, dehydrated, and reinforced.

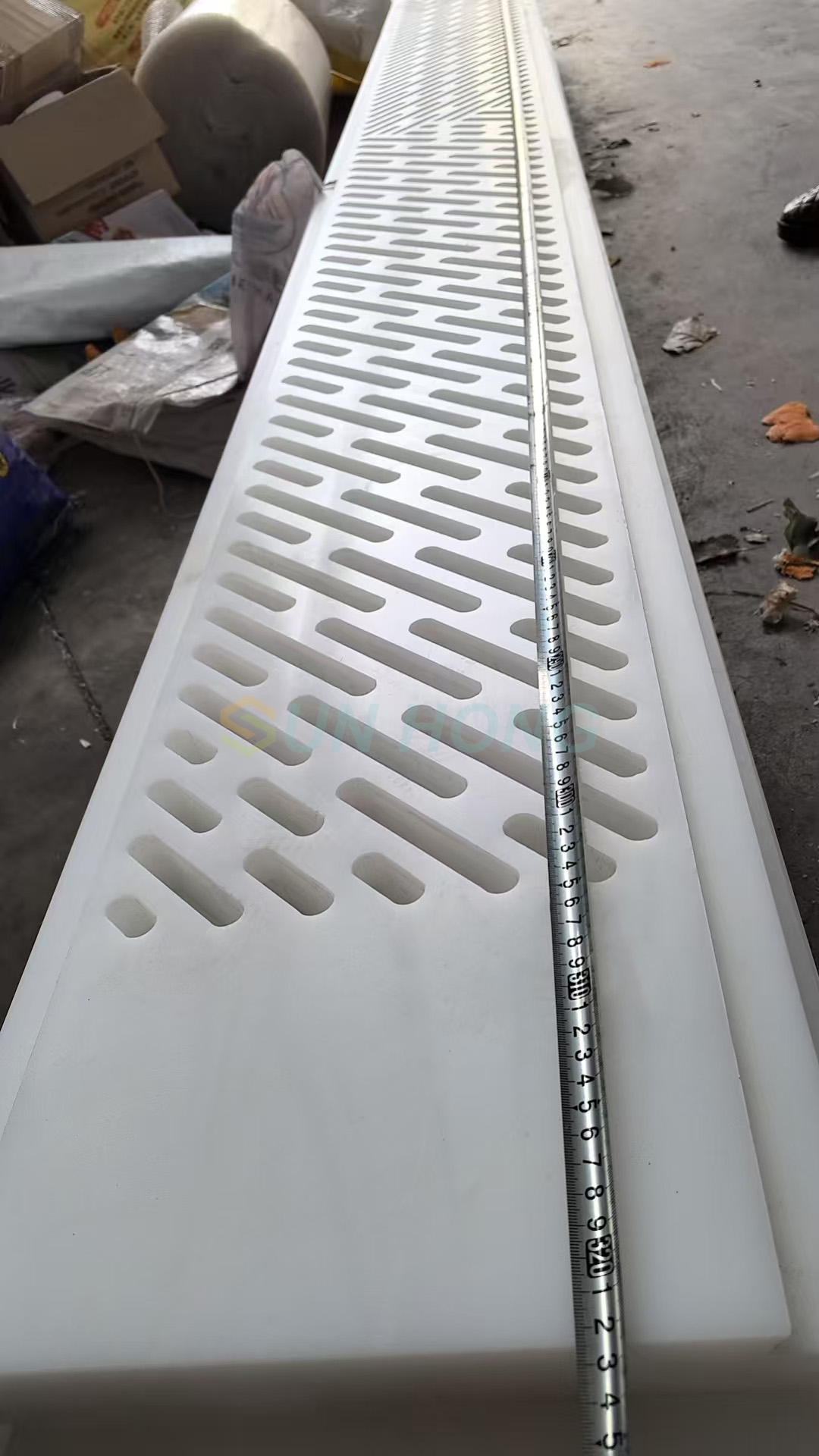

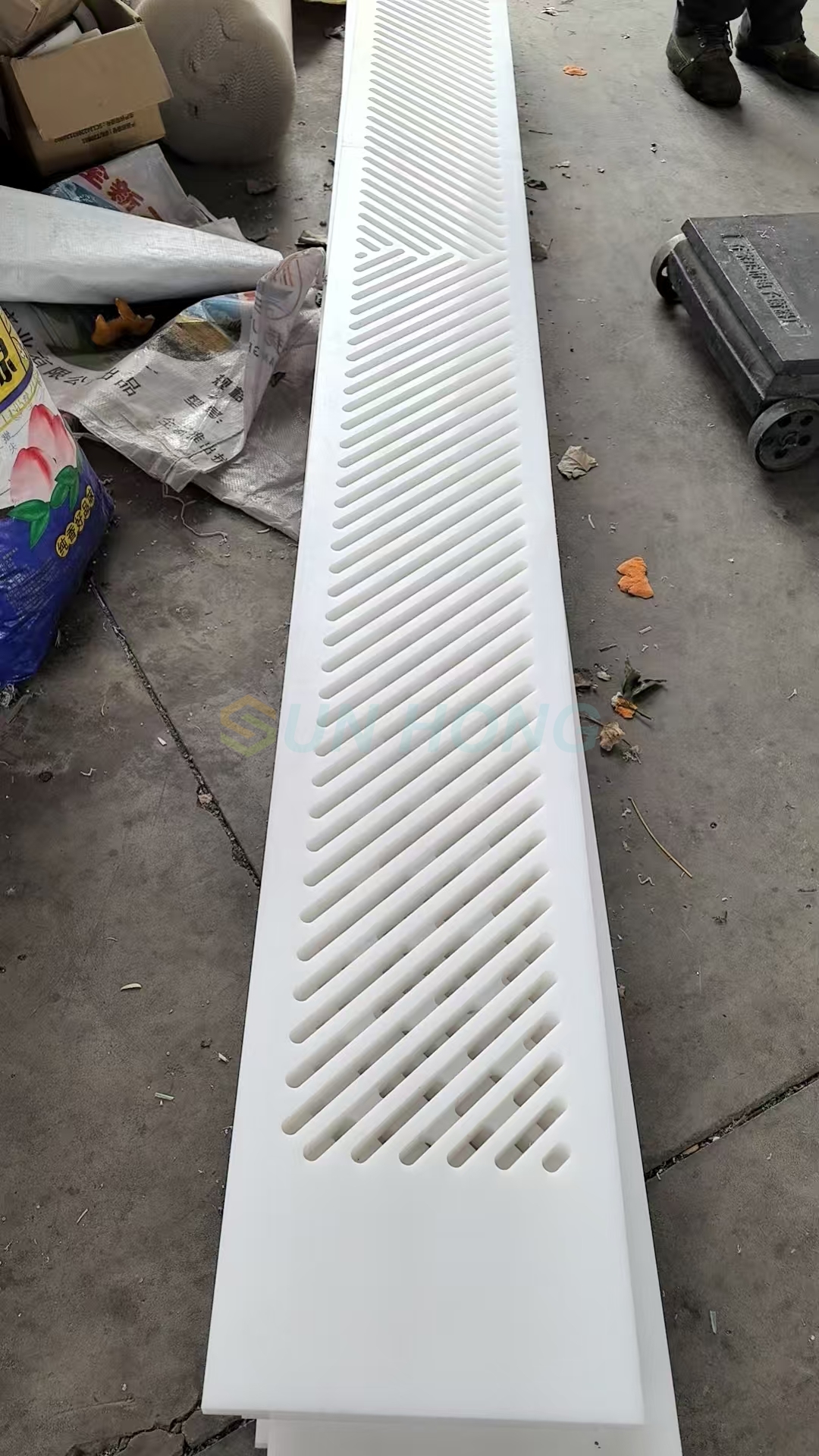

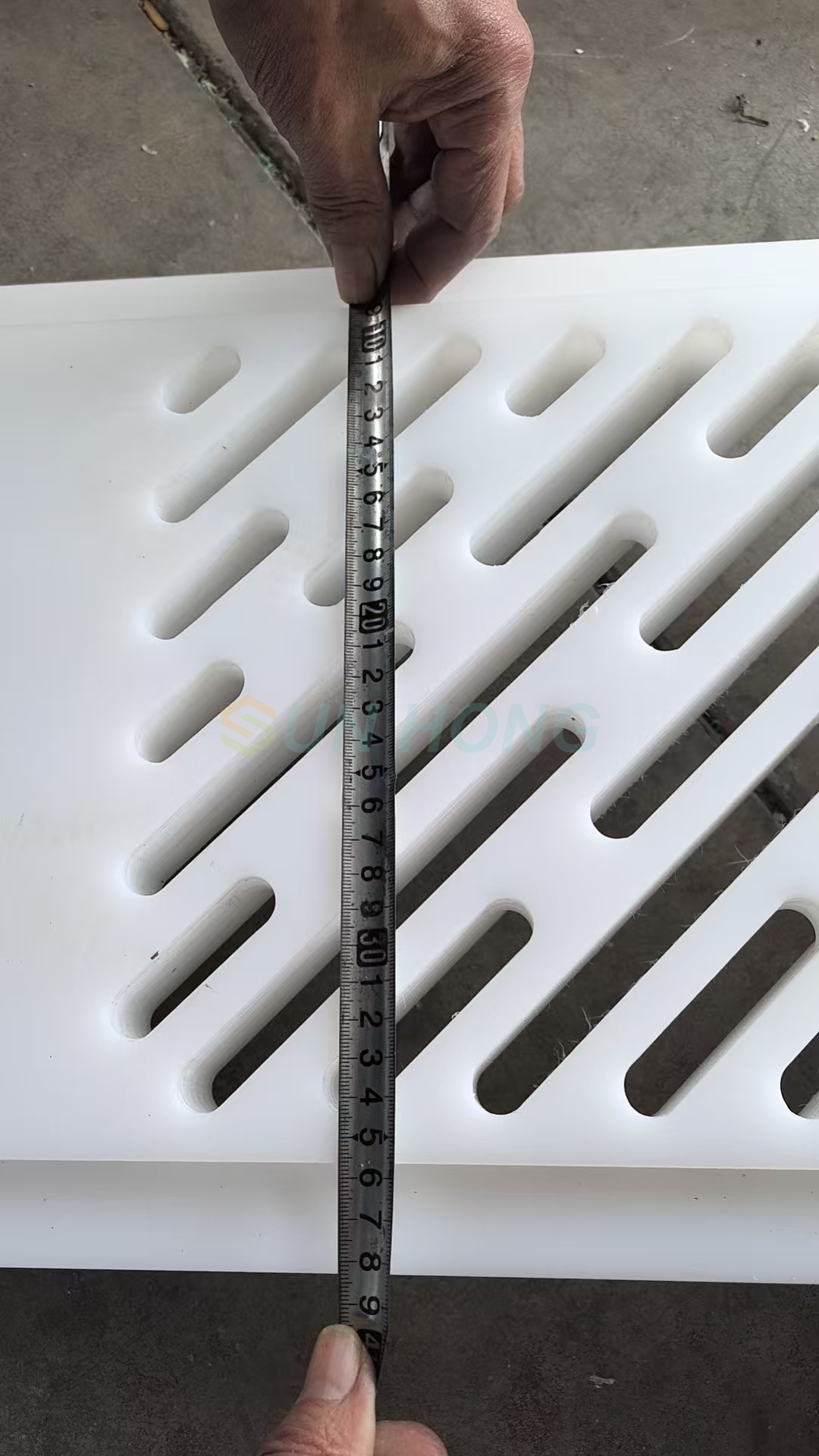

UHMWPE Cover
1. Low cost, normal wear resistance, not damage the forming fabric.
2. Used for low speed paper machine, normal packing paper.
|
|
|

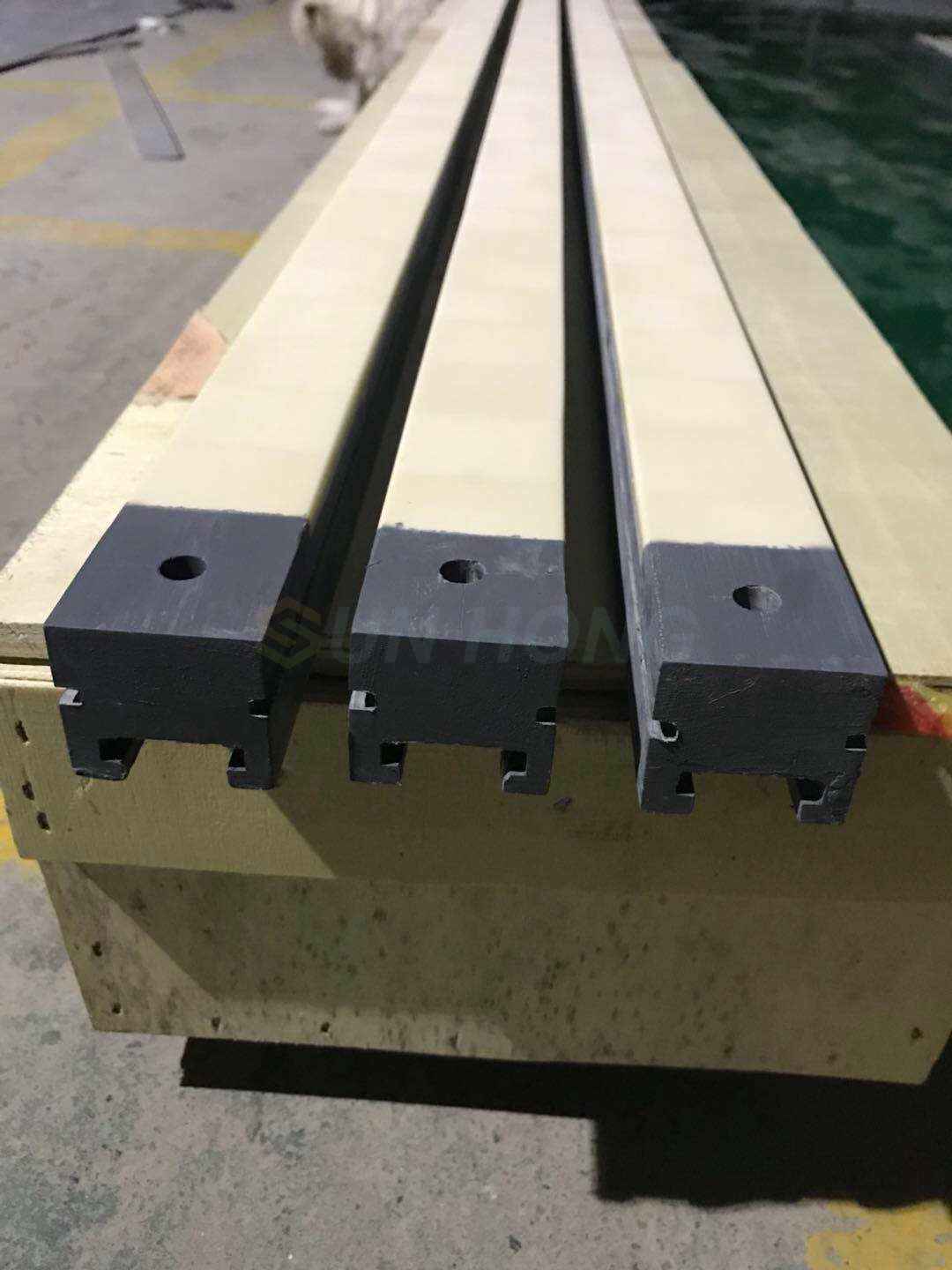

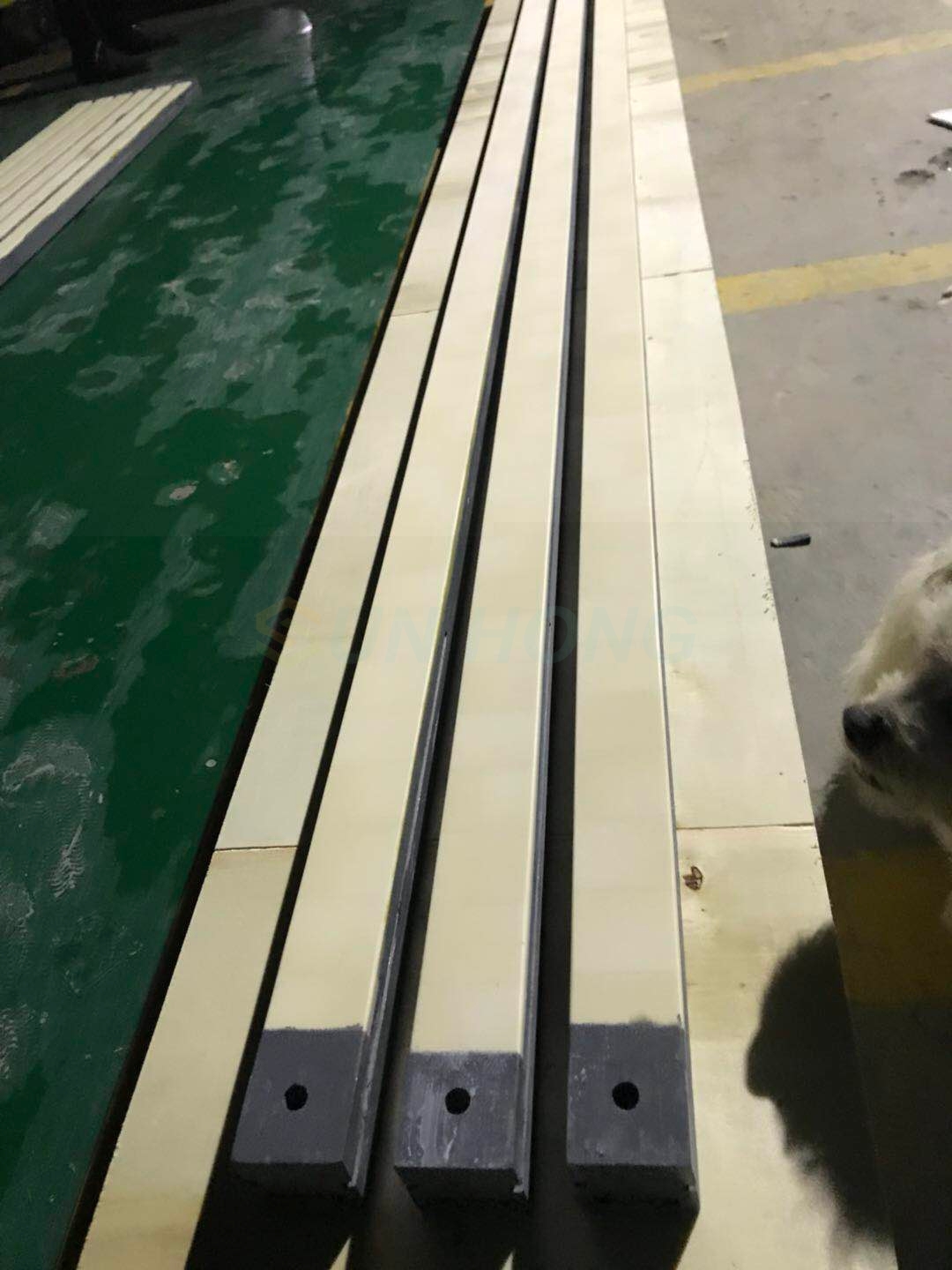

Ceramic Cover
1. Super wear resistance, low friction, long life service.
2. middle and high speed paper machine choice.
|
|
|
The vacuum suction box achieves a smooth transition from low vacuum dehydration to high vacuum rapid dehydration through the strong suction of the vacuum pump, thereby accelerating the drying process of the paper, improving the dehydration effect, and optimizing the forming quality of the paper.
The panel is equipped with adjustment bars at both ends for flexible adjustment of the suction width of the paper sheet. At the same time, the lubrication device reduces the friction coefficient through water lubrication, thereby extending the service life of the forming fabric. The top cover of suction box adopts a reasonable sealing structure design, with high overall processing accuracy, smooth surface and high smoothness, ensuring its wear resistance and self-lubricating properties, thereby reducing the wear of paper sheets during the dehydration process, improving the quality of paper sheets and the operating efficiency of the paper machine. The vacuum degree in this area is controlled within the range of -25~-60 kPa, while the width of the ceramic foil is 15-25mm, allowing for flexible selection of one, two, or three chamber arrangements to meet different dehydration needs.
| Product Name | Ceramic Vacuum Suction Box |
| Material(Surface Covers) | Aluminum oxide, zirconium oxide, silicon nitride, silicon carbide ceramic |
| Material(Dewatering Boxes) | Stainless Steel Components |
| Features(Surface Covers) | 1. Excellent Paper Forming 2. Reduced Paper Two-Sideness 3. Longevity of Ceramic Material Itself 4. Extended Service Life for Machine Clothing (Forming Wires & Press Felts). 5. Thermal Shock Resistant Up To 600°C (SI-NITRIDE CERAMIC) |
| Features( Dewatering Boxes) | 1.Suitable for All Paper Grades and Speeds 2.Optimum Paper Quality 3.Efficient Drainage 4.Reduced Energy Consumption |
