Paper Machine Rubber Coated Size Press Roll

As an important equipment in the size press section of a paper machine, the size press roll is used to apply a coating (size or other chemical coating) on the surface of the paper web to improve the strength and smoothness of the paper. Size press roll is usually used in pairs to achieve a uniform coating effect through the pressure and coating between the roll.

Availability:

Quantity:



Inquire Add to Basket

Product Description

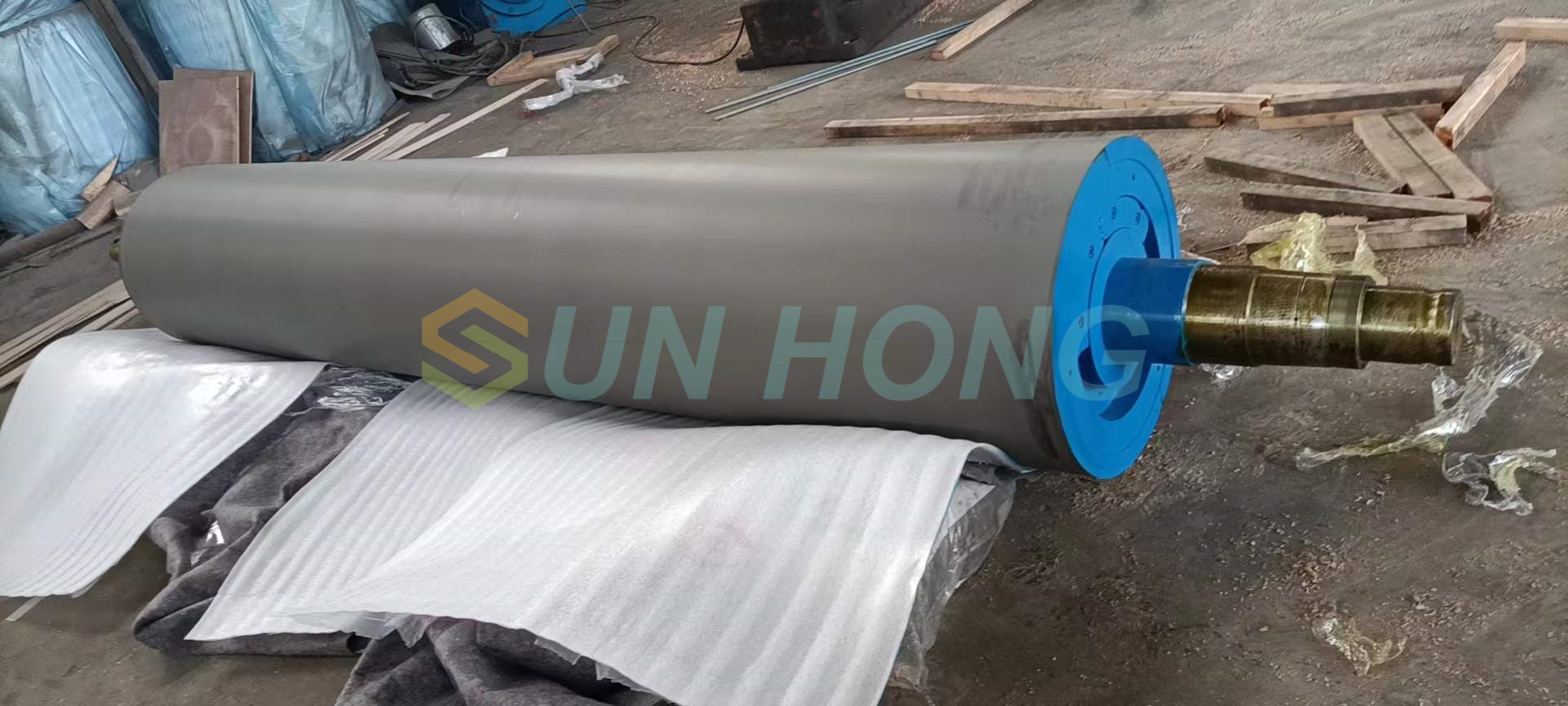

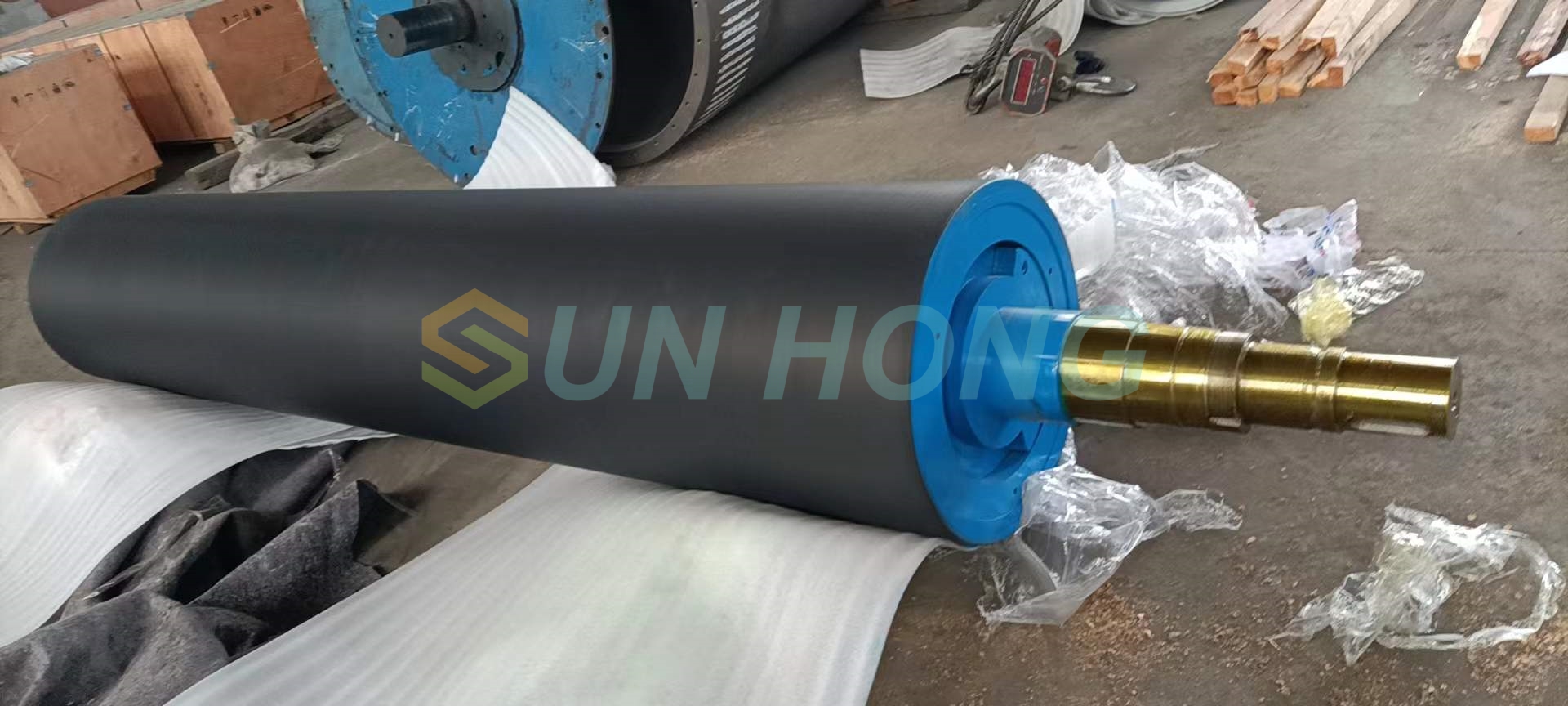

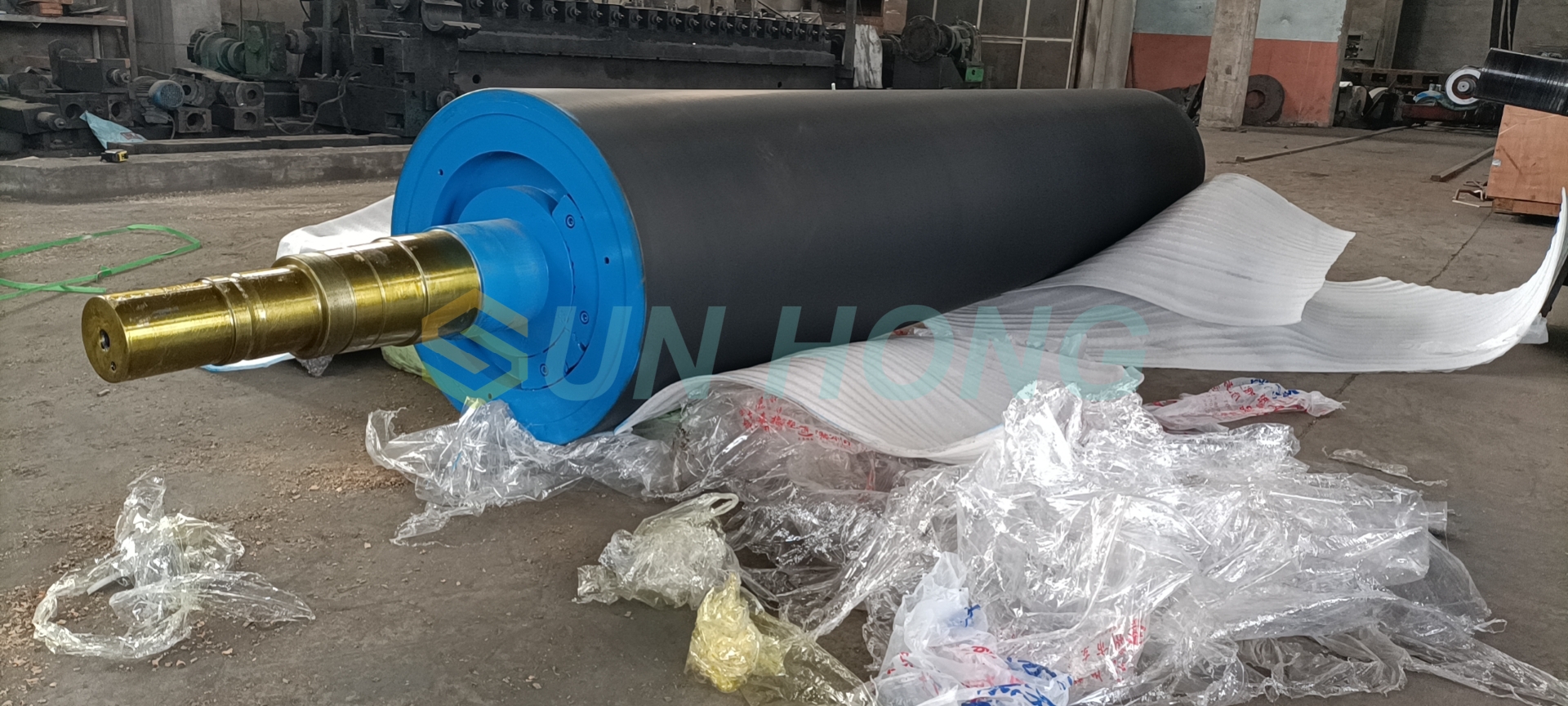

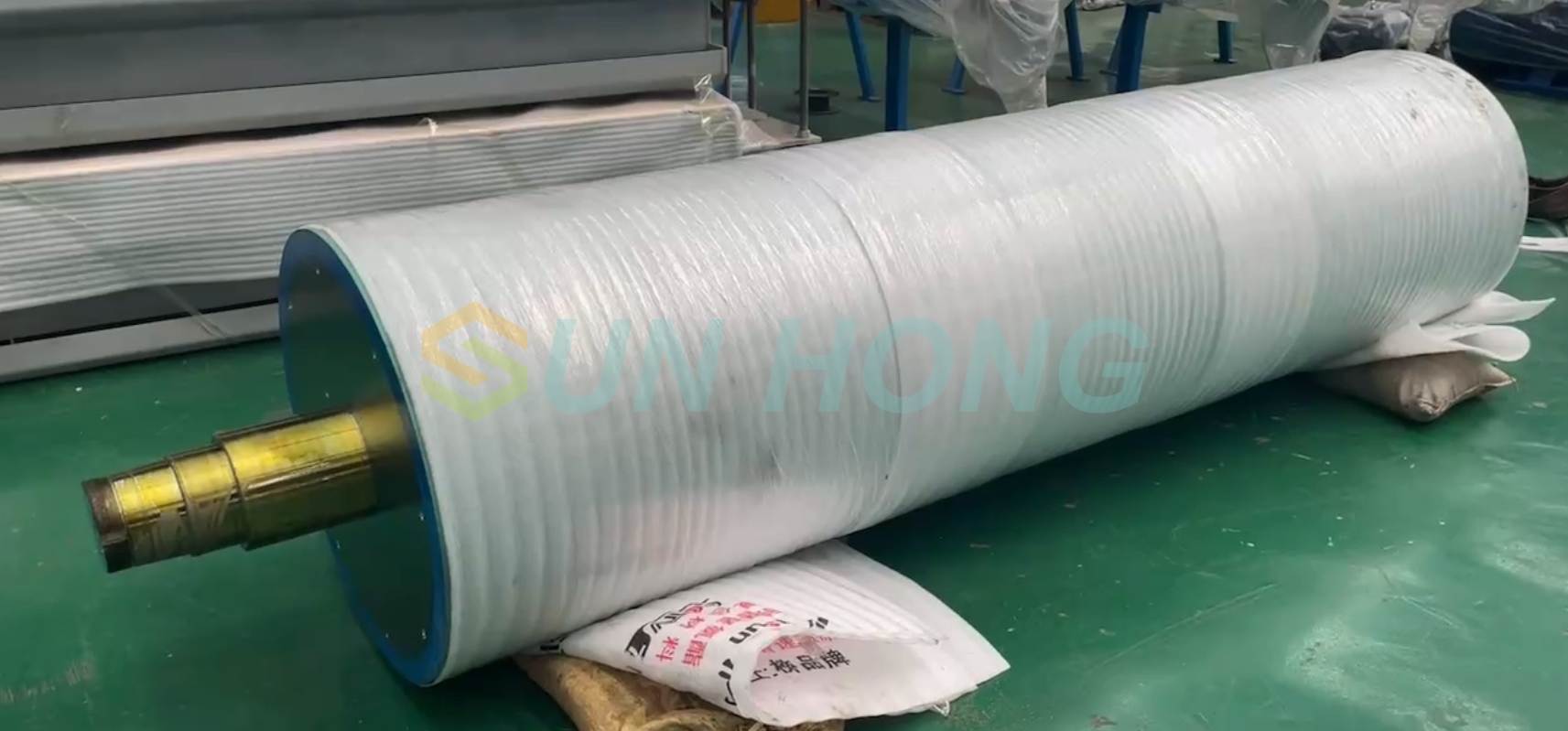

Size Press Roll

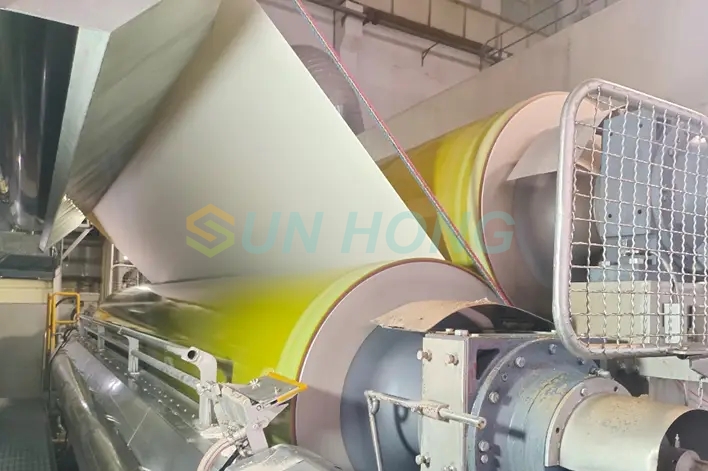

The paper machine size press roll is mainly used for sizing adhesive on the surface of paper web. Size press roll is installed on the after dryer section, when the mositure of paper web near air dried state then sizing the paper web.

The size press roll is used to apply adhesive to the surface of the paper web through the combination of a rubber coated roll and a chromed roll, in order to improve the printing performance, smoothness, and strength of the paper. This device is commonly used in paper machines for producing cultural paper, printing grade paper, and kraft paper.

The Difference of Top Size Press Roll and Bottom Size Press Roll

There is indeed a difference in the adhesive surface between top size press roll and bottom size press roll. The top size press roll adhesive surface usually pays more attention to wear resistance and corrosion resistance to cope with friction and chemical erosion during the sizing process. The bottom size press roll focuses more on elasticity and uniformity to ensure the accuracy of adhesive application and the flatness of the paper.

Technical Parameter

Max Face Length	12000mm
Roll diameter	500-2000mm
Rubber type and thickness	Customer's requirement
Dynamic Balancing	G1.0, with dynamic deflection curve, other info required by customer
Roll body material	Cast iron HT250-HT300
Cylinder head	Cast steel/Forged 42CrMo

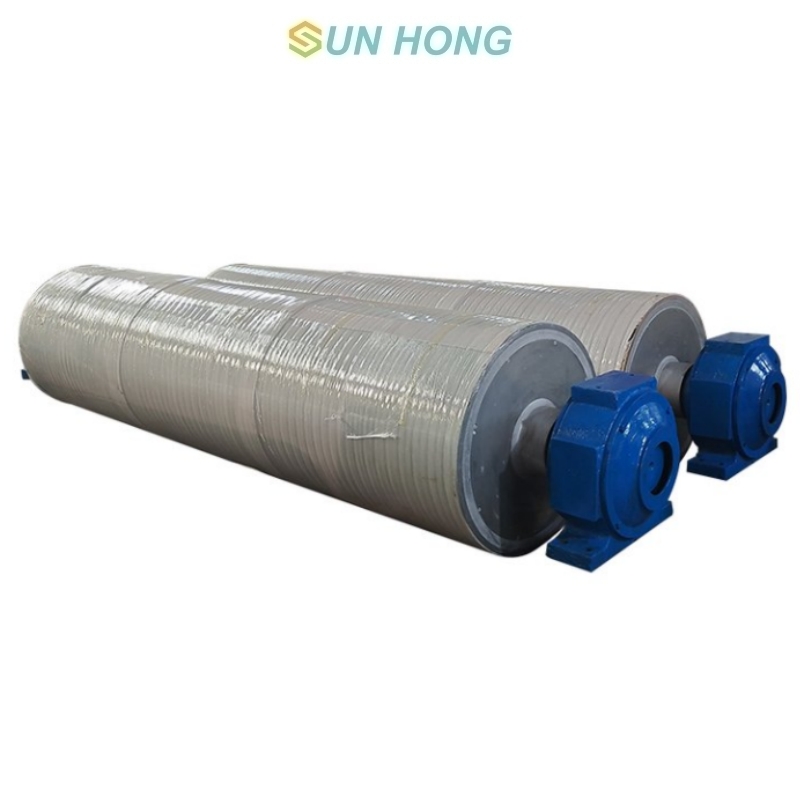

Bearing and bearing housing	Can be include
