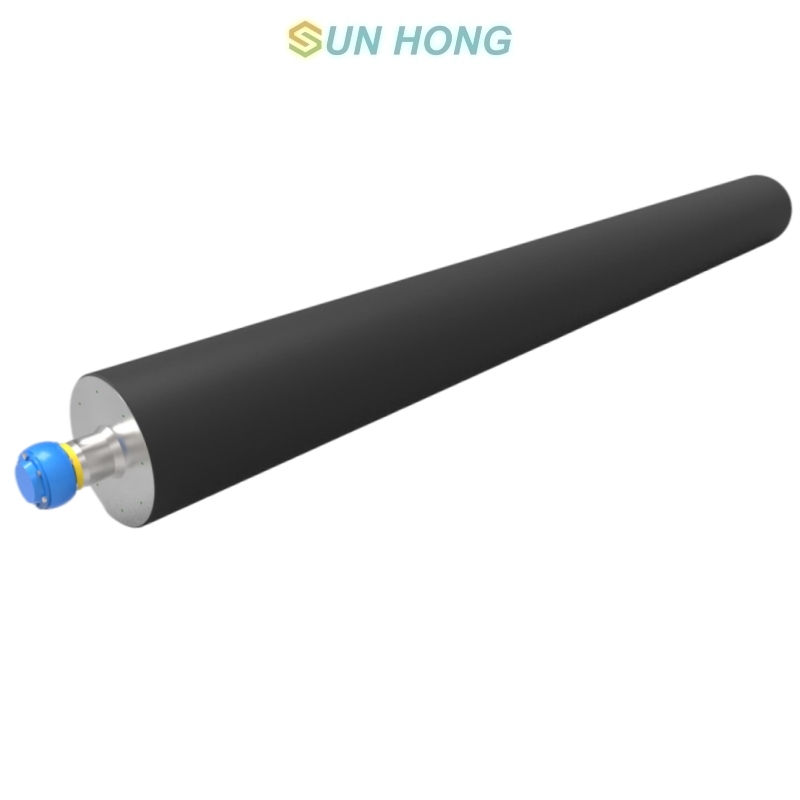

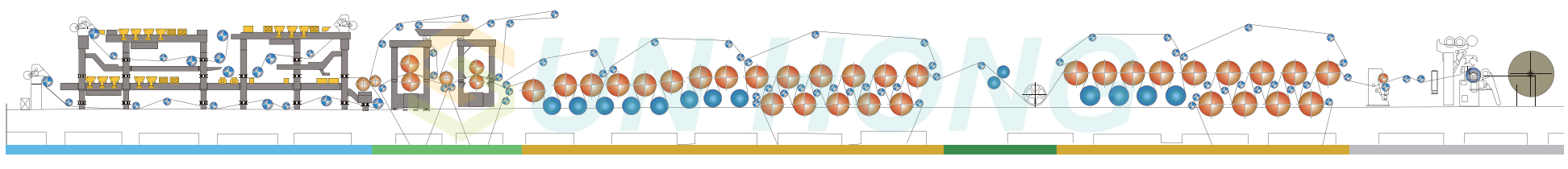

Guide roll are divided into two types in terms of usage: felt guide roll and wire guide roll. Their application areas include pressing, drying, reel, rewinding, and other parts. wire guide roll, felt guide roll, paper guide roll, chromed guide roll,etc. are distributed throughout the front and rear of the paper machine. The guide roll guide and drive the felts and fabric in the wet end and drying section of the paper machine. The guide roll in the two areas use the same bearings, but different lubrication and sealing are used depending on the application location.
As an indispensable part of the paper production process, the paper machine guide roll not only guides and supports, but also serves as an important control element in the entire process, affecting the quality and cost of the paper.
Guide function : The paper machine guide roll can guide the cardboard to move in the desired direction during the production process. By setting the number and position of guide roll reasonably, accurate guidance can be achieved in different production processes.
Support function :The paper machine guide roll bears a large load in the paper production process and is also a protective layer for paper deformation, so it has a strong supporting effect.
Control function :Another main function of paper machine guide roll is to control parameters such as paper speed and tension, in order to ensure stability and controllability during the paper production process.
Adjust function: Paper machine guide roll can also be used to adjust the width, thickness, and surface flatness of paper. In the process of paper production, the paper often undergoes subtle changes due to differences in raw materials and adjustments in production parameters. At this time, it is necessary to fine tune the guide roll to ensure stable paper quality.

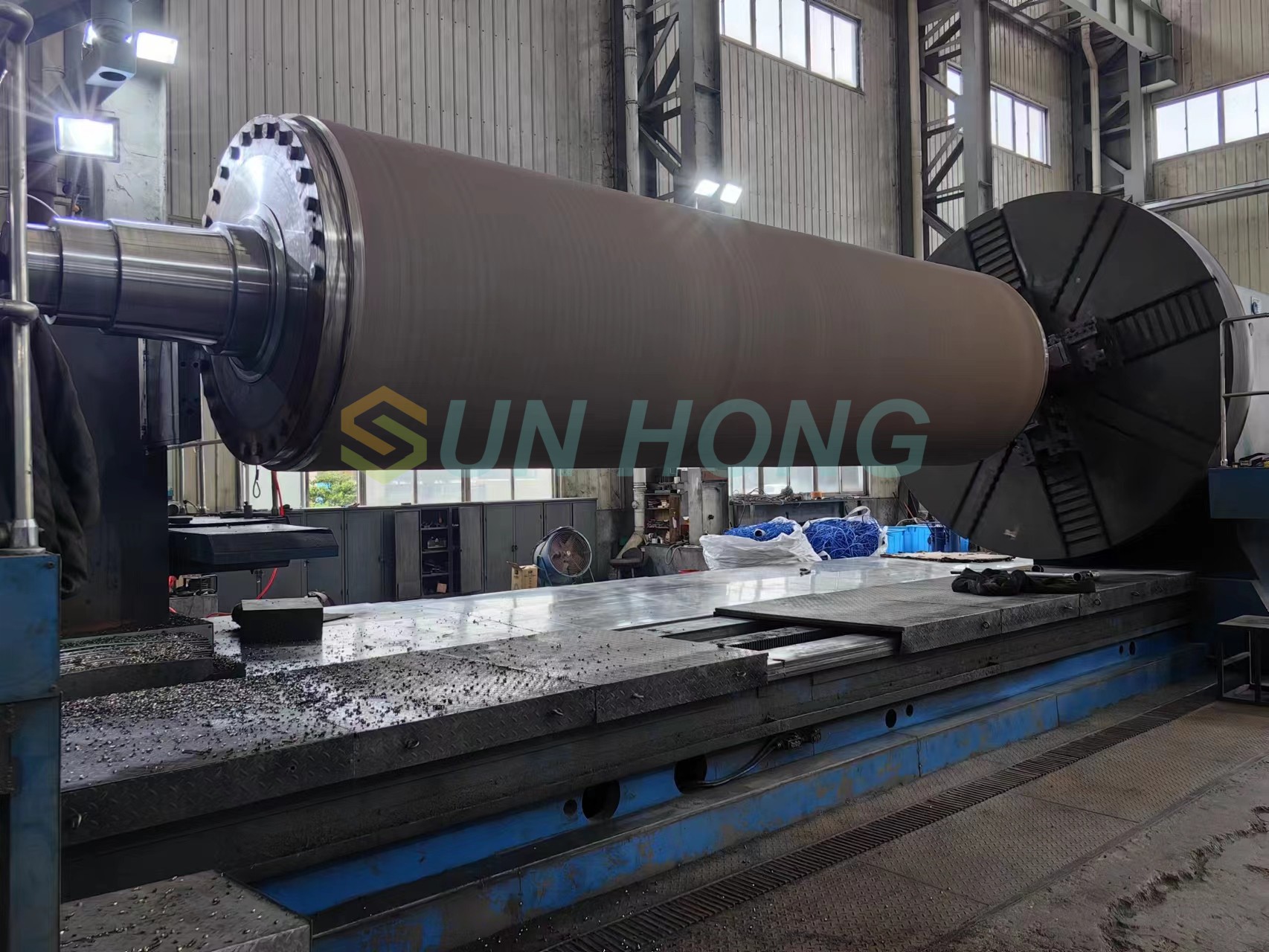

Coated PTFE guide roll

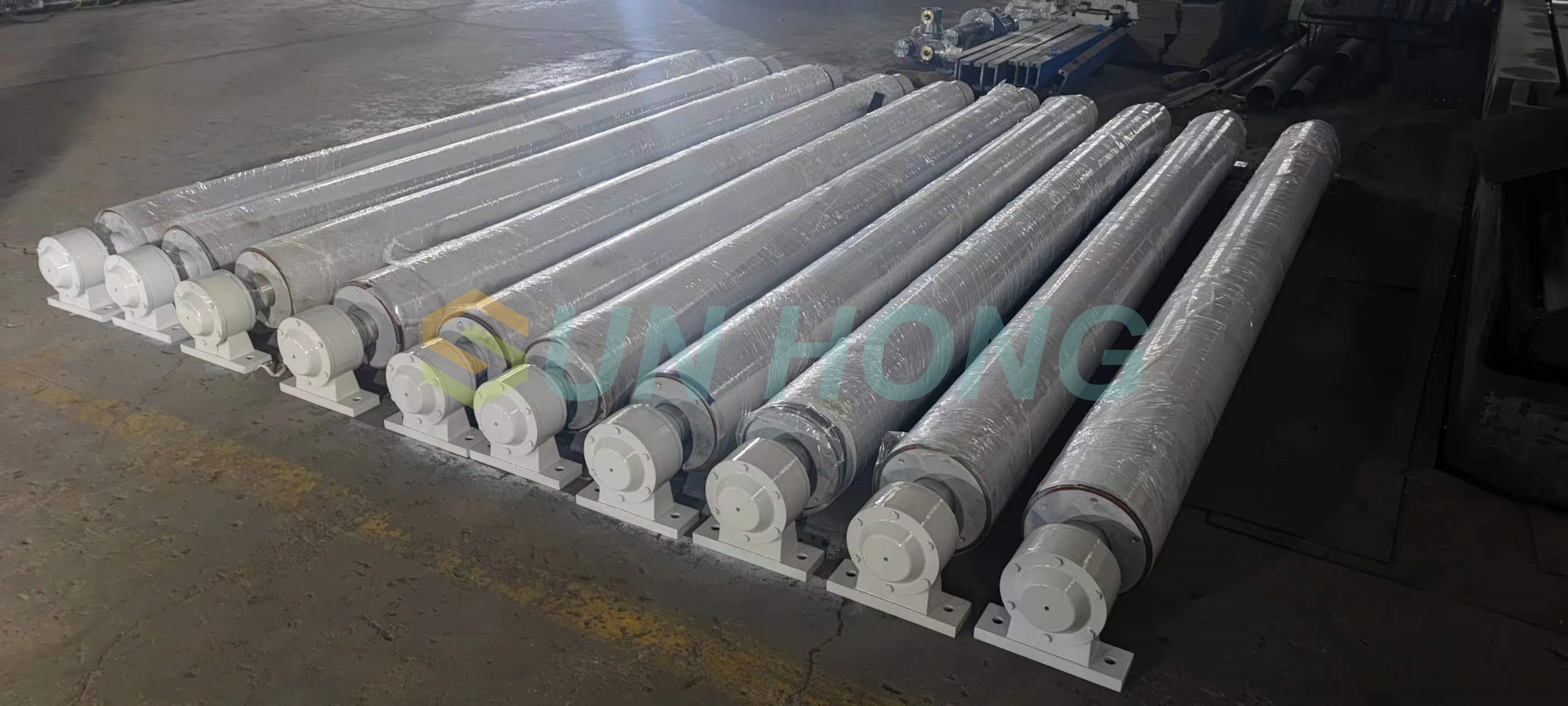

Wire Guide Roll
Technical Parameter
| Roll Name | Roll Diameter | Face Width | Tension | Surface Coated |
| Felt guide roll | 315-900mm | 2050-11000mm | 8 KN/m | covered rubber ,stainless steel, chroming |
| Wire guide roll | 315-900mm | 2050-11000mm | 8 KN/m | covered rubber ,stainless steel, chroming |
| Tension roll | 315-900mm | 2050-11000mm | 8 KN/m | covered rubber ,stainless steel, chroming |
| Guide roll | 315-900mm | 2050-11000mm | 8 KN/m | covered rubber ,stainless steel, chroming |
