What Determines Pressure Screen Price for Mills?

Pressure screen price for a paper mill is determined by much more than machine diameter or motor power. Screen type, production capacity, pulp consistency, furnish, screening area, screen basket design, slot or hole specification, rotor configuration, stainless steel grade, automation, drive system, spare-parts scope, and customization all affect the final quotation. Two pressure screens with similar external dimensions can therefore have significantly different purchase prices and very different operating costs.

For mills, the more useful question is not simply “How much does a pressure screen cost?” but “What configuration is required to achieve the target pulp cleanliness, capacity, energy consumption, and fiber yield?” Sun Hong Group supplies pressure screening equipment and related components as part of its Stock Preparation Equipment range for wood pulp, waste paper pulp, straw pulp, chemical pulp, and other papermaking furnishes. Correct pricing begins with the actual screening duty rather than a standard machine price.

Why Do Pressure Screen Prices Vary So Much?

A pressure screen is a process machine rather than a standardized commodity. Its job is to separate acceptable fibers from contaminants and oversized particles while maintaining sufficient production capacity and minimizing useful fiber loss. The required design changes according to where the screen is installed, what pulp enters it, how much pulp needs to pass through each day, and what contaminant size must be removed.

An approach-flow fine screen for a paper machine has different requirements from a coarse screen in recycled-fiber stock preparation. Fine screening may require narrow slots, stable low-pulsation flow, precise rotor-to-basket interaction, and higher screening accuracy. Coarser screening can use different apertures and may prioritize contaminant handling and throughput instead. These differences directly affect basket manufacturing, rotor design, screen area, drive power, housing size, and control requirements.

The main price factors normally include:

A meaningful quotation should therefore define these items before suppliers are compared.

How Does Pressure Screen Type Affect Price?

The first major price factor is the pressure-screen configuration. Different screen types are designed for different process positions, pulp consistencies, and flow directions. An inflow pressure screen, for example, feeds stock around the outside of the screen basket while accepted pulp passes inward through the screen surface. Its rotor foils operate outside the basket and generate pressure pulses that help maintain continuous screening and prevent plugging.

Sun Hong's Paper Pulp Screening Equipment Inflow Pressure Screen is intended for applications including pre-machine screening and fine screening of wood pulp, straw pulp, and waste-paper pulp. Its current product range illustrates how machine size changes with the required duty: screening area increases from about 0.4 m² on the smaller model to more than 7 m² on the largest listed model, while motor power increases from 15 kW to 110 kW. A mill requiring hundreds of tonnes per day therefore cannot expect the same machine price as one processing a small specialty-paper line.

Middle-consistency screening introduces another design level. The Paper Pulp Screening Middle Consistency MC Pressure Screen is designed for stock at higher consistency and can be used for coarse or fine screening of wood pulp, straw pulp, chemical pulp, waste paper pulp, and refining systems. Higher-capacity MC models require substantially larger screening areas and drive power, and may incorporate additional automation such as oil-injection systems, seal-water monitoring, temperature or vibration monitoring provisions, and DCS interfaces.

This is why comparing an MC pressure screen quotation directly with a smaller low-consistency inflow screen is rarely meaningful. Their process duties and engineering scope are different.

How Does Mill Capacity Affect Pressure Screen Price?

Production capacity is one of the strongest influences on pressure screen price because a larger mill needs more effective screening area and hydraulic capacity. A machine processing 30 T/D and one processing 500 T/D may use the same fundamental screening principle, but their housing size, basket dimensions, rotor, shaft, bearings, motor, frame, and piping connections can be completely different.

Higher capacity also changes internal flow conditions. The manufacturer must provide enough open screening area for the required stock flow without creating excessive pressure drop or forcing fibers through the screen at conditions that reduce screening efficiency. Simply increasing motor power cannot compensate for inadequate basket area.

The required capacity should therefore be specified together with pulp consistency. Tonnes per day describes dry production, while the actual volumetric flow through the screen changes significantly with consistency. A screen processing lower-consistency stock may need to handle much more water for the same dry-fiber production.

For an accurate quotation, mills should provide:

• Required production in T/D

• Inlet pulp consistency

• Required accepts consistency if relevant

• Normal flow rate

• Maximum production rate

• Operating hours per day

• Current and planned future production

A manufacturer can then choose the screening area and model rather than simply selecting a machine from nominal mill capacity.

Why Does Pulp Furnish Change the Price?

Different pulp furnishes place different demands on pressure screening equipment. Virgin wood pulp, recycled OCC, mixed waste paper, straw pulp, chemical pulp, and mechanical pulp contain different fiber lengths, contaminant types, abrasive materials, stickies, shives, plastics, sand, and other unwanted substances.

Recycled fiber can be especially demanding because the stock may contain adhesives, plastics, coatings, fillers, sand, and other contaminants. The screen basket and rotor therefore need to maintain screening performance without plugging or excessive wear. A configuration developed for clean virgin pulp may not be the best choice for heavily contaminated recovered paper.

Furnish also influences aperture selection. Coarse screening may use larger holes to remove large contaminants early in stock preparation, while fine screening uses narrow slots or smaller apertures to remove smaller contaminants before the paper machine. The finer the separation target, the more demanding the basket manufacturing and rotor operating conditions generally become.

When requesting a pressure screen price, mills should identify not only the paper grade but also the fiber source and contaminant profile. Information such as “OCC recycled pulp for testliner” is much more useful than simply saying “paper pulp.”

How Does the Screen Basket Affect Pressure Screen Cost?

The screen basket is one of the most important components in the entire pressure screen and can account for a meaningful part of both initial and lifetime cost. Its aperture geometry determines what can pass into the accepts stream and what remains on the reject side.

Pressure screen baskets can use drilled holes, machined slots, wedge-wire structures, or other profiles depending on the screening objective. Fine slotted baskets generally require more precise manufacturing than relatively large drilled holes because small variations in slot width can change contaminant removal, fiber passage, and capacity.

Surface finish also matters. Rough areas can catch fibers and encourage plugging, while smoother surfaces help stock move across the screening surface. Sun Hong's product range includes different basket structures within its Stock Preparation Spare Parts category, including drilled-hole, slotted, wedge-type, and other pulp-screening components.

The basket specification should consider:

A lower-priced machine with a poor basket can become more expensive over time if the mill experiences frequent plugging, lower production, reduced screening efficiency, or early basket replacement.

How Does Slot Width Affect Price and Pulp Quality?

Slot width is a critical parameter in fine pressure screening. Narrower slots can improve removal of certain contaminants and fiber bundles, but they also reduce available open area and can increase the risk of plugging if the rotor, feed conditions, and furnish are not properly matched.

Producing consistent fine slots also requires tighter manufacturing control. If nominal slot width varies significantly around the basket, the screening result becomes inconsistent. Wider areas may allow contaminants to pass, while overly narrow sections can restrict flow and create localized plugging.

Mills should therefore avoid purchasing a pressure screen based only on the statement “fine slot basket.” The quotation should specify the intended basket aperture and confirm that the design is appropriate for the furnish and screening stage.

Extremely fine screening is not automatically better. If the slot is narrower than the process requires, capacity can fall, energy demand may rise, reject losses can increase, and the machine may become difficult to operate. The correct aperture is the one that achieves the required contaminant removal while maintaining acceptable fiber yield and throughput.

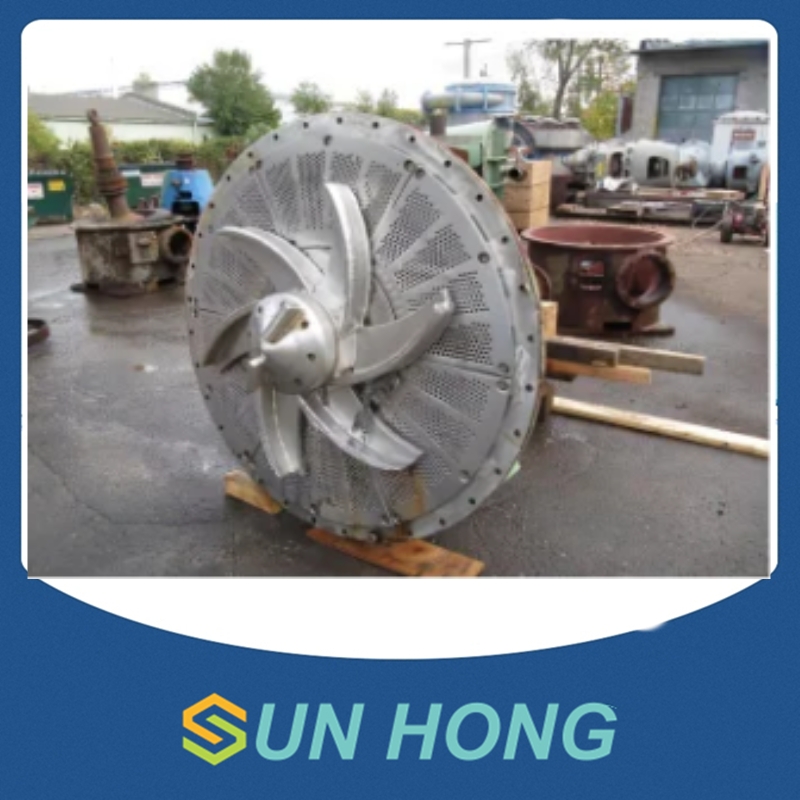

Why Is the Pressure Screen Rotor Important to Price?

The rotor works together with the basket to maintain screening. As rotor foils pass near the basket surface, they create pressure and suction pulses. These pulses help move acceptable fibers through the apertures while periodically back-flushing the screen surface so fibers and contaminants do not form a permanent mat over the openings.

Rotor geometry influences pulse strength, frequency, hydraulic resistance, plugging tendency, production capacity, and energy consumption. A poorly matched rotor can create excessive pulsation, consume unnecessary power, or fail to keep the basket clean. A properly designed rotor needs to match the basket, furnish, consistency, and required capacity.

This means pressure screen price should not be evaluated from basket size alone. The rotor, shaft, bearings, drive, and clearance between rotor and basket are part of the same screening system.

Energy-efficient rotor designs may cost more initially but can reduce electricity consumption over the operating life of the screen. For a continuously operating paper mill, even a moderate reduction in motor load can become financially significant over thousands of annual operating hours.

How Do Motor Power and Energy Efficiency Affect Total Cost?

Motor size contributes directly to purchase price, but operating power can matter far more over the service life of the machine. Larger pressure screens can require motors ranging from tens to hundreds of kilowatts depending on model and duty.

A buyer should therefore distinguish between installed motor power and actual operating energy consumption. A large motor rating does not mean that the equipment always runs at full load, but rotor design, hydraulic losses, consistency, basket condition, and operating pressure all influence actual power draw.

The true financial comparison should include:

Initial Machine Price + Electricity + Basket Replacement + Rotor Maintenance + Downtime + Fiber Loss

A pressure screen with a slightly lower purchase price may have a higher lifetime cost if it consumes substantially more energy or requires frequent basket cleaning and replacement.

Energy evaluation should ideally use a measure such as kWh per tonne of pulp screened rather than motor nameplate power alone. This creates a more useful comparison between machines of different capacities.

How Do Stainless Steel and Material Selection Affect Price?

Pressure screens operate continuously in wet pulp environments, so corrosion and wear resistance are important. The housing, basket, rotor, piping interfaces, and internal components may use different stainless steel specifications depending on the application.

Higher-grade materials usually increase purchase cost, but selecting material solely on price can create premature corrosion or wear. Chemical pulp, recycled furnish, process chemicals, chloride-containing water, and abrasive contaminants can all change material requirements.

The screen basket deserves particular attention because it experiences continuous hydraulic action and interaction with fibers and contaminants. The rotor and foil surfaces also operate close to the basket and may be exposed to abrasive particles.

However, the most expensive stainless steel is not automatically required in every application. Material should match water chemistry, pulp furnish, temperature, chemical exposure, and expected service life. Paying for an unnecessarily high specification increases initial cost, while choosing material that is too low can increase maintenance cost.

How Does Automation Affect the Pressure Screen Price?

Basic pressure screens can operate with relatively simple controls, but modern pulp lines increasingly use monitoring and automation to improve reliability. Larger or more critical pressure screens may include bearing temperature monitoring, vibration monitoring, automatic lubrication, seal-water flow monitoring, differential-pressure measurement, flow instrumentation, and interfaces with the mill's DCS.

These features increase the purchase price because they require sensors, wiring, control hardware, engineering, and commissioning. However, they can also help maintenance teams detect abnormal conditions before a major mechanical failure occurs.

Differential pressure is particularly useful because changes can indicate basket plugging, changing flow conditions, or other process disturbances. Vibration and bearing temperature provide information about mechanical condition. Automated lubrication can improve consistency of bearing maintenance.

The appropriate level of automation depends on the importance of the screening position. A small non-critical auxiliary screen may not need the same instrumentation package as a large approach-flow unit feeding a high-speed paper machine.

Machine Price vs Pressure Screen Total Cost of Ownership

Pressure-screen purchasing decisions should consider the total cost over several years rather than the initial quotation alone. The housing and frame may last for many years, while screen baskets, rotor foils, seals, bearings, and other components may require periodic replacement.

The main lifetime costs include:

A pressure screen that costs 10% less at purchase but causes more downtime or higher fiber loss can become the more expensive machine very quickly.

For this reason, mills should ask about replacement basket availability and rotor compatibility before buying the main machine. Spare-part lead time can be as important as initial equipment price, particularly for mills importing equipment from another country.

How Does Reject Rate Affect Operating Economics?

A pressure screen removes contaminants by directing unwanted material to the reject stream. However, rejects can also carry useful fibers. If the system rejects too aggressively, pulp yield decreases and the mill loses valuable fiber.

Reducing the reject rate too far can create the opposite problem: contaminants remain in the accepts and reach downstream equipment or the paper machine.

Correct screen design therefore needs to balance:

Contaminant Removal + Fiber Recovery + Capacity + Energy

Basket aperture, rotor design, pressure difference, feed consistency, reject flow, and furnish all influence this balance.

For mills using recovered paper, fiber yield can have a substantial financial impact because raw material represents a major operating cost. A lower-priced pressure screen that sends excessive usable fiber into rejects can lose more money each year than it saved during procurement.

How Does Pressure Screen Quality Affect the Paper Machine?

Pressure-screen performance influences more than the stock-preparation department. Contaminants that pass through inadequate screening can continue into cleaners, headbox approach flow, and the paper machine.

Poor screening can contribute to:

• Deposits

• Sheet defects

• Web breaks

• Nozzle blockage

• Fabric contamination

• Doctor-blade problems

• Reduced drainage

• Lower machine efficiency

The relationship becomes especially important near the forming section. Clean stock reaches the paper machine clothing, where forming fabric must provide stable drainage and sheet support. If stickies, debris, or fiber bundles escape screening, they can contaminate the forming section and increase cleaning demand.

A forming fabric cleaner can remove deposits from fabric during operation, but cleaning equipment should not be expected to compensate for inadequate stock preparation. Similarly, an air bellow used in fabric guiding or tensioning contributes to stable machine clothing operation but performs a completely different function from the pressure screen.

The pressure screen, cleaners, fabric cleaning system, and guiding system should therefore be viewed as connected parts of overall paper-machine runnability rather than isolated purchases.

How Does Installation Scope Affect the Quotation?

Two pressure screen quotations can differ substantially because one covers only the machine while the other includes a much broader supply scope.

Before comparing prices, confirm whether each quotation includes:

• Main pressure screen

• Screen basket

• Rotor

• Electric motor

• Coupling

• Base frame

• Lubrication system

• Seal-water equipment

• Sensors

• Electrical cabinet

• Spare basket

• Spare rotor foils

• Bearings and seals

• Piping accessories

• Installation supervision

• Commissioning

• Operator training

A low machine-only price can become much higher once the mill separately purchases drives, controls, spare parts, and installation services.

Shipping also matters. Larger pressure screens are heavy industrial machines, and freight, export packing, inland transport, customs clearance, and installation lifting can all affect delivered project cost.

The buyer should compare the total installed scope, not only ex-factory machine price.

What Specifications Should Mills Compare Before Buying?

A procurement team should create a technical comparison sheet before comparing supplier prices. This prevents a low-priced but underspecified machine from appearing more attractive than a correctly sized alternative.

Only after these specifications are aligned should buyers compare the final price.

What Information Is Needed for an Accurate Pressure Screen Quote?

A supplier cannot size a pressure screen accurately from paper-machine width alone. The stock-preparation conditions need to be known.

Mills should provide:

• Paper grade

• Raw material or furnish

• Screening position

• Required production capacity in T/D

• Inlet pulp consistency

• Operating pressure

• Required screening accuracy

• Existing hole or slot size

• Current screen model if replacing equipment

• Contaminant type

• Motor voltage and frequency

• Available installation space

• Pipe connection dimensions

• Automation requirements

• Required spare-parts package

If replacing an existing screen, the original model, basket dimensions, rotor information, drawings, and installation photos can simplify selection.

When a mill is experiencing a specific problem such as frequent basket plugging, excessive energy consumption, high reject fiber loss, or poor accepts quality, that information should also be provided. It may indicate that simply replacing the existing machine with the same configuration is not the best solution.

Should Mills Buy the Cheapest Pressure Screen?

The cheapest pressure screen is not automatically the lowest-cost choice. Pressure screening is often a continuous-duty operation, which means energy consumption, spare-part life, fiber yield, and downtime accumulate every day.

A lower-cost unit may be acceptable if its basket, rotor, materials, capacity, and controls genuinely match the application. The problem occurs when price is reduced by undersizing the screening area, using a less suitable basket, reducing material quality, simplifying the rotor, or excluding important components from the quotation.

A better purchasing calculation is:

Total Cost = Equipment + Energy + Wear Parts + Fiber Loss + Maintenance + Downtime

This approach also prevents unnecessary overspecification. Mills do not need to purchase the largest machine or the finest slot available. Oversizing increases capital cost, and excessively fine screening can create unnecessary hydraulic resistance or reject loss.

The most economical screen is the one correctly sized for the process.

Why Choose Sun Hong Group?

Sun Hong Group was established in 2010 in Xuzhou, Jiangsu Province and supplies products for the pulp and paper industry. The company's original manufacturing focus included press felt, forming fabric, and dryer fabric, and its product scope later expanded into stock-preparation equipment, screening components, dewatering elements, spray nozzles, doctor blades, rotary joints, rolls, ceramic cleaner cones, and other paper-machine parts.

This broader product range is useful in pressure-screen projects because stock preparation cannot be evaluated completely independently from downstream paper-machine operation. Screening quality influences pulp cleanliness, while forming fabrics, press felts, cleaning systems, rolls, and other machine components influence how that stock is converted into paper.

Sun Hong can supply complete pressure-screen units as well as screen baskets, rotors, and related stock-preparation parts. For replacement projects, mills can provide existing machine data or drawings; for new projects, capacity, pulp consistency, furnish, screening stage, and target quality can be used to determine a suitable configuration.

The company also has engineers with long-term experience in the paper industry and has participated in paper-machine project work in addition to individual spare-parts supply. This allows equipment selection to consider the broader pulp and paper process rather than simply matching one model number.

Conclusion

Pressure screen price is determined by the screening duty, not by machine size alone. Screen type, capacity, pulp consistency, furnish, screening area, basket aperture, rotor design, motor power, materials, automation, spare parts, and installation scope can all substantially change the final quotation.

The screen basket and rotor deserve particular attention because they directly influence screening efficiency, plugging resistance, fiber yield, energy consumption, and maintenance requirements. Fine slot baskets and specialized rotor designs may increase initial cost but can be justified when the mill requires cleaner accepts and stable continuous operation.

Buyers should also evaluate total cost of ownership. Electricity, basket replacement, rotor maintenance, fiber loss, downtime, and spare-part availability can become more important than the original machine price over several years of production.

For an accurate quotation from Sun Hong Group, provide the pulp furnish, screening position, production capacity, inlet consistency, required aperture, operating pressure, existing equipment information, automation requirements, and spare-parts scope. These details allow the pressure screen to be selected according to the actual mill process rather than quoted as a generic machine.

FAQ

What affects the price of a pressure screen?

The main factors are screen type, production capacity, pulp consistency, basket size, slot or hole specification, rotor design, motor power, stainless steel material, automation, customization, and included spare parts.

Why do pressure screen prices vary between suppliers?

Suppliers may quote different screening areas, basket materials, aperture accuracy, rotor designs, motors, controls, spare parts, and installation scopes. The technical specifications should be aligned before comparing prices.

Does a larger pressure screen always cost more?

Generally, higher-capacity screens require larger baskets, housings, rotors, motors, and structural components, which increases cost. However, configuration and material specifications also have a major influence.

Does a finer screen slot increase the price?

It can. Fine slots require more precise manufacturing and tighter quality control. The basket design must also work correctly with the rotor and pulp furnish to avoid plugging and excessive pressure loss.

How does the screen basket affect pressure screen quality?

The basket determines which fibers and contaminants can pass through the screening surface. Aperture accuracy, surface finish, material, open area, and wear resistance all influence screening efficiency and service life.

Why is rotor design important in a pressure screen?

The rotor creates pressure pulses that help move acceptable stock through the basket and clean fibers away from the screening surface. Rotor design affects capacity, plugging resistance, pulsation, and energy consumption.

What is the difference between inflow and middle-consistency pressure screens?

Inflow pressure screens are commonly used for fine screening and approach-flow applications, while middle-consistency screens are designed to process stock at higher consistency and can serve coarse or fine screening duties. Their capacities, hydraulic conditions, and drive requirements differ.

Does pressure screen motor power determine capacity?

Motor power is only one factor. Capacity also depends on screening area, aperture, furnish, consistency, rotor design, pressure conditions, and reject rate. A larger motor cannot compensate for an incorrectly sized basket.

Should paper mills buy the cheapest pressure screen?

Not necessarily. Mills should compare equipment price together with energy use, fiber loss, basket and rotor life, maintenance, downtime, and spare-part availability.

What spare parts should be considered when buying a pressure screen?

Important spare parts include screen baskets, rotor foils or rotors, bearings, mechanical seals, gaskets, and other wear components. Mills should confirm availability and delivery time before purchasing the main machine.

How can a pressure screen reduce paper machine problems?

Effective screening removes contaminants and fiber bundles before they reach downstream equipment. Cleaner stock can reduce deposits, sheet defects, nozzle blockage, fabric contamination, and other problems that affect paper-machine runnability.

What information should I provide for a pressure screen quotation?

Provide pulp type, furnish, screening position, capacity in T/D, inlet consistency, operating pressure, required hole or slot size, current equipment model, contaminant type, electrical requirements, automation needs, and required spare parts.
