Paper Machine Shower Pipe Oscillation for Uniform Fabric Cleaning

Precise Shower Pipe Movement for Uniform Fabric Cleaning

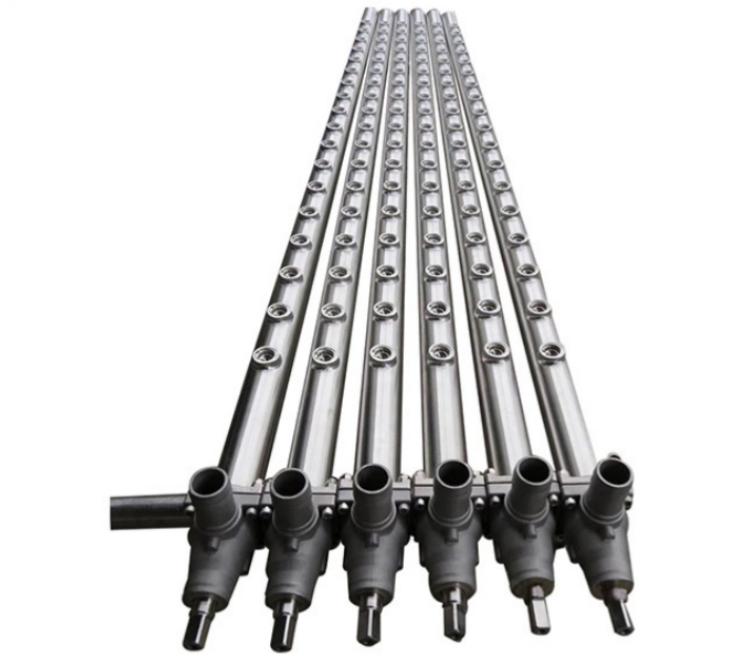

Paper machine shower pipes are typically arranged transversely along the paper machine, with multiple spray nozzles mounted on the pipe body.

During operation, water is delivered through the shower pipes to the various nozzles and then applied to the fabric surface at a specific pressure, flow rate, and spray angle.

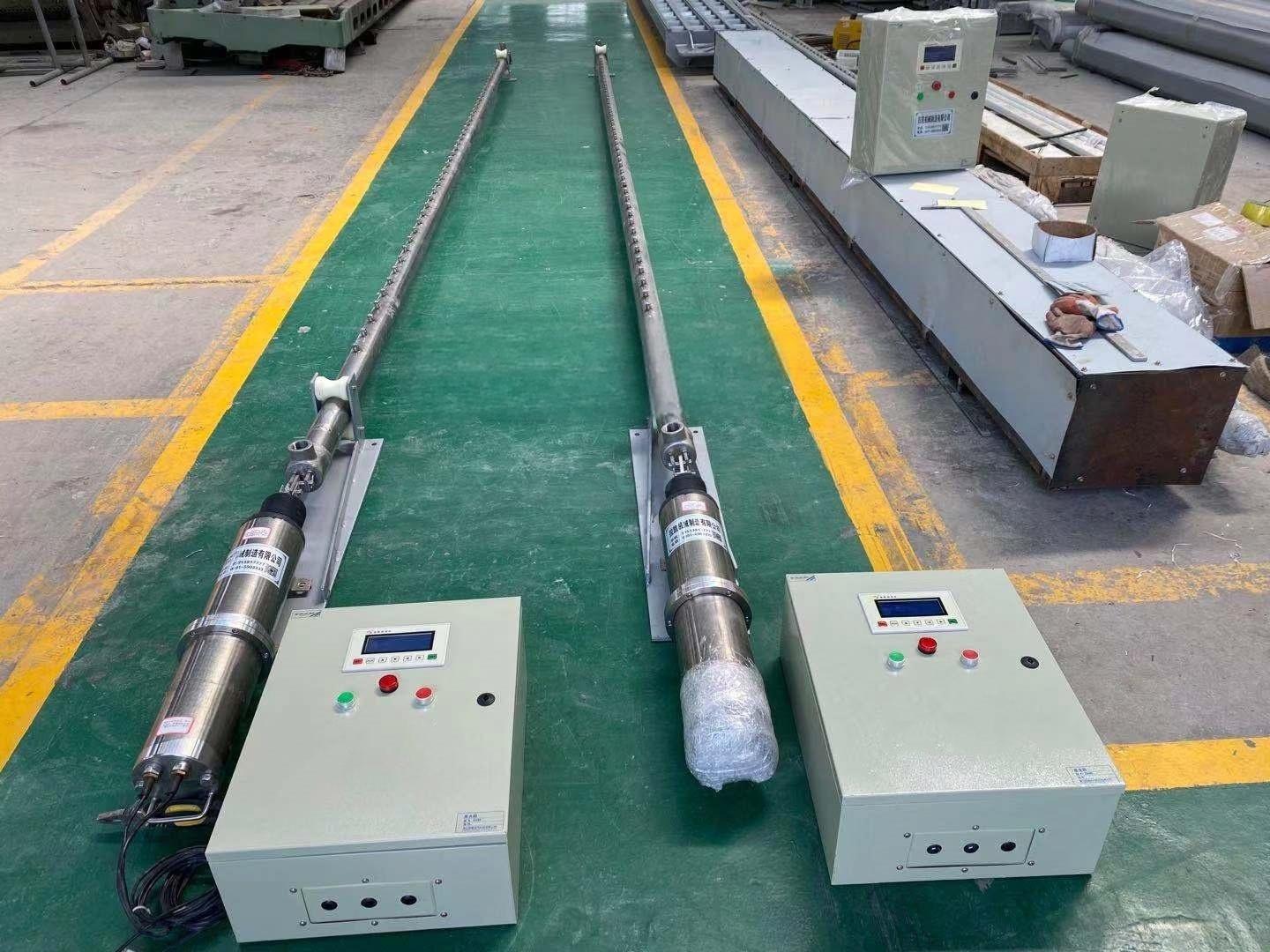

For shower spray systems required to perform reciprocating motion, the swing accuracy of the shower pipe is also a key factor affecting cleaning performance.

By continuously oscillating the shower pipe in the machine width direction, the spray water can cover the fabric surface more evenly, reducing the risk of uneven cleaning that might occur with fixed spray zones.

Oscillating spraying can also improve the uneven coverage often seen with fixed-position fan-shaped and needle-shaped spray nozzles, thereby helping to reduce localized contamination of the fabric.

Uniform oscillating spraying keeps the forming fabric and press felt clean, reduces surface defects in the paper sheet caused by contamination and uneven cleaning, and maintains the fabric’s dewatering performance, forming uniformity, and operational stability.

For press felts and forming fabrics, proper cleaning methods also help extend the service life of the clothing.

Why Shower Pipe Oscillation Matters

Spray performance depends not only on water pressure but also on the pressure distribution inside the shower pipe, the type of spray nozzles, the spacing between nozzles, and the movement of the shower pipe.

If the pressure inside the shower pipe is uneven, or the spray nozzles are not properly selected or spaced, even high-pressure water may not provide uniform cleaning across the machine width.

In addition, it is very important to match the oscillation speed to the paper machine's operating speed.

Synchronization here does not simply mean keeping the oscillator at the same speed as the paper machine. Rather, it involves determining the appropriate oscillation frequency based on the paper machine’s speed, the fabric’s running speed, the nozzle spacing, and the oscillation stroke.

Ideally, the shower pipe should change position according to the preset oscillation pattern during each revolution of the fabric, allowing the spray nozzles to provide uniform coverage across the entire fabric width.

If the pressure distribution within the shower pipe is uneven, or if the nozzles are improperly selected or spaced, inconsistent cleaning results across the width of the paper machine may occur even when using high-pressure water.
