SSB Triple Layer Forming Fabric for Paper Making Machine

Sun Hong's triple layer forming fabric adopts a triple layer structure design, which not only improves the retention rate and uniformity of fibers and fillers, reduces mesh marks, but also improves the quality of paper, the stability of the forming fabric structure and extends the service life. As Sun Hong's best selling forming fabric, it has achieved good results on high speed paper machines.
Availability:
Quantity:

SSB Triple Layer Forming Fabric

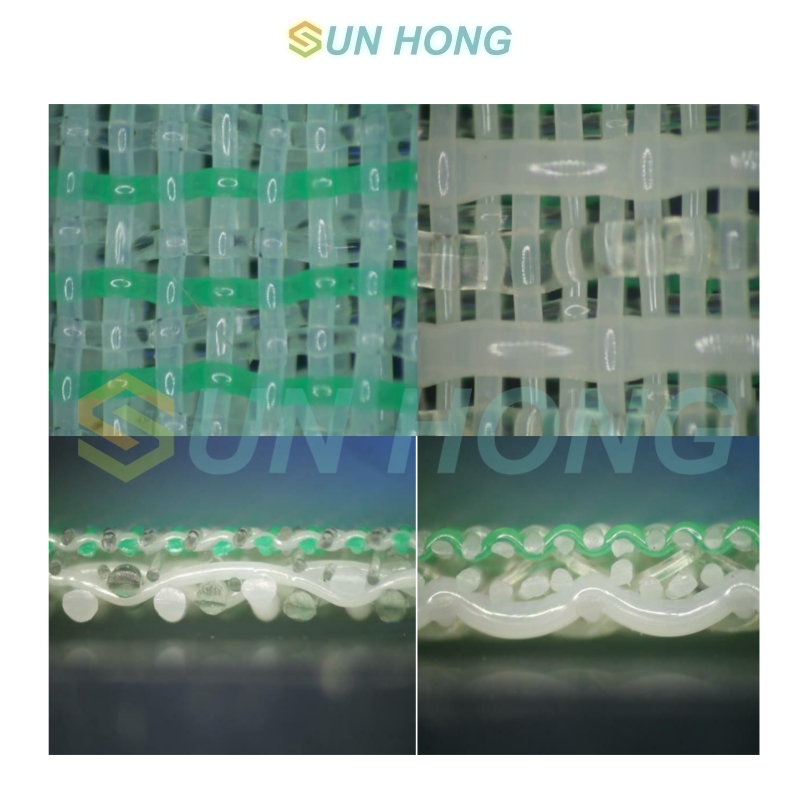

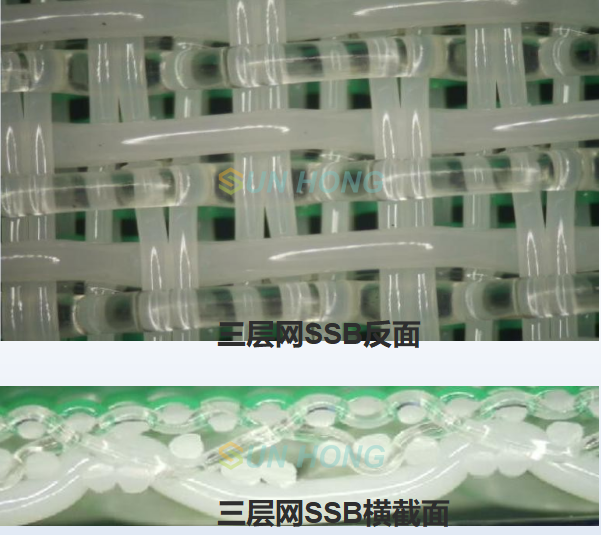

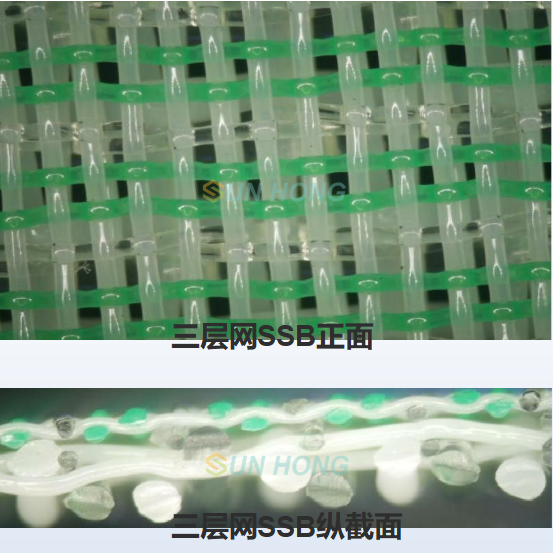

Structure of SSB Triple Layer Forming Fabric


The SSB thriple layer forming fabric adopts a three-layer structure design with top, middle, and bottom layers. The upper layer adopts a finer diameter radial line, horizontal line, and plain weave structure, which improves the retention rate of small fibers and fillers, improves the uniformity and smoothness of paper production, and has light mesh marks and easy removing. The lower layer adopts thicker diameter radial and horizontal lines to improve the stability and service life of the formed mesh structure. Paired parallel lines are used in the middle to precisely connect the upper and lower layers into one, so that there is no relative rubbing or sliding between the two layers.


triple layer forming fabric
triple layer forming fabric


Sun Hong Triple Layer Forming Fabric Series


Triple Layer Polyester Forming Fabric

36,42 series SSB forming fabric


Suitable Paper Kind: corrugated paper, test liner paper, packing paper


Base Feature:

  1. Good dehydration capacity

  2. Good size stability

  3. Long life service

Triple Layer Polyester Forming Fabric

52 series SSB forming fabric


Suitable Paper Kind: thin paper, speciality paper, culture paper


Base Features:

  1. Good retention ability

  2. Good dehydration capacity

  3. Long life service
