1.5 Layer Forming Fabric for Paper Making Machine

Sun Hong one and half layer forming fabric is suitable for producing culture paper, writing paper, printing paper and packing paper. The structure of 1.5 layer forming fabric have good fiber retension and dehydration.
Availability:
Quantity:

Sun Hong Forming Fabric -- 1.5 Layer Forming Fabric


1.5 layer forming fabric is developed from single layer forming fabrics, weave structure of 1.5 layer is given to extra yarns base on one layer of warp yarns mesh and one layer of weft yarns mesh, which is similar with double layer forming fabrics. The 1.5 layer forming fabric is suitable for culture paper, printing paper, writing paper and packing paper etc.

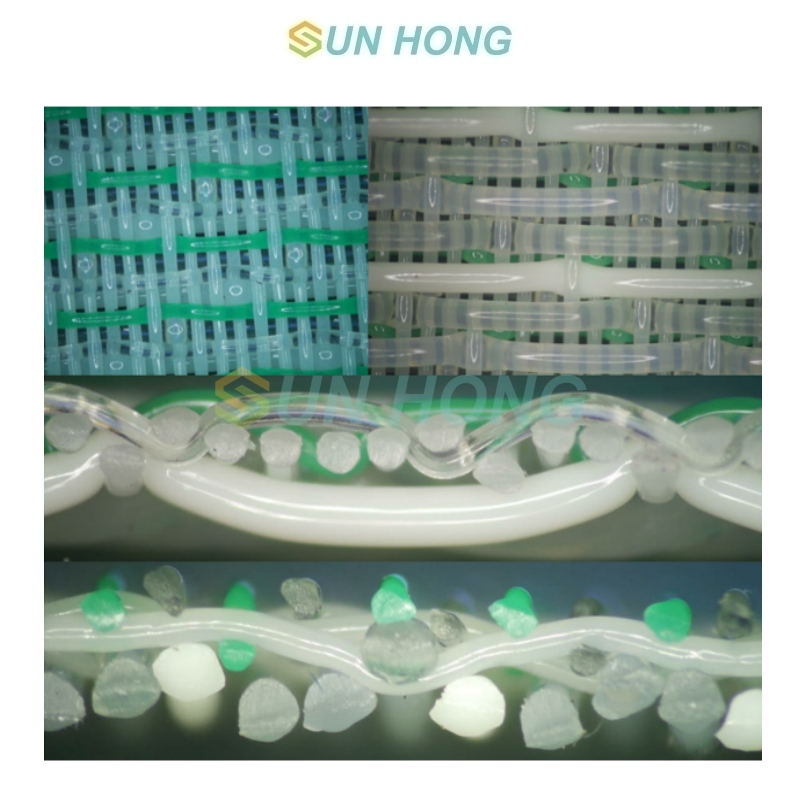

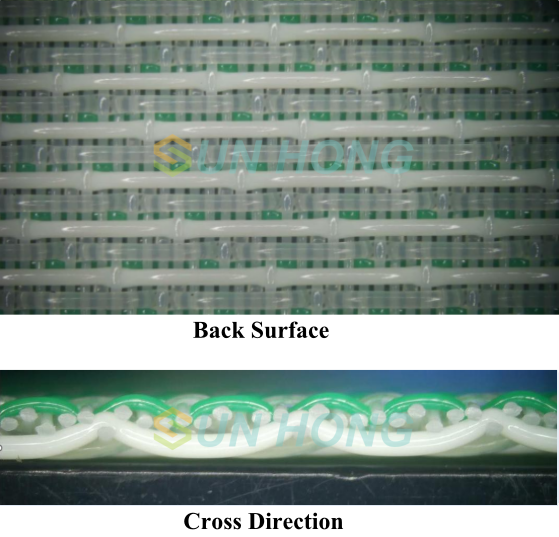

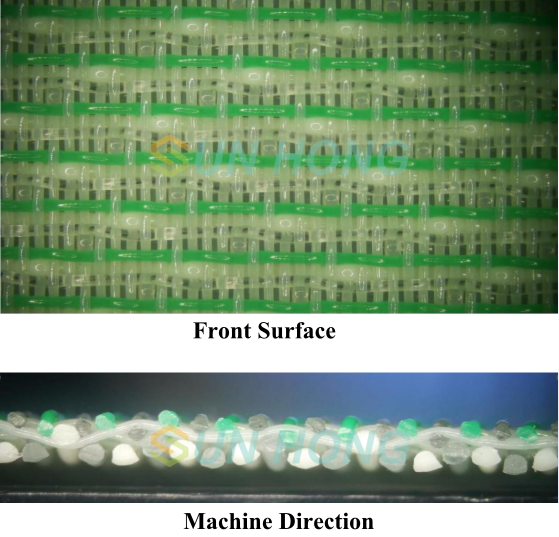

1.5 layer forming fabric
1.5 layer forming fabric


Advantages of 1.5 Layer Forming Fabric


  1. Good fiber retention property, and good dehydration;

  2. Good dimension stability;

  3. Good paper side smoothness


Technical Parameter

Layer 1.5 layer
Warp diameter 0.25mm
Warp density 24L/cm polyester
Up weft diameter 0.22mm
Weft density 9.2L/cm polyester
Down weft diameter 0.4+0.4+0.4mm
Down weft diameter 18.4 L/cm
Thickness 1.03mm
Air permeability 481 CFM
