2.5 Layer Forming Fabric for Paper Making Machine

Double and half layer forming fabric is suitable for corrugated paper, liner tester paper, cardboard paper, etc. The 2.5 layer forming fabric is base on double layer forming fabric with an additional weft yarn on the sheet side. It has good ability of dewatering, stability and long life service.
Availability:
Quantity:

Sun Hong Forming Fabric -- 2.5 Layer Forming Fabric


The 2.5 layer forming fabric is woven by double weave weft, the diameter of back side weft is large, and wide space, so that increase the forming fabric life service and working stable, it can be used for middle wire and bottom wire.


The 2.5 layer forming fabric is suitable producing paper weight over 70g high grade art paper, corrugated paper, liner test paper, cardboard paper,etc. And multi wire paper machine's middle wire ( high paper weight )

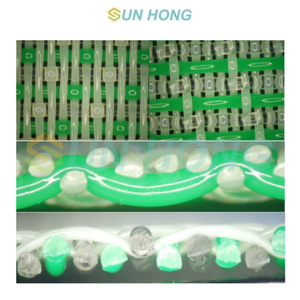

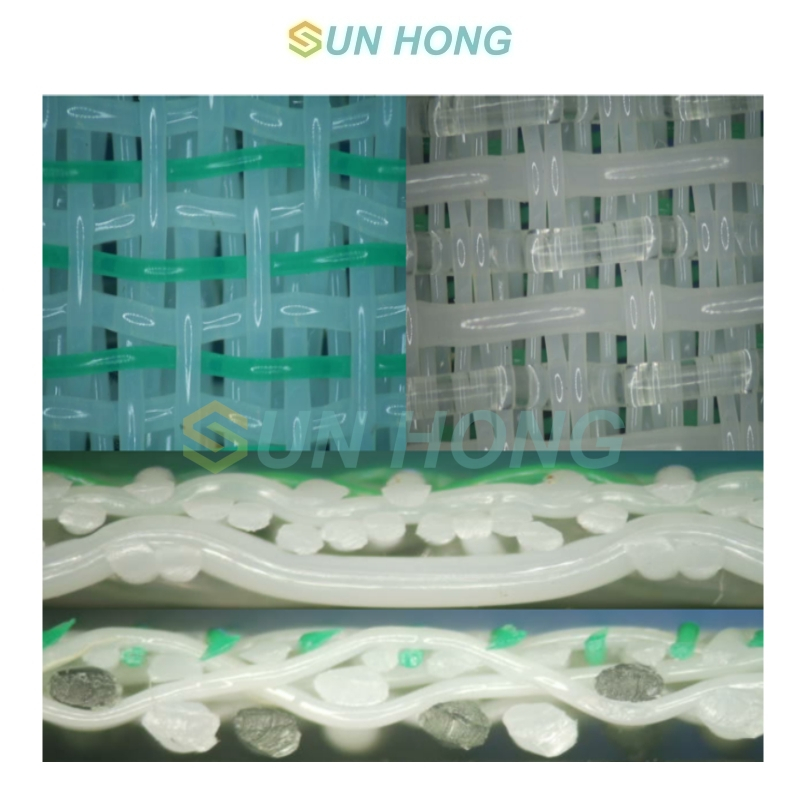

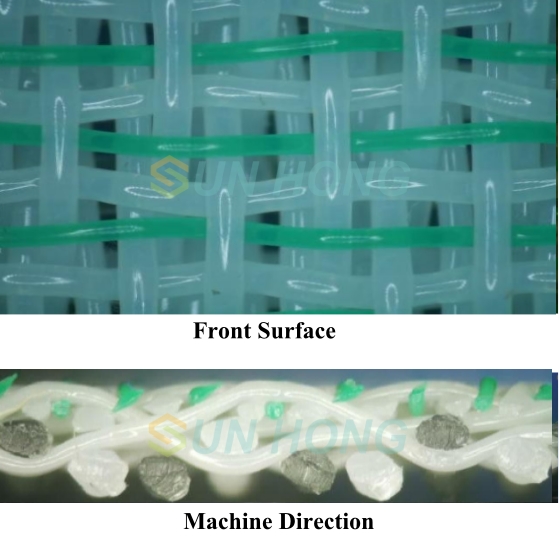

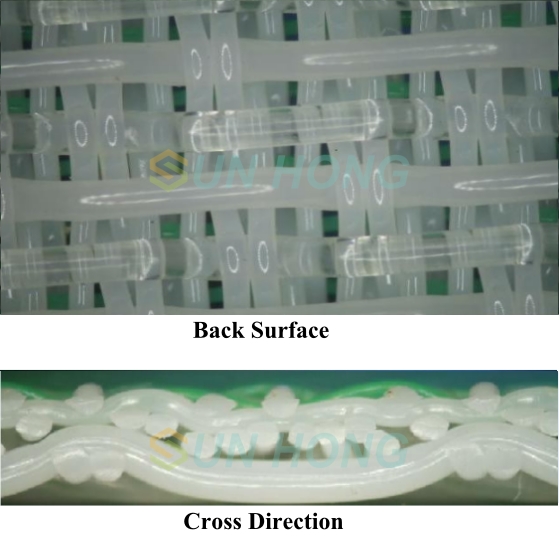

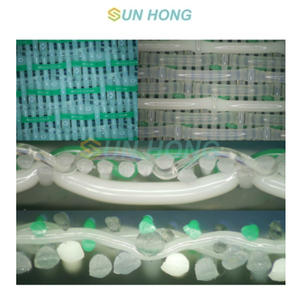

2.5 layer forming fabric
2.5 layer forming fabric


Advantages of 2.5 Layer Forming Fabric


  1. Good drainage capacity;

  2. Wear resistence and stability

  3. High fiber retension and excellent sheet formation

  4. Better fiber support index


Technical Parameter

Mesh Layer
2.5 Layer
Warp diameter 0.25mm
Warp density 39.5 L/cm polyester
Up weft diameter 0.25mm
Up weft density 11.3 L/cm polyester
Down weft diameter 0.55 +0.55 mm
Down weft density
11.3 L/cm polyester/nylon
Thickness 1.42mm
Air permeability 424 CFM
