Paper Making Machine Single Layer Forming Fabric

Forming fabric is very important cloth for paper machine. It mainly used for paper machine wet section to support the paper pulp poured from headbox , and then forming the paper sheet and remove large water from paper sheet. The quality of forming fabric directly affect the paper quality and production efficient.
Availability:
Quantity:

Paper Machine Clothing Forming Fabric


The forming fabric is not only affecting the efficiency of dehydration, but also directly decide the surface quality and structure uniform of finished paper, so the forming fabric is also called "the shaper of paper quality". Sun Hong Forming Fabric have single layer, 1.5 layer, double layer, 2.5 layer and triple layer forming fabrics. Accroding to customer's paper machine speed, paper kind, paper weight and other factor , we can suggest most suitable forming fabric for them.


Single Layer Forming Fabric

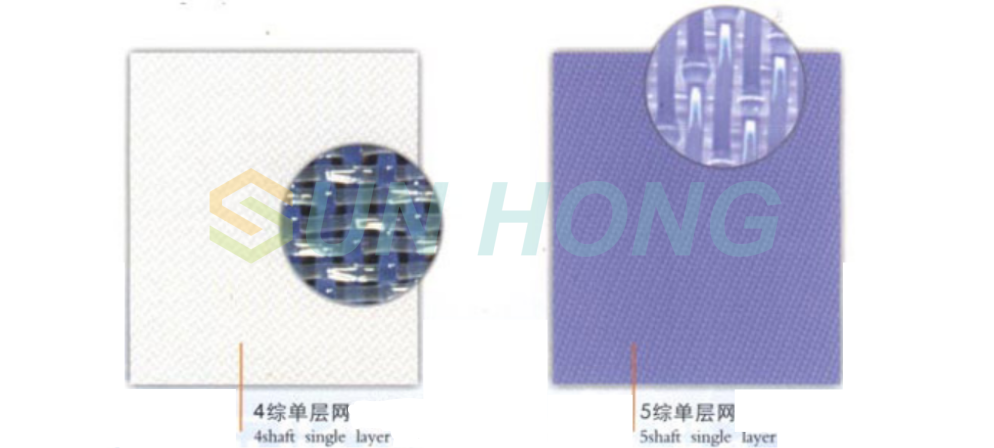

4 and 5 heddle single layer forming fabric is suitable for normal fourdriner paper machine to produce culture paper, printing paper, newsprint paper, packing paper,etc

8 heddle single layer polyester forming fabric is suitable for single wire fourdrinier paper machine corrugated paper, kraft paper, liner test paper, all kind of paper weight over 70 gsm and multi wire paper machine bottom wire.

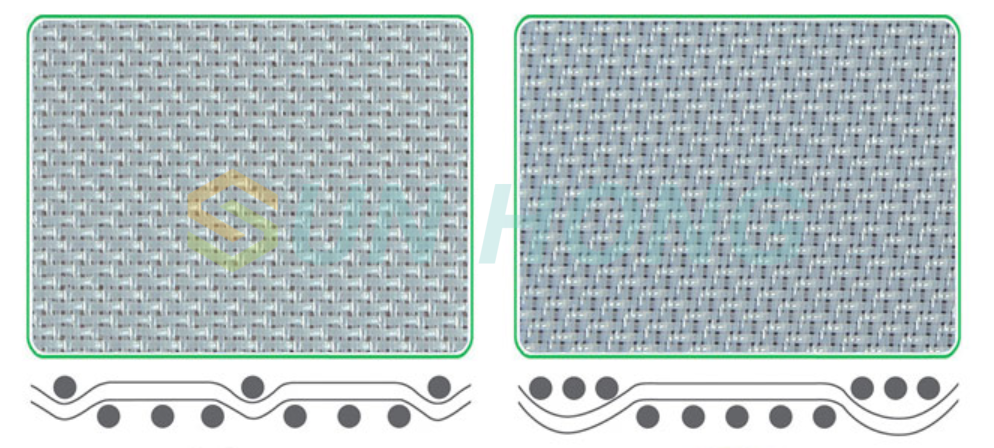

8 heddle weave structure increase the abrasion loss of back weft yarn, and increase the use service life. The 8 heddle mesh compare to 4 heedle mesh, the mesh inner have more free spare, so that the air permeability is more large, dehydration capacity more strong and the dimension is more stable.


Advantages of Single Layer Forming Fabric


  1. Strong dehydration capacity;

  2. Double warp tight structure;

  3. Resistant to high longitudinal loads;

  4. Resistant to lateral wrinkles;

  5. Working stable and life service long.

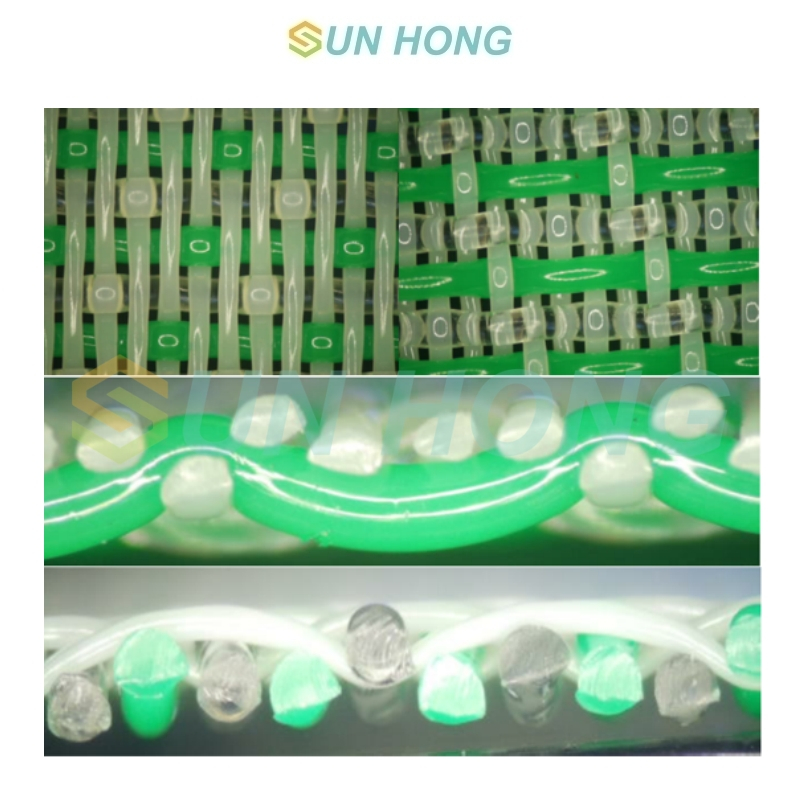

single layer forming fabric
single layer forming fabric


Tehcnical Parameter


Layer
Single Layer
Warp Diameter 0.27mm
Mesh thickness 0.8mm
Weft Diameter 0.5mm
Air Permeability 475 CFM
Warp Density 20.8 L/cm
Weft Density 13.8 L/cm
Application Low speed packaging paper, corrugated paper
