If the spray nozzle operates at high or abnormal temperatures for an extended period, it will be damaged due to material softening.
During the spray nozzle usage period, the accumulation of chemicals and impurities inside or at the outer edge of the nozzle will cause blockage.
This will affect the nozzle's spray pattern, thereby affecting the spray pressure.
Particulate Matter Clogging the Spray Nozzle
Particulate matter in the fluid is one of the main causes of spray nozzle clogging. These particles will enter the nozzle with the fluid and gradually accumulate in the nozzle orifice, hindering the normal flow of fluid.
This particulate matter comes from a wide range of sources, including raw material contamination, impurities from pipeline corrosion, inefficient filtration systems, and pollutants from the external environment.
Meanwhile, the size of the particles also directly affects the degree of spray nozzle clogging.
Larger particles are more likely to clog the spray nozzle quickly and may cause wear on the internal surfaces of the nozzle, thereby altering the spray pattern and reducing nozzle performance.
Fluid Physical Properties
The physical properties of the sprayed fluid are also an important factor affecting spray nozzle clogging.
Among them, fluid viscosity has a significant impact on the operating status of the spray nozzle.
High-viscosity fluids flow more slowly and are more likely to adhere to the internal channels of the nozzle, forming deposits over time.
These deposits gradually narrow the fluid channels within the spray nozzle, hindering liquid flow, eventually causing nozzle blockage and affecting spray uniformity and spray system efficiency.
When a high-velocity liquid passes through the spray nozzle orifice for an extended period, particles in the fluid will continuously impact the metal surface of the nozzle, causing wear and erosion in the nozzle orifice area.
As the spray nozzle orifice diameter gradually increases, the pressure distribution inside the nozzle will change, leading to a decrease in spray pressure, unstable spray shape, and even deviation in spray direction.
Besides normal wear and tear and clogging, improper use of the spray nozzle is also a major cause of damage.
For example, improper operation during installation, incompatible cleaning tools usage, external impact, or lack of long-term maintenance can all damage the spray nozzle structure and shorten its service life.
Spray nozzle wear and corrosion can lead to increased fluid flow and even irregular spray patterns.
To avoid such problems, the operating status of the spray nozzle should be checked regularly, and worn nozzles should be replaced in a timely manner.
In addition, selecting the spray nozzle made of materials with good wear resistance and corrosion resistance according to the working environment can effectively extend the service life of the nozzles.
The chemical effects of the sprayed liquid can gradually damage the spray nozzle material over time, resulting in increased flow rates and poor spray patterns.
To improve the corrosion resistance of the spray nozzle, you can select the nozzle with appropriate materials based on the chemical properties of the spraying medium.

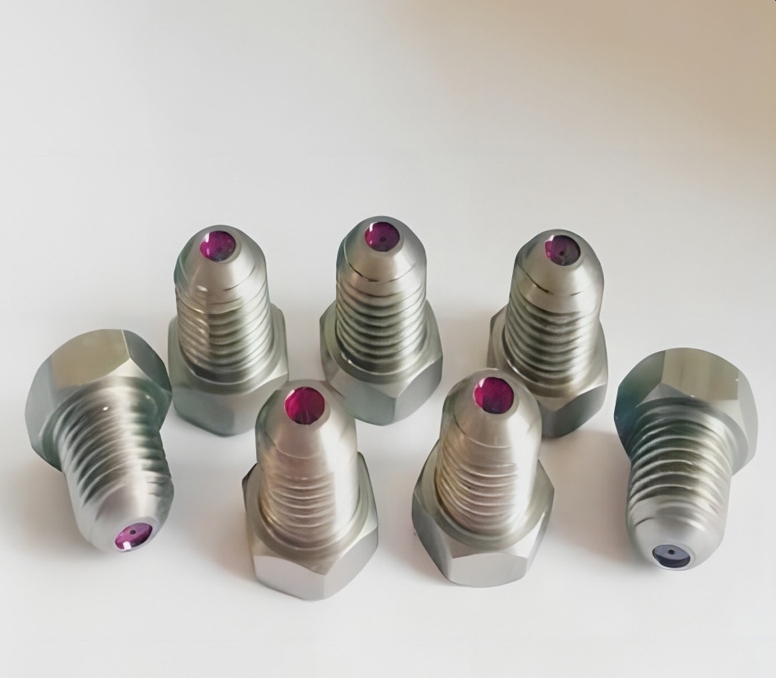

For example, materials such as ceramics and rubies have excellent corrosion resistance and are suitable for nozzle applications in high chemical environments.
Spray nozzle clogging is usually caused by impurities, particles, or deposits in the fluid accumulating inside the nozzle.
When the spray nozzle becomes clogged, it can be cleaned with a soft brush or a non-corrosive cleaning solution to remove internal residue.
For more stubborn blockages, the spray nozzle can be soaked in a mild cleaning solution such as a vinegar solution to gradually soften the internal buildup, making it easier to remove.
Alternatively, you can install a filter or screen in the spray nozzle system to prevent large particles from entering the nozzle and causing blockage.
Choosing the right materials and tools for cleaning spray nozzles is crucial. To prevent nozzle damage, use cleaning tools made of materials softer than the nozzle to avoid scratches, surface damage, or wear.
Regularly inspecting the spray nozzle is crucial for maintaining its performance and extending its lifespan. This helps you identify problems early and avoid downtime for maintenance.
