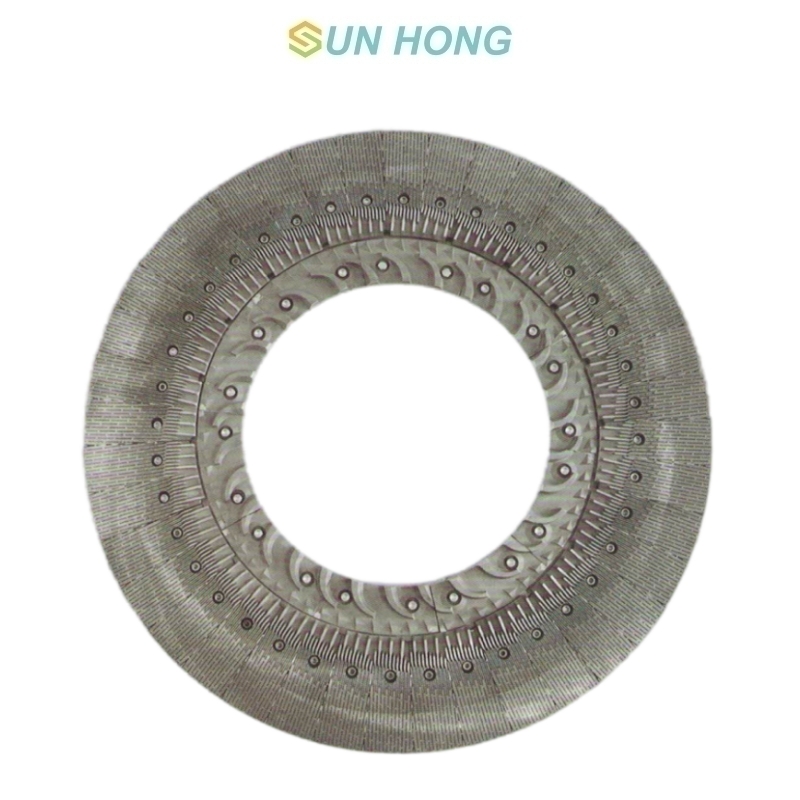

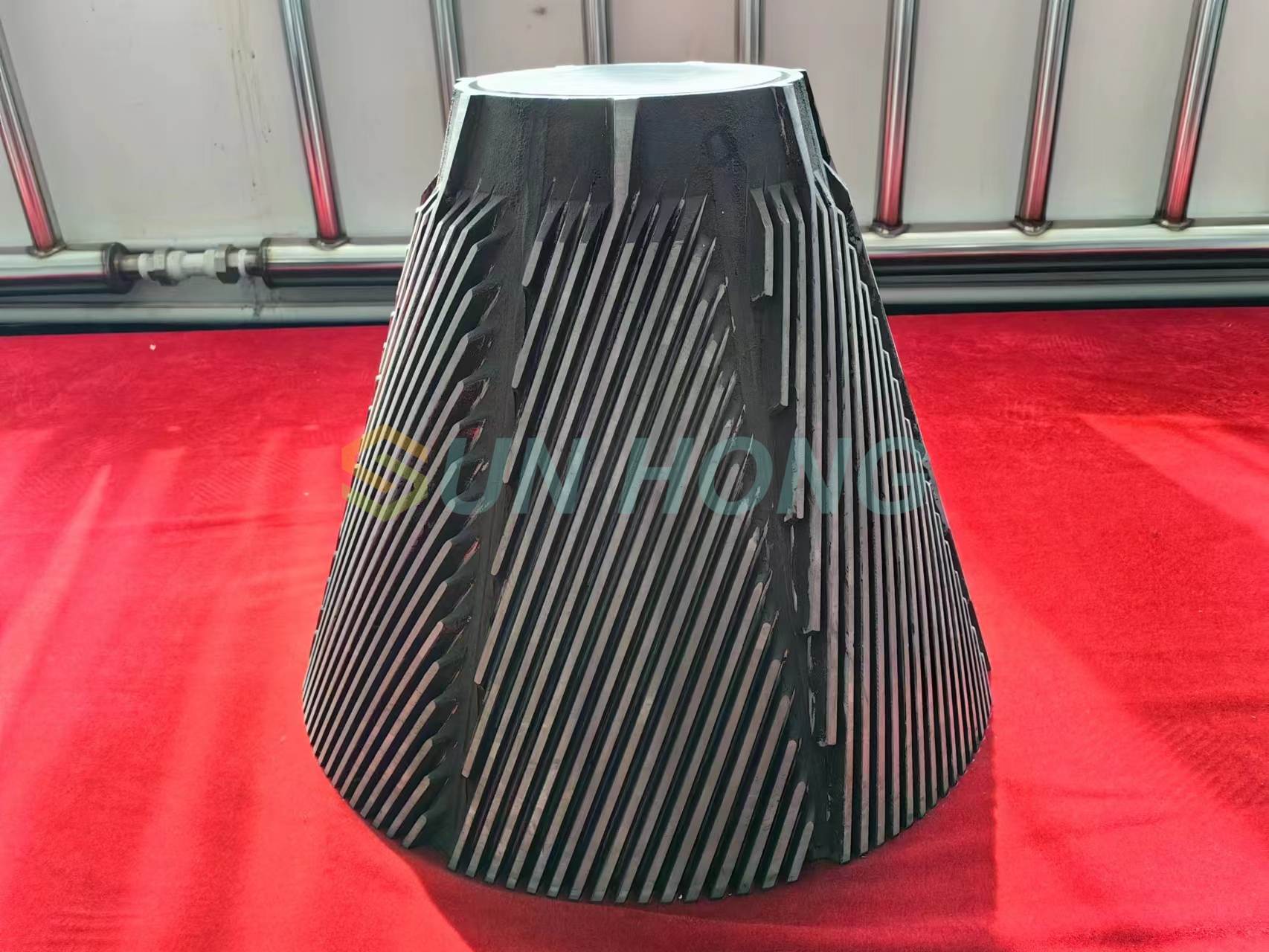

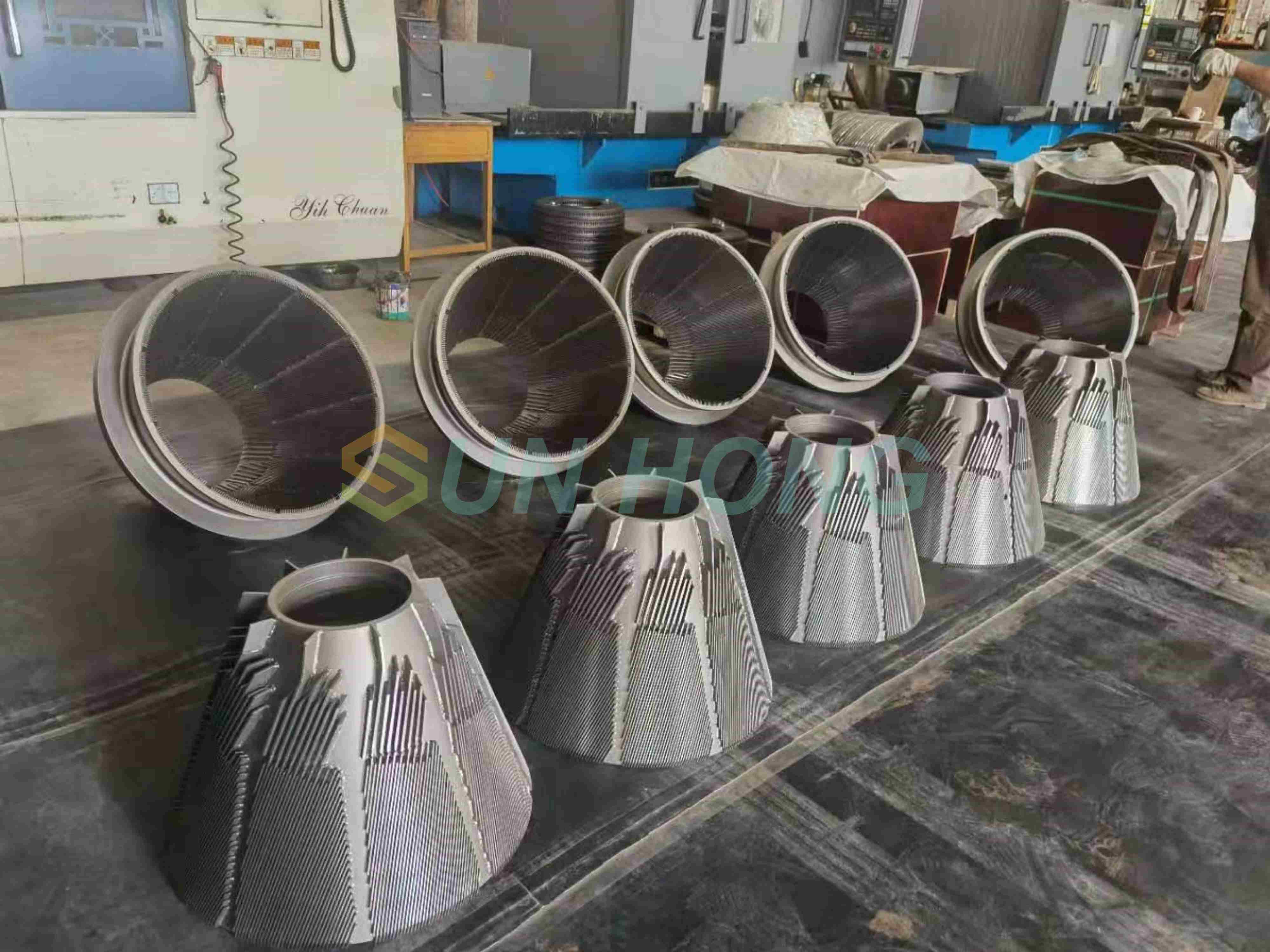

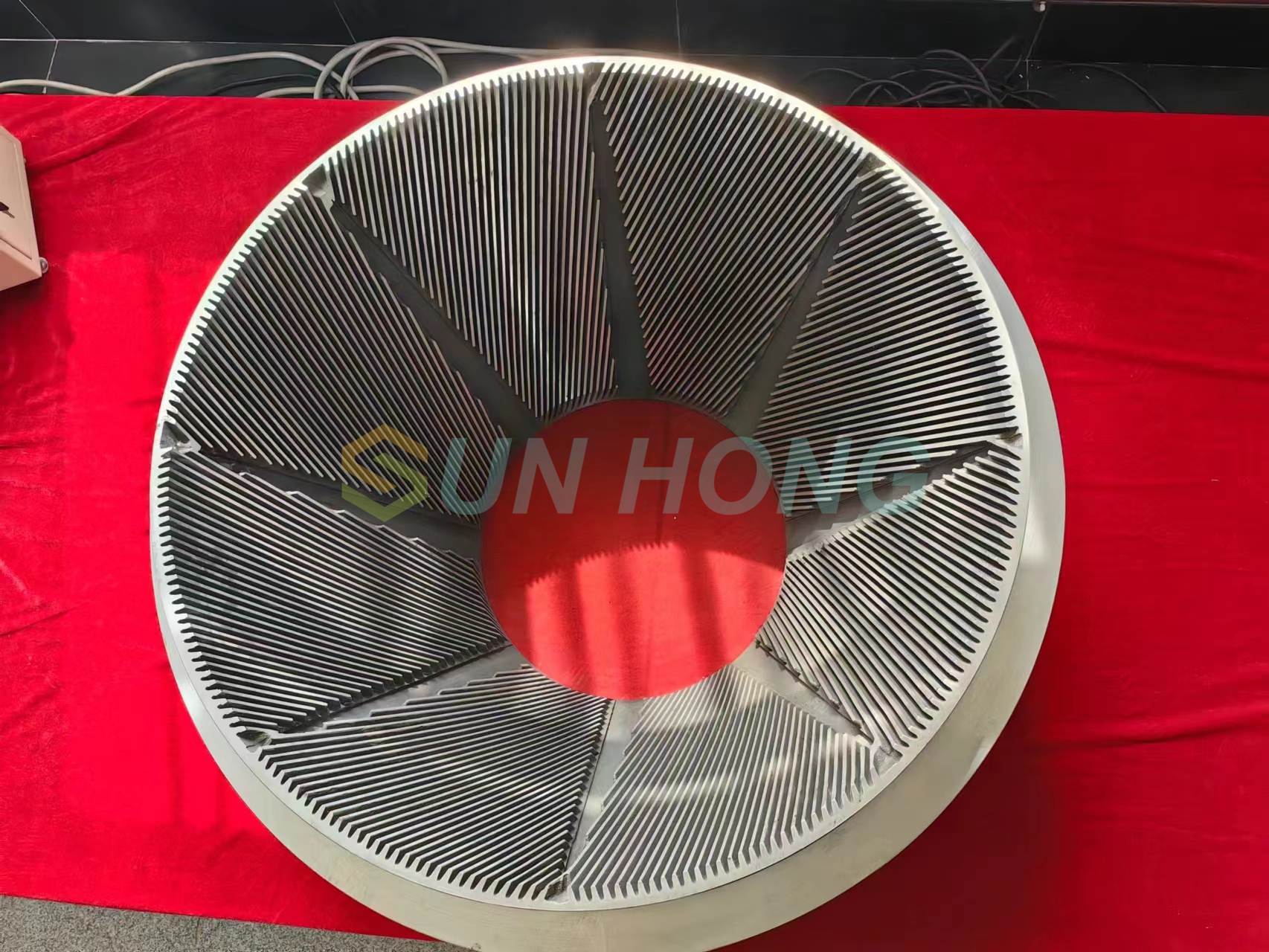

Sun Hong supply high quality and high precision disc plate for Andritz,Valmet,Metso,voith refiner for MDF and pulp and paper making. The internationally accepted method for identifying the model of the refiner is based on the approximate diameter of the refiner plate working area, such as 18 inches (450mm), 20 inches (508mm), 26 inches (660mm), 48 inches (1220mm), etc; The distinction of the structural form of the refiner is generally based on the shape of the refiner plate working area, such as disc plate, conical plate, cylinder plate, etc. From this, it can be seen that the refiner plate is the most essential component of the refining machine, and it is the key factor determining the efficiency of the refining machine. It is possible to upgrade the refiner by optimizing the refiner plate to achieve the effect of improving efficiency and reducing consumption.

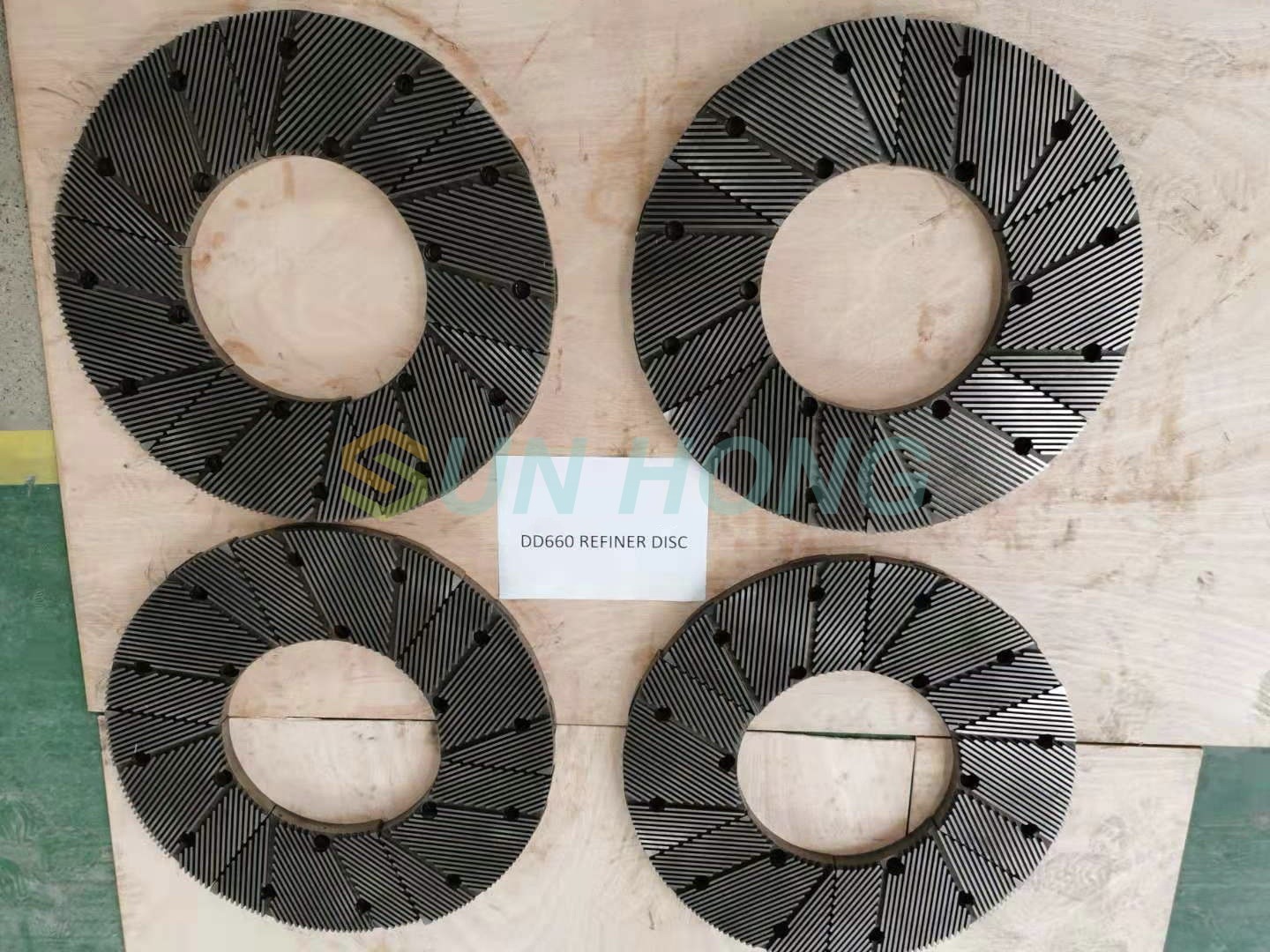

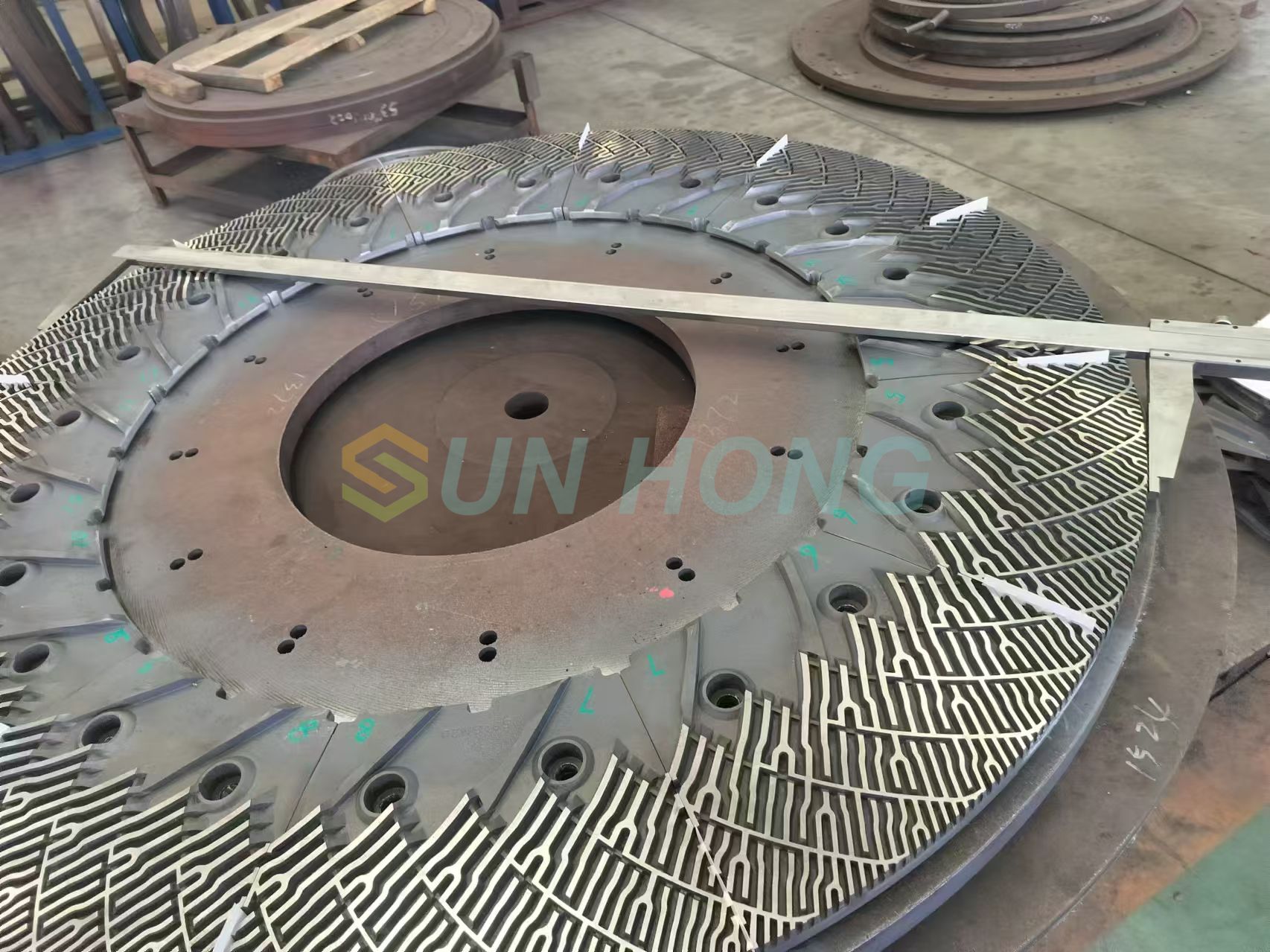

1. The disc refiner plate is used for increase the pulp beating degree to achieve requirement of papermaking.
2. Disc Plate Material: High chromium cast iron, nickel chromium alloy, alloys, stainless steel, tungsten carbide, etc. are all available.
| Applied Machine | Andritz refiner |
| Plate Diameter | 44″, 48″, 50″, 54″, 58″, |
| Pattern Direction | RHS |
| Screw Type | M12,M16 |
| Screw Holes | 2,3 |
| Segment Per Plate | 12 |
| Rotar & Stator | 24, 24+12 |
| Hardness | 62-63 HRC |
| Applied Machine | Valmet/Metso Defibrator |
| Plate Diameter | 50″, 54″, 56″, |
| Pattern Direction | RHS |
| Screw Type | M16 |
| Screw Holes | 2 |
| Segment Per Plate | 18 |
| Rotar & Stator | 36 |
| Hardness | 62-63 HRC |
Sun Hong supply high quality and high precision disc plate for Andritz,Valmet,Metso,voith refiner for MDF and pulp and paper making. The internationally accepted method for identifying the model of the refiner is based on the approximate diameter of the refiner plate working area, such as 18 inches (450mm), 20 inches (508mm), 26 inches (660mm), 48 inches (1220mm), etc; The distinction of the structural form of the refiner is generally based on the shape of the refiner plate working area, such as disc plate, conical plate, cylinder plate, etc. From this, it can be seen that the refiner plate is the most essential component of the refining machine, and it is the key factor determining the efficiency of the refining machine. It is possible to upgrade the refiner by optimizing the refiner plate to achieve the effect of improving efficiency and reducing consumption.
1. The disc refiner plate is used for increase the pulp beating degree to achieve requirement of papermaking.
2. Disc Plate Material: High chromium cast iron, nickel chromium alloy, alloys, stainless steel, tungsten carbide, etc. are all available.
| Applied Machine | Andritz refiner |
| Plate Diameter | 44″, 48″, 50″, 54″, 58″, |
| Pattern Direction | RHS |
| Screw Type | M12,M16 |
| Screw Holes | 2,3 |
| Segment Per Plate | 12 |
| Rotar & Stator | 24, 24+12 |
| Hardness | 62-63 HRC |
| Applied Machine | Valmet/Metso Defibrator |
| Plate Diameter | 50″, 54″, 56″, |
| Pattern Direction | RHS |
| Screw Type | M16 |
| Screw Holes | 2 |
| Segment Per Plate | 18 |
| Rotar & Stator | 36 |
| Hardness | 62-63 HRC |
