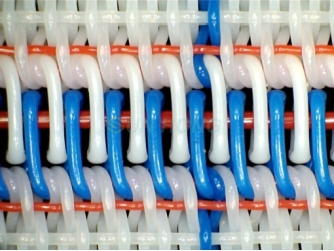

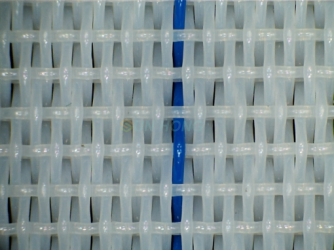

The broke conveyor belt is a fabric that used to accept and convey damaged paper in various paper machines including forming, press, dryer , reel section.

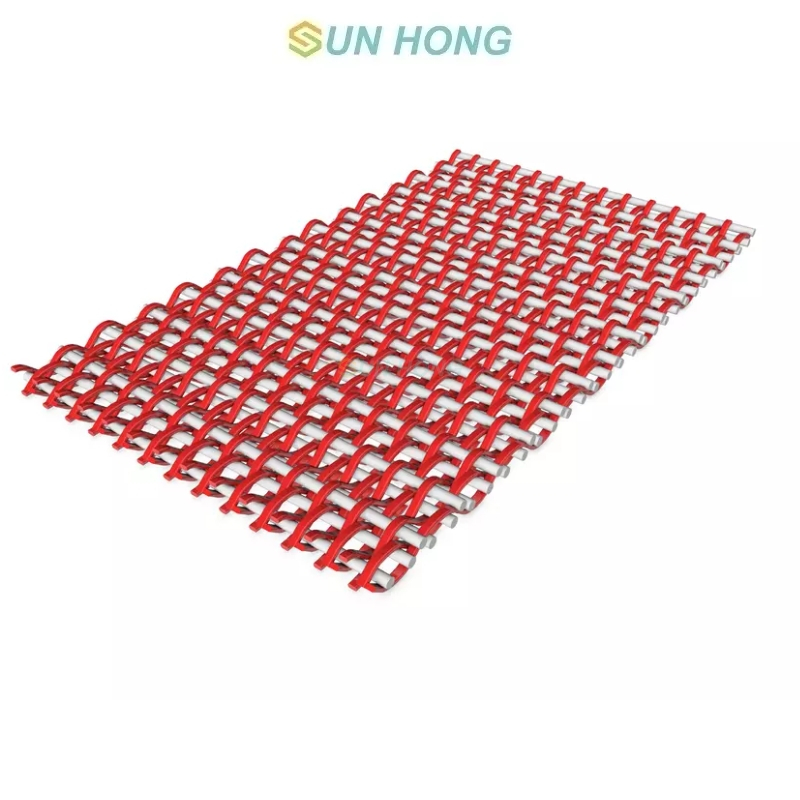

Woven Type and Spiral Type
Material: 100% polyester PET
Structure: Spiral loop type with filler, woven plain/twill weave
Features: Fast draining, wear-resistant, non stick to paper, high temperature resistant, easy to clean
Usage: Wet damaged paper, high humidity, water conveying (above the pulper, forming/press damaged paper)
|
|
The warp and weft threads are woven with 0.50/0.70mm round yarn, which has a high air permeability.
Two layer mesh with eight comprehensive structures, good stability and high stiffness.
Anti hydrolysis monofilament, high temperature and humidity resistance, good wear resistance, improves the service life of the fabric.
Spiral ring seam, smooth and seamless with the mesh body.
The connection and threading strength is high, smooth and easy to thread, and the operation is convenient.
AB glue and PP glue can be selected by customers, which are resistant to high temperature, aging and abrasion.
| Air Permeabilty | 690 CFM |
| Strength | ≥1800N/cm |
| Elongation | ≤0.5% |
| Mesh Thickness | 2.19mm |
| Mesh Weight | 1250g/m2 |
| Warp/Weft Diameter | 0.5/0.7 polyester |
The broke conveyor belt is a fabric that used to accept and convey damaged paper in various paper machines including forming, press, dryer , reel section.
Woven Type and Spiral Type
Material: 100% polyester PET
Structure: Spiral loop type with filler, woven plain/twill weave
Features: Fast draining, wear-resistant, non stick to paper, high temperature resistant, easy to clean
Usage: Wet damaged paper, high humidity, water conveying (above the pulper, forming/press damaged paper)
|
|
The warp and weft threads are woven with 0.50/0.70mm round yarn, which has a high air permeability.
Two layer mesh with eight comprehensive structures, good stability and high stiffness.
Anti hydrolysis monofilament, high temperature and humidity resistance, good wear resistance, improves the service life of the fabric.
Spiral ring seam, smooth and seamless with the mesh body.
The connection and threading strength is high, smooth and easy to thread, and the operation is convenient.
AB glue and PP glue can be selected by customers, which are resistant to high temperature, aging and abrasion.
| Air Permeabilty | 690 CFM |
| Strength | ≥1800N/cm |
| Elongation | ≤0.5% |
| Mesh Thickness | 2.19mm |
| Mesh Weight | 1250g/m2 |
| Warp/Weft Diameter | 0.5/0.7 polyester |
