Corrugated Paper Cutting Pneumatic Slitting Blade Knife Holder

Pneumatic Slitting Blade Holder

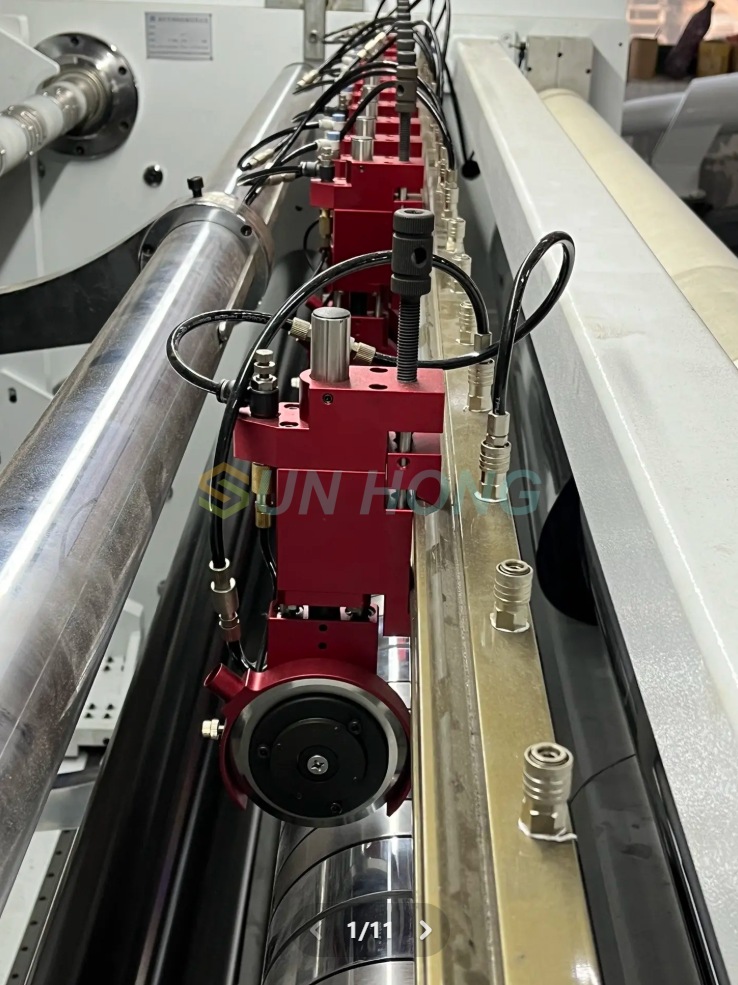

Pneumatic slitting knife holder is an intelligent slitting equipment mainly used for slitting materials such as paper, fabrics, leather, vacuum formed sheets, plastic sheets, etc. in industrial fields such as packaging, printing, and pharmaceuticals. In the printing and paper manufacturing industries, pneumatic slitting knife holders can be used to slitting printed materials, paper, cardboard, etc. for subsequent processing and manufacturing.

Working Principle of Pneumatic Slitting Blade Holder

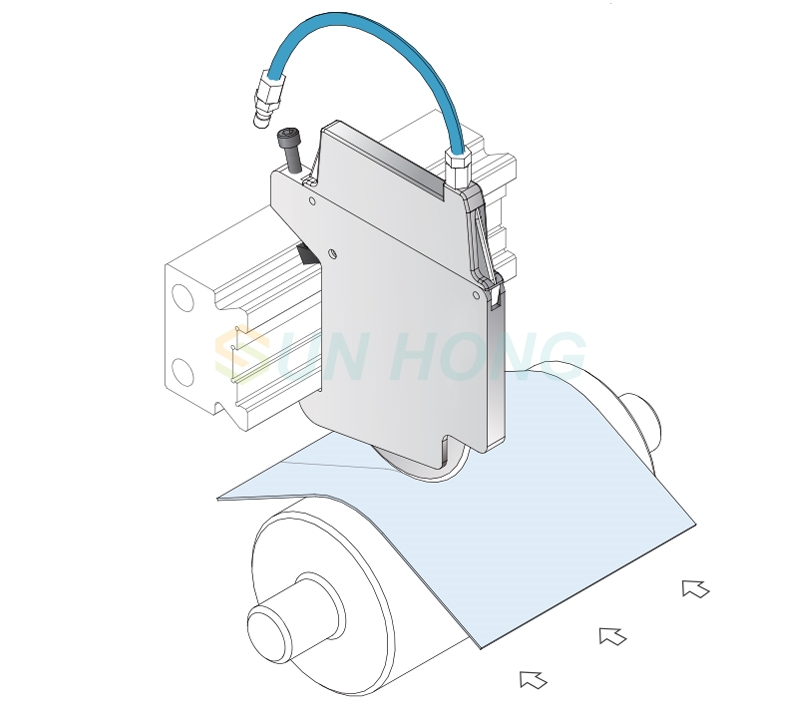

The pneumatic slitting blade holder is driven by air pressure and quickly controls the lifting and lowering of the robotic arm through air pressure, allowing the cutting blade to move up and down. Pneumatic slitting blade holder is usually composed of various components such as control system, motor system, pneumatic system, mechanical system, etc.

In the pneumatic system, the air source provides compressed air, which is transmitted to the pneumatic actuator through the air pipe. The expansion and contraction of the cylinder are controlled by increasing or decreasing the pressure of the compressed air, thereby controlling the action of the cutting tool.

In the control system, the driving signal is detected through sensors and controlled as needed; In the motor system, equipment can be smoothly started and stopped through functions such as soft start and soft stop, avoiding damage to equipment and materials caused by sudden shutdown.

Model of Pneumatic Slitting Blade Holder

There are various models of pneumatic slitting knife holders, such as SHA150, SHA90, SHA410, SHA110, SHB120, SHB126, SHB127, SHB140, SHB160, etc. These models are suitable for different processing requirements and material types, ensuring normal operation at different machine speeds and material thicknesses. For example, the pressure pneumatic slitting blade holder is suitable for slitting processing of narrow and wide width coil materials, while the shearing pneumatic slitting blade holder has a two-stage pneumatic action, which can independently or jointly control the lower and adjacent knife actions.
