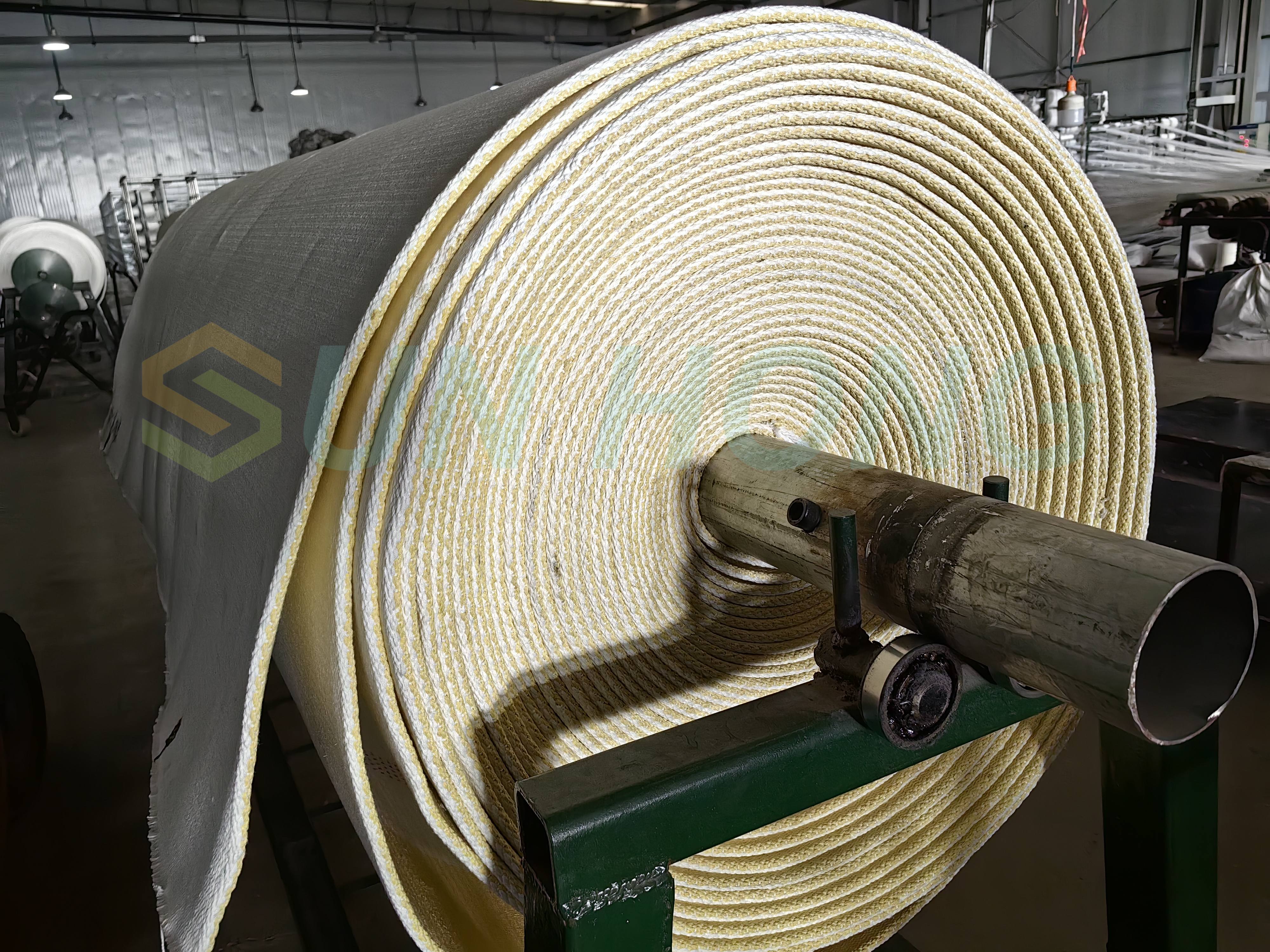

The corrugator belt is used for double facer in the corrugated cardboard production process. It play a role of transfer the cardboard and drying the cardboard as far as possible. The corrugator belt will undertake the pressure of temperature, touch press, friction, strength stress, and water stress.
The corrugator belt is composed of multi layer fabric. We use tear resistance, heat resistence and wear resistence fiber to make our corrugator belt have excellent running ability and also ensure our customer's production safe and reliable.
1. Weave structure tight and can meet high requirment of production quality.
2. Suitable for high speed corrugated cardboard production
3. Low noise running environment, super high working speed and high air permeability.
| Production Name | Super high speed corrugator belt |
| Raw Material | 100% sythentic fiber |
| Thickness | 8/8.5mm |
| Heat Resistance | long-term load 130℃，short-term load 200℃, fiber melting point 254℃ |
| Friction Coefficient μ | 0.42 μ |
| Width (narrowest widest) | 1600-3500mm |
Back Side
Paper Touch Side
