Paper Machine Clothing Round Yarn Dryer Fabric

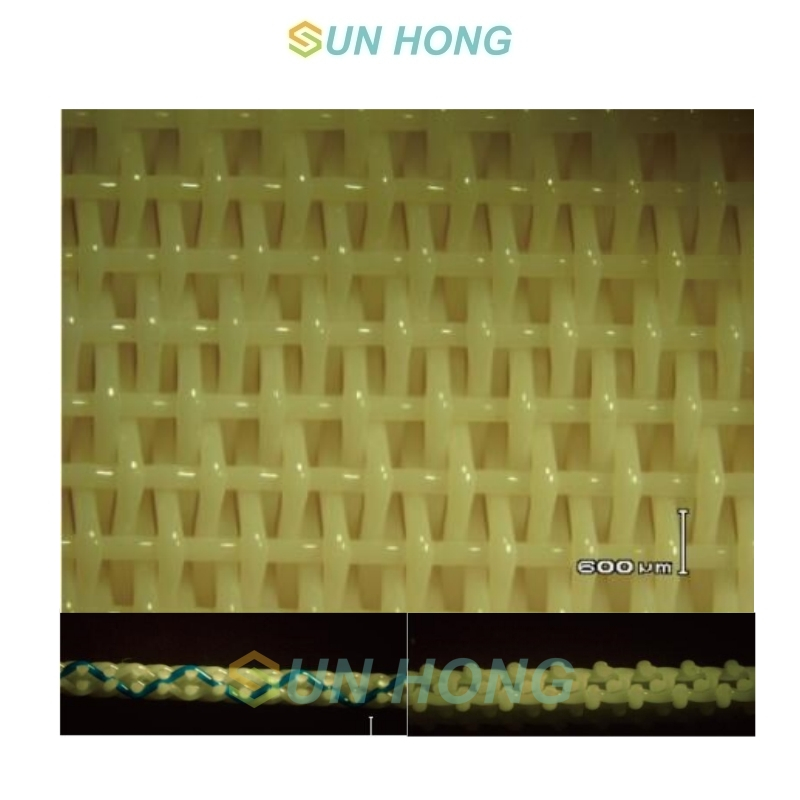

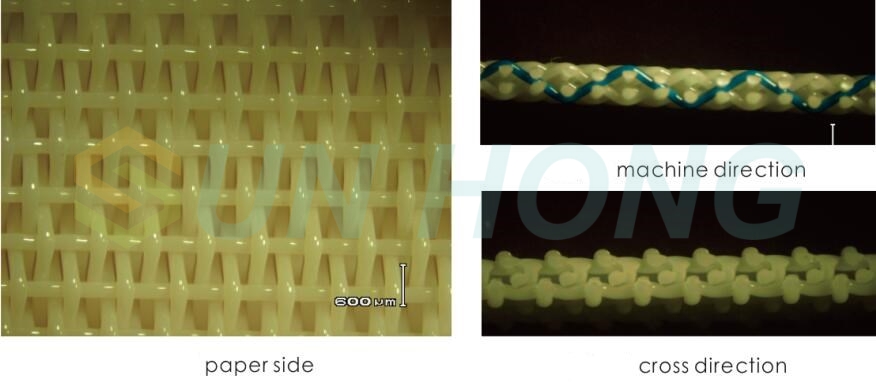

The round yarn dryer fabric is a four shed double layer woven dryer fabric, woven with round cross section fibers. It has excellent air permeability and a smooth mesh surface. It is commonly used in medium speed paper machines. Its structural design helps the paper web to dehydrate quickly in the drying section and ensures the smoothness of the paper surface and stability during the production process.
Availability:
Quantity:

Woven Dryer Fabric -- Round Yarn Dryer Fabric


The round yarn dryer fabric is a four shed double layer woven dryer fabric, woven with round cross section fibers. It has excellent air permeability and a smooth mesh surface. It is commonly used in medium speed paper machines. Its structural design helps the paper web to dehydrate quickly in the drying section and ensures the smoothness of the paper surface and stability during the production process.

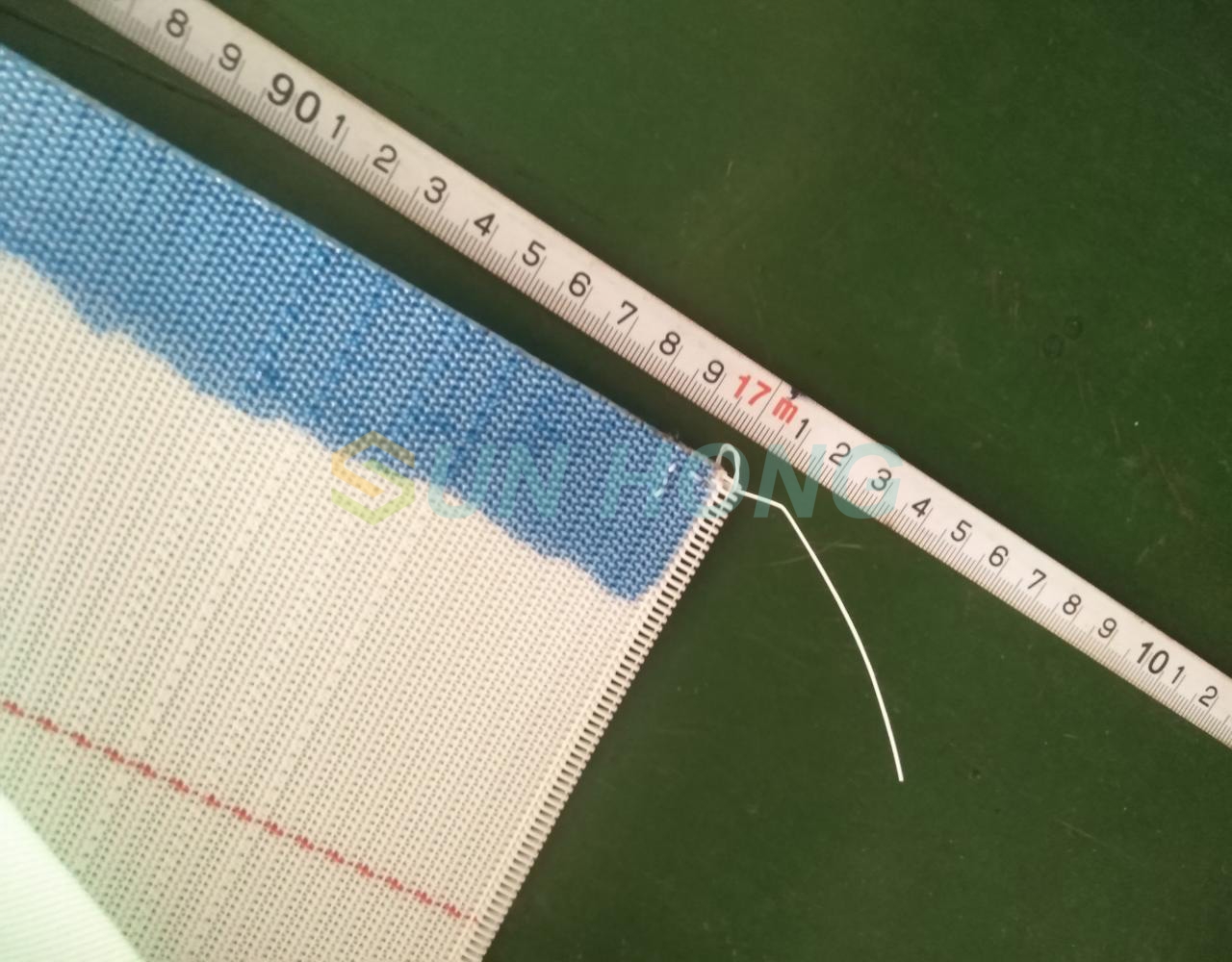

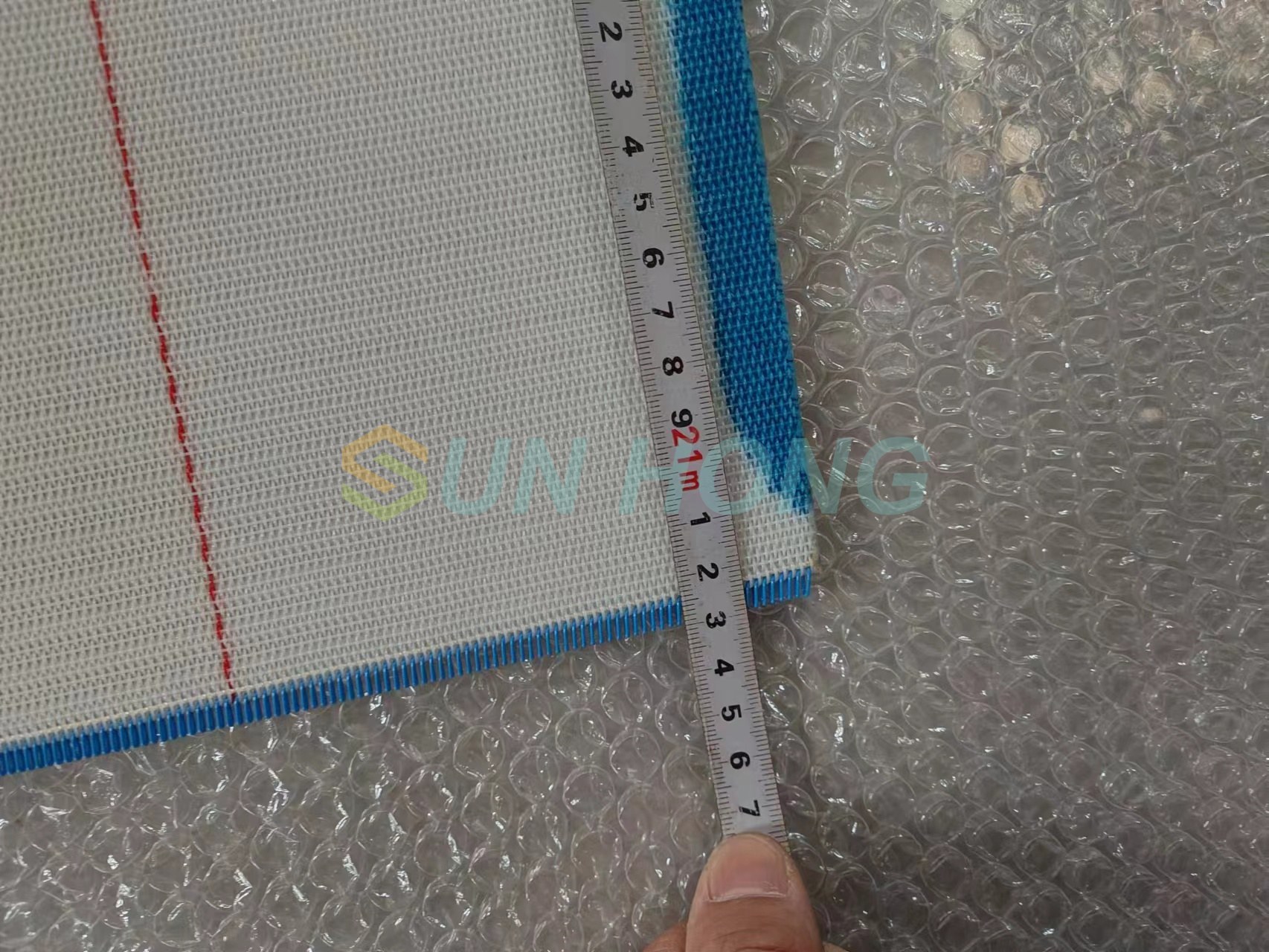

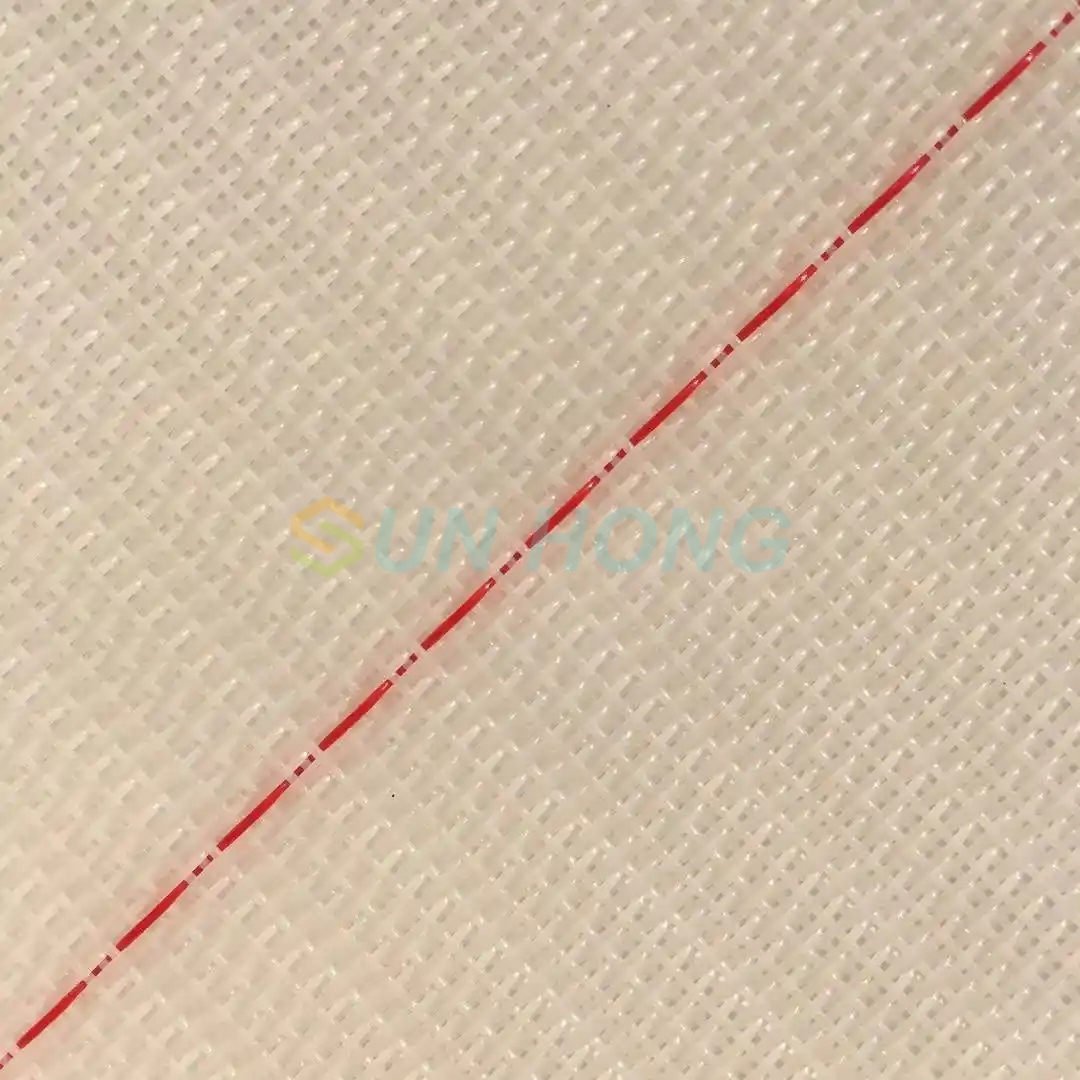

round yarn dryer fabric



Features of Round Yarn Dryer Fabric



(1) The weaving structure of the round yarn dryer fabric can provide good air permeability for the paper during the drying process, accelerate the evaporation of water, shorten the drying time, and improve the quality of the finished paper.

(2) The surface of the round fiber is flat, and the paper is not easily damaged during the drying process, which reduces scratches and improves the smoothness of the paper.

(3) Sun Hong's round yarn dryer fabric uses wear resistant and high temperature resistant materials, which are wear resistant, corrosion resistant, and high temperature resistant. It can run stably and for a long time on medium speed paper machines, and its service life far exceeds that of ordinary dryer fabric.

(4) It is resistant to hydrolysis and has good heat transfer efficiency.


Tehcnical Parameter

Fabric Code
Warp Density Weft Density Warp Diameter Weft Diameter Air Permeability
SHGW23504-2 22.5-23.5 11.5-12.5
0.5 0.5 540 CFM
SHGW23504-3 22.5-23.5 13.5-14.5 0.5 0.5 445 CFM
SHGW23504 22.5-23.5 10.0-11.0 0.5 0.5 760 CFM
