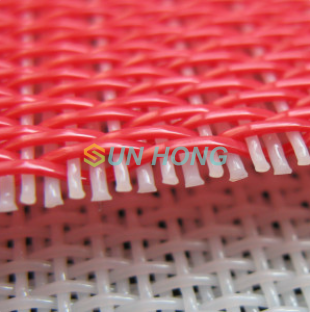

The woven dryer fabric have round yarn dryer fabric, flat yarn dryer fabric and double warp flat yarn dryer fabric. They are mainly used for paper machine dryer section to drying the paper sheet. The polyester dryer fabric have good features with long life service, longer three times than dryer felt and dryer canvas.

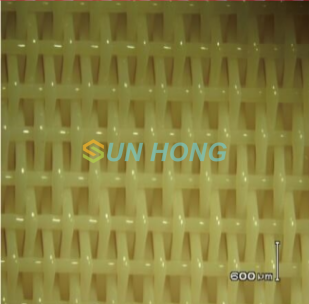

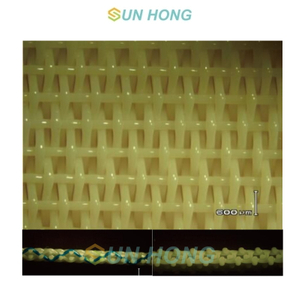

The surface of round yarn dryer screen is flat and the size is stable. When used on the paper machine can keep clean running, have good heat transfer , non mesh mark, and wear resistnece.

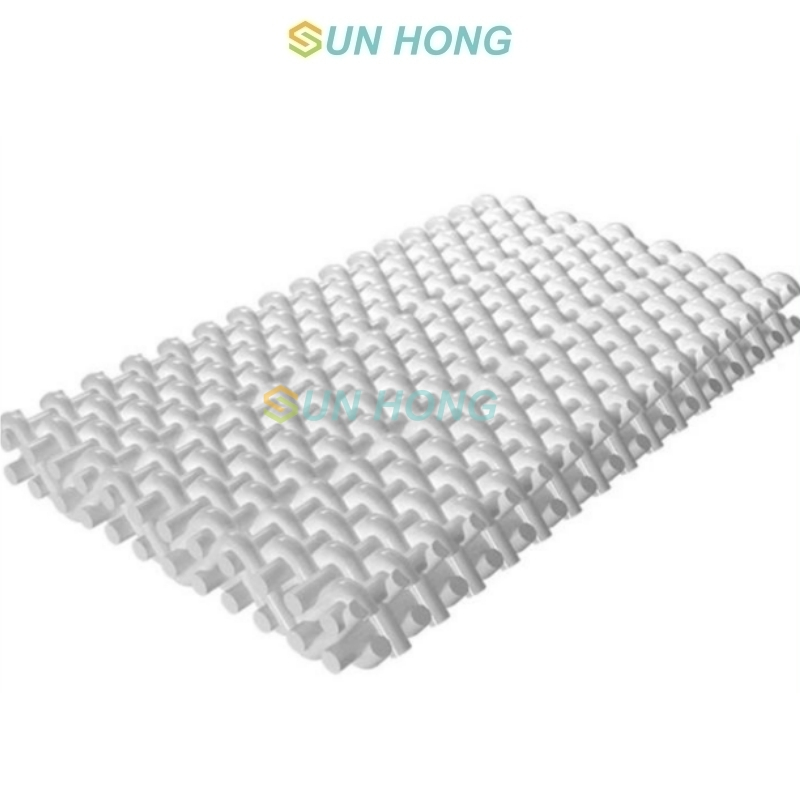

Weave structure: 1.5 layer/ double layer
Three shed 1.5 layer dryer screen suitable for drying paper weight lower than 70gsm
The four shed double layer dryer screen suitable for dying paper weight high than 70gsm
1.High operating efficiency: less paper breakage and reduced number of temporary shutdowns.
2.High heat transfer efficiency: good heat transfer effect, saving energy.
3.Long service life: resistant to hydrolysis and corrosion.

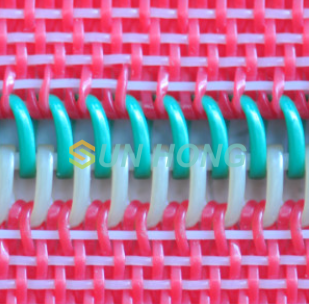

4.Installation convenience: reduce labor intensity and improve work efficiency
Technical Parameter
| Round Yarn Code | Warp Density | Weft Density | Warp Diameter | Weft Diameter | Air Permeability |
| SHGW23504-2 | 22.5-23.5 | 11.5-12.5 | 0.5 | 0.5 | 540 CFM |
| SHGW23504-3 | 22.5-23.5 | 13.5-14.5 | 0.5 | 0.5 | 445 CFM |
| SHGW23504 | 22.5-23.5 | 10.0-11.0 | 0.5 | 0.5 | 760 CFM |
