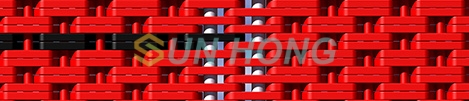

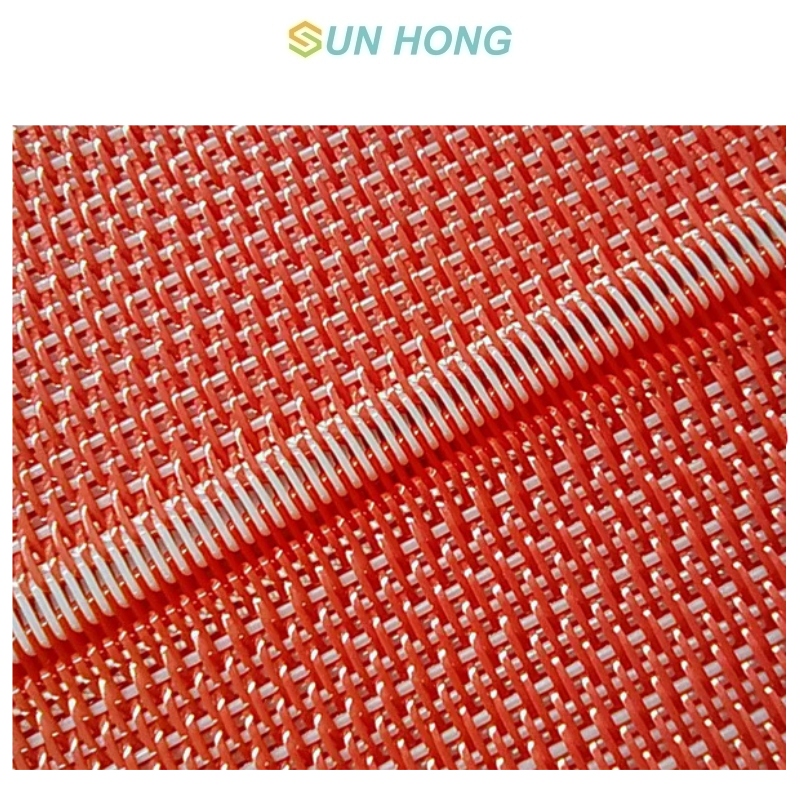

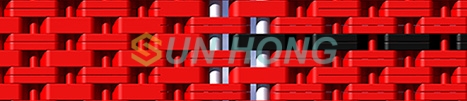

Flat yarn dryer fabric uses polyester monofilament with a rectangular cross-section as the warp thread. The single filament has a smaller arc and longer nodes, resulting in a smoother mesh surface, lighter paper screen printing, stable size, and longer service life. The design layer of flat yarn dryer fabric have 1.5 layer and double layer. The design of seam type is pin seam and spiral seam with non marking, high tension and no distortion.
1.Accurate air permeability control with uniform fabric tension distribution ensure good running stability.
2.Special interface design ensures no marking on paper. The strength of seam is stronger than other dryer fabric.
3.We can provide high-temperature resistant and hydrolysis resistant mesh edges made of special materials, effectively improving the overall service life of the dryer fabric.
Techncial Parameter
| Weave Structure | Double, 1.5 layer |
| MD Material | 100% PET |
| CD Material | 100% PET |
| Edge | Anti- hydrolysis yarns |
| Caliper | 1.5-1.8mm |
| Air Permeablity | 90-450 CFM |
| Seam Type | Spiral seam, pin seam |
