Paper Machine Clothing Flat Yarn Dryer Fabric

Sun Hong's flat yarn dryer fabric is 1.5 layer and double layer woven structure, and its warp is flat yarn. It is woven with flat cross section fibers, has a smooth surface, good stability and support, and is suitable for paper making with high strength support.
The double warp flat yarn dryer fabric adopts a double layer warp design, and the interface is a self loop interface with better support and durability. It is generally suitable for the front group of drying cylinders in the drying section.
Availability:
Quantity:

Paper Machine Dryer Fabric -- Flat Yarn Dryer Fabric

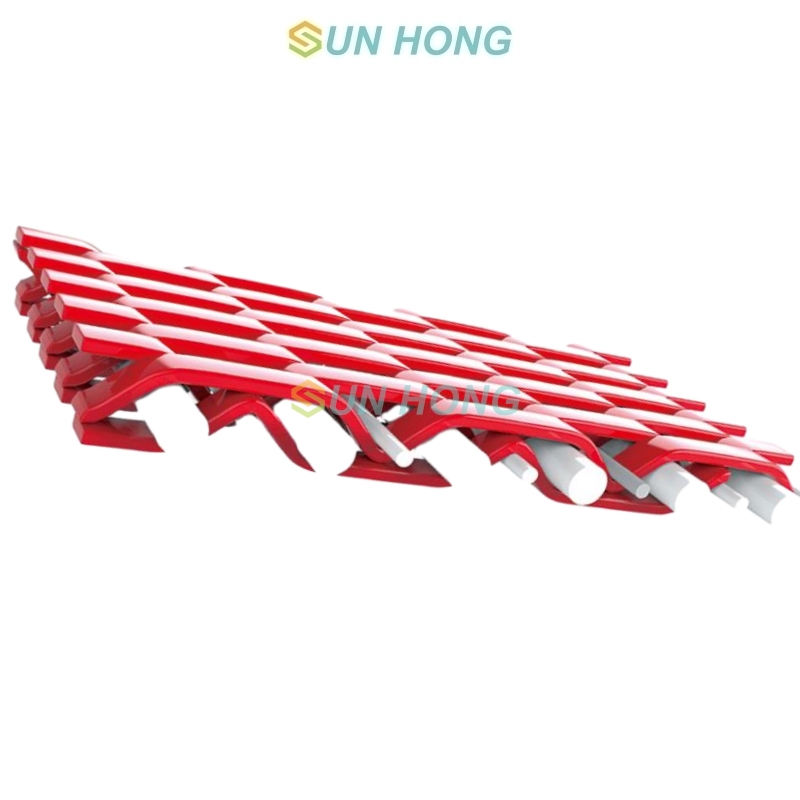

Flat yarn dryer fabric uses polyester monofilament with a rectangular cross-section as the warp thread. The single filament has a smaller arc and longer nodes, resulting in a smoother mesh surface, lighter paper screen printing, stable size, and longer service life.

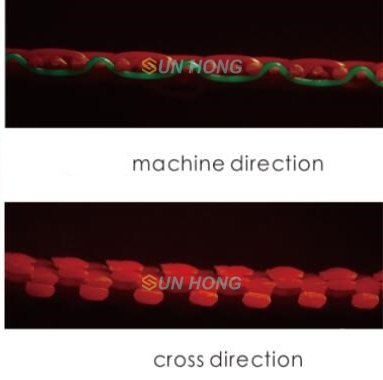

flat yarn dryer fabric

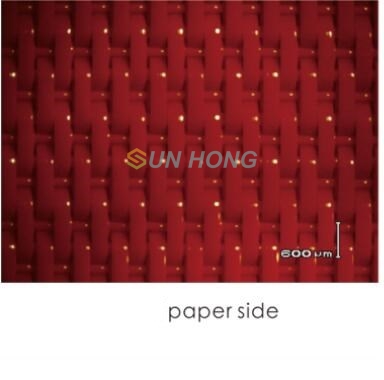

flat yarn dryer fabric


Sun Hong flat yarn dryer fabric is constructed of three different weave structures and monofilaments in order to meet the requirement (increase paper contact area, maximize heat transfer and reduce steam consumption) of paper sheet drying fastly and effeciently.

  1. Double warp flat yarn design

  2. 1.5 layer flat yarn design (warp float weave pattern with flat yarn)

  3. Double layer flat yarn design

Seam tyep: loop seam, spiral seam.


Main Features of Flat Yarn Dryer Fabric


  1. Wide air permeability range;

  2. High contact area with smooth surface

  3. High tensile strength & no seam marking

  4. Easy to clean


Technical Parameter

Fabric Code Warp Density Weft Density Warp Diameter Weft Diameter Air Permeability
SHYGWS16904 15.0-16.0 4.5-7.5 1.06*0.36 0.60/0.90 380-170 CFM
SHYGW19604-2 18.5-19.5 12.0-13.0 0.58*0.38 0.6 600 CFM
SHYGW19604 18.5-19.5 10.5-15.0 0.58*0.38 0.6 445-150 CFM
