Paper Machine Clothing Triple Layer Press Felt

The triple layer press felt is suitable for middle and high speed paper machine. It can be used for large roll press, shoe press, and hot press. Triple layer press felt can adopt to line pressure over 200kN/m, have good filteration function and long life service.

Availability:

Quantity:



Inquire Add to Basket

Product Description

Paper Machine Clothing -- Triple Layer Press Felt

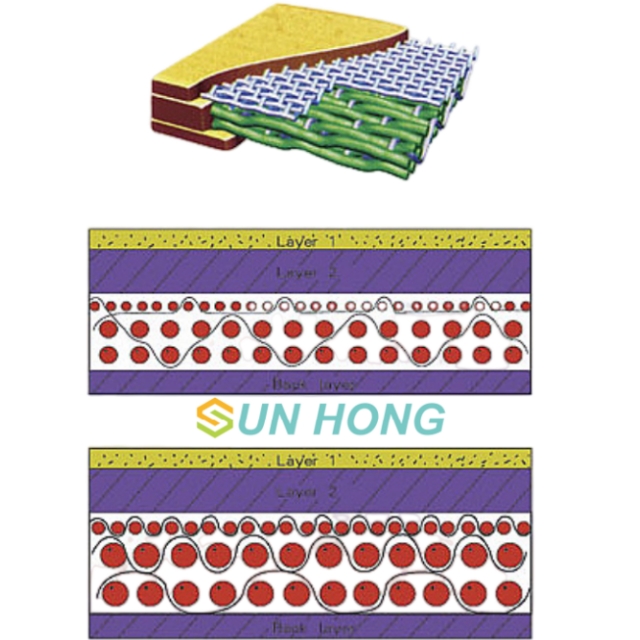

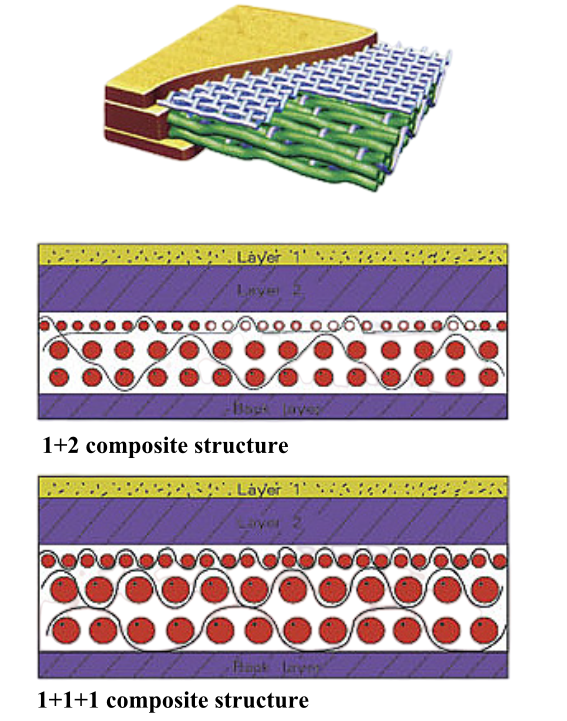

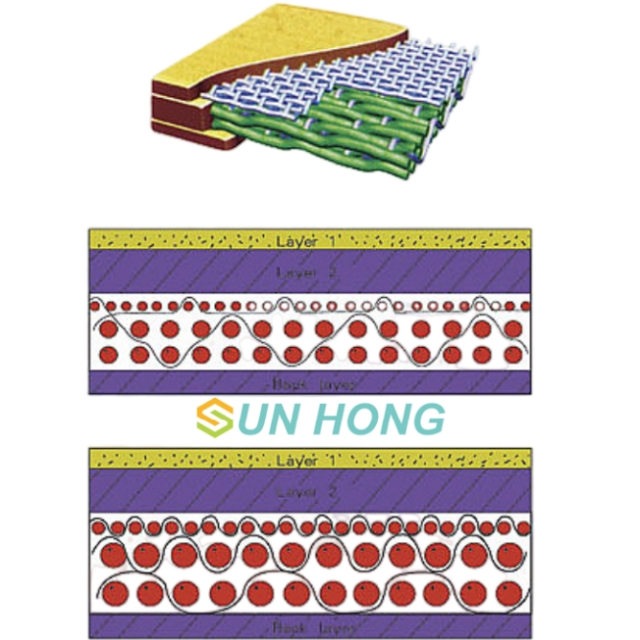

The triple layer press felt include 1+2 composite, 2+1 composite and 1+1 +1 composite structure. It's suitable for high grade newsprint paper, culture paper, liner cardboard paper, etc. The triple layer press felt have high anti line pressure over 200 kN/m. It has large water holding capacity, wear-resistant, good elasticity recovery, flat felt surface, long service life.

triple layer press felt Suitable for:

Paper Machine: multi cylinder paper machine, fourdrinier paper machine, multi-layer paper machine, etc

Press Type : shoe press, vacuum composite press, large roll blind hole press.

Paper Machine Speed: Max. 1000m/min

Paper kind: ≥ 40gsm newspaper, culture paper, high grade cardboard,etc

Line pressure: ≥ 200kN/m

Technical Parameter:

Paper weight: 1450-1750gsm

Weight Deviation: ≤± 4%

Air Permeability: 40-90 CFM

Broken Strength: ≥ 4500 N/5cm

Elongation: ≤ 0.6%

Width Deviation: ≤±2cm

Some Cases for Triple Layer Press Felt

No.	Felt Number	Felt Weight	Structure	Paper Kind
1	SH47601	1450-1550	Triple layer, domestic raw material	High grade culture paper, packing paper, newsprint paper
2	SH47602	1500-1700	Triple layer, domestic raw material	High grade coated paper, liner corrugated paper
3	SH47621	1450-1550	Triple layer, imported raw material	High grade culture paper, packing paper, newsprint paper
4	SH47622	1500-1700	Triple layer, imported raw material	High grade coated paper, liner corrugated paper
5	SH47629	1600-1900	Triple layer, imported raw material	High grade coated paper, liner corrugated paper
