The press felt is composed of base layer and batt fiber layer. The base layer is equivalent to the bone frame of the press felt, it decide the limit of felt weight, air permeablity , moisture content and stability. The base layer is woven into mesh structure using nylon material compose of monofilament, carding fiber, multifilament, etc. Accordint to different base layer, the press felt can be devidied into single layer felt, double layer felt, triple layer felt and laminated layer felt.
The single layer press felt is combined with single base layer and batt fiber layer. The base layer is woven from warp and weft thread composed of nylon monofilament or monofilament composite. The organizational structure is designed according to different paper machines, different use position, and different paper kind. The fiber batt layer is laid in layers of different thickness of synthetic fibers.

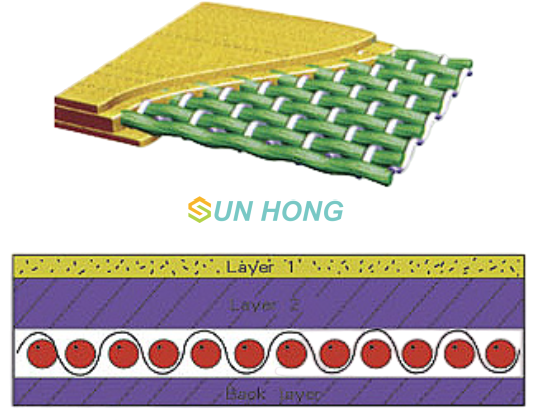

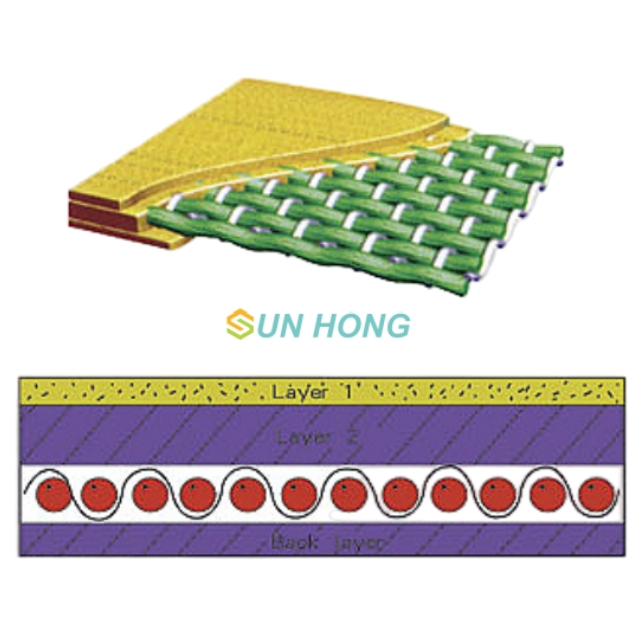

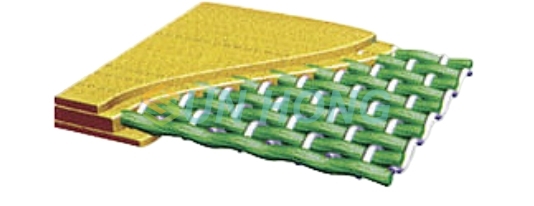

Single Layer Press Felt Structure

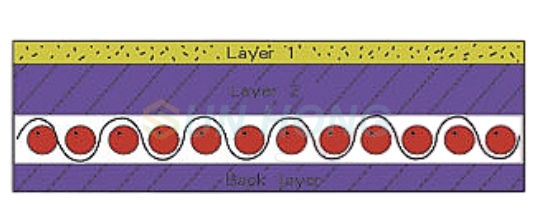

Single Layer Press Felt Structure
1. It has good water filtration and low elongation;
2. Easy washing and light felt marks;
3 Effective reduction of groove marks, and long service life;
4. The single layer felt is widely used in various paper machines to produce various types of paper.
| Suitable Paper Machine | Cylinder mould machine, fourdrinier paper machine as pick up felt and press felt |
| Machine Speed | ≤ 800 m/min |
| Paper Kind | ≥ 8gsm all kinds of paper |
| Line Pressure | ≤ 80 kN/m |
| Felt Weight | 700-1200 gsm |
| Weight Deviation | ≤ ± 4% |
| Air Permeablity | 30-120 CFM |
| Elongation | ≤1% |
| Width Deviation | ≤ ± 2 cm |
| Broken Strength | ≥ 2000 N/5cm |
