Rotary Joint for Continuous Casting Machine

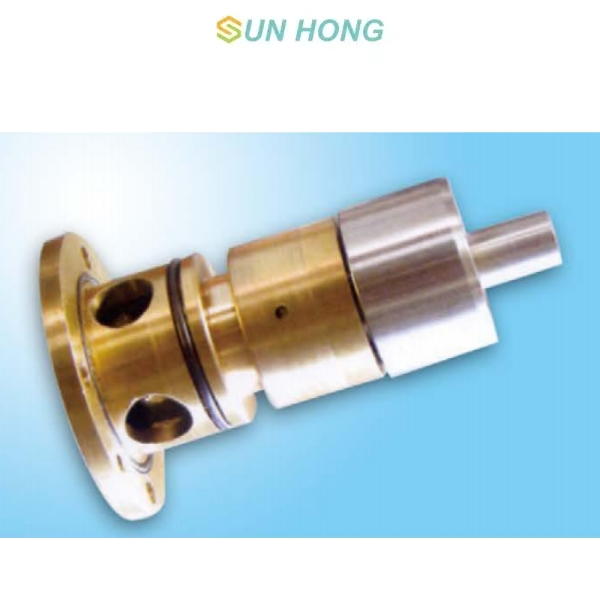

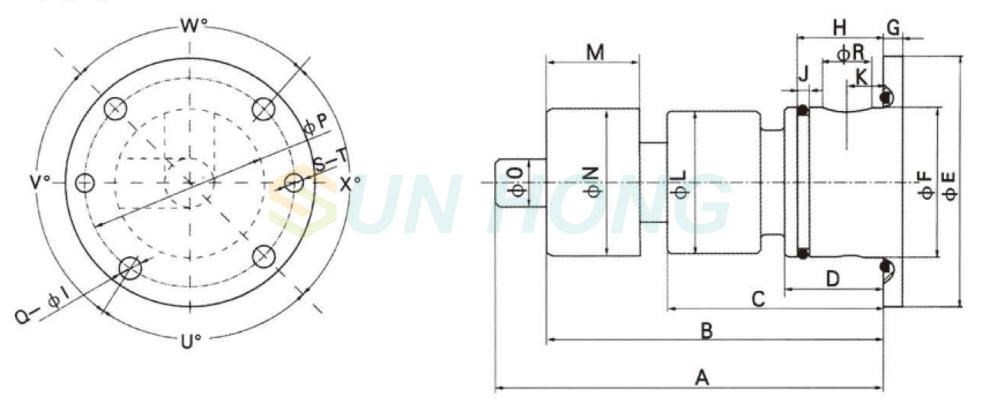

Insert Type Rotary Joint
The insert type rotary joint is a transitional connection sealing device in the field of engineering technology that inputs fluid media from static systems to dynamic rotating systems. It is mainly used for cooling the rollers inside continuous casting machines in the metallurgical industry. Its function is to extend the service life of rollers with internal cooling structure, which has significant advantages compared to solid rollers with external cooling.
 |  |
Use Condition
Axial expansion and contraction | 10mm |
| Maximum working pressure | 1.2MPa |
| Experimental pressure | 1.8MPa |
| Maximum operating temperature | 120 ° C |
| Maximum speed | 60r/min |

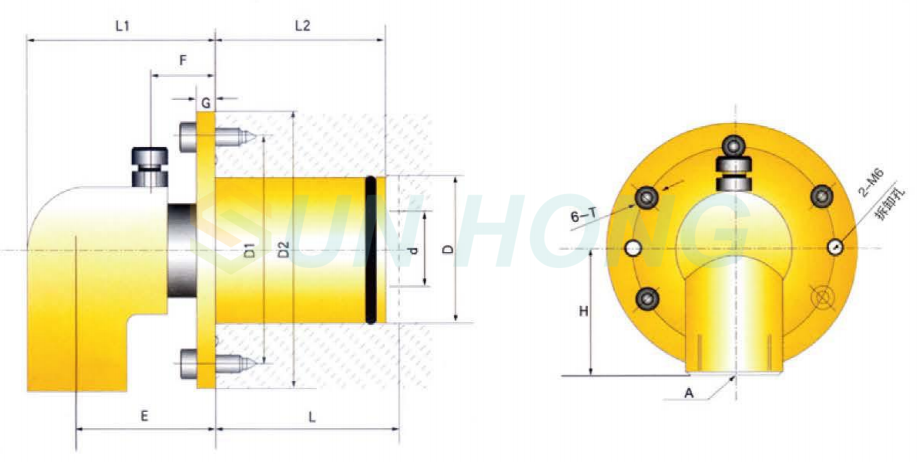

Elbow Type Rotary Joint
The elbow type rotary joint system is designed based on the characteristics of modern connection equipment continuous casting machine rolls. It penetrates the majority of the joint shape into the inside and outside of the rolls, only exposing the pipe connection bends, which is conducive to the spatial arrangement between the roller flows. The sealing structure design of the rotary joint not only adopts a balanced sealing design, but also changes the original axial serial type to a unique inverted internal sealing type. This not only reduces the axial length, but also integrates the shell structure, which is more conducive to the disassembly and maintenance of the joint.
 |  |
Use Condition
Axial expansion and contraction | 10mm |
| Maximum working pressure | 1.5MPa |
| Suitable media | Water, hydraulic oil, coolant,etc |
| Maximum operating temperature | 120 ° C |
| Maximum speed | 60r/min |
