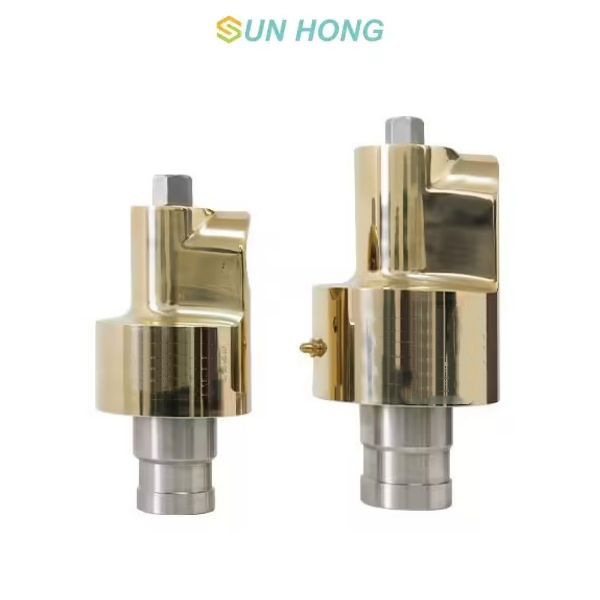

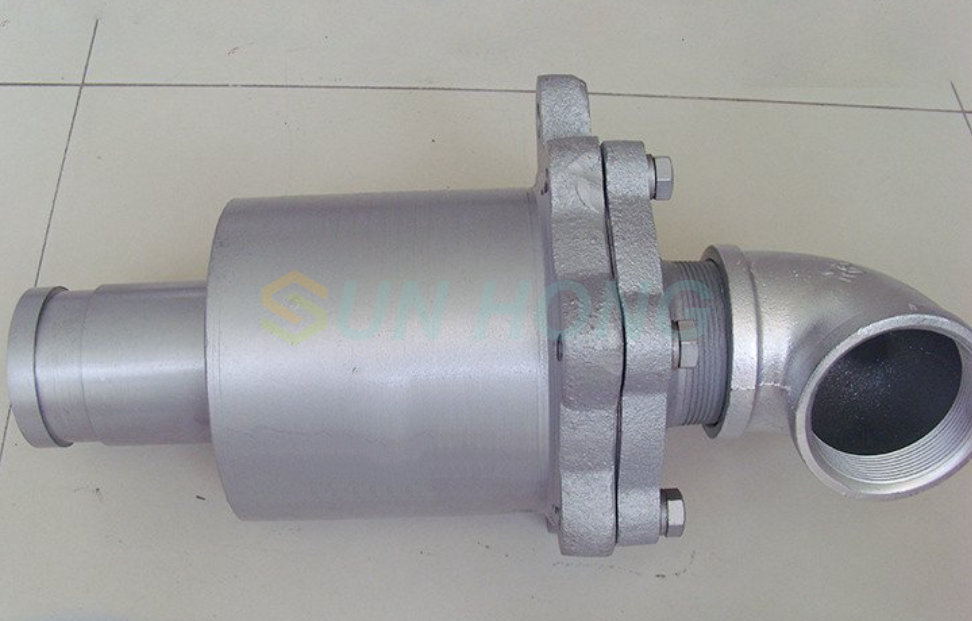

Cold Water Rotary Joint
Cold water rotary joint is a connecting sealing device that inputs fluid medium from a stationary pipeline into rotating or reciprocating equipment, and then discharges it from there. Its core working principle is to use a balanced end face seal, with springs providing pre tension and allowing for automatic compensation and centering to ensure the reliability and durability of the seal.

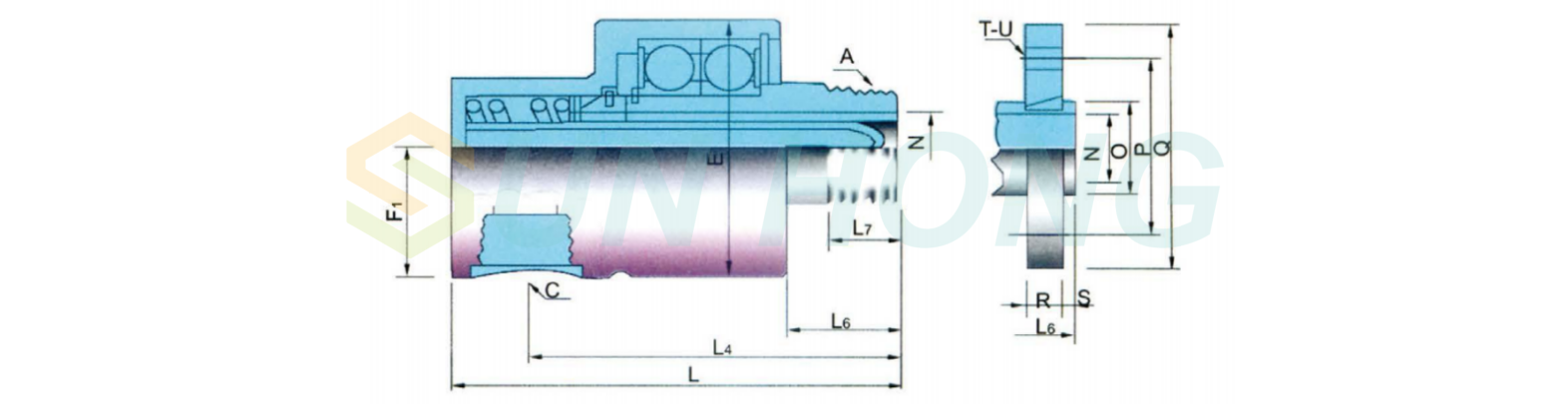

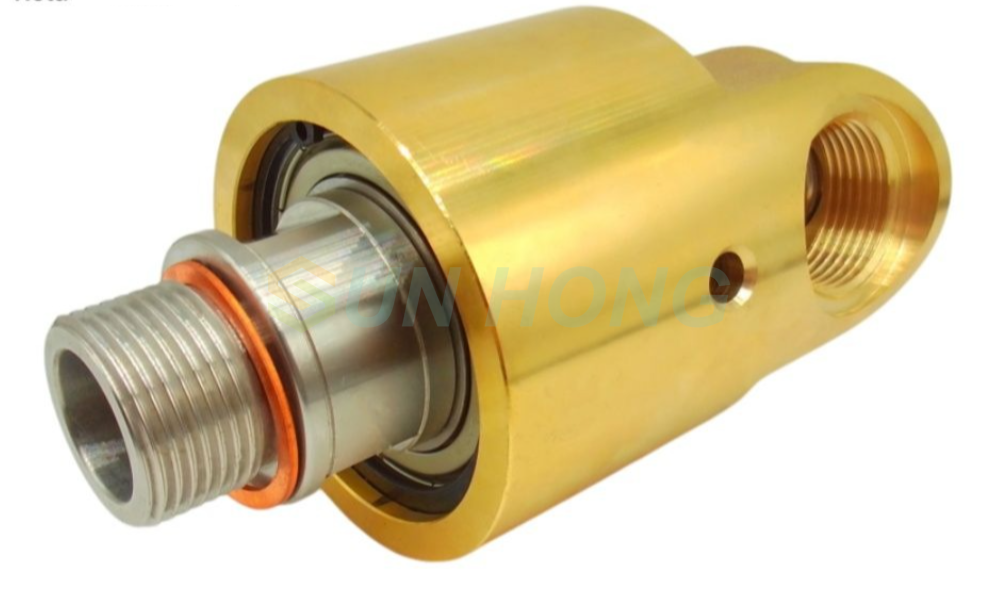

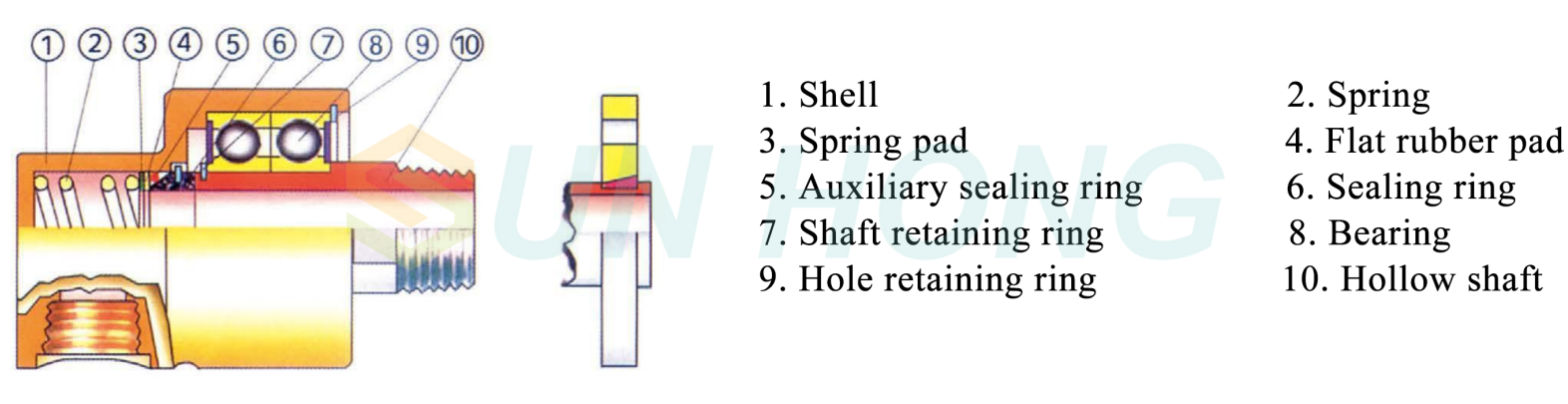

Mono Flow Rotary Joint
| Waterproof and rust proof design, the shell is made of cast copper, the rotating shaft is made of stainless steel, and the appearance is beautiful and generous. By integrating the characteristics of internal sealing and end face sealing structures, and adopting a balanced sealing design, the rotating shaft and sealing components form a dynamic seal as a whole, effectively solving the local wear of the sealing end face caused by the lack of concentricity between the sealing surface and the static seal. In addition, the support of the rolling bearing on the hollow shaft greatly reduces the rotational torque and extends the service life. |
 |  |

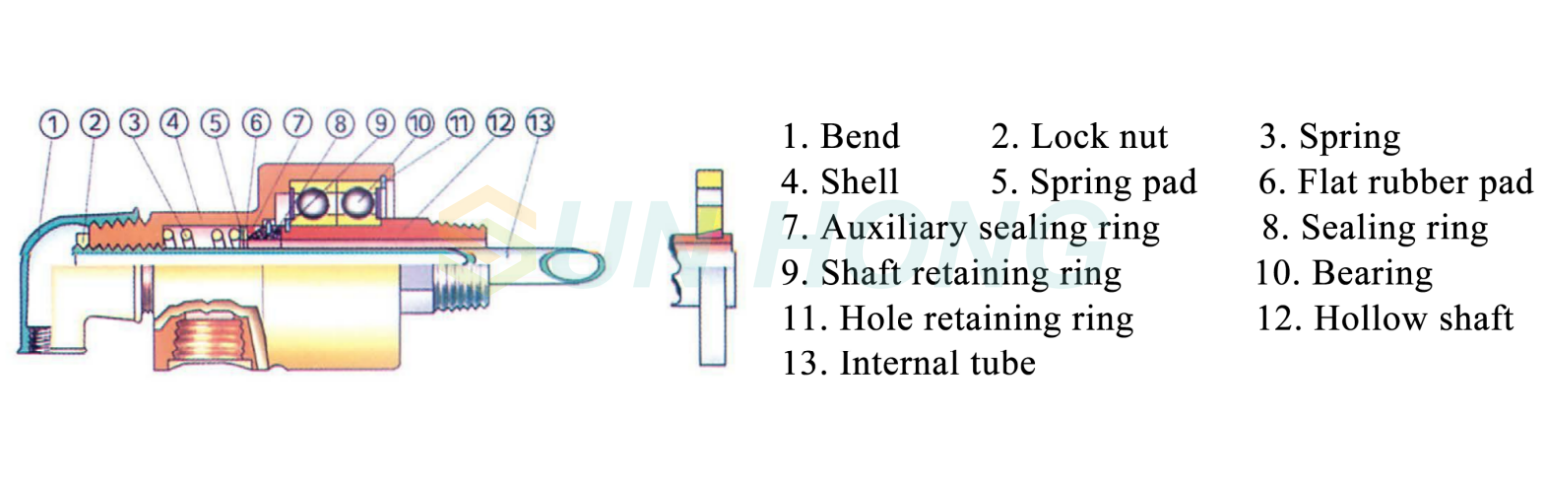

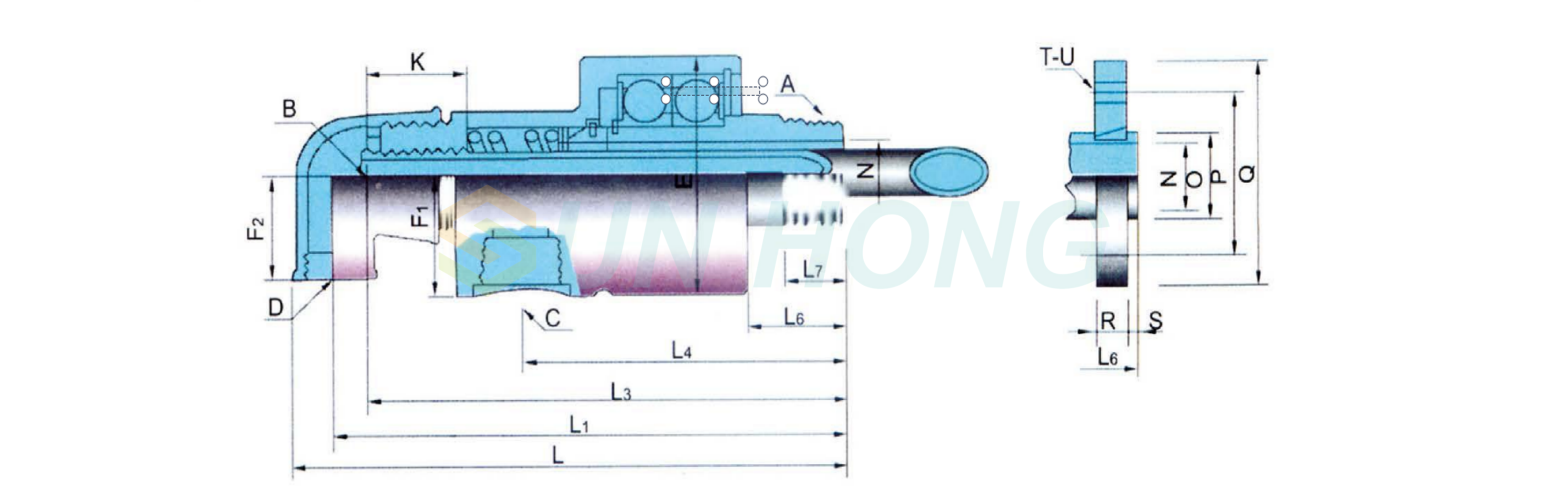

Dual Flow Rotary Joint
| Waterproof and rust proof design, the shell is made of cast copper, the rotating shaft is made of stainless steel, and the appearance is beautiful and generous. By integrating the characteristics of internal sealing and end face sealing structures, and adopting a balanced sealing design, a dynamic seal is formed between the rotating shaft and the sealing element, effectively solving the local wear of the sealing end face caused by the lack of concentricity between the sealing surface and the static sealing ring. In addition, the support of the hollow shaft by the rolling bearing greatly reduces the rotational torque and extends the service life. |
 |  |
Use Condition
| Maximum speed | 1000RPM |
| Maximum pressure | 1.0MPa |
| Maximum temperature | 100° C |
| Applicable media | cold water, water, vacuum, air, etc. |
Cold Water Rotary Joint
Cold water rotary joint is a connecting sealing device that inputs fluid medium from a stationary pipeline into rotating or reciprocating equipment, and then discharges it from there. Its core working principle is to use a balanced end face seal, with springs providing pre tension and allowing for automatic compensation and centering to ensure the reliability and durability of the seal.
Mono Flow Rotary Joint
| Waterproof and rust proof design, the shell is made of cast copper, the rotating shaft is made of stainless steel, and the appearance is beautiful and generous. By integrating the characteristics of internal sealing and end face sealing structures, and adopting a balanced sealing design, the rotating shaft and sealing components form a dynamic seal as a whole, effectively solving the local wear of the sealing end face caused by the lack of concentricity between the sealing surface and the static seal. In addition, the support of the rolling bearing on the hollow shaft greatly reduces the rotational torque and extends the service life. |
| |
Dual Flow Rotary Joint
| Waterproof and rust proof design, the shell is made of cast copper, the rotating shaft is made of stainless steel, and the appearance is beautiful and generous. By integrating the characteristics of internal sealing and end face sealing structures, and adopting a balanced sealing design, a dynamic seal is formed between the rotating shaft and the sealing element, effectively solving the local wear of the sealing end face caused by the lack of concentricity between the sealing surface and the static sealing ring. In addition, the support of the hollow shaft by the rolling bearing greatly reduces the rotational torque and extends the service life. |
| |
Use Condition
| Maximum speed | 1000RPM |
| Maximum pressure | 1.0MPa |
| Maximum temperature | 100° C |
| Applicable media | cold water, water, vacuum, air, etc. |
