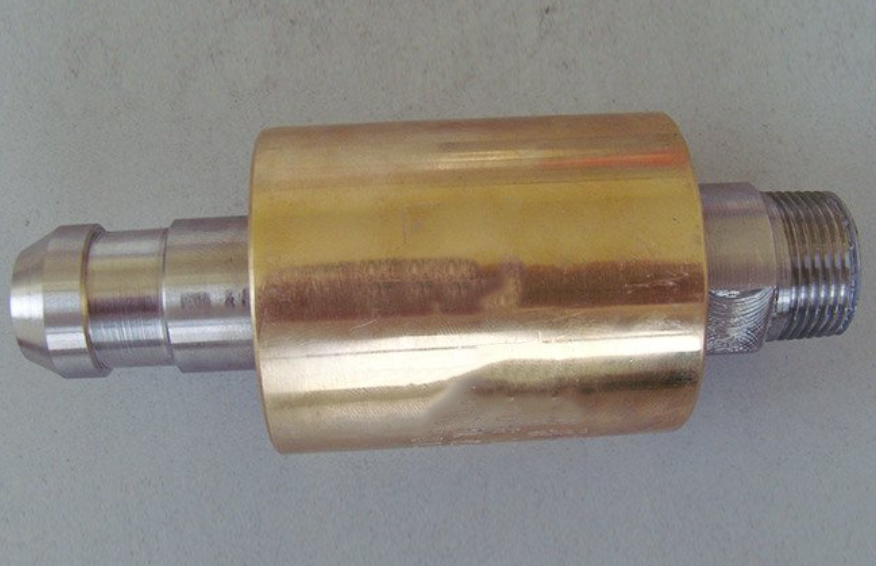

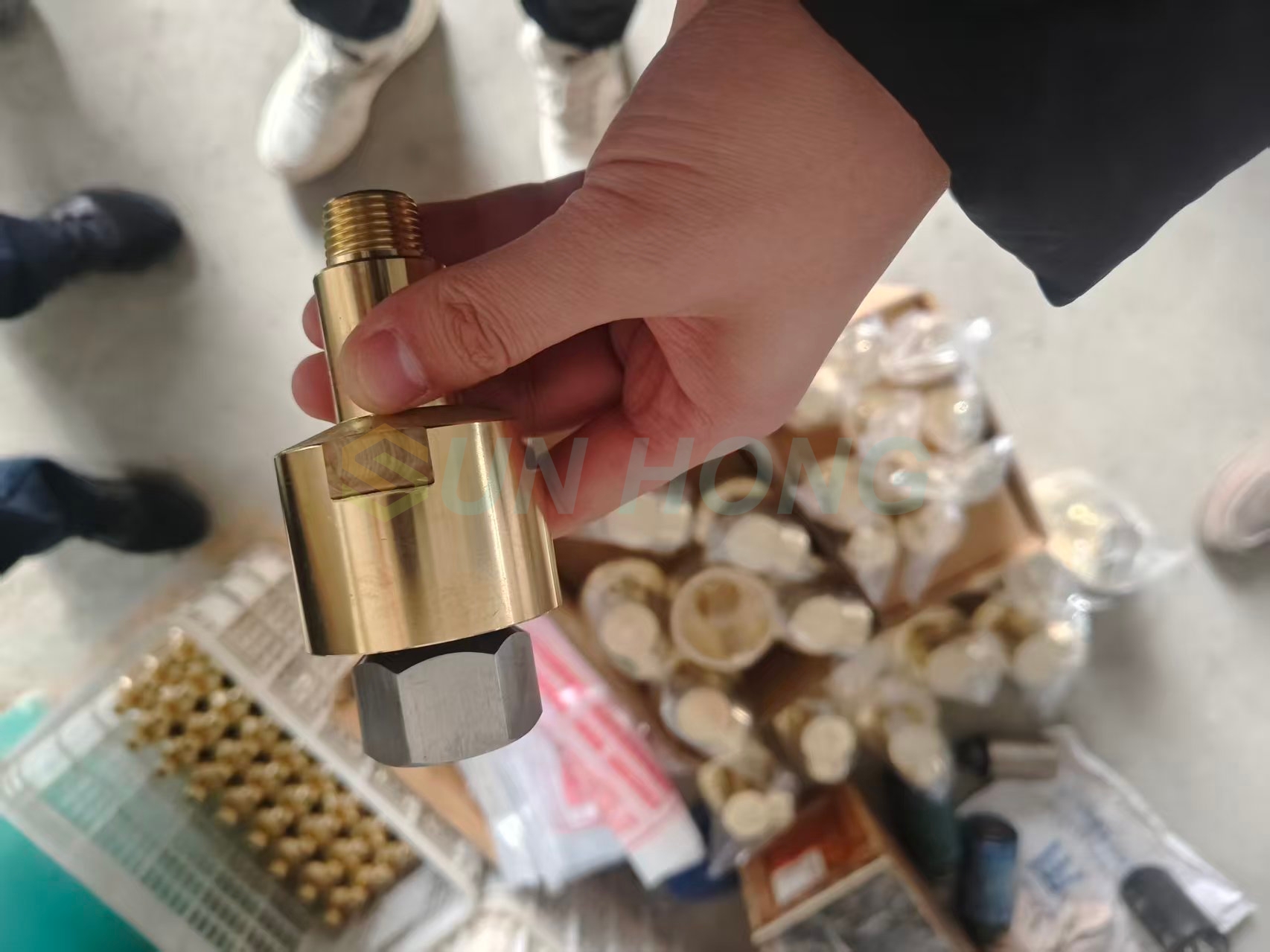

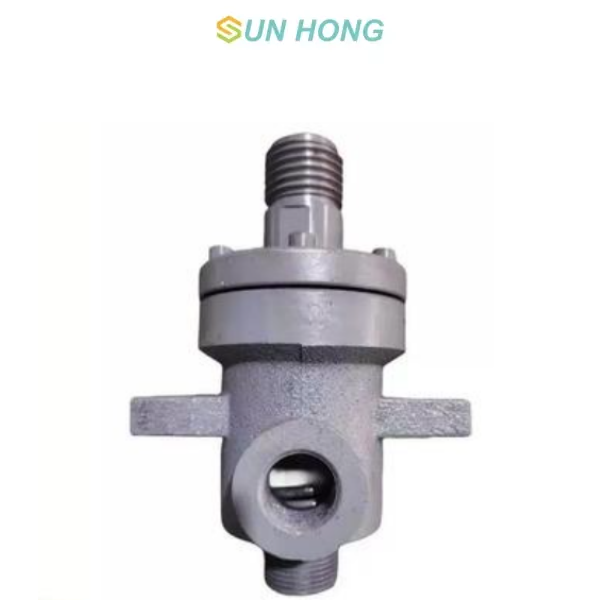

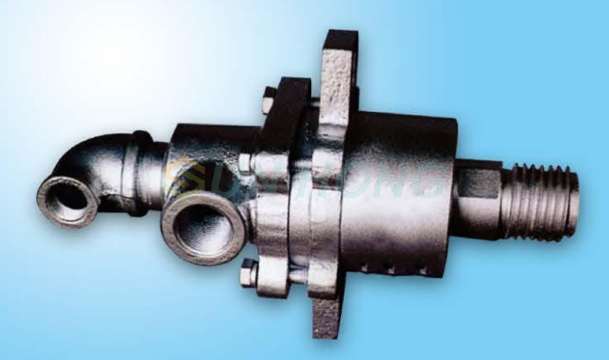

Rotary Joint for Printing And Dyeing Machine

This rotary joint is specially designed for the printing and dyeing industry standard drying cylinder, using balanced sealing surfaces and precision machining technology to ensure sealing reliability. It has the characteristics of small size, light weight, and low friction torque, and is suitable for the transmission needs of media such as water, air, salt water, hydraulic oil, etc. Provide various connection methods such as flanges, inner pipes, and threads to meet industrial applications in printing and dyeing, metallurgy, papermaking, and other fields.

Availability:

Quantity:



Inquire Add to Basket

Product Description

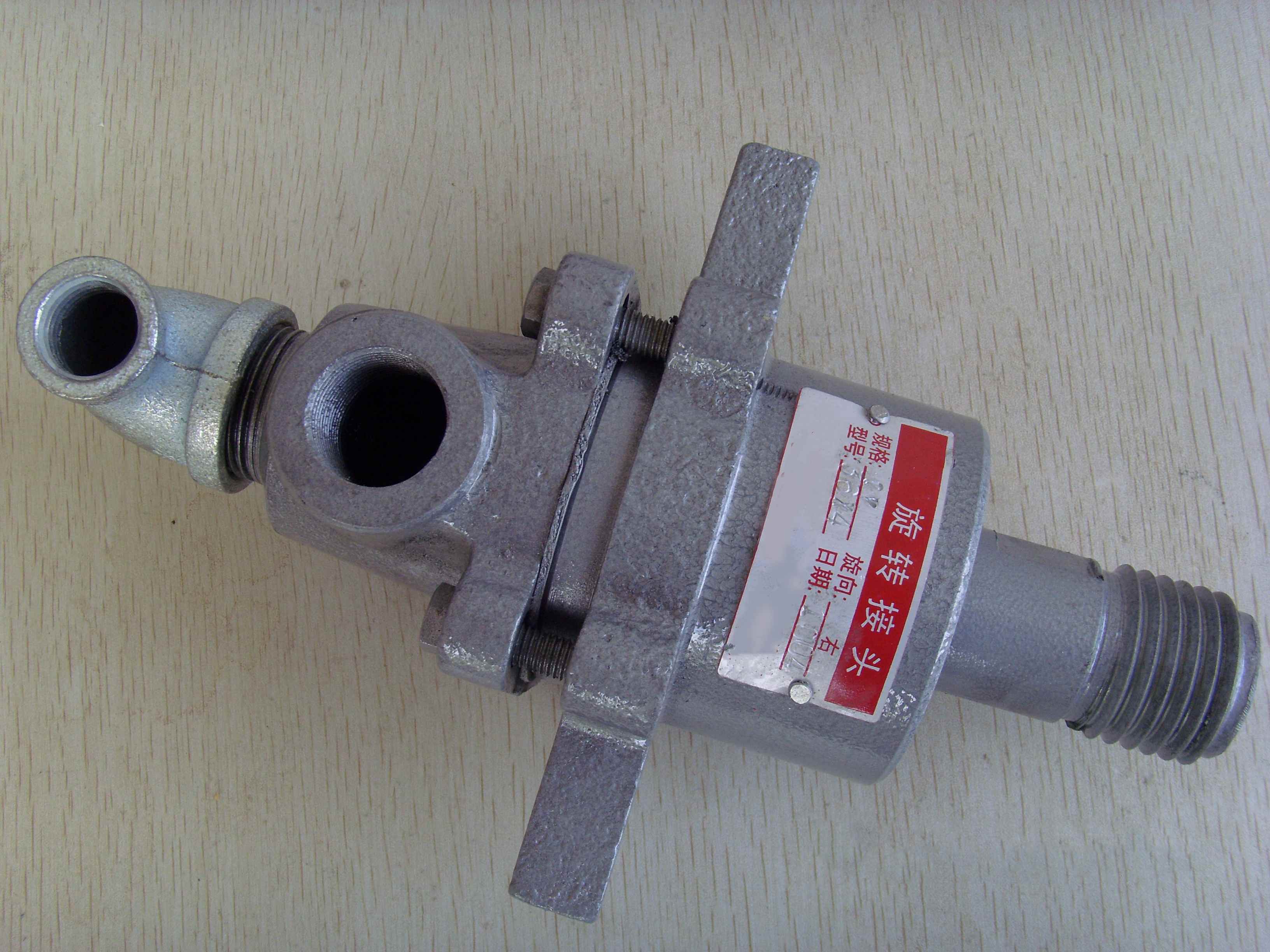

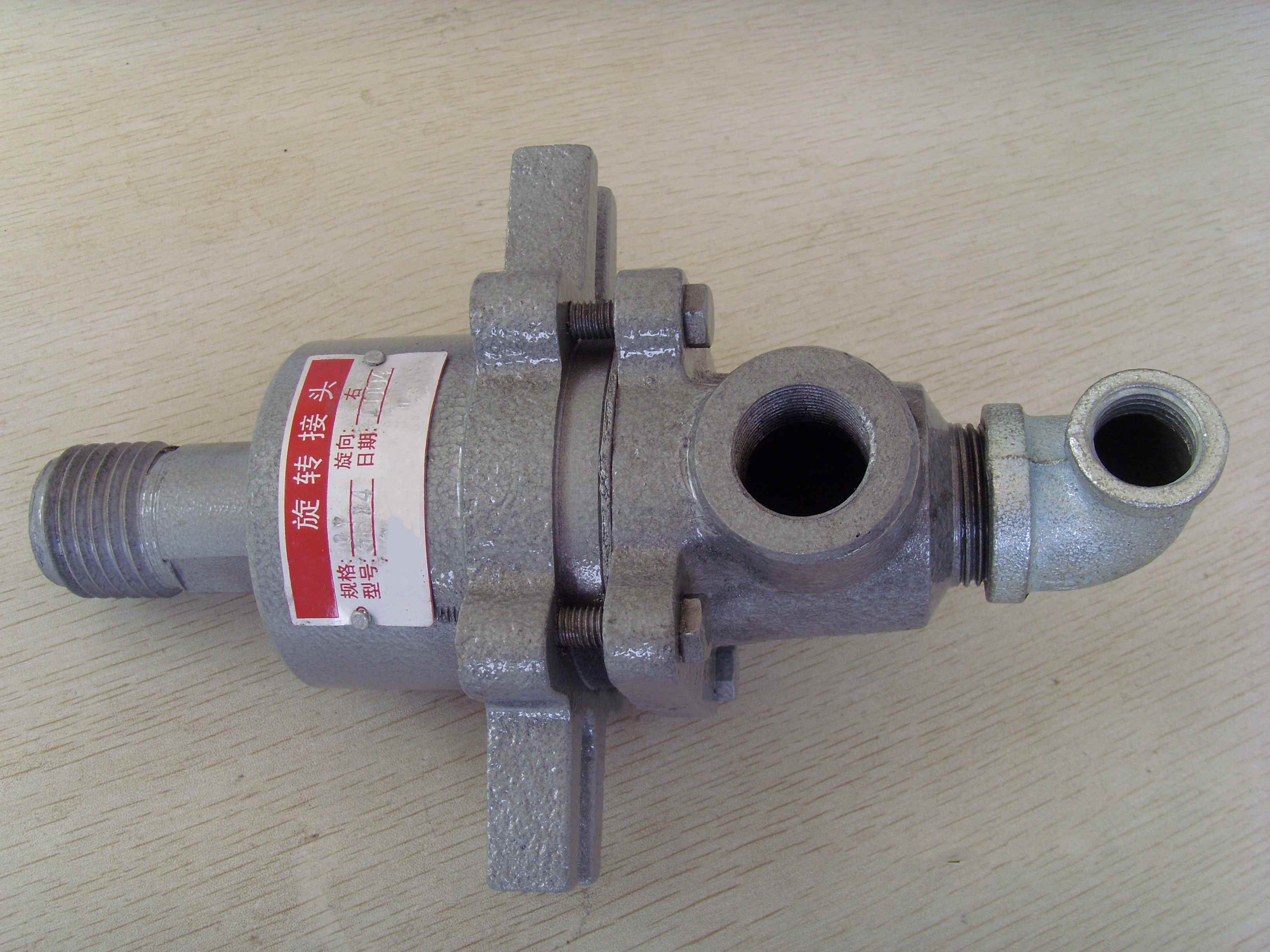

Rotary Joint for Printing and Dyeing Machine

This rotary joint is specifically designed for standard drying drums in the printing and dyeing industry, employing a balanced sealing surface and precision machining processes to ensure reliable sealing. It has the characteristics of small size, light weight, and low friction torque, and is suitable for the transmission needs of media such as water, air, salt water, hydraulic oil, etc. Provide various connection methods such as flanges, inner pipes, and threads to meet industrial applications in printing and dyeing, metallurgy, papermaking, and other fields.

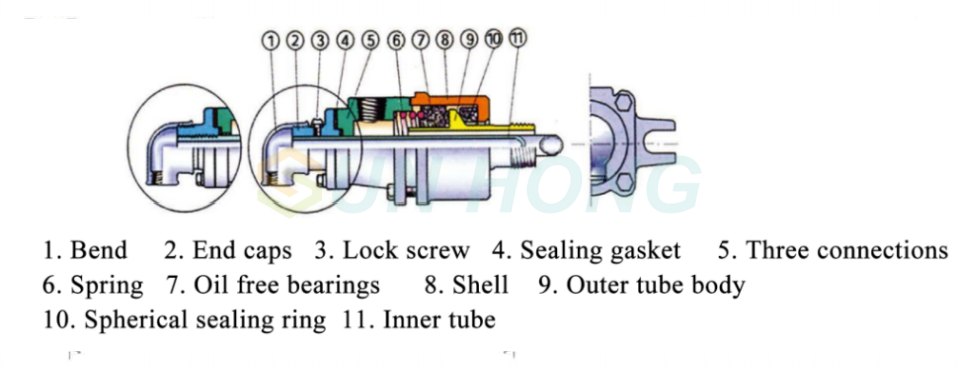

printing and dyeing rotary joint composition

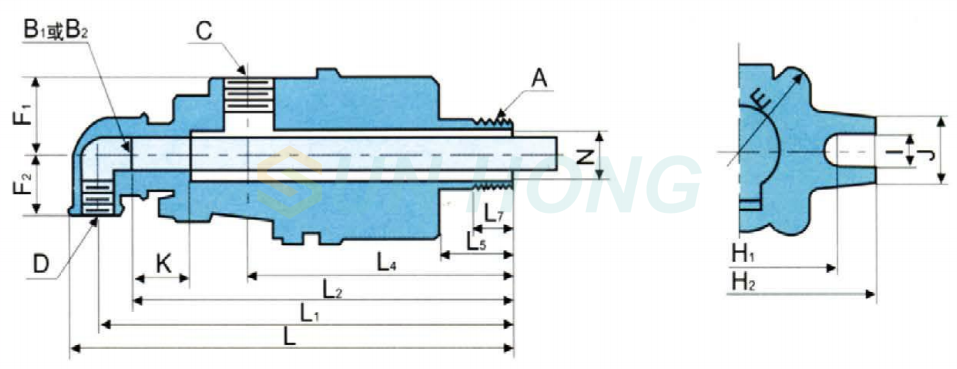

printing and dyeing rotary joint structure

Printing and Dyeing Rotary Joint Structure Main Features

The outer tube body is directly connected to the roller or dryer and is the main rotating component; The precision machined outer tube spherical surface, shell bottom plane, and impregnated graphite spherical sealing ring together form a reliable dynamic sealing friction pair; When steam, water, or other media flow through spherical sealing rings and oil-free bearings, a thin liquid film is formed to provide sealing and lubrication, thereby reducing friction and wear and significantly extending the service life of the rotary joint. In addition, the shell is equipped with double ear anti rotation claws suitable for the printing and dyeing drying cylinder structure, which facilitates the replacement and installation of the original steam supply joint.

Printing and Dyeing Rotary Joint Use Condition

Maximum speed	100RP
Maximum temperature	220 ° C
Maximum pressure	1.8MP
Applicable media	steam, water, hot water, thermal oil, etc.

Rotary joint steam rotary joint mono flow rotary joint dual flow rotary joint hot oil rotary joint cold water rotary joint printing and dyeing machine rotary joint
