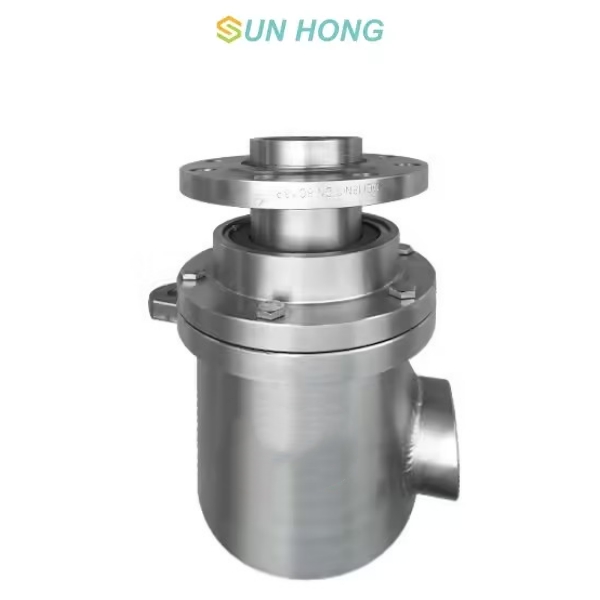

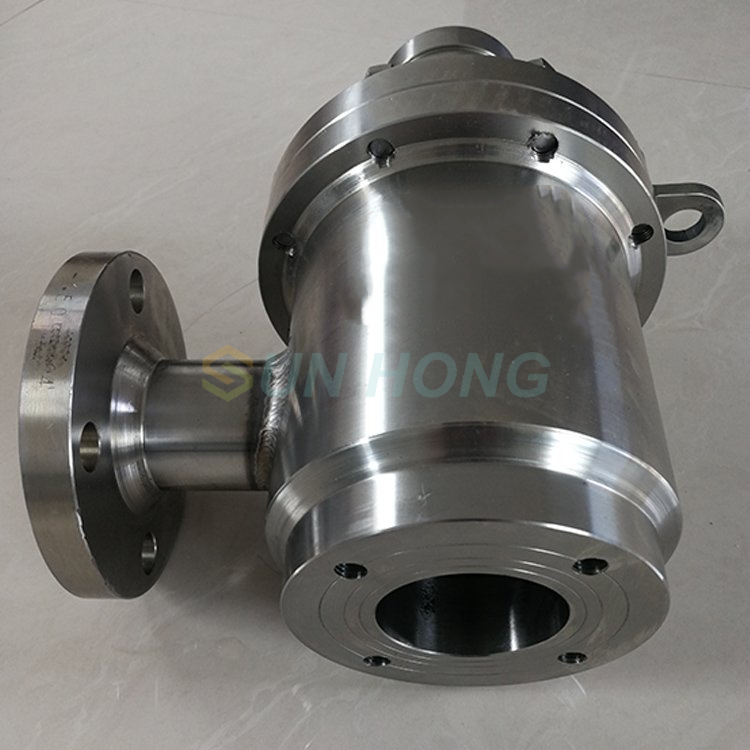

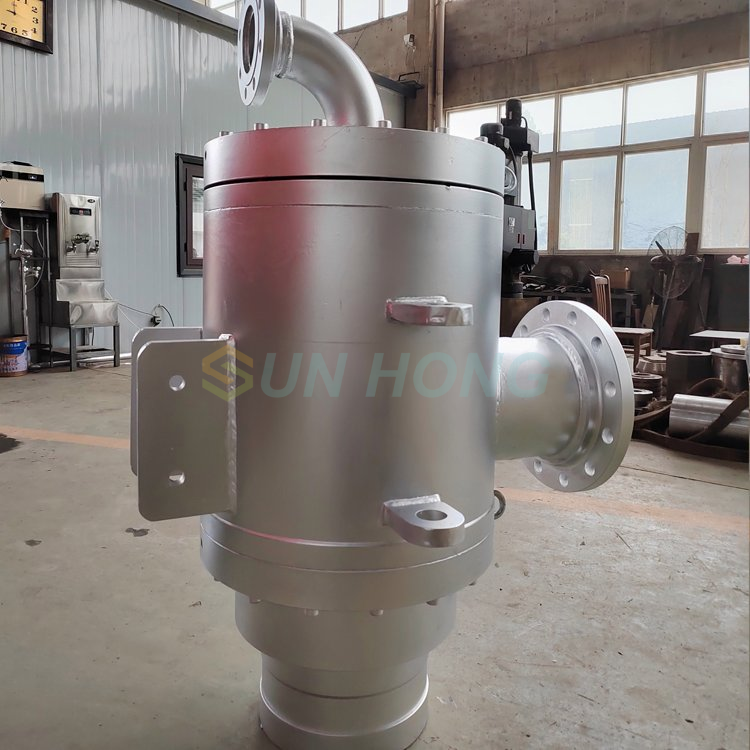

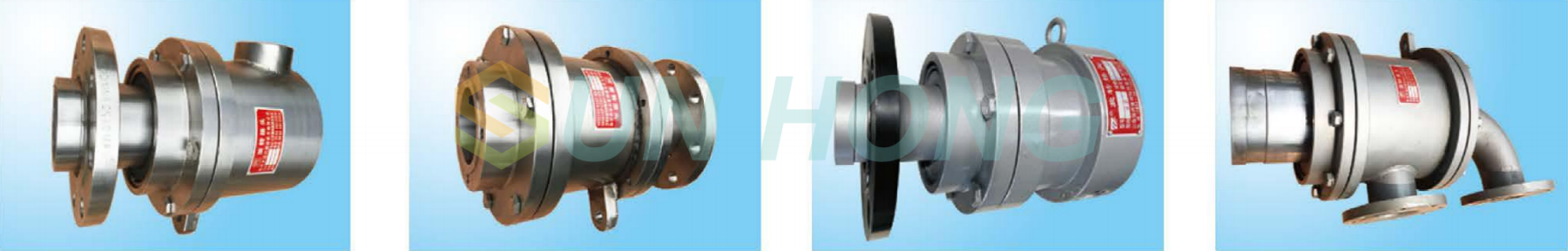

Rotary Joint for Drying Equipment
Research and development of rotary joints for drying machinery, based on the characteristics of related drying industries such as chemical, food, pharmaceutical, and feed industries, we have professionally developed rotary joints for various drying equipment such as "double cone rotary dryer", "hollow blade dryer", "drum scraper dryer", and "vacuum rake dryer" to ensure material and quality.
| Capacity | Model | Lower 300L | 350-500L | 1000-2500L | 3000-4000L | 5000L |
| Rotary Joint | Heat End | GQSF40A | GQSF40A | GQSF50A | GQSF65A | GQSF80A |
| Rotary Joint | Vacuum End | GQDF50A | GQDF65A | GQDF80A | GQDF100A | GQDF125A |
Model Instruction

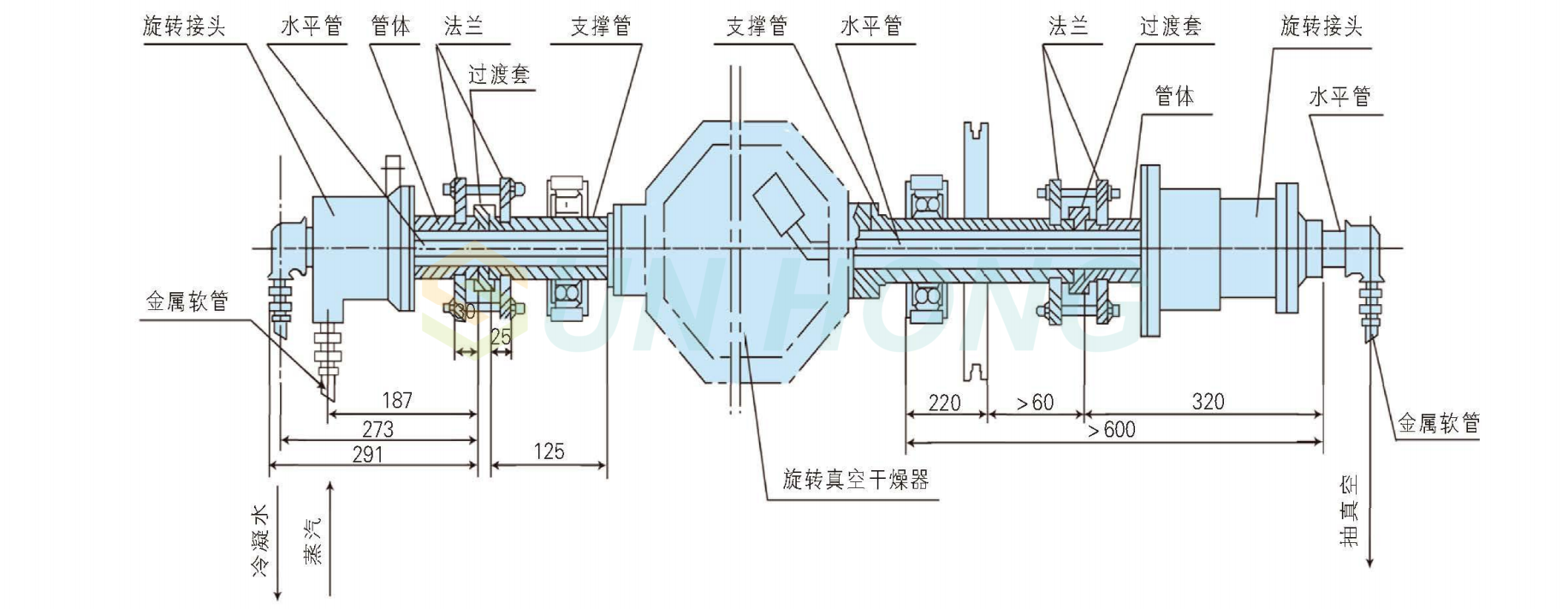

1.This type of rotary joint is designed and developed specifically for the double cone drying equipment in the drying industry;
2. There are two heating methods for the heating end: steam and hot oil. If the medium is thermal oil, please explain;
3. The specifications and models of rotary joints used for different double cone capacities can refer to the table above;
4. Whether the horizontal tube inside the double cone equipment rotates synchronously with the double cone, please specify when selecting.
