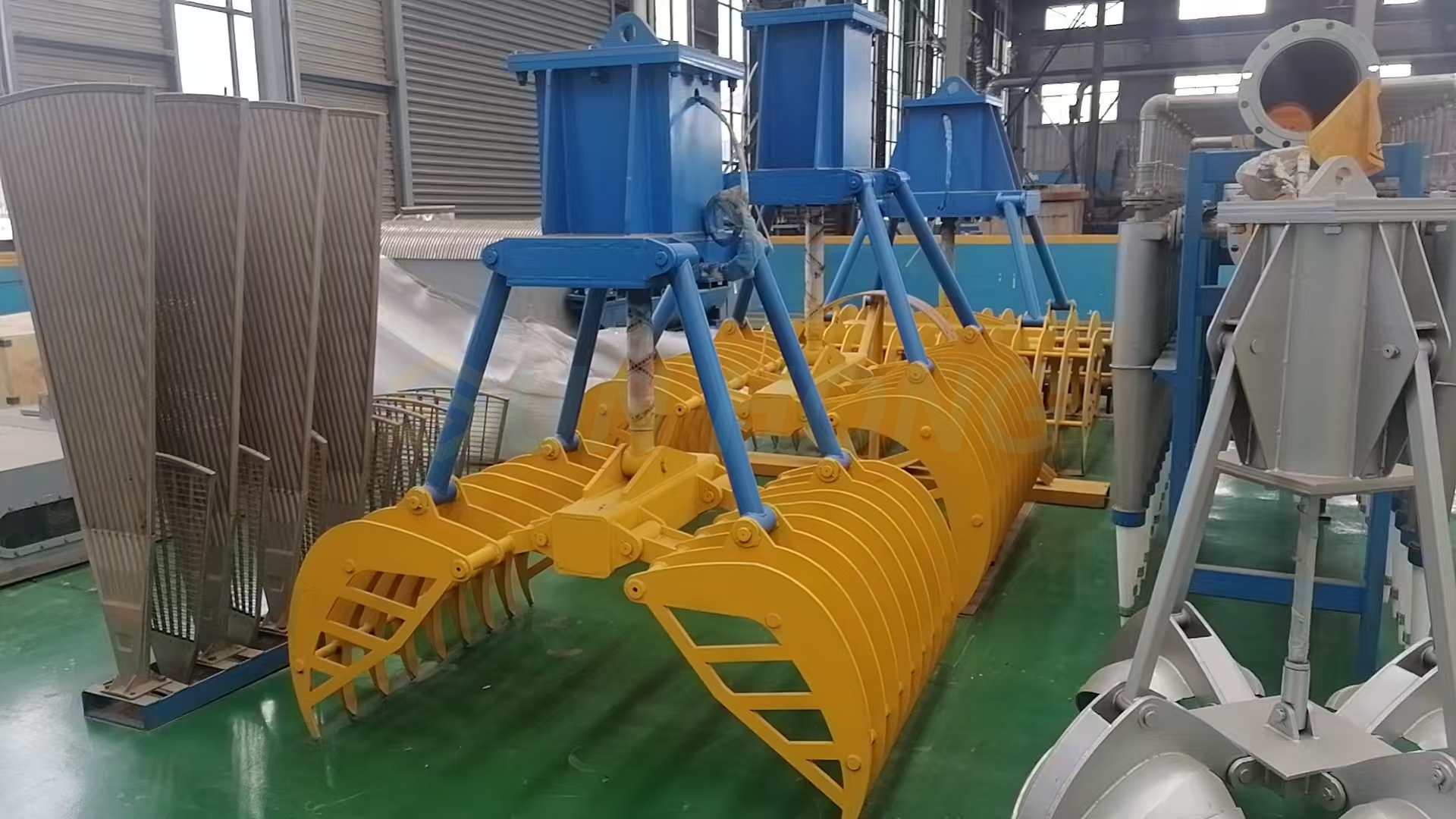

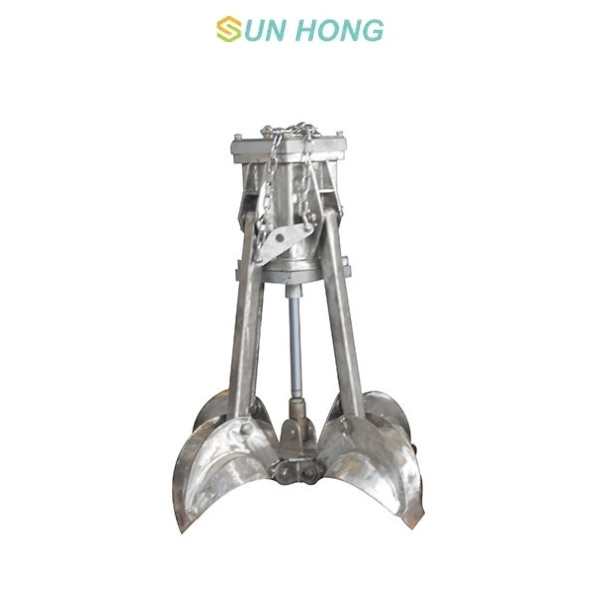

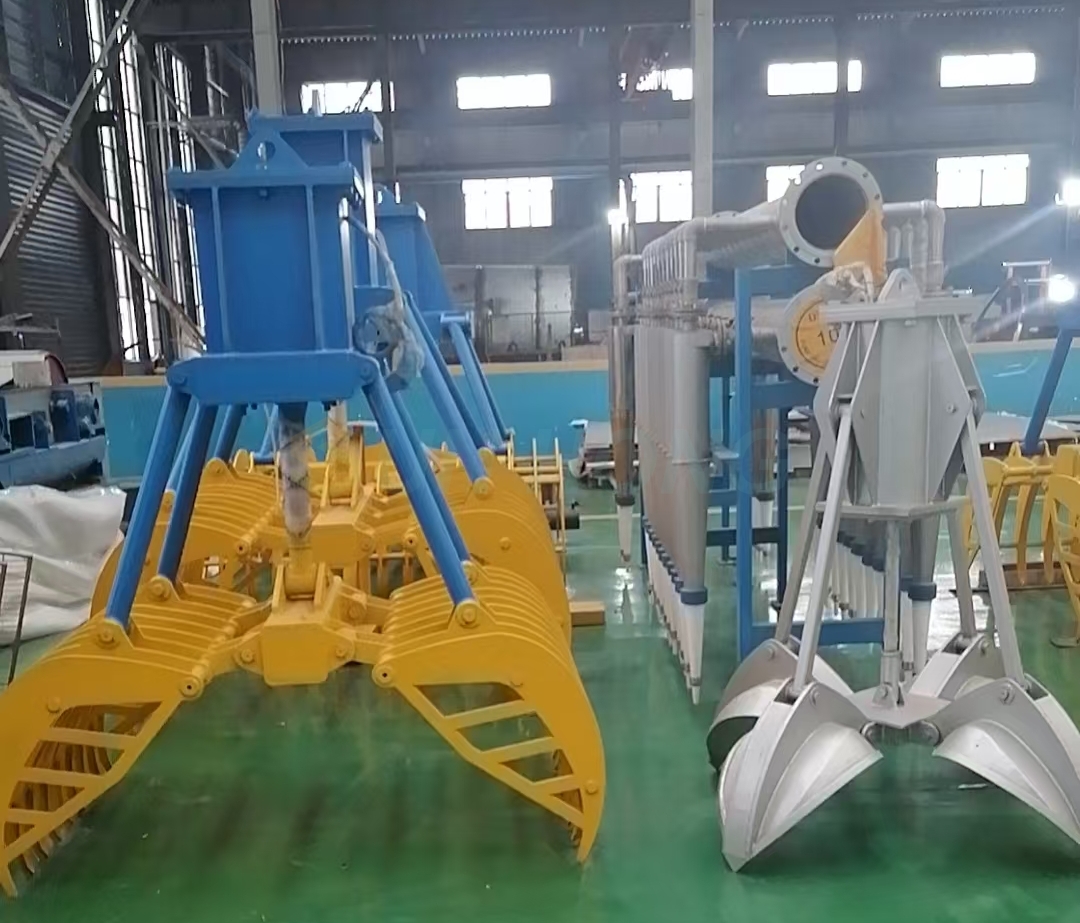

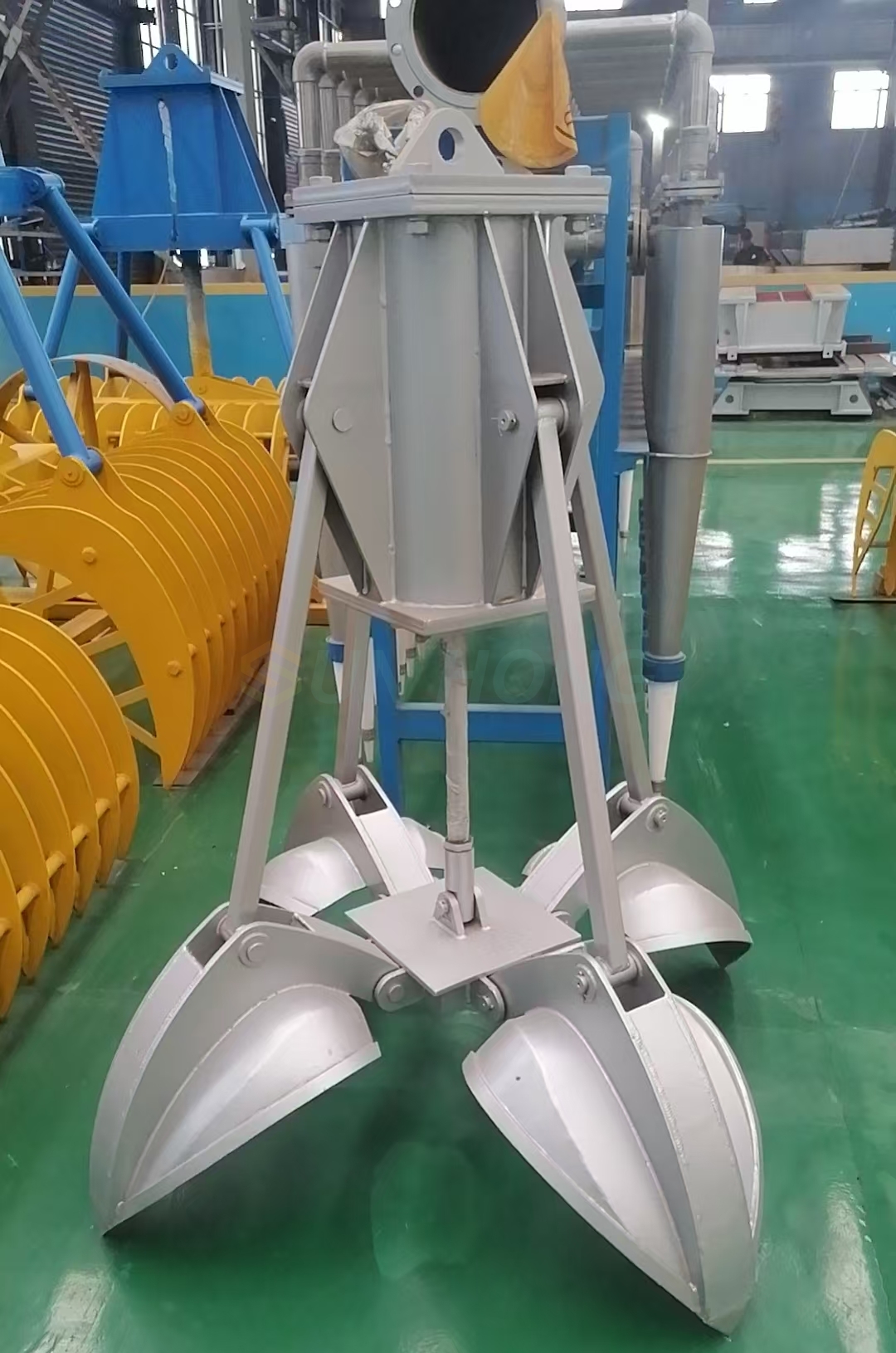

It's suitable for mixed waste paper, and waste OCC corrugated cardboard. The grapple can remove the discharge of hydrapulper.
It's used to grab the impuiry in the pulper tank, like plastic, ropes, tapes and other waste material
Technical Parameter of Grapple
| Name | 0.05m³ | 0.08m³ | 0.2m³ | 0.24m³ |
| Matching Trash Well | Dia. 1200 | Dia. 1200 | Dia. 1600 | Dia. 1800 |
| Maximum Lifting Weight (kg) | 1000 | 1500 | 2000 | 2200 |
| Rated Load (kg) | 720 | 1150 | 1300 | 1470 |
| Rated Working Pressure (MPa) | 0.6 | |||
