Sun Hong manufacture all kind of cleaner cone for different type cleaner, we have Nylon, stainless stee, ceramic material to match customer's high, middle and low consistency cleaner.
The pulp cleaner is mainly used to remove impurities of recylced paper pulp.
High consistency cleaner: for removing such as sand and iron eyebrows whose density is higher than that of the pulp;
Low consistency cleaner: for removing such as mixed adhesive, paraffin, hot melt adhesive, plastic sheet, foam, gas, ink particles, etc. whose density is lower than that of the pulp.

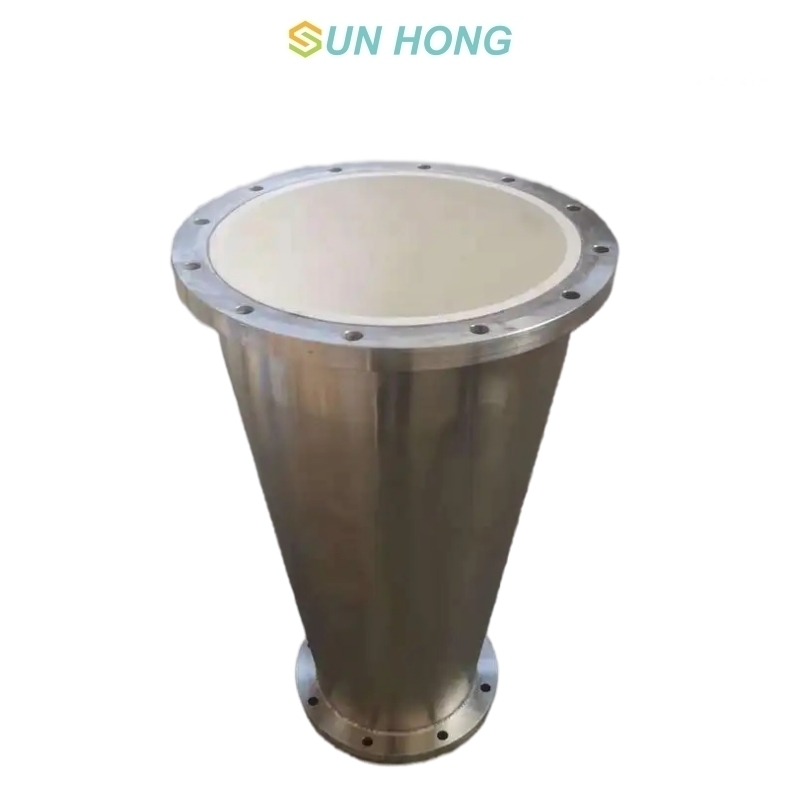

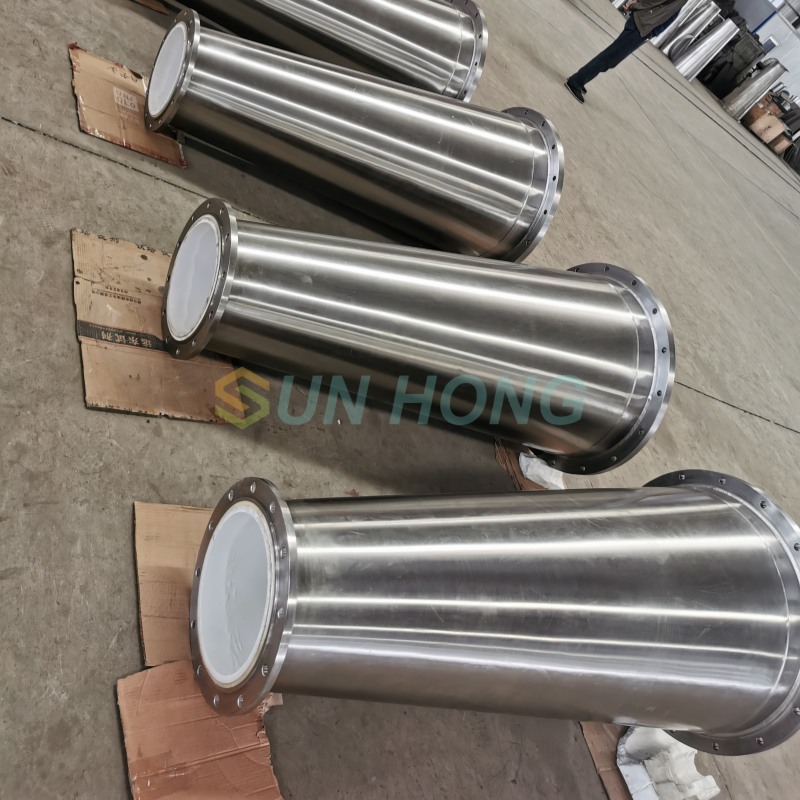

Pulp inlet chamer use thickned stainless steel, middle and bottom section use stainless steel lined with wear resistence ceramic.

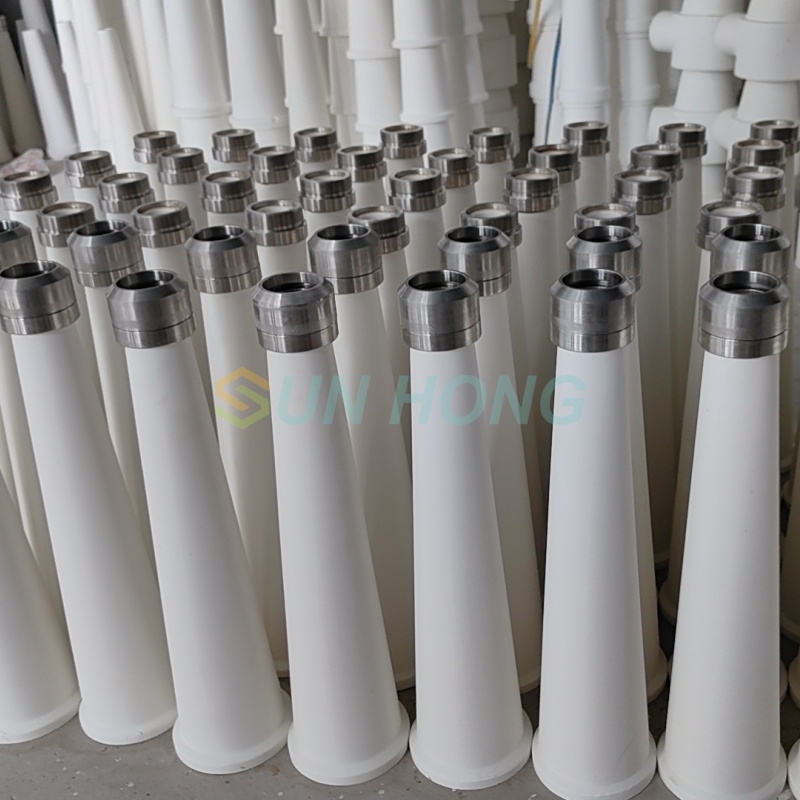

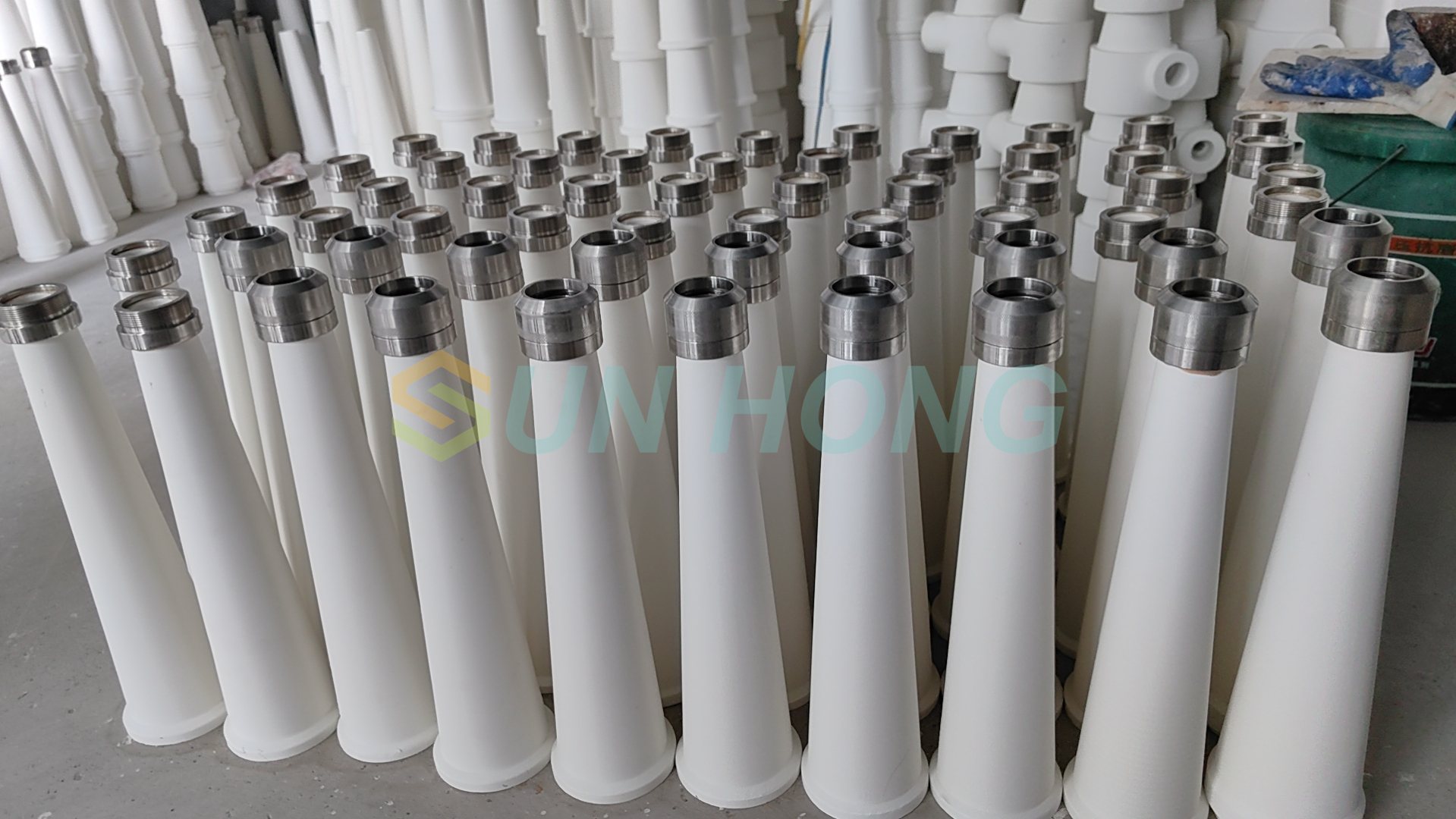

Ceramic Cleaner Cone for Low Density Cleaner
Material: alumina ceramic, size customized by customer
1. High hardness: The hardness is second only to diamond and far exceeds the wear resistance of wear-resistant steel and stainless steel.
2. Excellent wear resistance: The wear resistance of alumina ceramics is 266 times that of manganese steel and 171.5 times that of high chromium cast iron.
3. Lightweight: Its density is 3.5g/cm3, only half of steel, which can greatly reduce equipment load。
| Material | Alumina Ceramic （Al2O3） |
| Hardness (kg/mm2) | 1380 |
| Coefficient of Friction | 365 |
| Bending Strength | 90 |
| Friction Coefficient (%) | ≤0.35 |
| Water Absorption Rate (%) | 0.09 |
| Bulk Density (g/m3) | 3.6 |
| Surface Porosity (%) | 0.32 |
