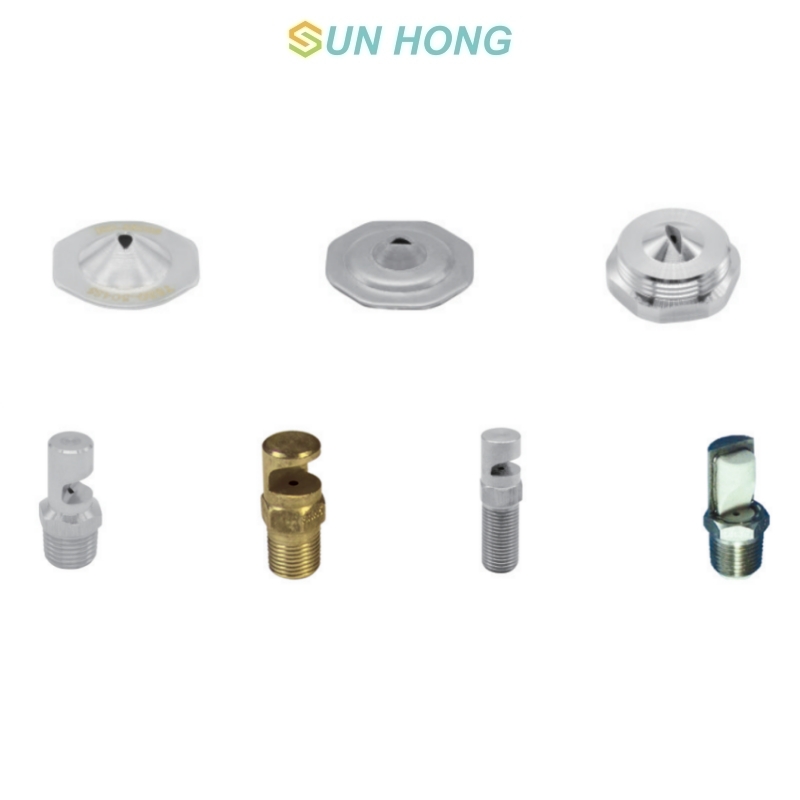

Paper Machine Fan Type Spray Nozzle

Fan Type Spray Nozzle Usage Logic

The liquid sprayed from a fan spray nozzle is distributed in a fan pattern, creating a uniform and concentrated impact force over a wide coverage area. This nozzle is suitable for a wide range of cleaning, flushing, and spraying applications.

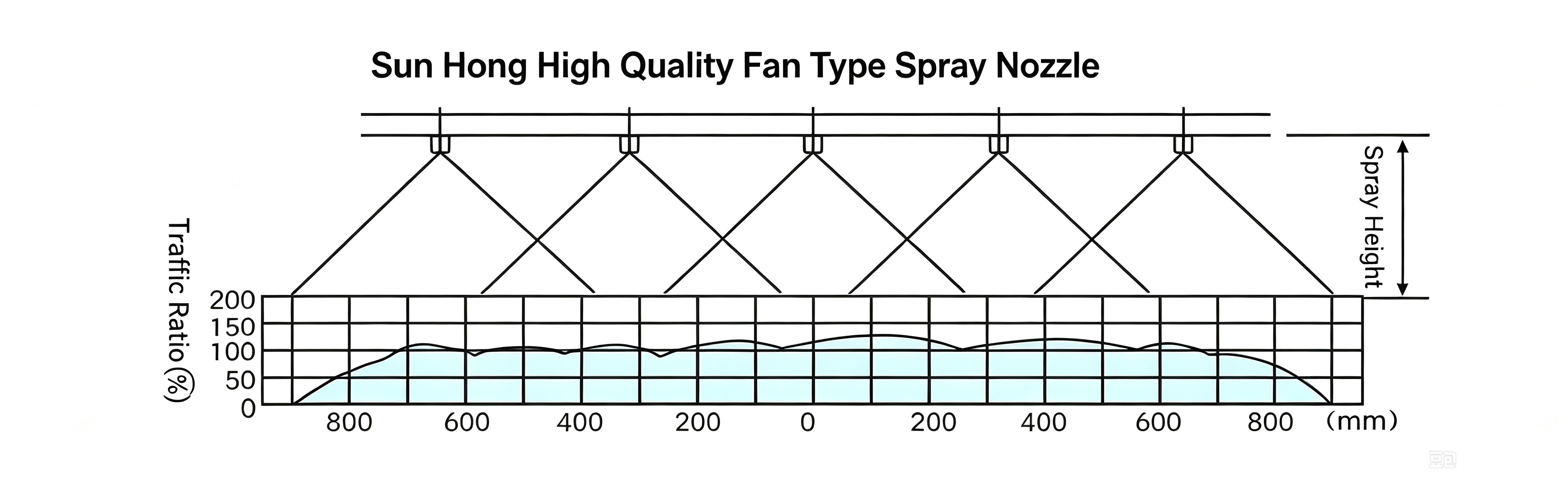

When multiple fan nozzles are installed side by side, the nozzle spacing and spray overlap must be properly designed to achieve a uniform overall flow distribution. The flow distribution, spray height, installation spacing, spray pressure, and properties of the liquid for each individual fan type spray nozzle all affect the final spray performance.

Since performance variations among fan type spray nozzles can cause discrepancies between the actual flow distribution and the design values, it is essential to select Sun Hong spray nozzles, offering you a high manufacturing precision and consistent performance. This will help ensure uniform flow throughout the entire spray area.

Paper Machine Fan Type Spray Nozzle

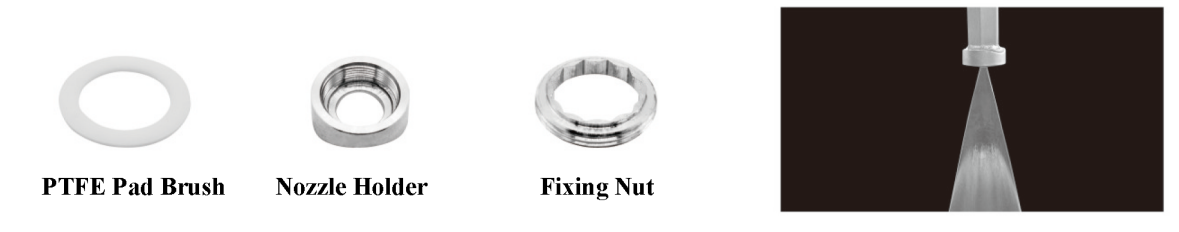

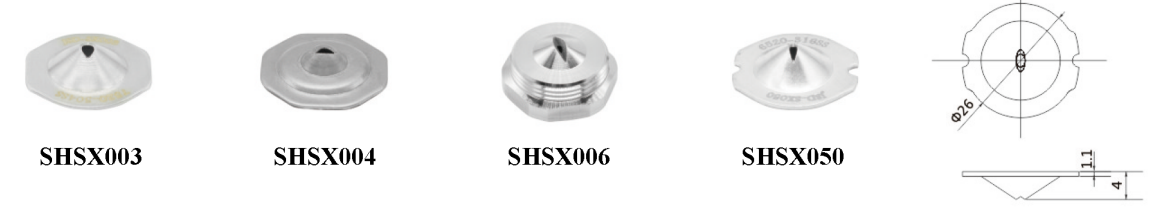

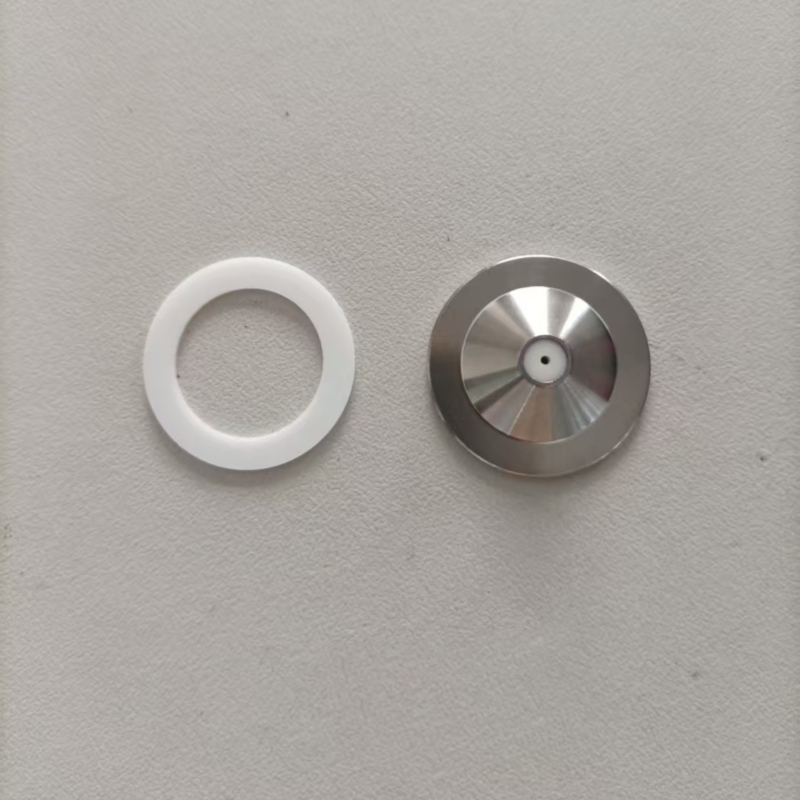

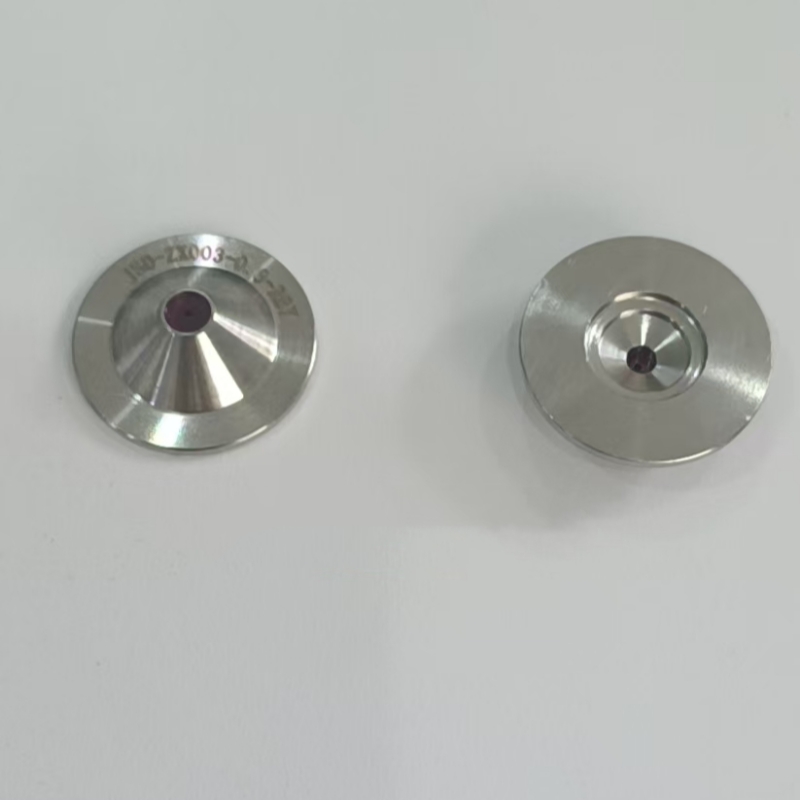

The fan type spray nozzle is used for felt cleaning, blade lubrication, humidification, chemical spray, and can produce a fan-shaped spray with zero shape and high pressure impulse. A low-pressure fan-shaped nozzle designed specifically for brush spraying, with angles of 30 °, 60 °, and 75 °.

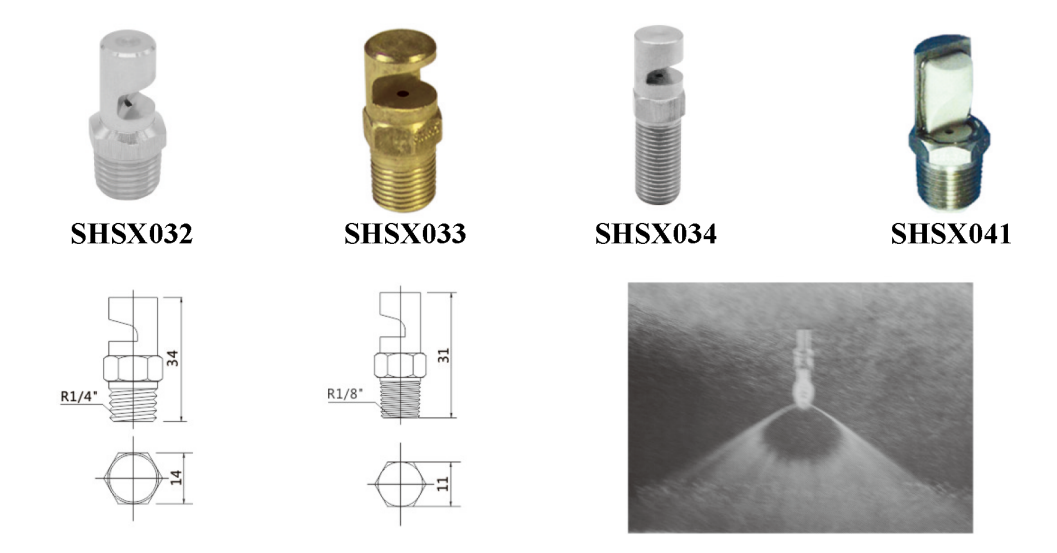

Wide Angle Fan Type Spray Nozzle

Low pressure cleaning of felt and fabric, lubrication of rollers and blades, and cooling. This kind of fan nozzle can produce a wide angle fan spray shape with medium high impact force, and the spray is evenly distributed, with medium size droplets.

Threaded interface: R1/4 ", R3/8", G1/2 "
