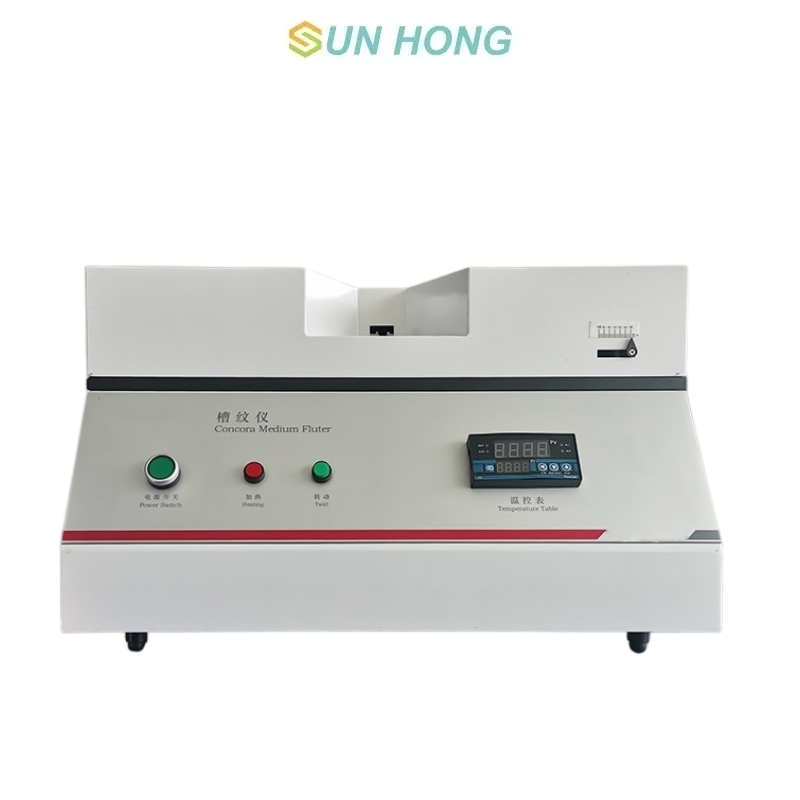

Vertical Fluter
The vertical fluter is a specialized instrument used to prepare standard samples for testing the transverse compressive strength (CMT) and longitudinal compressive strength (CCT) of corrugated core paper. It forms a specific waveform by pressing corrugated paper and uses a compression tester to measure its strength performance. It has temperature and pressure regulation functions and is widely used in paper mills, quality inspection agencies, and other fields, which is crucial for the quality control of corrugated cardboard.
Main Features of Vertical Fluter
1. The high-precision temperature controller accurately adjusts temperature and adopts PID control mode with automatic temperature compensation.
2. Fast response speed and high steady-state accuracy.
3. Digital display of actual temperature and set temperature, with over temperature protection device, automatic memory of set parameters after power failure, and parameter self-tuning function.

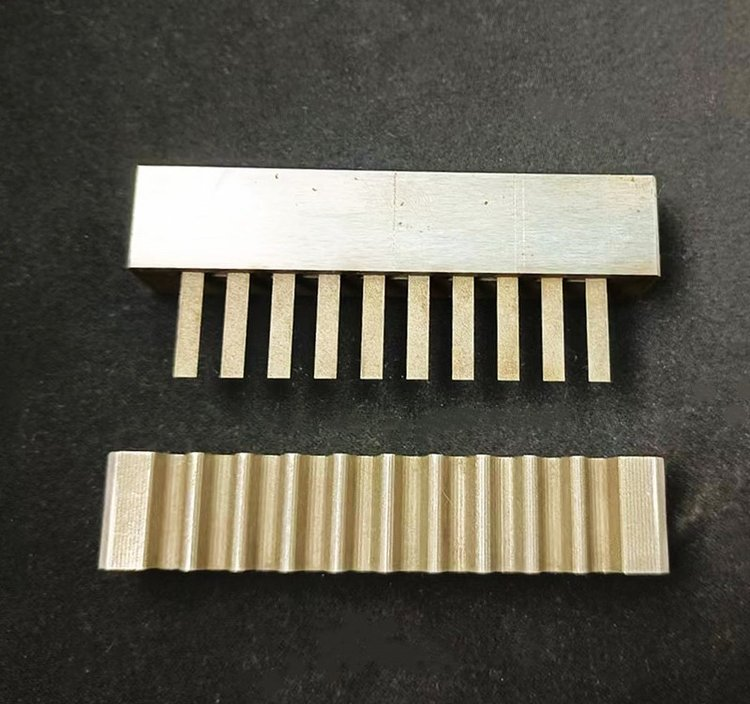

4. Precision processed copper corrugated gears have high heat capacity, good heat transfer, and wear resistance. The standard button is sensitive and durable, and the automatic corrugated paper corrugating method is used.
Technical Parameter
| Working speed | 4.5r/min |
| Temperature display resolution | 1 ℃ |
| Temperature measurement accuracy level | 0.5 |
| Adjustable working temperature range | Room temperature~200℃ |
| Adjustable range of work pressure | (49~108) N |
| Standard operating temperature | 175℃ |
| Spring tension | 100N |
| Dimensions (length X width X height) | Approximately 564mmx377mmx330mm |
| Power supply | AC220V 5%, 50Hz |
