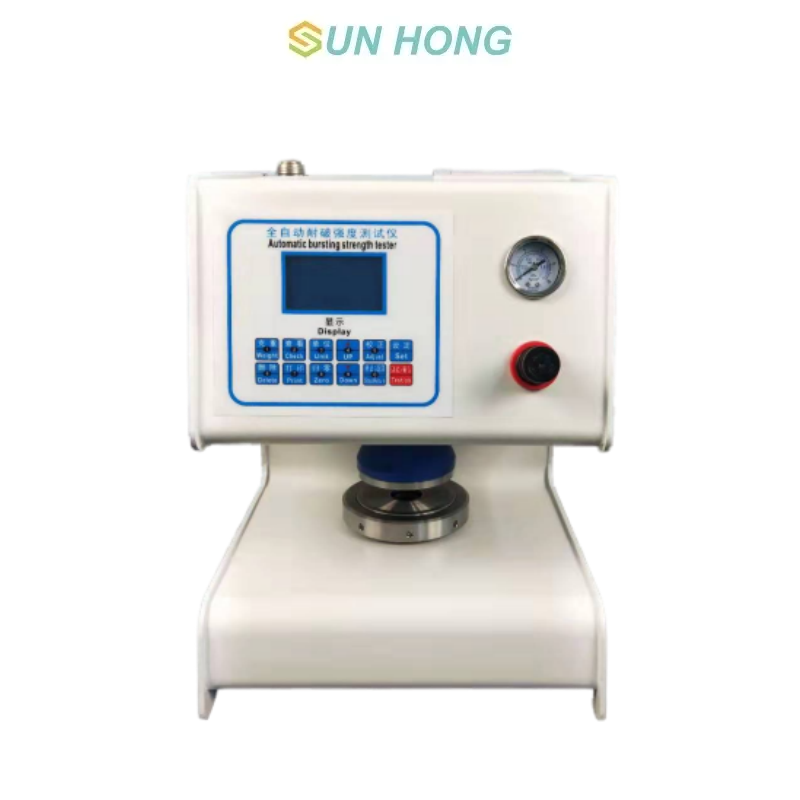

Paper Burst Strength Tester
The fully automatic paper bursting strength tester is an economical and practical aluminum foil paper bursting strength testing machine developed and produced according to the internationally recognized Mullen method and specifically designed to meet market demand. It has complete functions, accurate data, and affordable prices, and is widely used for incoming material testing in paper enterprises. It is a specialized instrument for testing the bursting strength performance of various types of paper and aluminum foil. Its performance parameters and technical indicators comply with standards such as ISO2758 "Paper - Determination of bursting strength" and GB454 "Determination of paper bursting strength". It is suitable for testing the bursting strength of various types of base paper, paper, and aluminum foil, and can also be used for testing the bursting strength of non paper sheet materials such as silk and cotton cloth.
Testing Standard
JIS-L1004、L1018、L1031、K6328、P8131、P8112.GB/T454 -2020
and ASTM-D2210、TAPPI T403、ISO2759-2001、GB/T1539
Technical Parameter
1. Measurement range: 50~1400kpa
2. Accuracy: ≤± 0.5%
3. Resolution: 0.01kpa
4. Deformation error: ≤ 1mm
5. Concentricity of upper and lower plates: ≤ 0.25mm
6. Adhesive film convex disc pressure: 9mm 【 (30 ± 5) kPa 】
7. Oil delivery speed: 95 ± 5ml/min
8. Pressure plate diameter: Upper plate diameter [30.5 ± 0.1mm] Lower plate diameter [33.1 ± 0.1mm]
9. Human computer interface: 3.4 in 320 * 240 dot matrix LCD display, real-time display of data changes
10. Clamping force: 400kpa~1200kpa (adjustable)
11. Unit conversion: Kg/cm2, kpa, lbf/in2
12. Print output: modular integrated thermal printer
13. Dimensions: 400-350 * 500mm
14. Tester weight: 42kg
15. Working environment: temperature (20 ± 10) ℃, humidity<85%
