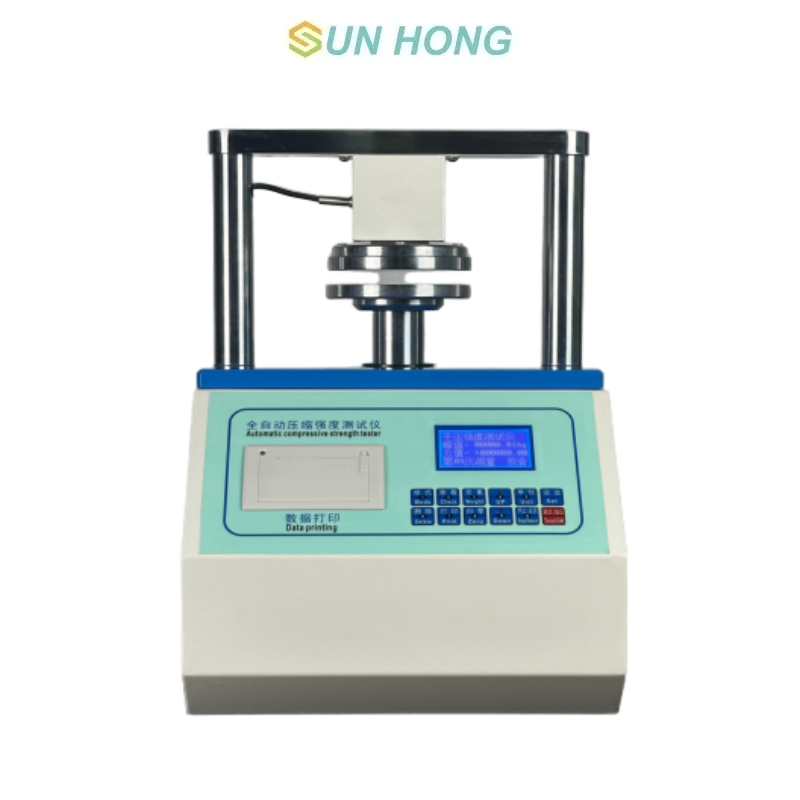

Paper Compression Strength Tester
The fully automatic compression strength tester is used to test the paper ring crush strength, cardboard edge compression strength, corrugated cardboard adhesive strength, corrugated cardboard flat compression strength, and so on. Paper mills are typically used to test the ring crush strength (RCT) of paper with a thickness of 0.15-1.00mm. Cardboard, cardboard box factories, and cardboard box using enterprises are usually used to test the edge compression strength (ECT), flat compression strength (FCT), adhesive strength (PAT), and core flat compression strength (CMT) of corrugated cardboard with a diameter less than 60mm. This instrument is an ideal auxiliary testing tool for paper-making enterprises, cardboard production enterprises, carton production enterprises, carton use enterprises, and quality supervision and inspection departments.
Tester Standard
GB/T 2679.8 "Determination of Ring Crush Strength of Paper and Paperboard"
GB/T 6546 "Determination of Edge Compression Strength of Corrugated Paper Boards"
GB/T 6548 "Determination of Adhesive Strength of Corrugated Paper Boards"
GB/T 2679.6 "Determination of Flat Compressive Strength of Corrugated Paper"
Technical Parameter
| Measurement range | 0~3000N |
| Accuracy | ≤± 1% |
| Resolution | 0.01N |
| Parallelism of pressure plate | ≤ 0.05mm |
| Test speed | 12.5 ± 1mm/min |
| Upper pressure plate diameter | 124mm |
| Lower pressure plate diameter | 127mm |
| Test height range | 55mm |
| Human computer interface | 3.2 in 320 * 240 dot matrix LCD display, real-time display of force value change |
| Print output | Modular integrated thermal printer |
| Working environment | Temperature (20 ± 10) ℃, humidity<85% |
